D85 Surface Mounted Pendant LED Light 20-30W | XHLUX

Luminária pendente LED de montagem em superfície/Luminária pendente de LED/

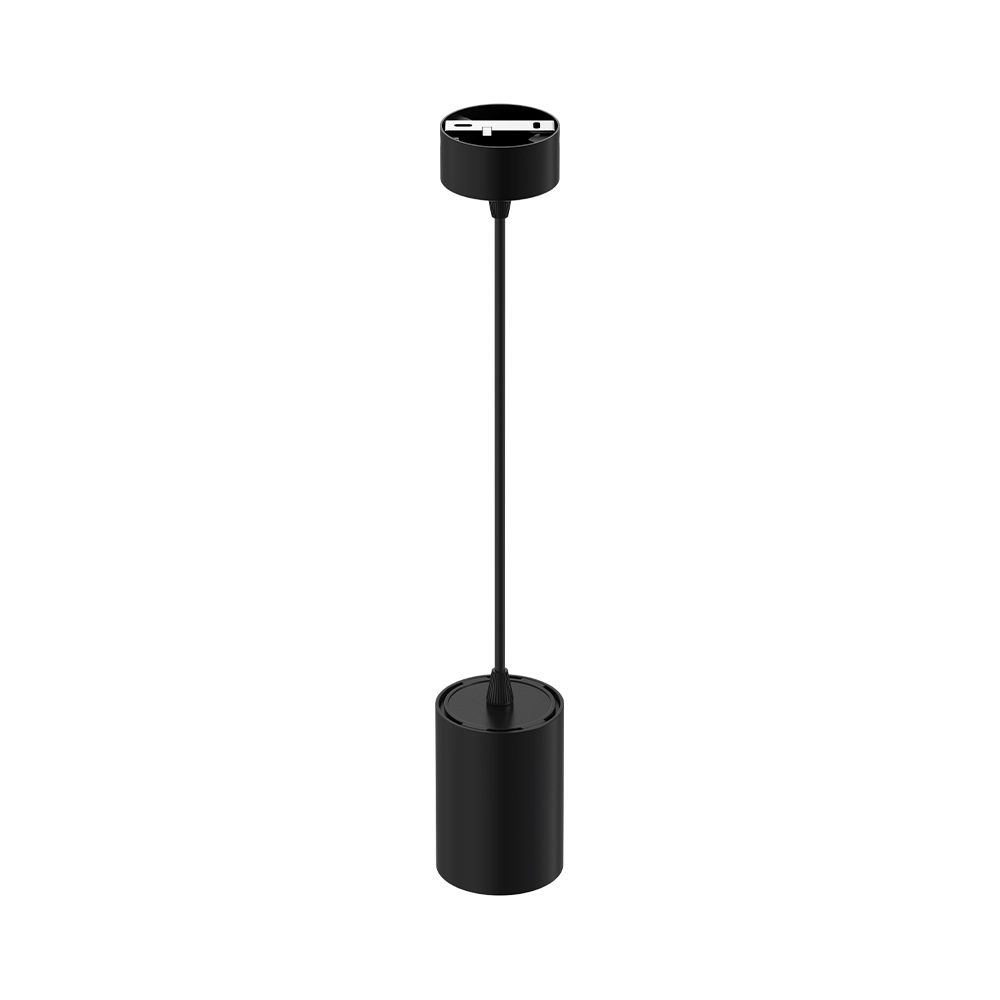

Luminária pendente de LED de montagem em superfície da série OR Plus D85, 20-30W

Número do produto:

XH-PLS-20W-OR

XH-PLS-25W-OR

XH-PLS-30W-OR



Vantagem:

CCT: 2700K, 3000K, 3500K, 4000K, 5000K
CRI: Ra80+, Ra90+, Ra95+
Ângulo do feixe: 18°/20°, 25°/28°, 38°/44°, 60°
Regulável: 0/1-10V, regulável por fase (Triac), DALI, 2.4G/RF, ZigBee, Casambi/BLE
Installation: Surface mounted
Saída de cor: CCT único
Eficiência da lâmpada: Fluxo luminoso da lâmpada 120-170lm/W
Garantia: 5 anos

  • Detalhes do produto
  • Investigação

Descrição do produto

Apresentando o OR Plus D85 Series Surface Mounted Pendant LED Light, a high-output pendant lighting solution for commercial and architectural projects. With a power range of 20-30W, this series is suitable for spaces requiring stronger brightness, stable performance, and a clean suspended lighting appearance.

The OR Plus D85 Series features a simple cylindrical design with surface mounted installation, making it a practical choice for retail stores, showrooms, galleries, restaurants, hotels, and premium commercial interiors. Its lens optical system provides multiple beam angle options, including 18°/20°, 25°/28°, 38°/44°, and 60°, allowing designers to create focused accent lighting, display lighting, or comfortable general illumination.

Designed for professional project use, this surface mounted pendant LED light supports LED chip options such as Citizen, CREE, and Bridgelux, and driver options including Tridonic, Osram, BOKE, TCI, and Philips. It can also be configured with different control systems such as DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE.

For B2B lighting brands, distributors, and project contractors, the OR Plus D85 Series Surface Mounted Pendant LED Light offers higher output, efficient performance, and a clean architectural design for professional commercial lighting applications.

Luminária pendente de LED de montagem em superfície da série OR Plus D85, 20-30W
Código do produtoXH-PLS-20W-ORXH-PLS-25W-ORXH-PLS-30W-OR
Poder20W25W30W
MotoristaTridônico, Osram, BOKE, TCI, Philips
TensãoAC200-240V / AC90-130V, 50/60Hz
Fator de potênciaPF>0,90
tensão do LEDDC36V
Corrente do LED500mA600mA700/750mA
RegulávelRegulável 0/1-10V, regulável por fase (Triac), regulável por DALI, regulável por 2.4G/RF, regulável por ZigBee, regulável por Casambi/BLE
Saída de corCCT único
MateriaisADC12 Alumínio fundido
TamanhoD85x110mm
InstalaçãoMontado em superfície
Marca LEDCidadão, CREE, Bridgelux
CCT2700K, 3000K, 3500K, 4000K, 5000K
CRIRa80+, Ra90+, Ra95+
SDCM<3
Vida50.000h
ÓpticaLente
Ângulo do feixe18°/20°, 25°/28°, 38°/44°, 60°
Eficiência da lâmpadaFluxo luminoso da lâmpada: 120-170 lm/W
ProteçãoIP20
TerminarBranco, Preto, Cinza
Garantia5 anos

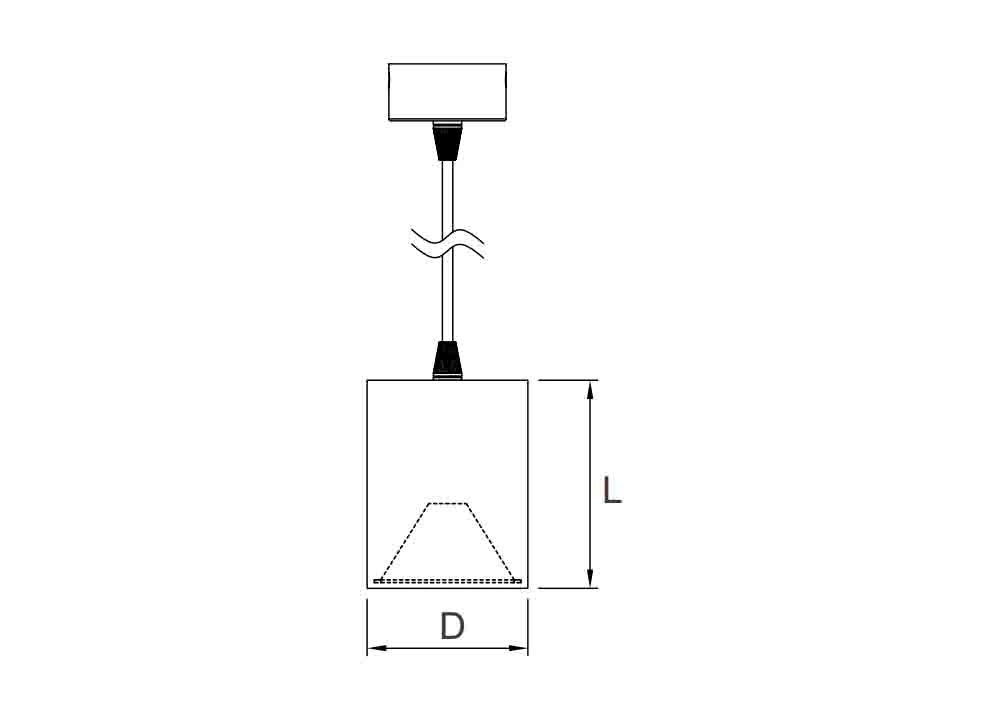

Tamanho e desenho

Controle de intensidade luminosa

Cenário de aplicação

Vídeos relacionados

Lista de produtos

Série Nº do produto. Poder Tensão do LED Atual Eficiência Dimensão (DXH)
Série D70 XH-PLS-10W-OR 10W DC36V 250mA 120-170 lm/W D70x100mm
XH-PLS-15W-OR 15W DC36V 350mA 120-170 lm/W D70x100mm
XH-PLS-20W-OR 20W DC36V 500mA 120-170 lm/W D70x100mm
Série D85 XH-PLS-20W-OR 20W DC36V 500mA 120-170 lm/W D85x110mm
XH-PLS-25W-OR 25W DC36V 600mA 120-170 lm/W D85x110mm
XH-PLS-30W-OR 30W DC36V 700/750mA 120-170 lm/W D85x110mm
