Rube D85 Series Track Pendant LED Light 15-20W | XHLUX

Luminária pendente LED para trilho/Luminária pendente de LED/

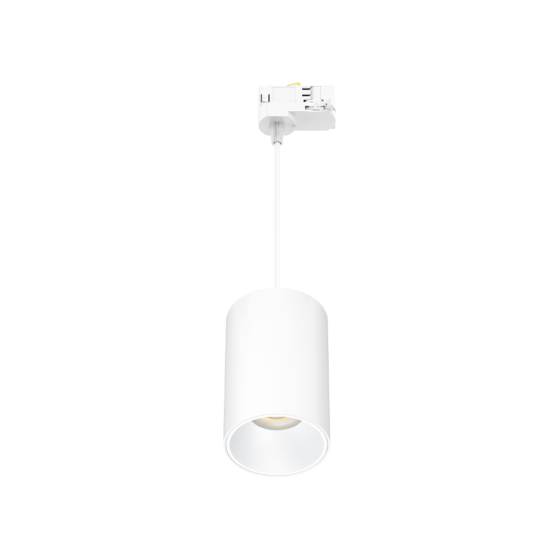

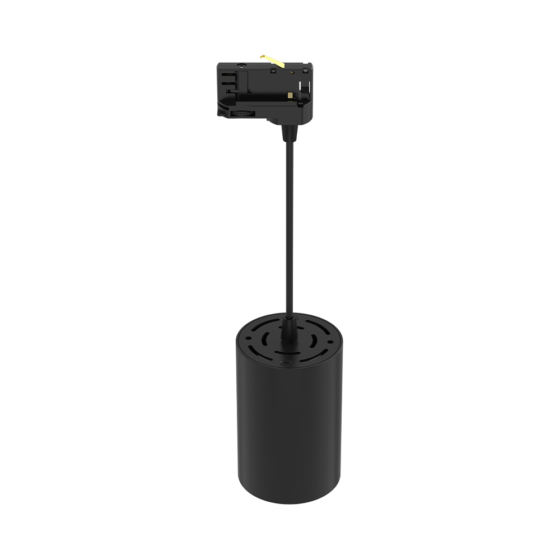

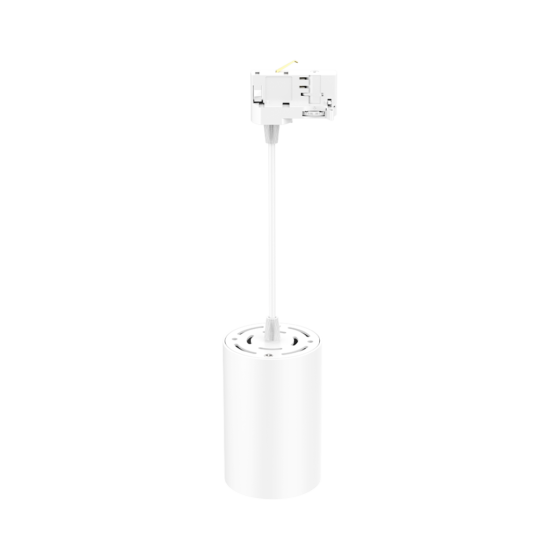

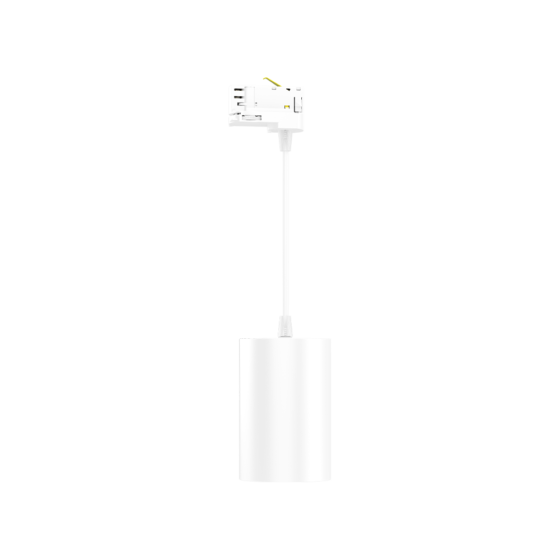

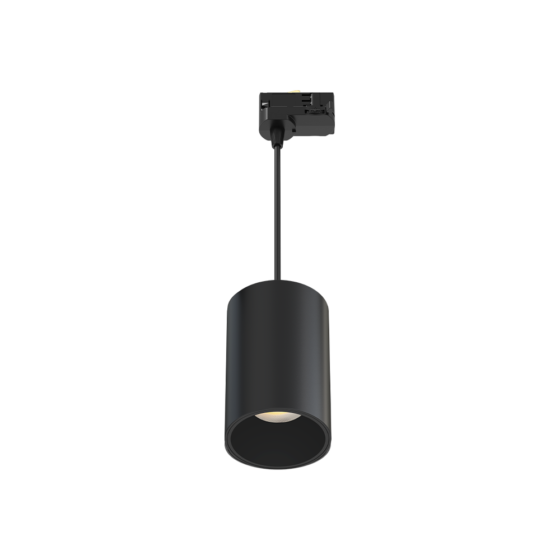

Rube D85 Series Track Pendant LED Light 15-20W

Número do produto:

XH-RB-15W-SP

XH-RB-20W-SP

Vantagem:

CCT: 2700K, 3000K, 3500K, 4000K, 5000K
CRI: Ra80+, Ra90+, Ra95+
Ângulo do feixe: 15°, 24°, 38°, 60°
Regulável: 0/1-10V, regulável por fase (Triac), DALI, 2.4G/RF, ZigBee, Casambi/BLE
Instalação: Pendente
Saída de cor: CCT único
Eficiência da lâmpada: Fluxo luminoso da lâmpada: 90-130 lm/W
Garantia: 5 anos

  • Detalhes do produto
  • Investigação

Descrição do produto

Apresentando o Rube D85 Series Track Pendant LED Light, a compact pendant lighting solution designed for modern commercial interiors. With a power range of 15-20W, this series is suitable for retail stores, galleries, showrooms, restaurants, hotel spaces, reception areas, and other applications requiring suspended lighting with flexible track installation.

The Rube D85 Series combines a clean cylindrical pendant body with lens and reflector optical options. Multiple beam angles, including 15°, 24°, 38°, and 60°, allow lighting designers to create focused accent lighting, display lighting, or comfortable downward illumination for different project needs.

This track pendant LED light supports LED chip options such as Citizen, CREE, and Bridgelux, and can be matched with reliable driver brands including Tridonic, Osram, BOKE, TCI, and Philips. It also supports different dimming and control solutions, including DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE.

For lighting brands, distributors, and commercial project contractors, the Rube D85 Series Track Pendant LED Light provides a compact, flexible, and elegant solution for professional commercial lighting applications.

Rube D85 Series Track Pendant LED Light 15-20W
Código do produtoXH-RB-15W-SPXH-RB-20W-SP
Poder15W20W
MotoristaTridônico, Osram, BOKE, TCI, Philips
TensãoAC200-240V / AC90-130V, 50/60Hz
Fator de potênciaPF>0,90
tensão do LEDDC36V
Corrente do LED350mA500mA
RegulávelRegulável 0/1-10V, regulável por fase (Triac), regulável por DALI, regulável por 2.4G/RF, regulável por ZigBee, regulável por Casambi/BLE
Saída de corCCT único
MateriaisADC12 Alumínio fundido
Tamanho85 x 130 mm
InstalaçãoPingente
Marca LEDCidadão, CREE, Bridgelux
CCT2700K, 3000K, 3500K, 4000K, 5000K
CRIRa80+, Ra90+, Ra95+
SDCM<3
Vida50.000h
ÓpticaLente + Refletor
Ângulo do feixe15°, 24°, 38°, 60°
Eficiência da lâmpadaFluxo luminoso da lâmpada: 90-130 lm/W
ProteçãoIP20
TerminarBranco, Preto, Cinza
Garantia3-5 anos



Tamanho e desenho

Controle de intensidade luminosa

Cenário de aplicação

Vídeos relacionados

Lista de produtos

SérieNº do produto.PoderTensão do LEDAtualEficiênciaDimensão (DXH)
Série D85XH-RB-15W-SP15WDC36V350mA90-130lm/W85 x 130 mm
XH-RB-20W-SP20WDC36V500mA90-130lm/W85 x 130 mm
Série D110XH-RB-20W-SP20WDC36V500mA90-130lm/W110 x 135 mm
XH-RB-25W-SP25WDC36V600mA90-130lm/W110 x 135 mm
XH-RB-30W-SP30WDC36V700/750mA90-130lm/W110 x 135 mm
XH-RB-35W-SP35WDC36V800mA90-130lm/W110 x 135 mm
