F1M D62 Series Pendant LED Track Light 10-15W | XHLUX

Luminária pendente LED para trilho/Luminária pendente de LED/

Luminária de trilho LED pendente da série F1M D62, 10-15W

Número do produto:

XH-PLT-10W-F1M

XH-PLT-15W-F1M



Vantagem:

CCT: 2700K, 3000K, 3500K, 4000K, 5000K
CRI: Ra80+, Ra90+, Ra95+
Ângulo do feixe: 15°, 24°, 38°, 60°
Regulável: 0/1-10V, regulável por fase (Triac), DALI, 2.4G/RF, ZigBee, Casambi/BLE
Track adapter: 6/4 wire 3 phase, 3/2 wire 1 phase
Saída de cor: CCT único
Lamp Efficiency: Lamp lumen 100-130lm/W
Garantia: 5 anos

  • Detalhes do produto
  • Investigação

Descrição do produto

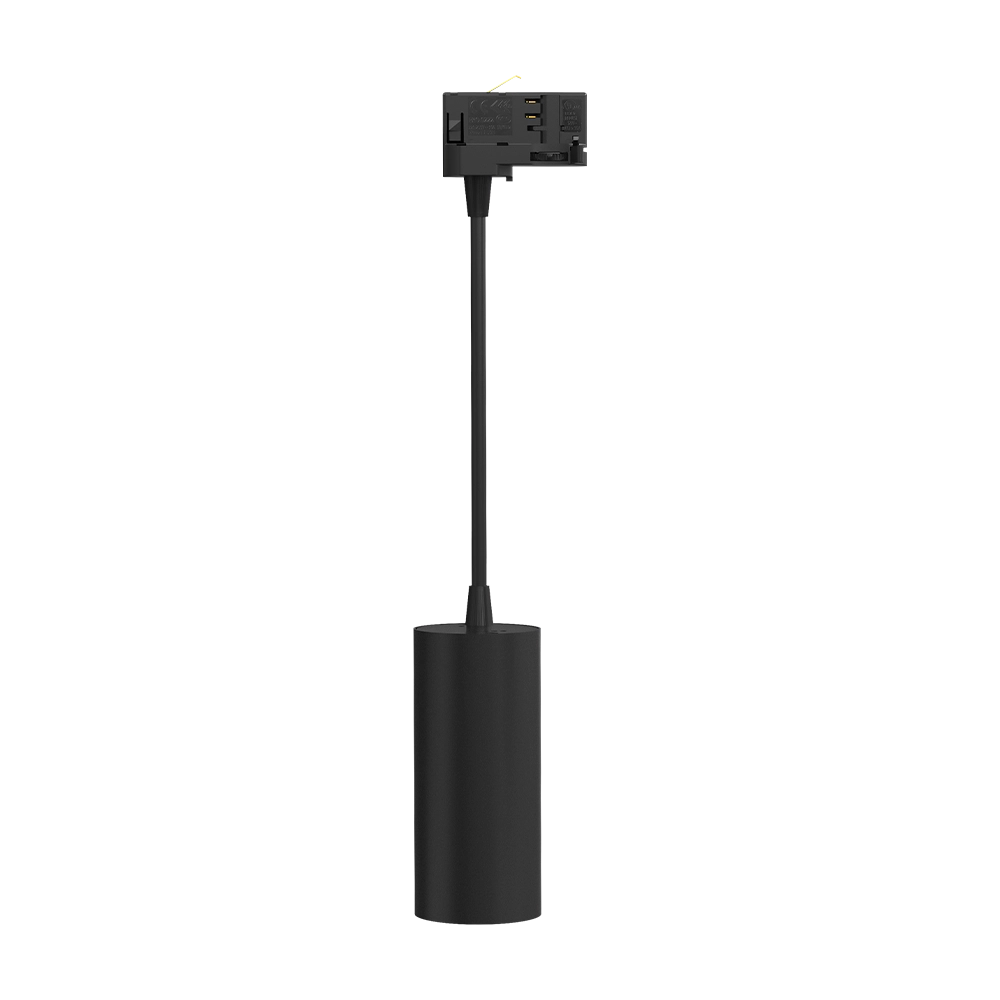

Apresentando o F1M D62 Series Pendant LED Track Light, a compact pendant lighting solution designed for modern commercial interiors. With a power range of 10-15W, this track-mounted pendant light is ideal for retail stores, galleries, counters, restaurants, hotels, showrooms, and other spaces where decorative suspension and precise lighting are both required.

The F1M D62 Series combines the flexibility of track lighting with the clean appearance of a pendant luminaire. Its lens and reflector optical options, together with beam angles of 15°, 24°, 38°, and 60°, allow designers to create focused accent lighting, display lighting, or comfortable downward illumination for different project needs.

This series supports high-quality LED chip options such as Citizen, CREE, and Bridgelux, and can be configured with different dimming and control options, including DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE. The track adapter options make it suitable for different track systems and project requirements.

For lighting brands, distributors, and commercial project contractors, the F1M D62 Series Pendant LED Track Light provides a compact, flexible, and elegant solution for professional commercial lighting applications.

Luminária de trilho LED pendente da série F1M D62, 10-15W
Código do produtoXH-PLT-10W-F1MXH-PLT-15W-F1M
Poder10W15W
MotoristaTridonic, Osram, BOKE
TensãoAC200-240V / AC90-130V, 50/60Hz
Fator de potênciaPF>0,90
tensão do LEDDC36V
Corrente do LED250mA350mA
RegulávelRegulável 0/1-10V, regulável por fase (Triac), regulável por DALI, regulável por 2.4G/RF, regulável por ZigBee, regulável por Casambi/BLE
Saída de corCCT único
MateriaisADC12 Alumínio fundido
Tamanho62x140mm/185mm
Adaptador de trilho6/4 fios trifásico, 4/3/2 fios monofásico
InstalaçãoTrack Pendant
Marca LEDCidadão, CREE, Bridgelux
CCT2700K, 3000K, 3500K, 4000K, 5000K
CRIRa80+, Ra90+, Ra95+
SDCM<3
Vida50.000h
ÓpticaLens, reflector
Ângulo do feixe15°, 24°, 38°, 60°
Eficiência da lâmpadaFluxo luminoso da lâmpada: 100-130 lm/W
ProteçãoIP20
TerminarBranco, Preto, Cinza
Garantia5 anos

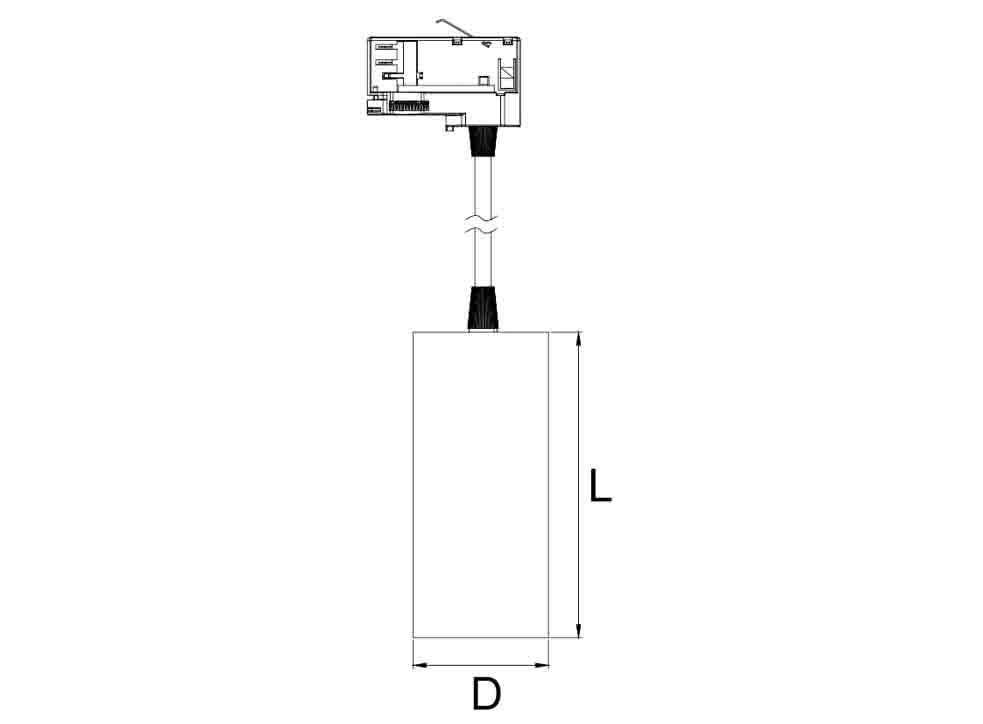

Tamanho e desenho

Controle de intensidade luminosa

Cenário de aplicação

Vídeos relacionados

Lista de produtos

SérieNº do produto.PoderTensão do LEDAtualEficiênciaDimension(DxL1/L2)
Série D62XH-PLT-10W-F1M10WDC36V250mA100-130lm/W62x140mm/185mm
XH-PLT-15W-F1M15WDC36V350mA100-130lm/W62x140mm/185mm
Série D85XH-PLT-25W-F1M25WDC36V600mA100-130lm/W85x170mm/200mm
XH-PLT-30W-F1M30WDC36V700/750mA100-130lm/W85x170mm/200mm
XH-PLT-35W-F1M35WDC36V800mA100-130lm/W85x170mm/200mm
