Descrição do produto

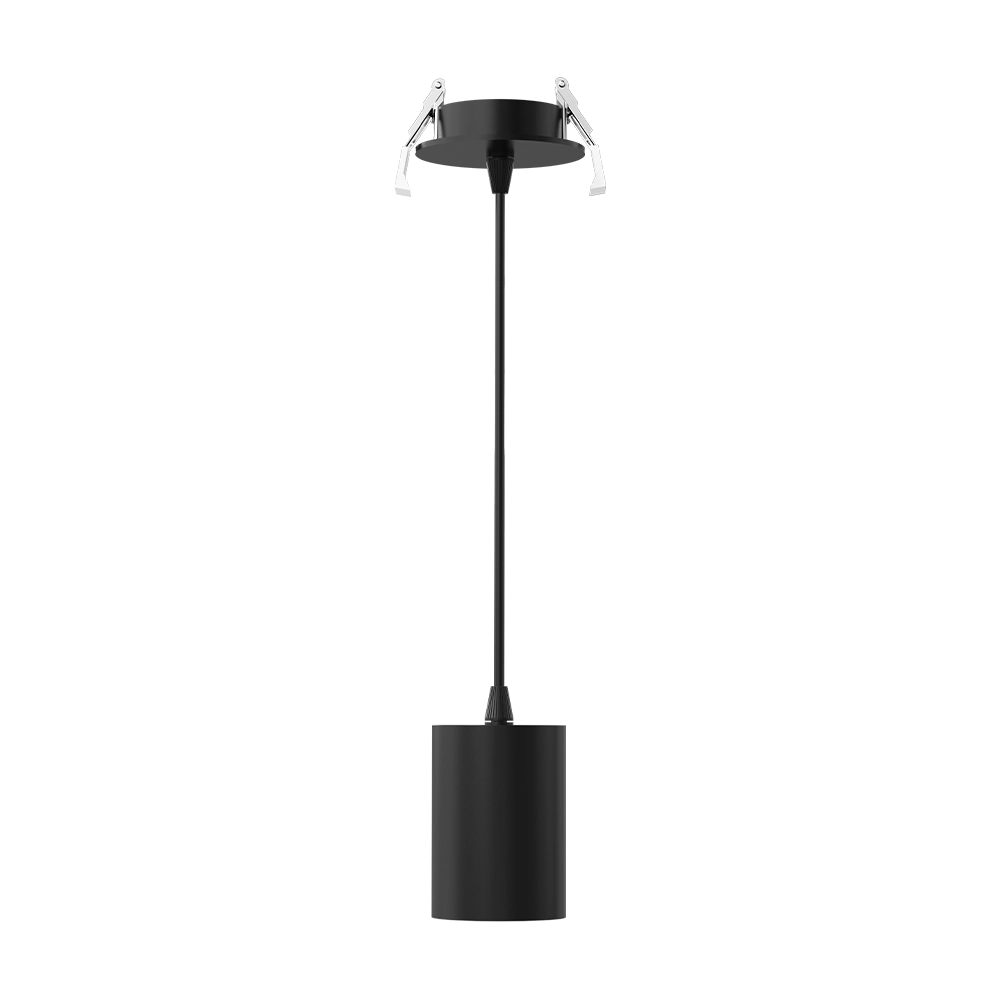

Apresentando o OR Plus D85 Series Recessed Pendant LED Light, a high-output pendant lighting solution for commercial and architectural projects. With a power range of 20-30W, this series is suitable for spaces requiring stronger brightness, stable performance, and a clean recessed ceiling design.
The OR Plus D85 Series features a recessed canopy structure with a simple cylindrical pendant body, making it a practical choice for retail stores, showrooms, galleries, restaurants, hotels, and premium commercial interiors. Its lens optical system provides multiple beam angle options, including 18°/20°, 25°/28°, 38°/44°, and 60°, allowing designers to create focused accent lighting, display lighting, or comfortable general illumination.
Designed for professional project use, this recessed pendant LED light supports LED chip options such as Citizen, CREE, and Bridgelux, and driver options including Tridonic, Osram, BOKE, TCI, and Philips. It can also be configured with different control systems such as DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE.
For B2B lighting brands, distributors, and project contractors, the OR Plus D85 Series Recessed Pendant LED Light offers higher output, efficient performance, and a refined architectural appearance for professional commercial lighting applications.
| Luminária pendente de LED de montagem em superfície da série OR Plus D85, 20-30W | ||||||||||
| Código do produto | XH-PLS-20W-OR | XH-PLS-25W-OR | XH-PLS-30W-OR | |||||||
| Poder | 20W | 25W | 30W | |||||||
| Motorista | Tridônico, Osram, BOKE, TCI, Philips | |||||||||
| Tensão | AC200-240V / AC90-130V, 50/60Hz | |||||||||
| Fator de potência | PF>0,90 | |||||||||
| tensão do LED | DC36V | |||||||||
| Corrente do LED | 500mA | 600mA | 700/750mA | |||||||
| Regulável | Regulável 0/1-10V, regulável por fase (Triac), regulável por DALI, regulável por 2.4G/RF, regulável por ZigBee, regulável por Casambi/BLE | |||||||||
| Saída de cor | CCT único | |||||||||
| Materiais | ADC12 Alumínio fundido | |||||||||
| Tamanho | D85x110mm | |||||||||
| Instalação | Montado em superfície | |||||||||
| Marca LED | Cidadão, CREE, Bridgelux | |||||||||
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K | |||||||||
| CRI | Ra80+, Ra90+, Ra95+ | |||||||||
| SDCM | <3 | |||||||||
| Vida | 50.000h | |||||||||
| Óptica | Lente | |||||||||
| Ângulo do feixe | 18°/20°, 25°/28°, 38°/44°, 60° | |||||||||
| Eficiência da lâmpada | Fluxo luminoso da lâmpada: 120-170 lm/W | |||||||||
| Proteção | IP20 | |||||||||
| Terminar | Branco, Preto, Cinza | |||||||||
| Garantia | 5 anos | |||||||||

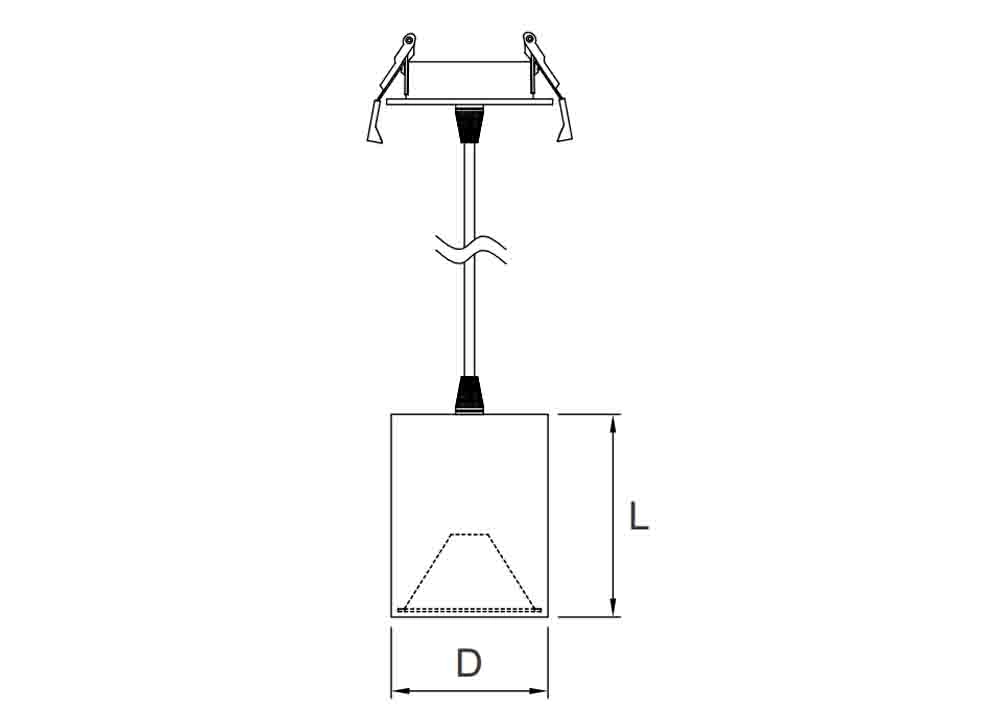

Tamanho e desenho
Controle de intensidade luminosa
Cenário de aplicação
Lista de produtos
| Série | Nº do produto. | Poder | Tensão do LED | Atual | Eficiência | Dimensão (DXH) | ||||||
| Série D70 | XH-PLS-10W-OR | 10W | DC36V | 250mA | 120-170 lm/W | D70x100mm | ||||||
| XH-PLS-15W-OR | 15W | DC36V | 350mA | 120-170 lm/W | D70x100mm | |||||||
| XH-PLS-20W-OR | 20W | DC36V | 500mA | 120-170 lm/W | D70x100mm | |||||||
| Série D85 | XH-PLS-20W-OR | 20W | DC36V | 500mA | 120-170 lm/W | D85x110mm | ||||||
| XH-PLS-25W-OR | 25W | DC36V | 600mA | 120-170 lm/W | D85x110mm | |||||||
| XH-PLS-30W-OR | 30W | DC36V | 700/750mA | 120-170 lm/W | D85x110mm | |||||||
