OR Plus D70 Series Recessed LED Track Light 10-20W - XHLUX

Recessed LED Light/

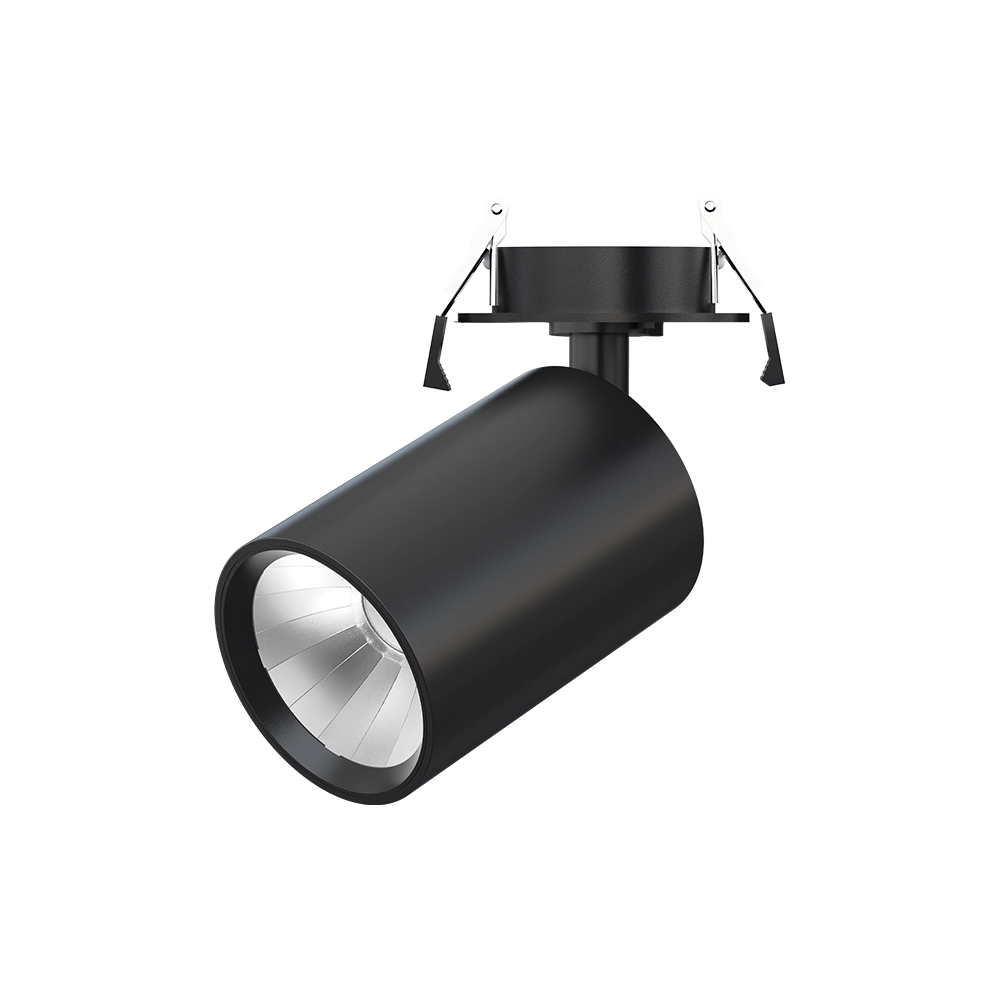

OR Plus D70 Series Recessed LED Track Light 10-20W

НомСр издСлия:

XH-RL-10W-OR

XH-RL-15W-OR

XH-RL-20W-OR

Β  Β  Β  Β  Β  Β  Β  Β  Β  Β  Β  Β  Β  Β  Β  Β  Β  Β  Β  Β  Β

ΠŸΡ€Π΅ΠΈΠΌΡƒΡ‰Π΅ΡΡ‚Π²ΠΎ:

CCT: 2700K, 3000K, 3500K, 4000K, 5000K
CRI: Ra80+, Ra90+, Ra95+
Beam angle: 18Β°/20Β°, 25Β°/28Β°, 38Β°/44Β°, 60Β°
Dimmable: 0/1-10V, Phase dimmable (Triac), DALI, 2.4G/RF, ZigBee, Casambi/BLE
Installation: Recessed
Color output: Single CCT
Lamp Efficiency: Lamp lumen 120-170lm/W
Warranty: 5 years

  • ΠŸΠΎΠ΄Ρ€ΠΎΠ±Π½Π°Ρ информация ΠΎ Ρ‚ΠΎΠ²Π°Ρ€Π΅
  • РасслСдованиС

ОписаниС ΠΏΡ€ΠΎΠ΄ΡƒΠΊΡ‚Π°

Introducing the OR Plus D70 Series Recessed LED Track Light, a compact and efficient recessed lighting solution designed for modern commercial interiors. With a power range of 10-20W, this series is ideal for retail stores, galleries, showrooms, hotels, restaurants, and other spaces requiring a clean ceiling appearance with precise accent lighting.

The OR Plus D70 Series combines recessed installation with flexible optical performance. Its lens optical system provides beam angle options including 18Β°/20Β°, 25Β°/28Β°, 38Β°/44Β°, and 60Β°, helping lighting designers create focused display lighting, comfortable accent lighting, or wider illumination for different project needs.

This recessed LED track light supports LED chip options such as Citizen, CREE, and Bridgelux, and can be matched with reliable driver brands including Tridonic, Osram, BOKE, TCI, and Philips. It also supports different dimming and control solutions, including DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE.

For lighting brands, distributors, and commercial project contractors, the OR Plus D70 Series Recessed LED Track Light offers a compact, high-efficiency, and professional lighting solution for commercial projects.

OR Plus D70 Series Recessed LED Track Light 10-20W
Код Ρ‚ΠΎΠ²Π°Ρ€Π°XH-RL-10W-ORXH-RL-15W-ORXH-RL-20W-OR
Π’Π»Π°ΡΡ‚ΡŒ10 Π’Ρ‚15 Π’Ρ‚20 Π’Ρ‚
Π’ΠΎΠ΄ΠΈΡ‚Π΅Π»ΡŒTridonic, Osram, BOKE, TCI, Philips
НапряТСниСAC200-240V / AC90-130V, 50/60Hz
коэффициСнт мощностиPF>0.90
напряТСниС свСтодиодаDC36V
Π’ΠΎΠΊΠΎΠ²Ρ‹ΠΉ Ρ‚ΠΎΠΊ свСтодиода250 мА350 мА500 мА
Π Π΅Π³ΡƒΠ»ΠΈΡ€ΠΎΠ²ΠΊΠ° яркости0/1-10V dimmable, Phase dimmable (Triac), DALI dimmable, 2.4G/RF dimmable, ZigBee dimmable, Casambi/BLE dimmable
Π¦Π²Π΅Ρ‚Π½ΠΎΠΉ Π²Ρ‹Π²ΠΎΠ΄Single CCT
ΠœΠ°Ρ‚Π΅Ρ€ΠΈΠ°Π»Ρ‹ADC12 Π›ΠΈΡ‚ΠΎΠΉ алюминий
Π Π°Π·ΠΌΠ΅Ρ€D70x100mm
Π’Ρ‹Ρ€Π΅Π·Π°Ρ‚ΡŒ60mm
InstallationRecessed
Π‘Ρ€Π΅Π½Π΄ свСтодиодовCitizen, CREE, Bridgelux
CCT2700K, 3000K, 3500K, 4000K, 5000K
КРИRa80+, Ra90+, Ra95+
SDCM<3
Lifetime50,000h
ΠžΠΏΡ‚ΠΈΠΊΠ°Π›ΠΈΠ½Π·Π°
Π£Π³ΠΎΠ» Π»ΡƒΡ‡Π°18Β°/20Β°, 25Β°/28Β°, 38Β°/44Β°, 60Β°
Π­Ρ„Ρ„Π΅ΠΊΡ‚ΠΈΠ²Π½ΠΎΡΡ‚ΡŒ Π»Π°ΠΌΠΏΡ‹Lamp lumen 120-170lm/W
Π—Π°Ρ‰ΠΈΡ‚Π°IP20
Π—Π°ΠΊΠ°Π½Ρ‡ΠΈΠ²Π°Ρ‚ΡŒWhite, Black, Grey
Гарантия5 Π»Π΅Ρ‚

Β

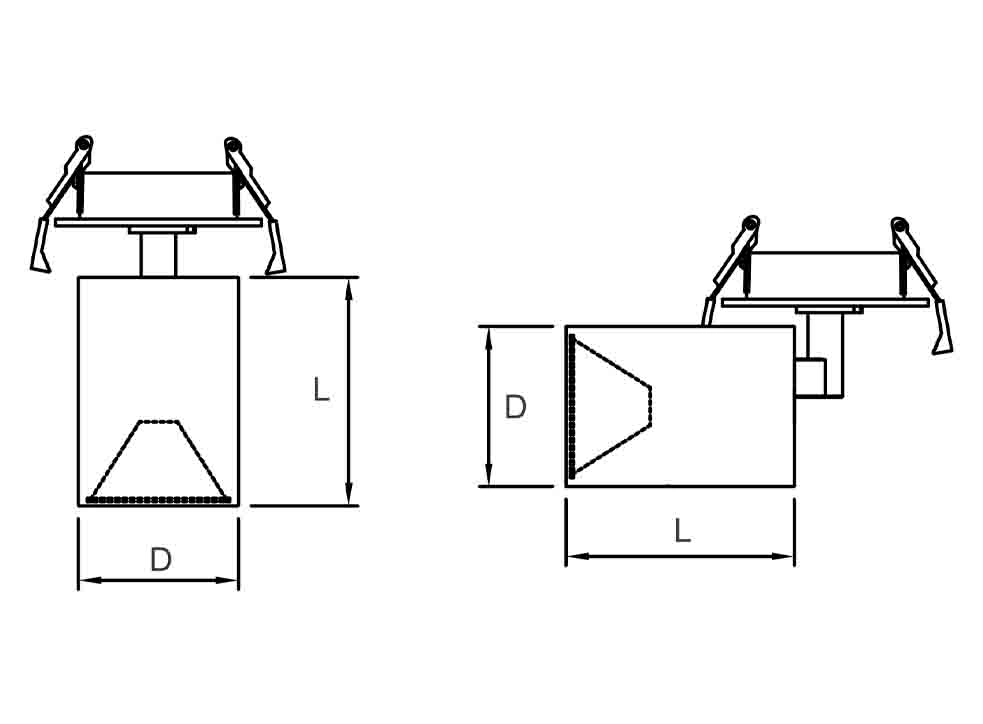

Size and Drawing

Π Π΅Π³ΡƒΠ»ΠΈΡ€ΠΎΠ²ΠΊΠ° яркости

Application Scenario

ΠŸΠΎΡ…ΠΎΠΆΠΈΠ΅ Π²ΠΈΠ΄Π΅ΠΎ

Бписок Ρ‚ΠΎΠ²Π°Ρ€ΠΎΠ²

РядНомСр издСлия.Π’Π»Π°ΡΡ‚ΡŒΠΠ°ΠΏΡ€ΡΠΆΠ΅Π½ΠΈΠ΅ ΡΠ²Π΅Ρ‚ΠΎΠ΄ΠΈΠΎΠ΄Π°Π’Π΅ΠΊΡƒΡ‰ΠΈΠΉΠ­Ρ„Ρ„Π΅ΠΊΡ‚ΠΈΠ²Π½ΠΎΡΡ‚ΡŒDimension(DXH)Π’Ρ‹Ρ€Π΅Π·Π°Ρ‚ΡŒ
D70 seriesXH-RL-10W-OR10 Π’Ρ‚DC36V250 мА120-170lm/WD70x100mm60mm
XH-RL-15W-OR15 Π’Ρ‚DC36V350 мА120-170lm/WD70x100mm60mm
XH-RL-20W-OR20 Π’Ρ‚DC36V500 мА120-170lm/WD70x100mm60mm
D85 seriesXH-RL-20W-OR20 Π’Ρ‚DC36V500 мА120-170lm/WD85x110mm75mm
XH-RL-25W-OR25WDC36V600mA120-170lm/WD85x110mm75mm
XH-RL-30W-OR30 Π’Ρ‚DC36V700/750 мА120-170lm/WD85x110mm75mm
