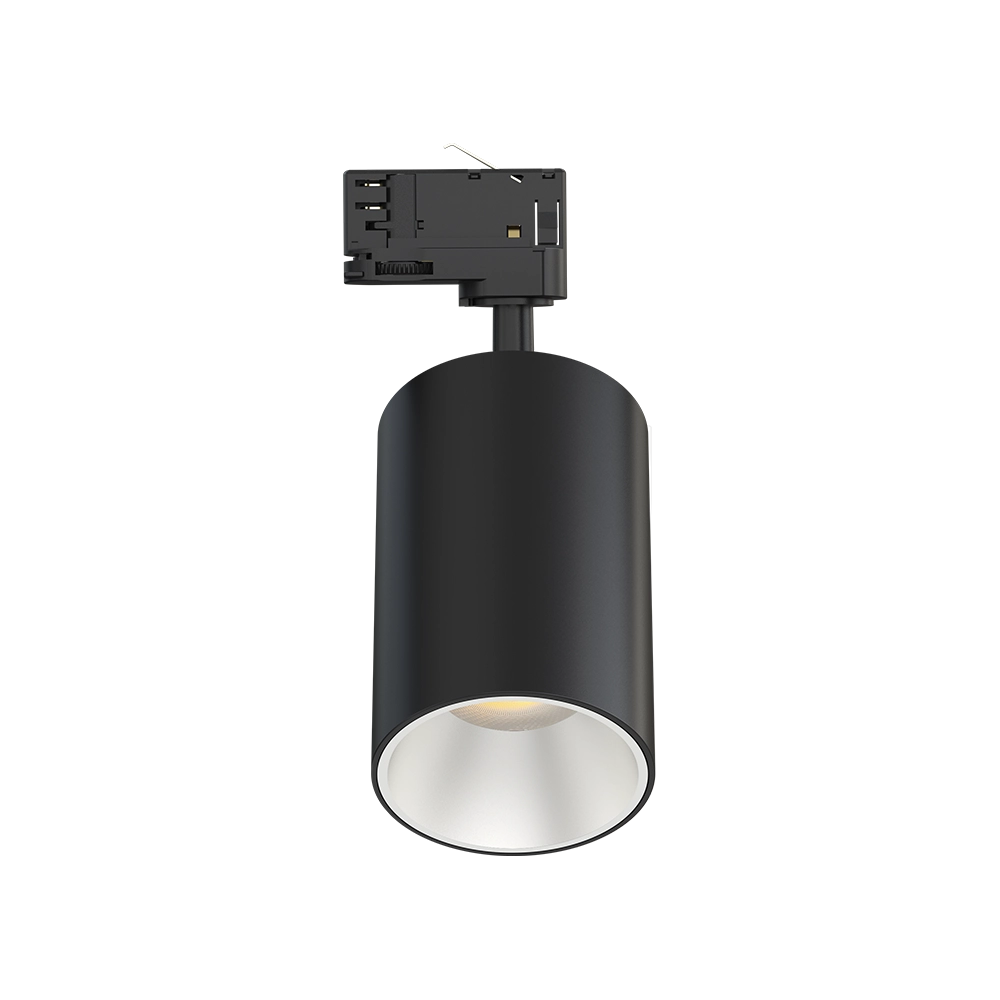

Introducing the Rube D85 Series Recessed LED Track Light, a compact recessed lighting solution designed for modern commercial interiors. With a power range of 15-20W, this series is suitable for retail stores, galleries, showrooms, restaurants, hotels, and other spaces requiring a clean ceiling appearance with flexible accent lighting.
The Rube D85 Series combines a recessed installation structure with a minimalist cylindrical design. With lens and reflector optical options and beam angles of 15°, 24°, 38°, and 60°, it can be used for focused display lighting, product highlighting, wall accent lighting, or comfortable general illumination.
This recessed LED track light supports LED chip options such as Citizen, CREE, and Bridgelux, and can be matched with reliable driver brands including Tridonic, Osram, BOKE, TCI, and Philips. It also supports different dimming and control systems, including DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE.
For lighting brands, distributors, and commercial project contractors, the Rube D85 Series Recessed LED Track Light offers a compact, flexible, and elegant solution for professional commercial lighting projects.
| Rube D85 Series Recessed LED Track Light 15-20W | |||||||
| Код товара | XH-RB-15W-SP | XH-RB-20W-SP | |||||
| Власть | 15 Вт | 20 Вт | |||||
| Водитель | Tridonic, Osram, BOKE, TCI, Philips | ||||||
| Напряжение | AC200-240V / AC90-130V, 50/60Hz | ||||||
| коэффициент мощности | PF>0.90 | ||||||
| напряжение светодиода | DC36V | ||||||
| Токовый ток светодиода | 350 мА | 500 мА | |||||
| Регулировка яркости | 0/1-10V dimmable, Phase dimmable (Triac), DALI dimmable, 2.4G/RF dimmable, ZigBee dimmable, Casambi/BLE dimmable | ||||||
| Цветной вывод | Single CCT | ||||||
| Материалы | ADC12 Литой алюминий | ||||||
| Размер | 85X130mm | ||||||
| Вырезать | 75mm | ||||||
| Installation | Recessed | ||||||
| Бренд светодиодов | Citizen, CREE, Bridgelux | ||||||
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K | ||||||
| КРИ | Ra80+, Ra90+, Ra95+ | ||||||
| SDCM | <3 | ||||||
| Lifetime | 50,000h | ||||||
| Оптика | Lens+Reflector | ||||||
| Угол луча | 15°, 24°, 38°, 60° | ||||||
| Эффективность лампы | Lamp lumen 90-130lm/W | ||||||
| Защита | IP20 | ||||||
| Заканчивать | White, Black, Grey | ||||||
| Гарантия | 5 лет | ||||||

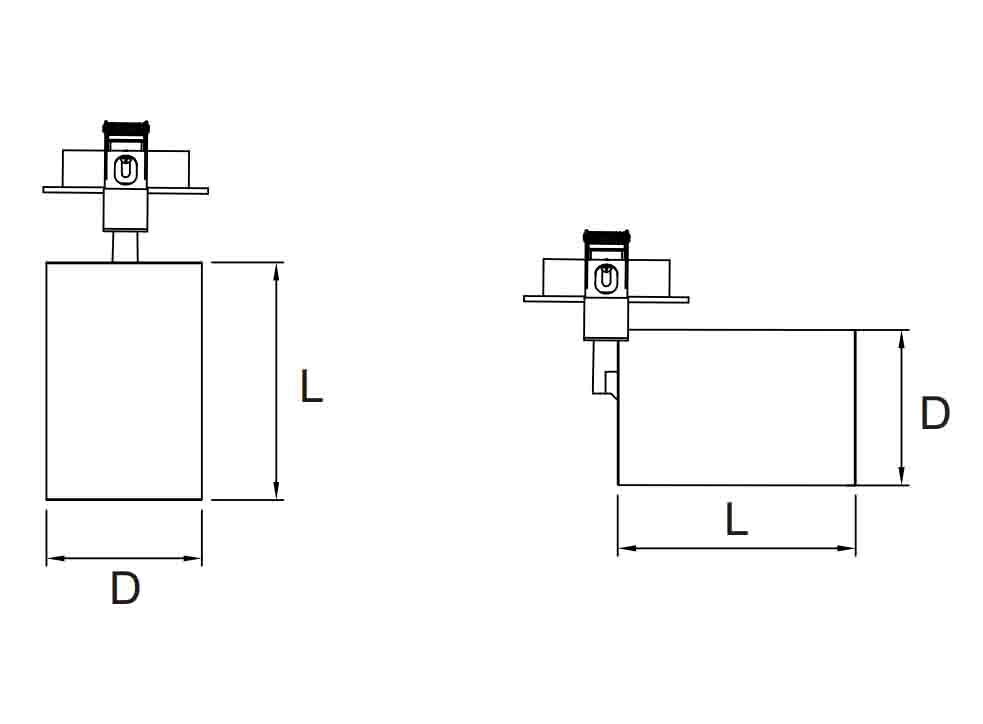

Size and Drawing
Регулировка яркости
Application Scenario
Список товаров
| Ряд | Номер изделия. | Власть | Напряжение светодиода | Текущий | Эффективность | Dimension(DXH) | Вырезать | |||||||
| D85 series | XH-RB-15W-SP | 15 Вт | DC36V | 350 мА | 90-130lm/W | 85X130mm | 75mm | |||||||
| XH-RB-20W-SP | 20 Вт | DC36V | 500 мА | 90-130lm/W | 85X130mm | 75mm | ||||||||
| D110 series | XH-RB-20W-SP | 20 Вт | DC36V | 500 мА | 90-130lm/W | 110X135mm | 75mm | |||||||
| XH-RB-25W-SP | 25W | DC36V | 600mA | 90-130lm/W | 110X135mm | 75mm | ||||||||
| XH-RB-30W-SP | 30 Вт | DC36V | 700/750 мА | 90-130lm/W | 110X135mm | 75mm | ||||||||
| XH-RB-35W-SP | 35W | DC36V | 800mA | 90-130lm/W | 110X135mm | 75mm | ||||||||
