Описание продукта

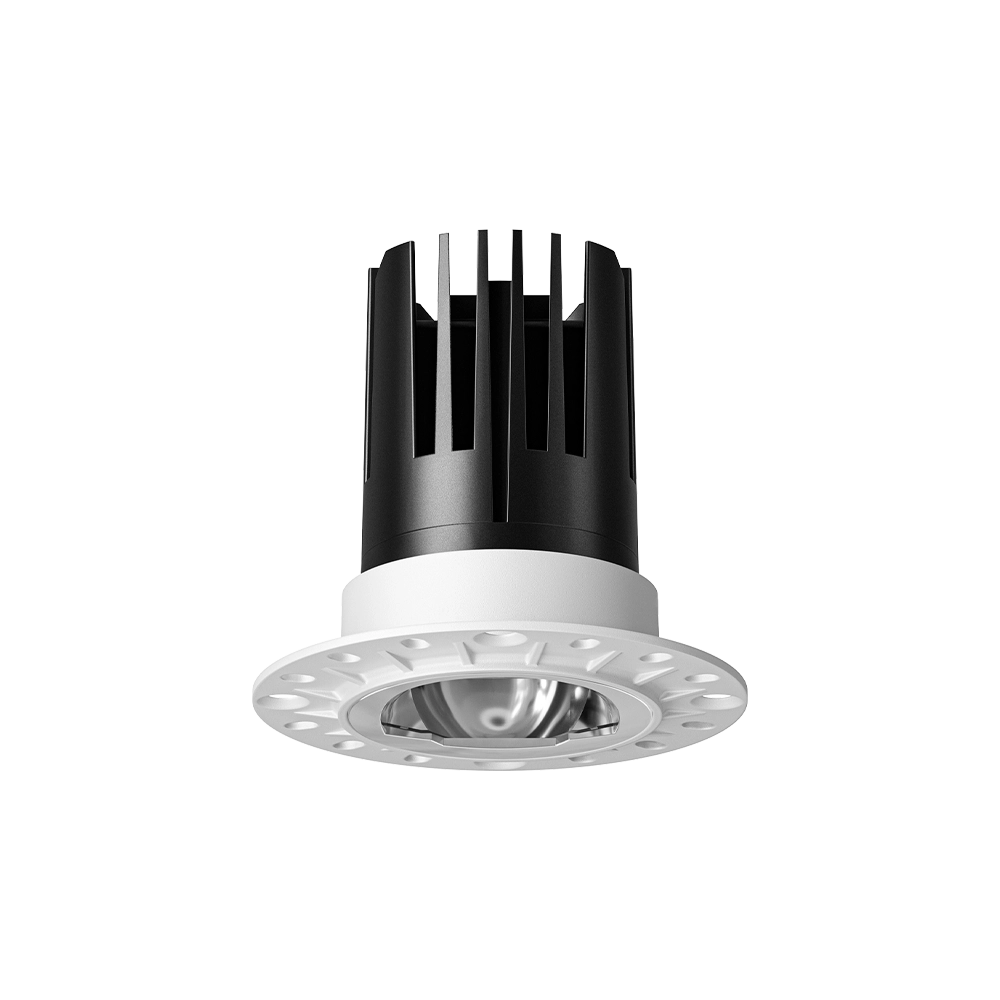

Introducing the Trimless Wall Wash D95 Series Fixed LED Downlight, a higher-output recessed wall washer designed for commercial and architectural projects. With 20W power, this series is suitable for larger retail stores, galleries, museums, hotel spaces, showrooms, and premium commercial interiors requiring stronger vertical wall illumination.
The D95 Series uses a PC lens and reflector optical system to deliver a zero cut-off wall wash effect. This optical design helps reduce glare and creates a cleaner visual experience, especially for display walls, artwork, retail shelving, and architectural surfaces. The trimless fixed structure provides a more integrated ceiling appearance for high-end interior projects.
This trimless wall wash LED downlight supports LED chip options such as Citizen, Philips, CREE, and Bridgelux, and can be matched with driver brands including Tridonic, Osram, BOKE, TCI, and Philips. It also supports DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE dimming and control options.
For lighting brands, distributors, and commercial project contractors, the Trimless Wall Wash D95 Series Fixed LED Downlight offers stronger output, zero cut-off optical control, trimless ceiling integration, and reliable performance for professional wall washing projects.
| Trimless Wall Wash D95 Series Fixed LED Downlight 20W | ||||||||||
| Код товара | XH-DL-20W-X66-C | |||||||||
| Власть | 20 Вт | |||||||||
| Водитель | Tridonic, Osram, BOKE, TCI, Philips | |||||||||
| Напряжение | AC200-240V / AC90-130V, 50/60Hz | |||||||||
| коэффициент мощности | PF>0.90 | |||||||||
| напряжение светодиода | DC36V | |||||||||
| Токовый ток светодиода | 500 мА | |||||||||
| Регулировка яркости | 0/1-10V dimmable, Phase dimmable (Triac), DALI dimmable, 2.4G/RF dimmable, ZigBee dimmable, Casambi/BLE dimmable | |||||||||
| Цветной вывод | Single CCT | |||||||||
| Материалы | ADC12 Литой алюминий | |||||||||
| Размер | D120*103mm | |||||||||
| Бренд светодиодов | Citizen, Philips, CREE, Bridgelux | |||||||||
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K | |||||||||
| КРИ | Ra80+, Ra90+, Ra95+ | |||||||||
| SDCM | <3 | |||||||||
| Оптика | PC Lens+reflector | |||||||||
| Light distribution | Zero Cut-off Wall Wash | |||||||||
| Structure | Fixed Version | |||||||||
| Эффективность лампы | Lamp lumen 40-50lm/W | |||||||||
| Защита | IP20 | |||||||||
| Вырезать | Ø95mm | |||||||||
| Заканчивать | White, Black, Grey | |||||||||
| Гарантия | 5 лет | |||||||||

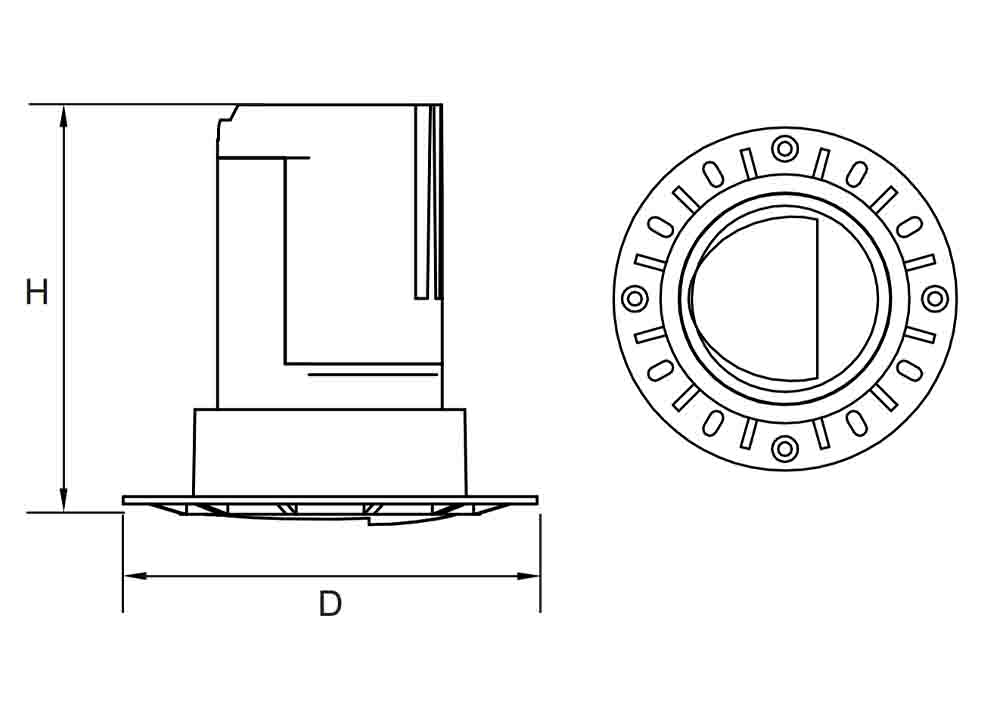

Size and Drawing
Регулировка яркости
Application Scenario
Список товаров
| Ряд | Номер изделия. | Власть | Напряжение светодиода | Текущий | Эффективность | Dimension(DXH) | Вырезать | |||||||
| D55 Series | XH-DL-10W-X66-A | 10 Вт | DC36V | 250 мА | 40-50lm/W | D80*78mm | Ø55mm | |||||||
| D75 Series | XH-DL-15W-X66-B | 15 Вт | DC36V | 350 мА | 40-50lm/W | D100*91mm | Ø75mm | |||||||
| D95 Series | XH-DL-20W-X66-C | 20 Вт | DC36V | 500 мА | 40-50lm/W | D120*103mm | Ø95mm | |||||||
