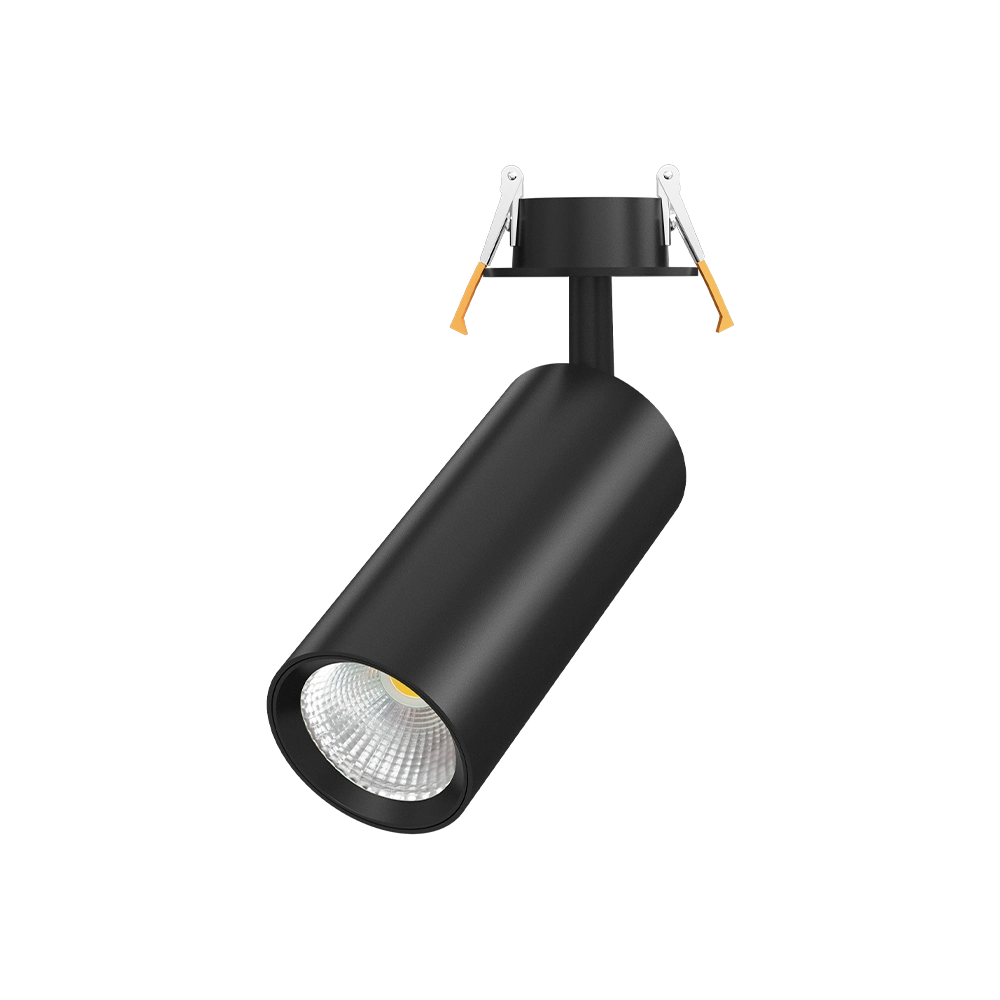

Introducing the F1M D62 Series Recessed LED Track Light, a compact recessed lighting solution designed for modern commercial interiors. With a power range of 10-15W, this series is ideal for retail stores, galleries, showrooms, hotel spaces, corridors, and other applications requiring a clean ceiling appearance with precise accent lighting.
The F1M D62 Series combines a recessed installation structure with a modular optical design. Lens and reflector options, together with beam angles of 15°, 24°, 38°, and 60°, allow designers to create focused display lighting, artwork lighting, or comfortable general illumination for different project needs.
This recessed LED track light supports LED chip options such as Citizen, CREE, and Bridgelux, and can be matched with reliable driver brands including Tridonic, Osram, BOKE, TCI, and Philips. It also supports different dimming and control systems, including DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE.
For lighting brands, distributors, and commercial project contractors, the F1M D62 Series Recessed LED Track Light offers a compact, flexible, and elegant solution for professional commercial lighting applications.
| F1M D62 Series Recessed LED Track Light 10-15W | |||||||
| Код товара | XH-RL-10W-F1M | XH-RL-15W-F1M | |||||
| Власть | 10 Вт | 15 Вт | |||||
| Водитель | Tridonic, Osram, BOKE, TCI, Philips | ||||||
| Напряжение | AC200-240V / AC90-130V, 50/60Hz | ||||||
| коэффициент мощности | PF>0.90 | ||||||
| напряжение светодиода | DC36V | ||||||
| Токовый ток светодиода | 250 мА | 350 мА | |||||
| Регулировка яркости | 0/1-10V dimmable, Phase dimmable (Triac), DALI dimmable, 2.4G/RF dimmable, ZigBee dimmable, Casambi/BLE dimmable | ||||||
| Цветной вывод | Single CCT | ||||||
| Материалы | ADC12 Литой алюминий | ||||||
| Размер | 62X140mm/185mm | ||||||
| Вырезать | 60mm | ||||||
| Installation | Recessed | ||||||
| Бренд светодиодов | Citizen, CREE, Bridgelux | ||||||
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K | ||||||
| КРИ | Ra80+, Ra90+, Ra95+ | ||||||
| SDCM | <3 | ||||||
| Lifetime | 50,000h | ||||||
| Оптика | Lens, reflector | ||||||
| Угол луча | 15°, 24°, 38°, 60° | ||||||
| Эффективность лампы | Lamp lumen 100-130lm/W | ||||||
| Защита | IP20 | ||||||
| Заканчивать | White, Black, Grey | ||||||
| Гарантия | 5 лет | ||||||
Size and Drawing
Регулировка яркости
Application Scenario
Список товаров
| Ряд | Номер изделия. | Власть | Напряжение светодиода | Текущий | Эффективность | Dimension(DxL1/L2) | Вырезать | |||||||
| D62 Series | XH-RL-10W-F1M | 10 Вт | DC36V | 250 мА | 100-130lm/W | 62X140mm/185mm | 60mm | |||||||
| XH-RL-15W-F1M | 15 Вт | DC36V | 350 мА | 100-130lm/W | 62X140mm/185mm | 60mm | ||||||||
| D85 Series | XH-RL-25W-F1M | 25W | DC36V | 600mA | 100-130lm/W | 85X170mm/200mm | 75mm | |||||||
| XH-RL-30W-F1M | 30 Вт | DC36V | 700/750 мА | 100-130lm/W | 85X170mm/200mm | 75mm | ||||||||
| XH-RL-35W-F1M | 35W | DC36V | 800mA | 100-130lm/W | 85X170mm/200mm | 75mm | ||||||||
