OR Plus D70 Series Pendant LED Track Light 10-20W - XHLUX

Luminária pendente LED para trilho/Luminária pendente de LED/

OR Plus D70 Series Pendant LED Track Light 10-20W

Número do produto:

XH-PLT-10W-OR

XH-PLT-15W-OR

XH-PLT-20W-OR



Vantagem:

CCT: 2700K, 3000K, 3500K, 4000K, 5000K
CRI: Ra80+, Ra90+, Ra95+
Beam angle: 18°/20°, 25°/28°, 38°/44°, 60°
Dimmable: 0/1-10V, Phase dimmable (Triac), DALI, 2.4G/RF, ZigBee, Casambi/BLE
Installation: Track mounted
Color output: Single CCT
Lamp Efficiency: Lamp lumen 120-170lm/W
Warranty: 5 years

  • Detalhes do produto
  • Investigação

Descrição do produto

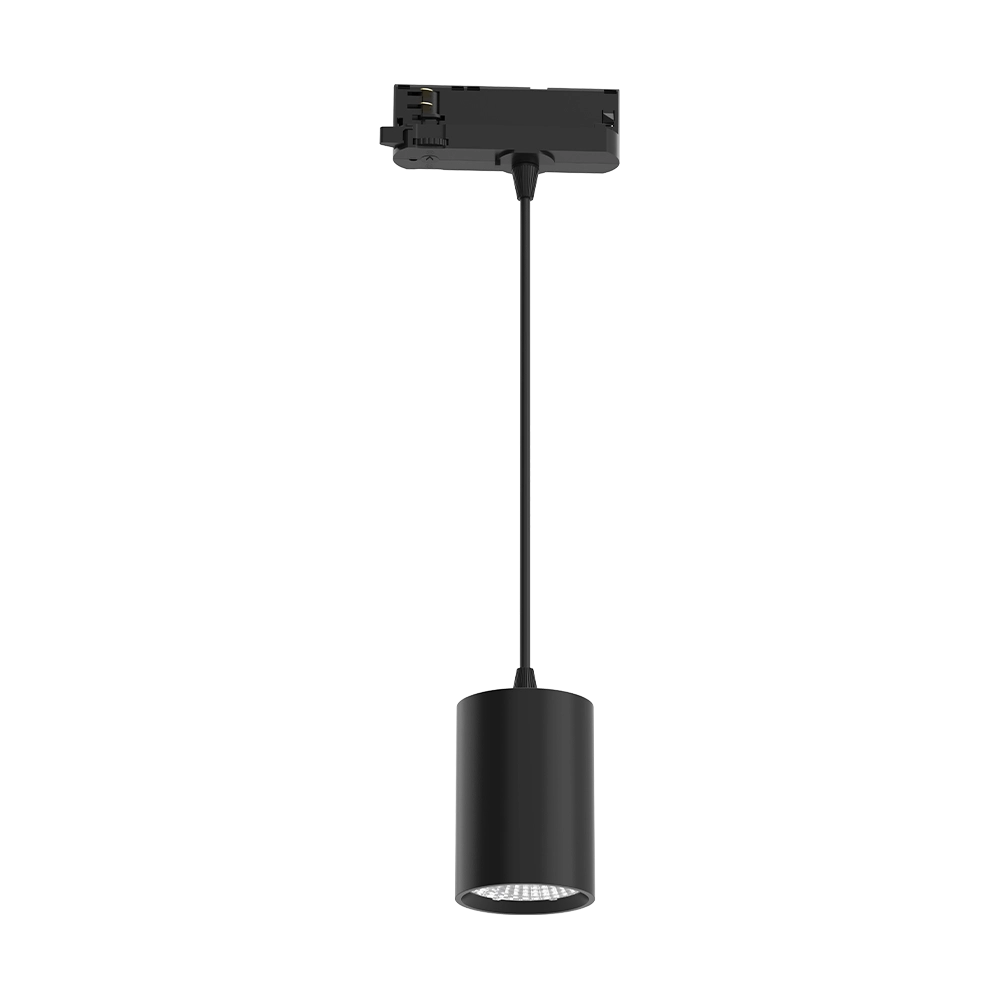

Apresentando o OR Plus D70 Series Pendant LED Track Light, a compact and efficient pendant lighting solution designed for modern commercial interiors. With a power range of 10-20W, this track-mounted pendant light is ideal for retail stores, galleries, restaurants, hotel spaces, showrooms, counters, and other applications requiring flexible track installation with clean suspended lighting.

The OR Plus D70 Series combines the flexibility of a track lighting system with the elegant appearance of a pendant luminaire. Its lens optical system provides multiple beam angle options, including 18°/20°, 25°/28°, 38°/44°, and 60°, helping designers create focused accent lighting, comfortable downward lighting, or wider illumination for different project needs.

This pendant LED track light supports LED chip options such as Citizen, CREE, and Bridgelux, and can be matched with reliable driver brands including Tridonic, Osram, BOKE, TCI, and Philips. It also supports different dimming and control solutions, including DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE.

For lighting brands, distributors, and commercial project contractors, the OR Plus D70 Series Pendant LED Track Light provides a flexible, efficient, and elegant solution for professional commercial lighting applications.

OR Plus D70 Series Pendant LED Track Light 10-20W
Código do produtoXH-PLT-10W-ORXH-PLT-15W-ORXH-PLT-20W-OR
Poder10W15W20W
MotoristaTridonic, Osram, BOKE, TCI, Philips
TensãoAC200-240V / AC90-130V, 50/60Hz
Fator de potênciaPF>0.90
tensão do LEDDC36V
Corrente do LED250mA350mA500mA
Regulável0/1-10V dimmable, Phase dimmable (Triac), DALI dimmable, 2.4G/RF dimmable, ZigBee dimmable, Casambi/BLE dimmable
Saída de corSingle CCT
MateriaisADC12 Alumínio fundido
TamanhoD70x100mm
Track Adapter6/4 wire 3 phase, 4/3/2 wire 1 phase
InstallationTrack Pendant
Marca LEDCitizen, CREE, Bridgelux
CCT2700K, 3000K, 3500K, 4000K, 5000K
CRIRa80+, Ra90+, Ra95+
SDCM<3
Vida50,000h
ÓpticaLens
Ângulo do feixe18°/20°, 25°/28°, 38°/44°, 60°
Eficiência da lâmpadaLamp lumen 120-170lm/W
ProteçãoIP20
TerminarWhite, Black, Grey
Garantia5 anos

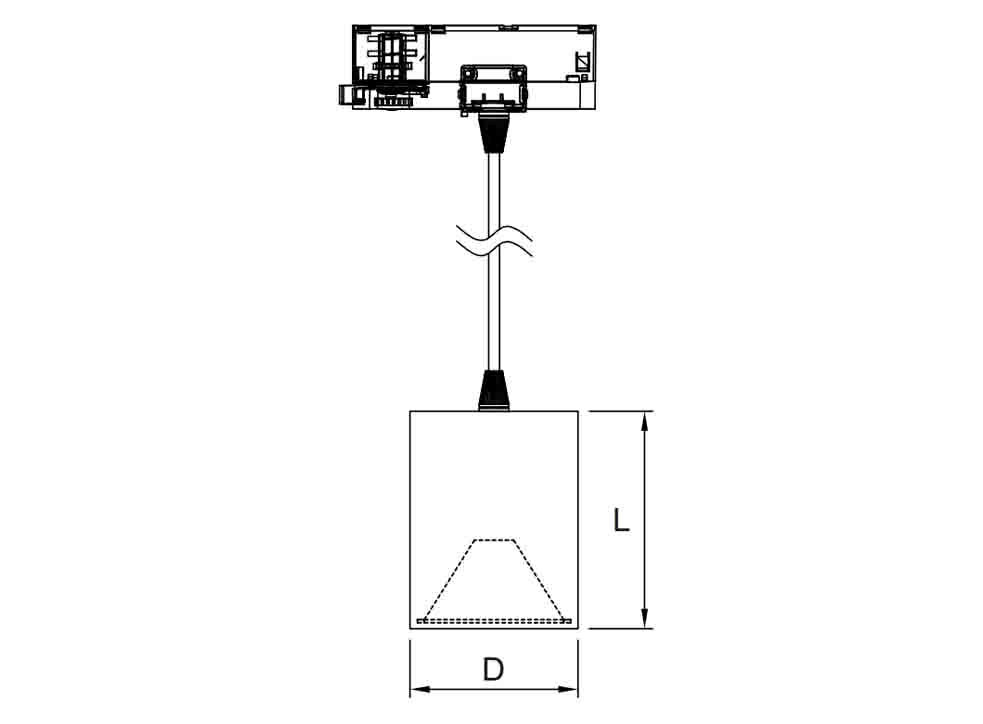

Tamanho e desenho

Controle de intensidade luminosa

Application Scenario

Vídeos relacionados

Lista de produtos

SérieNº do produto.PoderTensão do LEDAtualEficiênciaDimension(DXH)
D70 seriesXH-PLT-10W-OR10WDC36V250mA120-170lm/WD70x100mm
XH-PLT-15W-OR15WDC36V350mA120-170lm/WD70x100mm
XH-PLT-20W-OR20WDC36V500mA120-170lm/WD70x100mm
D85 seriesXH-PLT-20W-OR20WDC36V500mA120-170lm/WD85x110mm
XH-PLT-25W-OR25WDC36V600mA120-170lm/WD85x110mm
XH-PLT-30W-OR30WDC36V700/750mA120-170lm/WD85x110mm
