Descrição do produto

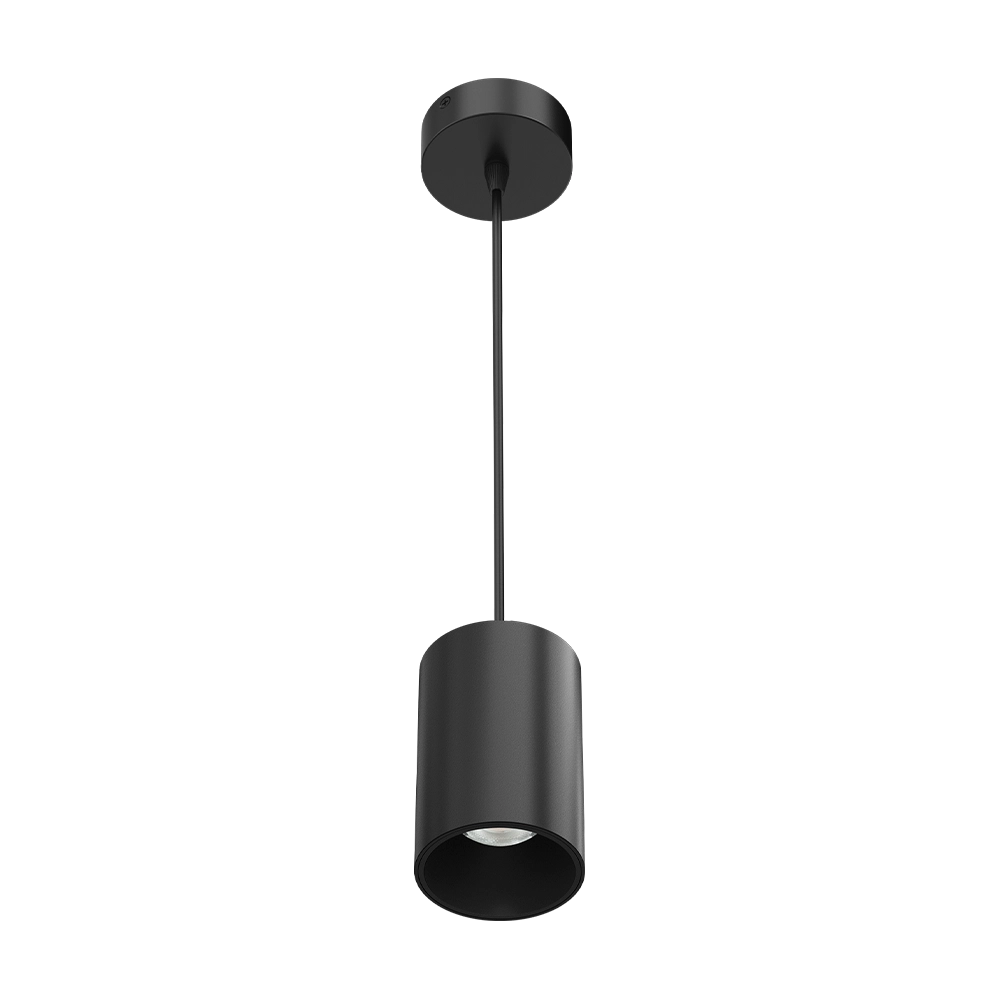

Apresentando o Rube D110 Series Pendant LED Downlight, a high-output pendant lighting solution for commercial and architectural projects. With a power range of 20-35W, this series is ideal for spaces requiring stronger brightness, clean suspended design, and stable lighting performance.
The Rube D110 Series combines a simple cylindrical body with lens and reflector optical options. Beam angles of 15°, 24°, 38°, and 60° make it suitable for retail display lighting, restaurant lighting, hotel lighting, gallery lighting, showroom lighting, and premium commercial interiors.
Designed for professional project use, this pendant LED downlight supports LED chip options such as Citizen, CREE, and Bridgelux, and driver options including Tridonic, Osram, BOKE, TCI, and Philips. It can also be configured with different dimming and control systems such as DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE.
For B2B lighting brands, distributors, and project contractors, the Rube D110 Series Pendant LED Downlight provides higher output, flexible optical performance, and a refined suspended lighting appearance for commercial projects.
| Luminária pendente LED Rube série D110 20-35W | |||||||||
| Código do produto | XH-RB-20W-SP | XH-RB-25W-SP | XH-RB-30W-SP | XH-RB-35W-SP | |||||
| Poder | 20W | 25W | 30W | 35W | |||||
| Motorista | Tridônico, Osram, BOKE, TCI, Philips | ||||||||
| Tensão | AC200-240V / AC90-130V, 50/60Hz | ||||||||
| Fator de potência | PF>0,90 | ||||||||
| tensão do LED | DC36V | ||||||||
| Corrente do LED | 500mA | 600mA | 700/750mA | 800mA | |||||
| Regulável | Regulável 0/1-10V, regulável por fase (Triac), regulável por DALI, regulável por 2.4G/RF, regulável por ZigBee, regulável por Casambi/BLE | ||||||||
| Saída de cor | CCT único | ||||||||
| Materiais | ADC12 Alumínio fundido | ||||||||
| Tamanho | 110 x 135 mm | ||||||||
| Instalação | Pingente | ||||||||
| Marca LED | Cidadão, CREE, Bridgelux | ||||||||
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K | ||||||||
| CRI | Ra80+, Ra90+, Ra95+ | ||||||||
| SDCM | <3 | ||||||||
| Vida | 50.000h | ||||||||
| Óptica | Lente + Refletor | ||||||||
| Ângulo do feixe | 15°, 24°, 38°, 60° | ||||||||
| Eficiência da lâmpada | Fluxo luminoso da lâmpada: 90-130 lm/W | ||||||||
| Proteção | IP20 | ||||||||
| Terminar | Branco, Preto, Cinza | ||||||||
| Garantia | 5 anos | ||||||||

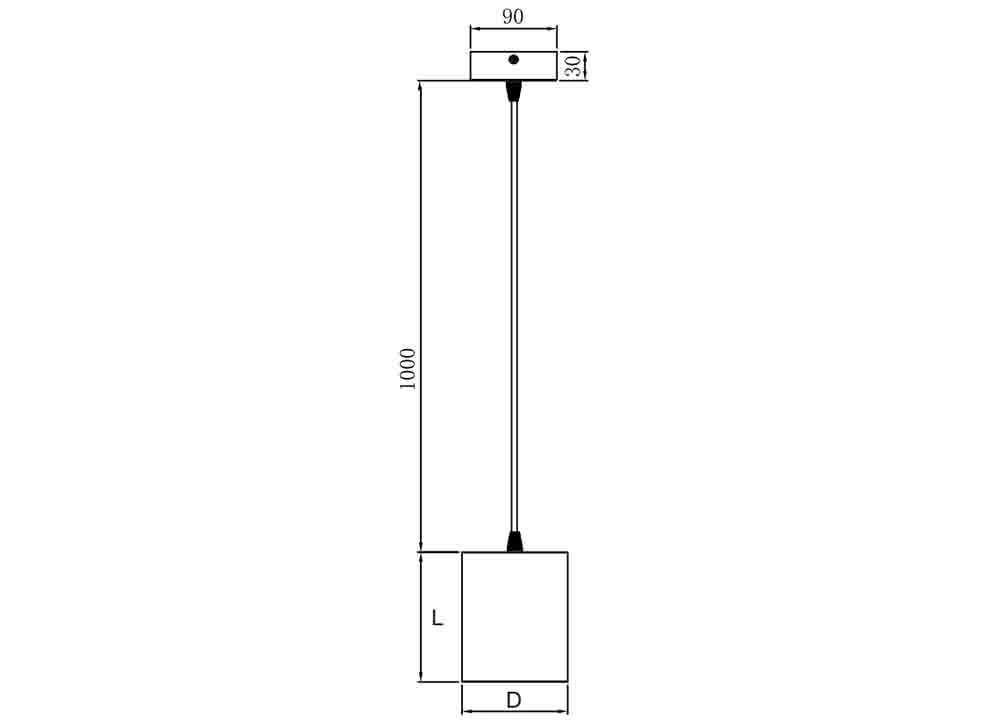

Tamanho e desenho
Controle de intensidade luminosa
Cenário de aplicação
Lista de produtos
| Série | Nº do produto. | Poder | Tensão do LED | Atual | Eficiência | Dimensão (DXH) | ||||||
| Série D85 | XH-RB-15W-SP | 15W | DC36V | 350mA | 90-130lm/W | 85 x 130 mm | ||||||
| XH-RB-20W-SP | 20W | DC36V | 500mA | 90-130lm/W | 85 x 130 mm | |||||||
| Série D110 | XH-RB-20W-SP | 20W | DC36V | 500mA | 90-130lm/W | 110 x 135 mm | ||||||
| XH-RB-25W-SP | 25W | DC36V | 600mA | 90-130lm/W | 110 x 135 mm | |||||||
| XH-RB-30W-SP | 30W | DC36V | 700/750mA | 90-130lm/W | 110 x 135 mm | |||||||
| XH-RB-35W-SP | 35W | DC36V | 800mA | 90-130lm/W | 110 x 135 mm | |||||||
