Descrição do produto

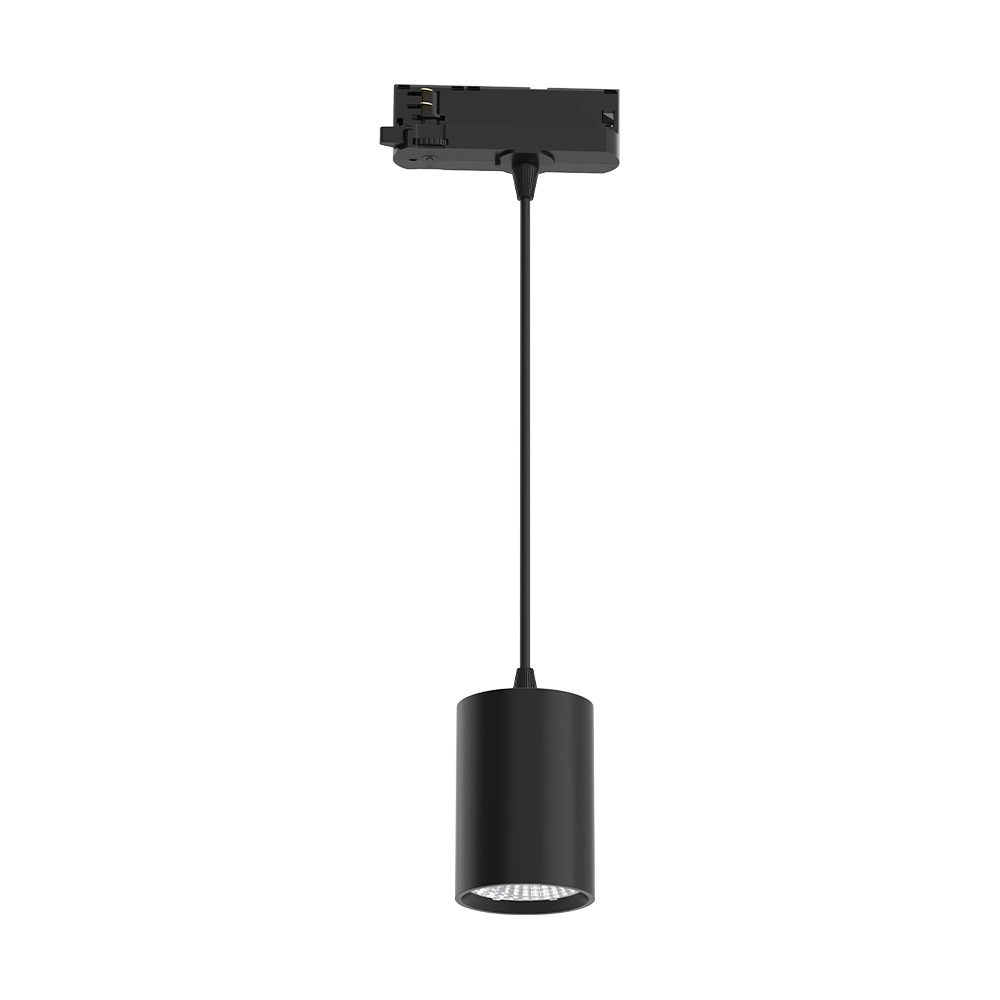

Apresentando o OR Plus D85 Series Pendant LED Track Light, a high-output pendant lighting solution for commercial and architectural projects. With a power range of 20-30W, this series is suitable for spaces requiring stronger brightness, flexible track installation, and a clean suspended lighting appearance.
The OR Plus D85 Series features a minimalist cylindrical pendant body with a track-mounted installation structure, making it practical for retail stores, showrooms, galleries, restaurants, hotels, and premium commercial interiors. Its lens optical system offers beam angle options of 18°/20°, 25°/28°, 38°/44°, and 60°, allowing designers to create focused accent lighting, display lighting, or comfortable general illumination.
Designed for professional project use, this pendant LED track light supports LED chip options such as Citizen, CREE, and Bridgelux, and driver options including Tridonic, Osram, BOKE, TCI, and Philips. It can also be configured with different dimming and control systems such as DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE.
For B2B lighting brands, distributors, and project contractors, the OR Plus D85 Series Pendant LED Track Light offers high efficiency, flexible track installation, and refined architectural design for commercial lighting projects.
| OR Plus D85 Series Pendant LED Track Light 20-30W | ||||||||||
| Código do produto | XH-PLT-20W-OR | XH-PLT-25W-OR | XH-PLT-30W-OR | |||||||
| Poder | 20W | 25W | 30W | |||||||
| Motorista | Tridonic, Osram, BOKE, TCI, Philips | |||||||||
| Tensão | AC200-240V / AC90-130V, 50/60Hz | |||||||||
| Fator de potência | PF>0.90 | |||||||||
| tensão do LED | DC36V | |||||||||
| Corrente do LED | 500mA | 600mA | 700/750mA | |||||||
| Regulável | 0/1-10V dimmable, Phase dimmable (Triac), DALI dimmable, 2.4G/RF dimmable, ZigBee dimmable, Casambi/BLE dimmable | |||||||||
| Saída de cor | Single CCT | |||||||||
| Materiais | ADC12 Alumínio fundido | |||||||||
| Tamanho | D85x110mm | |||||||||
| Track Adapter | 6/4 wire 3 phase, 4/3/2 wire 1 phase | |||||||||
| Installation | Track Pendant | |||||||||
| Marca LED | Citizen, CREE, Bridgelux | |||||||||
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K | |||||||||
| CRI | Ra80+, Ra90+, Ra95+ | |||||||||
| SDCM | <3 | |||||||||
| Vida | 50,000h | |||||||||
| Óptica | Lens | |||||||||
| Ângulo do feixe | 18°/20°, 25°/28°, 38°/44°, 60° | |||||||||
| Eficiência da lâmpada | Lamp lumen 120-170lm/W | |||||||||
| Proteção | IP20 | |||||||||
| Terminar | White, Black, Grey | |||||||||
| Garantia | 5 anos | |||||||||

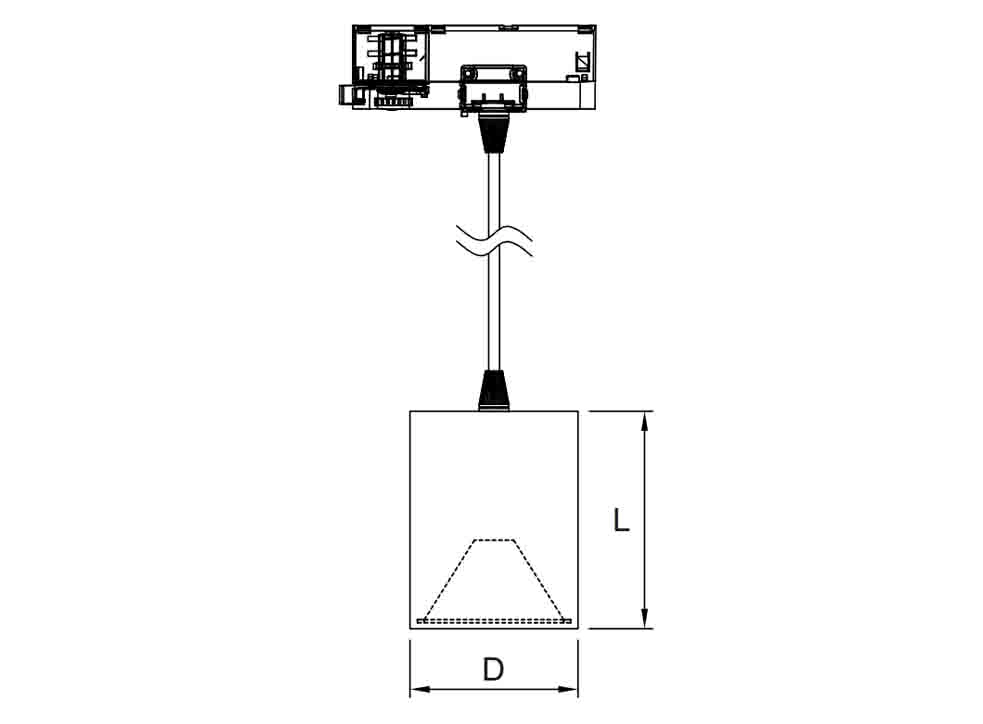

Tamanho e desenho
Controle de intensidade luminosa
Application Scenario
Vídeos relacionados
Lista de produtos
| Série | Nº do produto. | Poder | Tensão do LED | Atual | Eficiência | Dimension(DXH) | ||||||
| D70 series | XH-PLT-10W-OR | 10W | DC36V | 250mA | 120-170lm/W | D70x100mm | ||||||
| XH-PLT-15W-OR | 15W | DC36V | 350mA | 120-170lm/W | D70x100mm | |||||||
| XH-PLT-20W-OR | 20W | DC36V | 500mA | 120-170lm/W | D70x100mm | |||||||
| D85 series | XH-PLT-20W-OR | 20W | DC36V | 500mA | 120-170lm/W | D85x110mm | ||||||
| XH-PLT-25W-OR | 25W | DC36V | 600mA | 120-170lm/W | D85x110mm | |||||||
| XH-PLT-30W-OR | 30W | DC36V | 700/750mA | 120-170lm/W | D85x110mm | |||||||
