Product Description

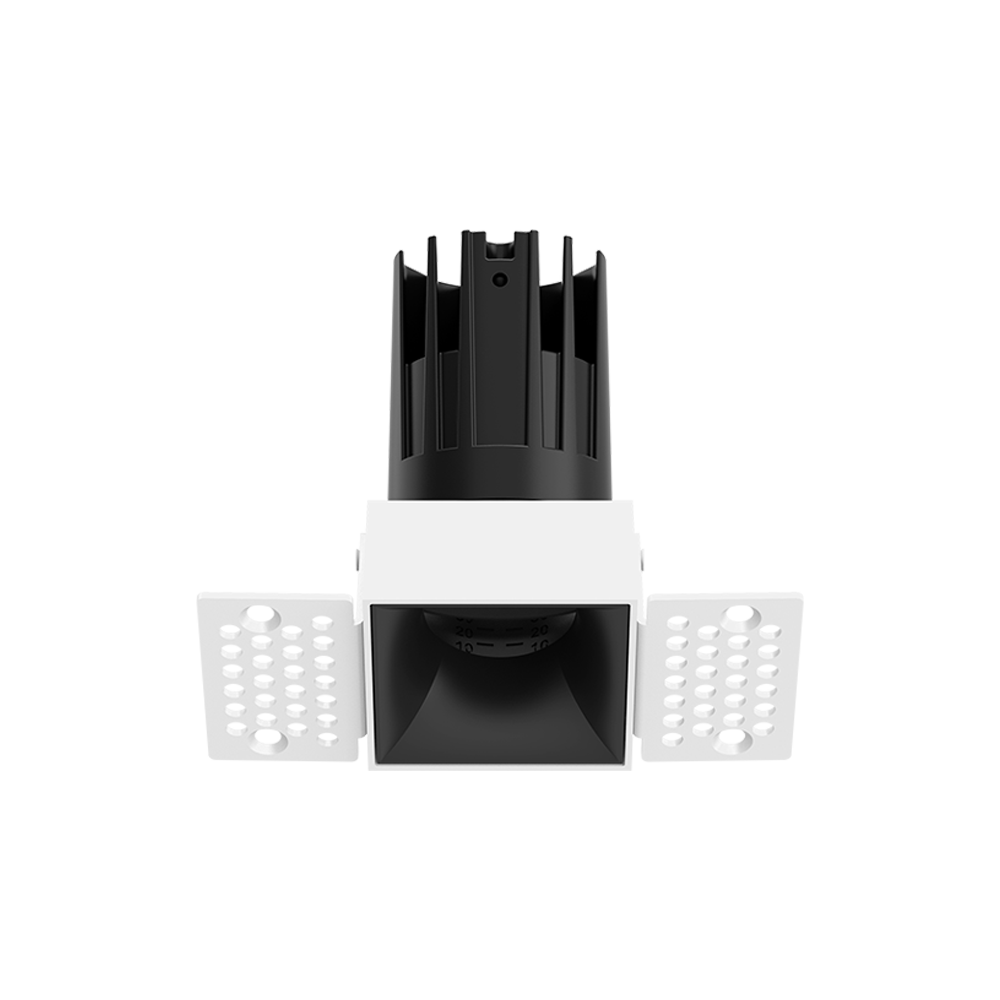

Introducing the Wall Washer D75x134 Series Square Trimless LED Downlight, a professional recessed wall washer for commercial and architectural lighting projects. With a power range of 10-15W, this series is ideal for retail stores, galleries, showrooms, hotels, restaurants, and other spaces requiring clean trimless recessed lighting with controlled wall illumination.
The D75x134 Series uses a PC lens and reflector optical system to deliver accurate beam control. Beam angle options of 15°, 24°, 36°, and 50° help designers create vertical wall washing, product display lighting, and comfortable accent lighting for different interior applications.
This square trimless LED wall washer supports LED chip options such as Citizen, Philips, and CREE, and driver options including Tridonic, Osram, BOKE, TCI, and Philips. It can also be configured with different dimming systems, including DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE.
For B2B lighting brands, distributors, and project contractors, the Wall Washer D75x134 Series Square Trimless LED Downlight provides a balanced combination of clean ceiling design, optical flexibility, and reliable lighting performance.
| Wall Washer D75x134 Series Square Trimless LED Downlight 10-15W | |||||||
| Product code | XH-DL-OR-10W-3ST | XH-DL-OR-15W-3ST | |||||
| Power | 10W | 15W | |||||
| Driver | Tridonic, Osram, BOKE, TCI, Philips | ||||||
| Voltage | AC200-240V / AC90-130V, 50/60Hz | ||||||
| Power factor | PF>0.90 | ||||||
| LED voltage | DC36V | ||||||
| LED Current | 250mA | 350mA | |||||
| Dimmable | 0/1-10V dimmable, Phase dimmable (Triac), DALI dimmable, 2.4G/RF dimmable, ZigBee dimmable, Casambi/BLE dimmable | ||||||
| Color output | Single CCT | ||||||
| Materials | ADC12 Die cast Aluminum | ||||||
| Size | 75X134X105mm | ||||||
| Cut Out | 75X75mm | ||||||
| Light distribution | Wall Wash | ||||||
| Adjustable angle | 30° tilt, 355° rotation | ||||||
| Installation | Recessed | ||||||
| LED brand | Citizen, Philips, CREE | ||||||
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K | ||||||
| CRI | Ra80+, Ra90+, Ra95+ | ||||||
| SDCM | <3 | ||||||
| Lifetime | 50,000h | ||||||
| Optics | PC Lens+reflector | ||||||
| Beam angle | 15°, 24°, 36°, 50° | ||||||
| Lamp Efficiency | Lamp lumen 80-110lm/W | ||||||
| Protection | IP20 | ||||||
| Finish | White, Black, Grey | ||||||
| Warranty | 3-5 years | ||||||

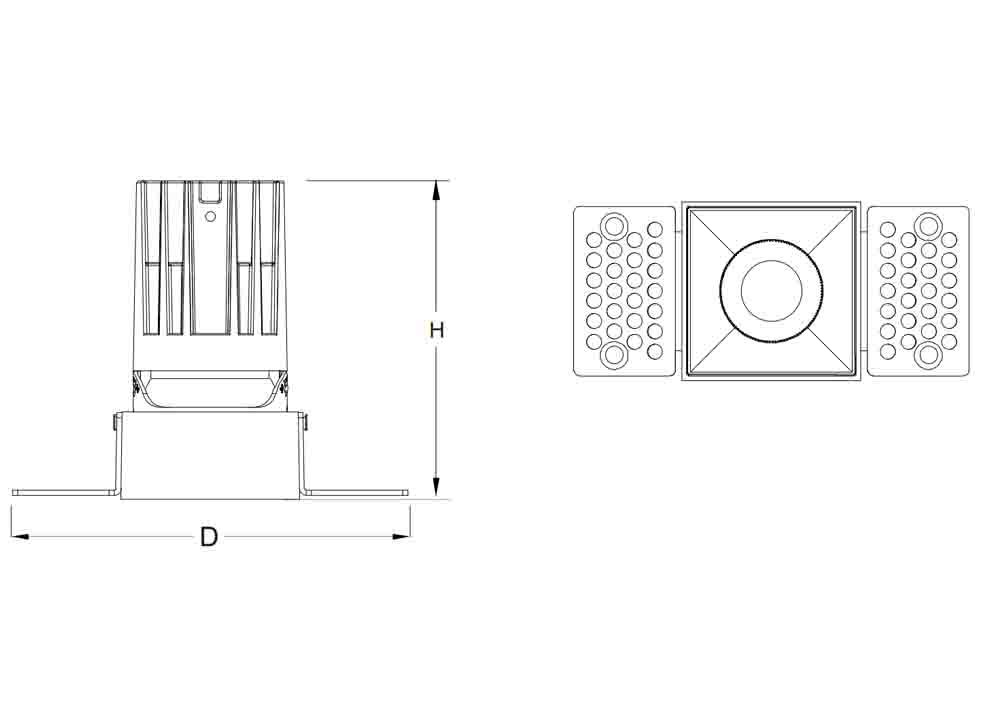

Size and Drawing
Dimming control
Application Scenario
Product List
| Series | Product No. | Power | LED Voltage | Current | Efficiency | Dimension(DXH) | Cut Out | |||||||
| D55x117 series | XH-DL-OR-5W-2ST | 5W | DC36V | 150mA | 60-110lm/W | 55X117X94mm | 55X55mm | |||||||
| XH-DL-OR-8W-2ST | 8W | DC36V | 200mA | 60-110lm/W | 55X117X94mm | 55X55mm | ||||||||
| XH-DL-OR-10W-2ST | 10W | DC36V | 250mA | 60-110lm/W | 55X117X94mm | 55X55mm | ||||||||
| D75x134 series | XH-DL-OR-10W-3ST | 10W | DC36V | 250mA | 80-110lm/W | 75X134X105mm | 75X75mm | |||||||
| XH-DL-OR-15W-3ST | 15W | DC36V | 350mA | 80-110lm/W | 75X134X105mm | 75X75mm | ||||||||
| D95x172 series | XH-DL-OR-20W-4ST | 20W | DC36V | 500mA | 80-110lm/W | 95X172X132mm | 95X95mm | |||||||
| XH-DL-OR-25W-4ST | 25W | DC36V | 600mA | 80-110lm/W | 95X172X132mm | 95X95mm | ||||||||
