Wall Washer D75 Series Round Trimless LED Downlight 10-15W - XHLUX

Wall Wash LED Downlight/

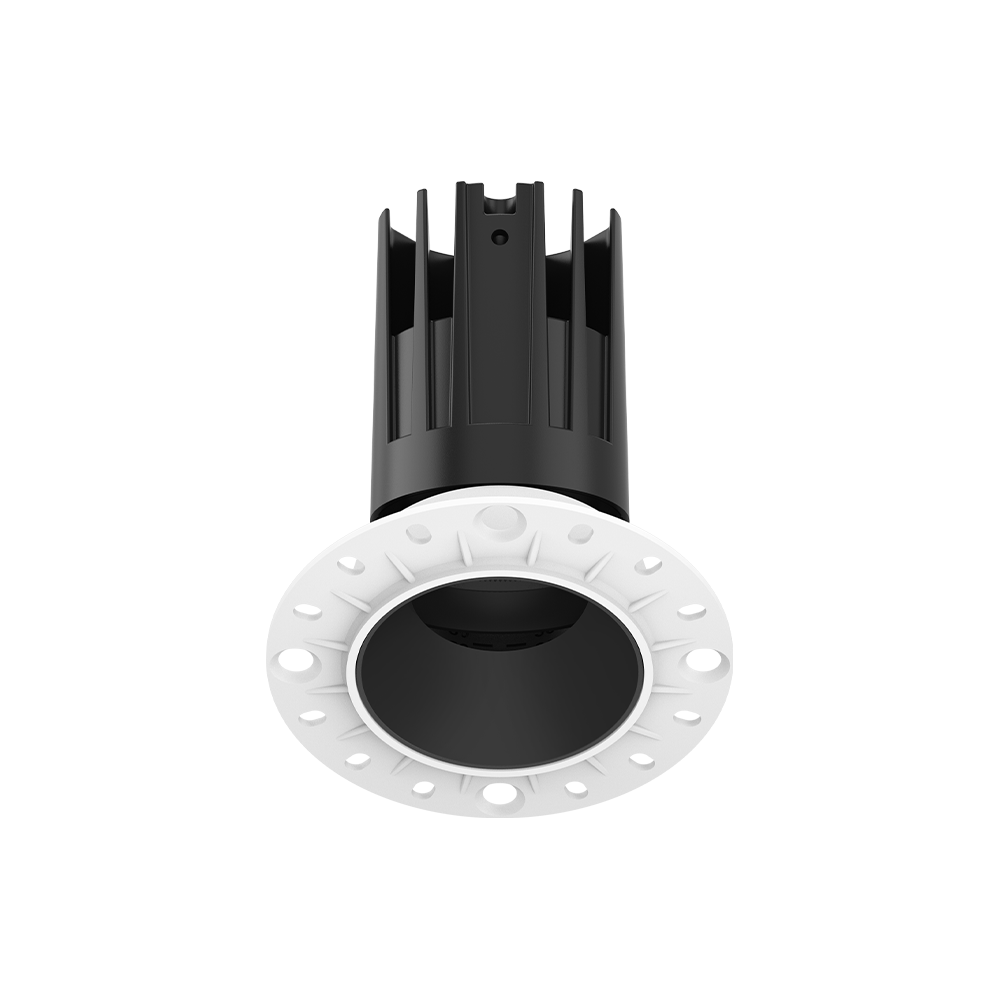

Wall Washer D75 Series Round Trimless LED Downlight 10-15W

Product Number:

XH-DL-OR-10W-3RT

XH-DL-OR-15W-3RT



Advantage:

CCT: 2700K, 3000K, 3500K, 4000K, 5000K
CRI: Ra80+, Ra90+, Ra95+
Beam angle: 15°, 24°, 36°, 50°
Optics: PC Lens + reflector
Dimmable: 0/1-10V, Phase dimmable (Triac), DALI, 2.4G/RF, ZigBee, Casambi/BLE
Material: ADC12 Die cast Aluminum
Color output: Single CCT
Lamp Efficiency: Lamp lumen 80-110lm/W
Warranty: 5 years

  • Product Details
  • Inquiry

Product Description

Introducing the Wall Washer D75 Series Round Trimless LED Downlight, a recessed wall washer designed for professional commercial lighting projects. With a power range of 10-15W, this series is ideal for retail stores, galleries, showrooms, hotels, restaurants, and other spaces requiring clean recessed lighting with controlled wall illumination.

The D75 Series uses a trimless round structure with PC lens and reflector optics to deliver accurate beam control. Beam angle options of 15°, 24°, 36°, and 50° help designers create vertical wall washing, product display lighting, and comfortable accent lighting for different interior applications.

This round trimless LED wall washer supports LED chip options such as Citizen, Philips, and CREE, and driver options including Tridonic, Osram, BOKE, TCI, and Philips. It can also be configured with different dimming systems, including DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE.

For B2B lighting brands, distributors, and project contractors, the Wall Washer D75 Series Round Trimless LED Downlight provides a balanced combination of clean ceiling design, optical flexibility, and reliable lighting performance.

Wall Washer D75 Series Round Trimless LED Downlight 10-15W
Product codeXH-DL-OR-10W-3RTXH-DL-OR-15W-3RT
Power10W15W
DriverTridonic, Osram, BOKE, TCI, Philips
VoltageAC200-240V / AC90-130V, 50/60Hz
Power factorPF>0.90
LED voltageDC36V
LED Current250mA350mA
Dimmable0/1-10V dimmable, Phase dimmable (Triac), DALI dimmable, 2.4G/RF dimmable, ZigBee dimmable, Casambi/BLE dimmable
Color outputSingle CCT
MaterialsADC12 Die cast Aluminum
SizeØ100X100mm
Cut OutØ75mm
Light distributionWall Wash

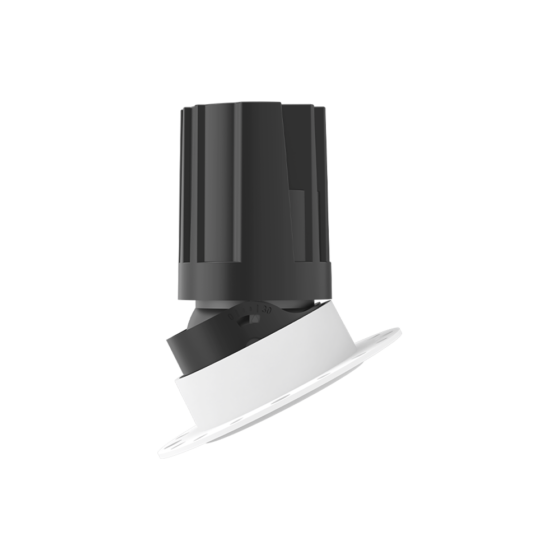

Adjustable angle30° tilt, 355° rotation
InstallationRecessed
LED brandCitizen, Philips, CREE
CCT2700K, 3000K, 3500K, 4000K, 5000K
CRIRa80+, Ra90+, Ra95+
SDCM<3
Lifetime50,000h
OpticsPC Lens+reflector
Beam angle15°, 24°, 36°, 50°
Lamp EfficiencyLamp lumen 80-110lm/W
ProtectionIP20
FinishWhite, Black, Grey
Warranty3-5 years

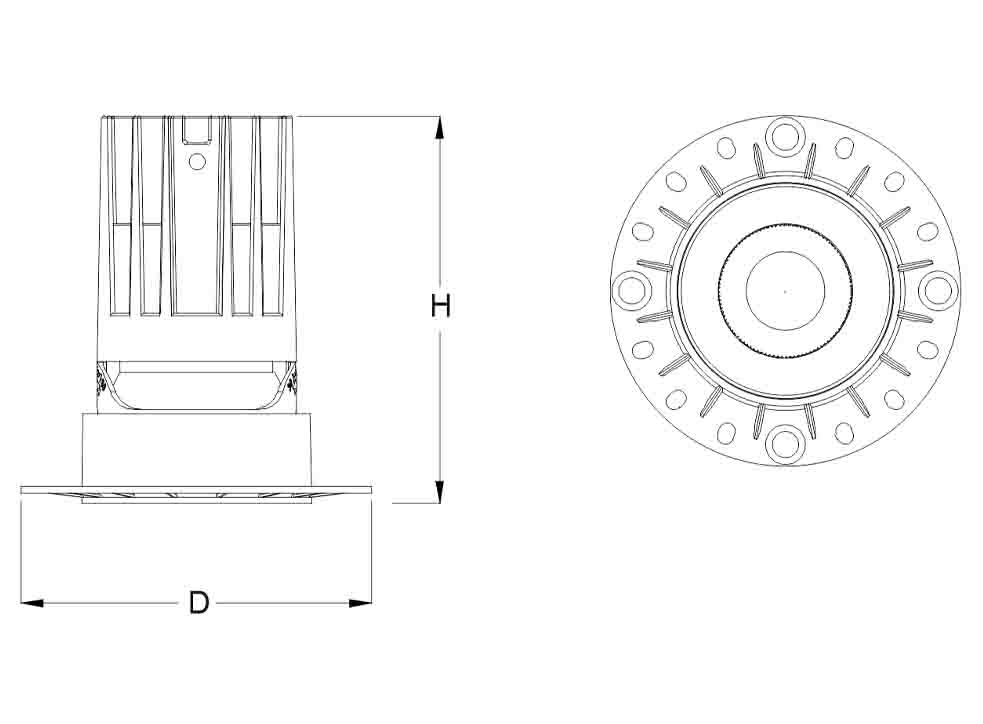

Size and Drawing

Dimming control

Application Scenario

Related Videos

Product List

SeriesProduct No.PowerLED VoltageCurrentEfficiencyDimension(DXH)Cut Out
D55 SeriesXH-DL-OR-5W-2RT5WDC36V150mA60-110lm/WØ80X88mmØ55mm
XH-DL-OR-8W-2RT8WDC36V200mA60-110lm/WØ80X88mmØ55mm
XH-DL-OR-10W-2RT10WDC36V250mA60-110lm/WØ80X88mmØ55mm
D75 SeriesXH-DL-OR-10W-3RT10WDC36V250mA80-110lm/WØ100X100mmØ75mm
XH-DL-OR-15W-3RT15WDC36V350mA80-110lm/WØ100X100mmØ75mm
D95 SeriesXH-DL-OR-20W-4RT20WDC36V500mA80-110lm/WØ120X122mmØ95mm
XH-DL-OR-25W-4RT25WDC36V600mA80-110lm/WØ120X122mmØ95mm
