Product Description

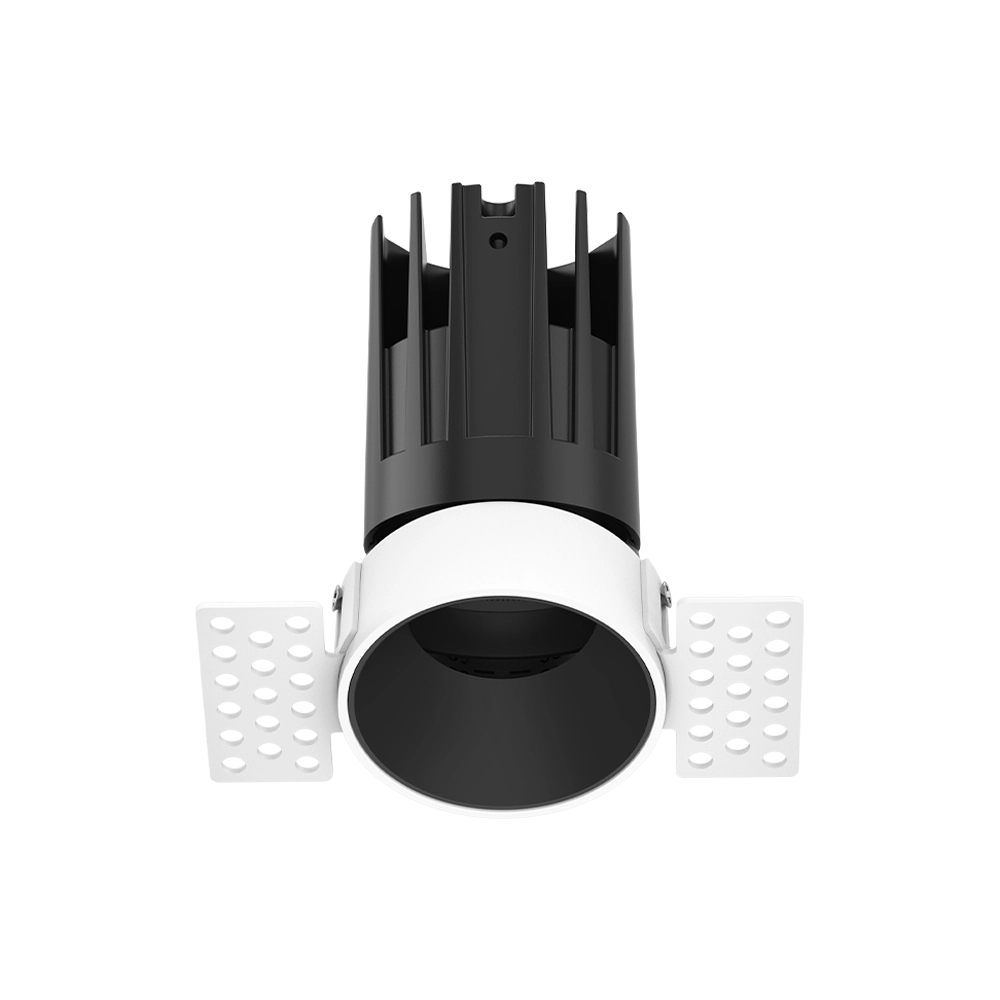

Introducing the Wall Washer D95 Series Round LED Downlight RT Version, a higher-output recessed wall washer for commercial and architectural lighting projects. With a power range of 15-25W, this series is suitable for larger retail stores, galleries, museums, hotel spaces, showrooms, and premium commercial interiors requiring stronger wall washing performance.
The D95 Series features a round recessed design with PC lens and reflector optics. Beam angle options of 15°, 24°, 36°, and 50° allow lighting designers to create focused wall washing, vertical illumination, product highlighting, and architectural accent lighting.
This wall washer LED downlight supports LED chip options such as Citizen, Philips, and CREE, and can be matched with driver brands including Tridonic, Osram, BOKE, TCI, and Philips. It also supports different dimming and control systems such as DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE.
For lighting brands, distributors, and commercial project contractors, the Wall Washer D95 Series Round LED Downlight RT Version offers stronger output, flexible optical control, and stable performance for professional wall washing applications.
| Wall Washer D95 Series Round LED Downlight RT Version 15-25W | ||||||||||
| Product code | XH-DL-OR-15W-4RT | XH-DL-OR-20W-4RT | XH-DL-OR-25W-4RT | |||||||
| Power | 15W | 20W | 25W | |||||||
| Driver | Tridonic, Osram, BOKE, TCI, Philips | |||||||||
| Voltage | AC200-240V / AC90-130V, 50/60Hz | |||||||||
| Power factor | PF>0.90 | |||||||||
| LED voltage | DC36V | |||||||||
| LED Current | 350mA | 500mA | 600mA | |||||||
| Dimmable | 0/1-10V dimmable, Phase dimmable (Triac), DALI dimmable, 2.4G/RF dimmable, ZigBee dimmable, Casambi/BLE dimmable | |||||||||
| Color output | Single CCT | |||||||||
| Materials | ADC12 Die cast Aluminum | |||||||||
| Size | 164X121mm | |||||||||
| Cut Out | Ø95mm | |||||||||
| Light distribution | Wall Wash | |||||||||
| Adjustable angle | 30° tilt, 355° rotation | |||||||||
| Installation | Recessed | |||||||||
| LED brand | Citizen, Philips, CREE | |||||||||
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K | |||||||||
| CRI | Ra80+, Ra90+, Ra95+ | |||||||||
| SDCM | <3 | |||||||||
| Lifetime | 50,000h | |||||||||
| Optics | PC Lens+reflector | |||||||||
| Beam angle | 15°, 24°, 36°, 50° | |||||||||
| Lamp Efficiency | Lamp lumen 80-110lm/W | |||||||||
| Protection | IP20 | |||||||||
| Finish | White, Black, Grey | |||||||||
| Warranty | 3-5 years | |||||||||

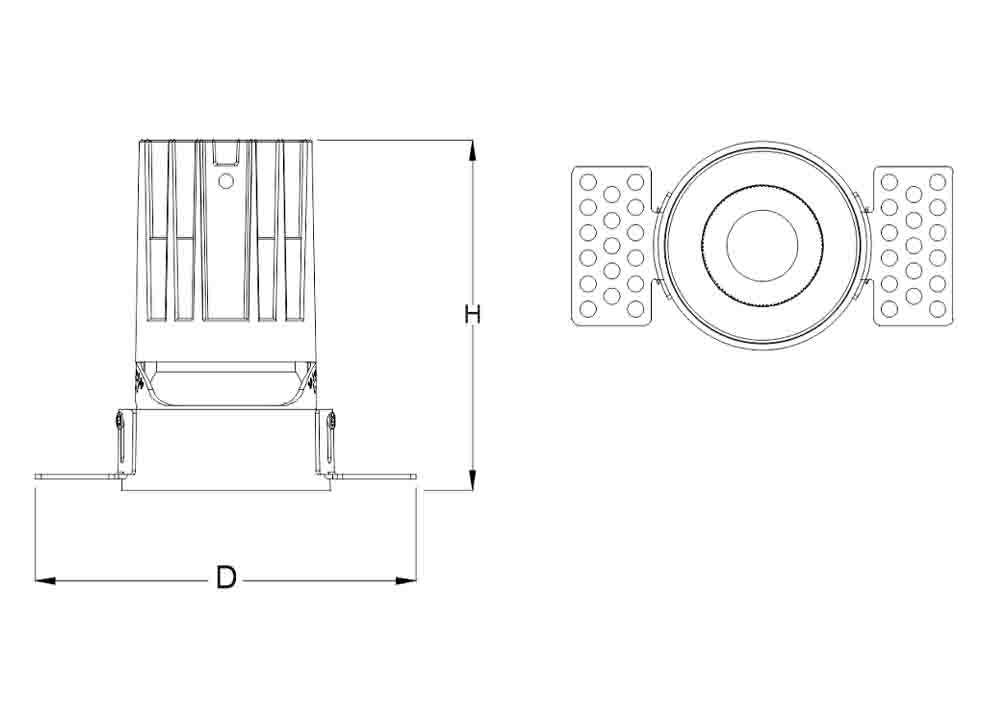

Size and Drawing
Dimming control
Application Scenario
Related Videos
Product List
| Series | Product No. | Power | LED Voltage | Current | Efficiency | Dimension(DXH) | Cut Out | |||||||
| D55 Series | XH-DL-OR-5W-2RT | 5W | DC36V | 150mA | 60-110lm/W | 96X88mm | Ø55mm | |||||||
| XH-DL-OR-8W-2RT | 8W | DC36V | 200mA | 60-110lm/W | 96X88mm | Ø55mm | ||||||||
| D75 Series | XH-DL-OR-10W-3RT | 10W | DC36V | 250mA | 80-110lm/W | 134X100mm | Ø75mm | |||||||
| XH-DL-OR-15W-3RT | 15W | DC36V | 350mA | 80-110lm/W | 134X100mm | Ø75mm | ||||||||
| D95 Series | XH-DL-OR-15W-4RT | 15W | DC36V | 350mA | 80-110lm/W | 164X121mm | Ø95mm | |||||||
| XH-DL-OR-20W-4RT | 20W | DC36V | 500mA | 80-110lm/W | 164X121mm | Ø95mm | ||||||||
| XH-DL-OR-25W-4RT | 25W | DC36V | 600mA | 80-110lm/W | 164X121mm | Ø95mm | ||||||||
