Stop Dark Seams Before You Join LED Linear Fixtures

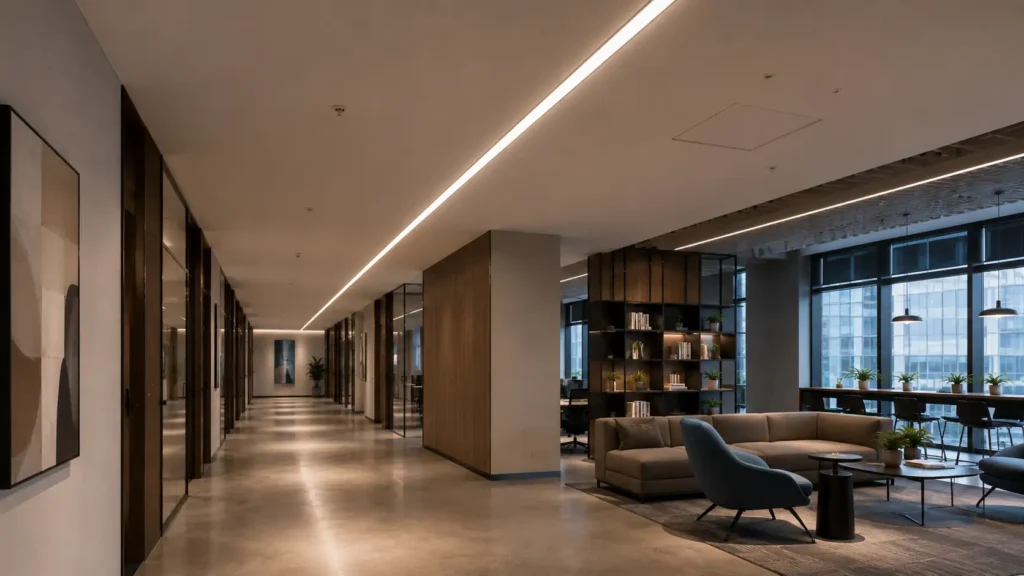

The corridor is finished. The line lights up. Then someone walks the run and points at a faint black line—or a bright leak—exactly where two modules meet. That is the detail owners and designers remember at handover.

Dark seams are rarely “the LED failed.” For a linear fixture led continuous ceiling run, they usually mean join, connector, beam or mount decisions were not set before the purchase order.

This page is a pre-order checklist to stop those seams. It is not a “what is continuous linear” definition article, not a “why use seamless continuous-run systems” sales page, and not a mount-path or hallway guide.

For the wider suspend / surface / recess map, start with How to Choose Linear LED Lighting: Suspended, Surface, or Recessed?. If you still need the definition of continuous linear systems, use the live what continuous linear LED lighting is page—then come back here for the dark-seam checks.

TL;DR: Dark seams usually come from four unlocked items—joinable housings, matching connectors, even beam across joints, and one mounting type per run. Walk those four before you order, not after the joint fails at handover.

Table of contents

• 🔗 1. Check if your LED linear fixtures are actually joinable
• 🧩 2. Match continuous run lighting connectors to the housing family
• 💡 3. Check linear fixture beam distribution stays even across joints
• 🔧 4. Pick one LED linear fixture mounting type per run—not mixed
• ✅ Dark seams at a glance
• What to do next
• 🏁 Conclusion
• FAQ

🔗 1. Check if your LED linear fixtures are actually joinable

Not every bar that looks continuous is built to join.

Some products are standalone modules with a linear look. Others are joinable linear LED fixtures—a housing family with a published joiner path for mechanical, electrical and often optical continuity.

Before you schedule a long run, ask:

• Does this housing family name a joiner (or join kit) in the same series?
• Is the joint designed as lit, dark or blank—on purpose?
• Can end caps and mid-joiners be ordered as matching parts, not “generic linear joiners”?

If the fixture is not joinable, forcing two ends together is the first source of dark seams: the gap was never engineered to disappear.

🎯 Can a continuous look alone prove the fixture is joinable?
No. Joinability is a housing-family fact on the datasheet—not a hope from a product photo.

🧩 2. Match continuous run lighting connectors to the housing family

Continuous run lighting connectors are not universal spare parts.

Housing thickness, lock style, internal vs external feed and optical continuity at the seam all sit in the connector design. Mixing brands or “close enough” part numbers is one of the most common direct causes of dark seams and light leaks.

Pre-order checklist for each connector line:

• Part number matches this housing family (same series, not a lookalike)
• Lock style named (clip, screw, latch—whatever the maker specifies)
• Feed path clear: power through the connector, or separate feed at ends only
• Service note: can the joint open later without destroying the visual line?

Write the connector SKU on the same schedule line as the module. “Connectors TBD” is how seams get improvised on site.

🎯 Is any linear connector fine if the length matches?
No. Match the connector family to the housing family, or expect seams and leaks.

💡 3. Check linear fixture beam distribution stays even across joints

A mechanical join can still fail optically.

If linear fixture beam distribution drops or piles up at the joint, the eye reads a dark band or a hot band—even when the housings touch. That is “connected in metal, not connected in light.”

At the joint, check on the submittal or mock-up:

• Optic / diffuser continuity across the joiner (same family, same finish)
• Whether the joint is meant to be luminous or intentionally dark
• Driver or circuit splits that leave different brightness on each side of the seam
• CCT / binning consistency across the modules that meet at that joint

You do not need a invented millimetre gap rule to catch this. You need a joined sample under the same aim and dimming level you will use on site.

🎯 Does a tight mechanical joint guarantee even light?
No. Beam and drive continuity across the joint are separate checks.

🔧 4. Pick one LED linear fixture mounting type per run—not mixed

LED linear fixture mounting types—suspended, surface, recessed—change the fixing plane, the visible height and often the joint geometry.

On one continuous visual run, mixing mount types is a quiet way to break the line: ends meet at different heights or angles, and the joint reads as a step or a gap even when the connector is correct.

Set mounting type at run level before you order:

Rule	Why it matters for dark seams
One mount type per continuous run	Keeps joint plane and angle consistent
Same accessory family along that run	Avoids mismatched canopies, brackets or recess frames at the seam
Change mount only at a planned break	A new run can change mount; a mid-joint should not

Different zones on the floor plate can use different mounts. One unbroken line should not.

🎯 Can one PO mix mounts if the finish matches?
Only if each continuous run still has one mount type. Finish match does not fix height mismatch at the joint.

✅ Dark seams at a glance

Dark-seam source	Pre-order check
Fixture is not actually joinable	Check joiner kit in the same housing family
Wrong or mixed connectors	Match connector part number and lock/feed style to the housing
Beam uneven at the joint	Check optic continuity, joint type (lit/dark), drive splits on a joined sample
Mixed mounting types on one run	Set one mount type per continuous run

No universal “seam gap ≤ X mm” number appears here. Without a project photometric or maker tolerance you can cite, inventing one would be dishonest. Use the checks above and a joined mock-up instead.

What to do next

1. Mark each continuous run: joinable family, connector SKUs, mount type, joint type (lit/dark/blank).
2. Order a joined sample of the longest typical joint before the full PO.
3. View that sample at the aiming and dimming level you will use on site.
4. Only then release module counts and finishes for the full run.

If you want a second review of whether a housing family and connector set will read continuous—or seam—at handover, XHLUX can check the schedule notes against the fixture series you are considering.

🏁 Conclusion: Can you stop dark seams before the PO?

Stop dark seams before you join LED linear fixtures by setting joinability, connectors, beam continuity across joints and one mounting type per run—before the order, not after the corridor walkthrough. Dark seams are usually a specification miss, not a mystery LED failure.

Explore our related blog posts:

• Why Use Continuous Run Seamless LED Linear Lighting Systems
• What Is an LED Linear Luminaire and How Is It Installed?
• Linear LED Suspension: What to Check Before You Order

Notes & Sources

• No invented seam-gap millimetres or universal joint tolerances in this draft. Checks stay qualitative + maker/family matching + joined mock-up.
• Live XHLUX continuous-definition and continuous-run system pages are linked for boundary only; this article does not repeat their full definitions or sales framing.
• Project electrical, structural, fire and accessibility rules remain applicable. Check local requirements and maker installation notes before installation.
