Descripción del Producto

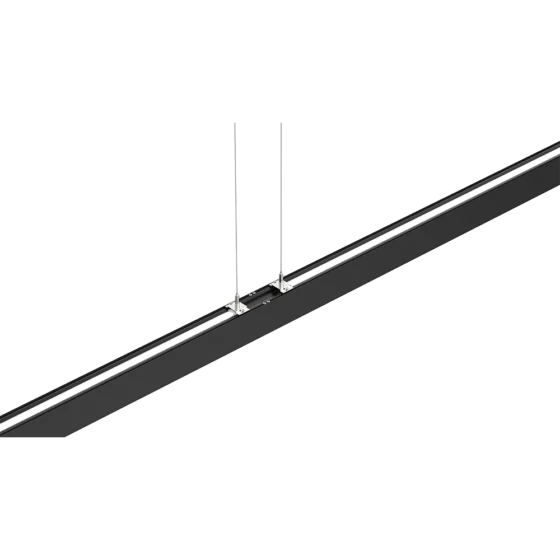

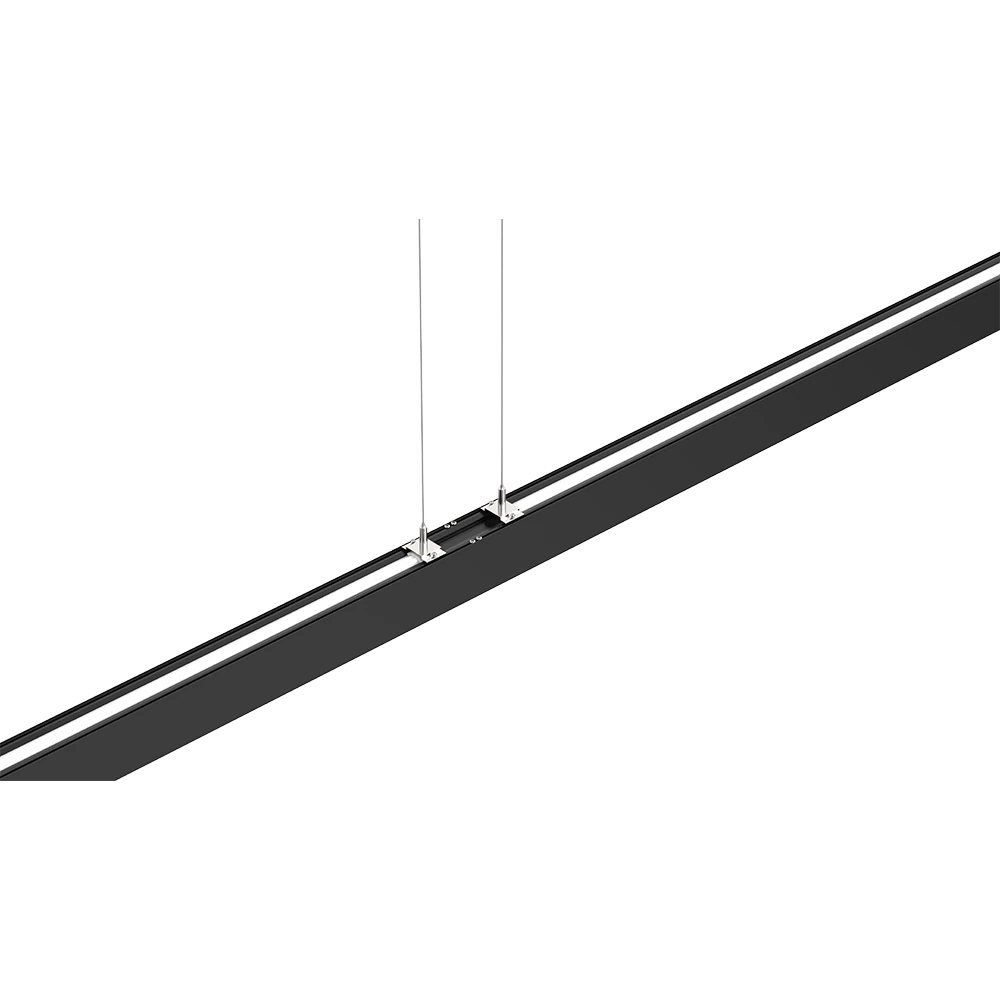

El 5075 Tasco is a suspended direct indirect LED linear light designed for offices, meeting rooms, schools, libraries, and modern commercial interiors. This individual version is available in Longitudes de 1200 mm, 1500 mm y 3000 mm, with corresponding power options of 36W, 47W, and 94W.
Its indirect/direct light distribution combines functional downward illumination with soft upward ceiling lighting. The 80° direct beam illuminates desks and working areas, while the 150° indirect beam spreads light across the ceiling to improve visual comfort and create a brighter, more balanced interior environment.
The luminaire features a 52 × 75mm 6063 aluminum profile y un PC microprismatic optical cover. It is available in 3000K, 4000K y 5000K, con una opción Blanco ajustable de 2700K a 6500K configuration. CRI options include Ra80+, Ra90+ y Ra95+, while SDCM<3 helps maintain consistent light color across multi-luminaire projects.
For intelligent commercial lighting systems, the 5075 Tasco supports DALI, Push dimming, Tunable White, Casambi, HCL, sensors, and emergency lighting configurations. With a luminous efficacy of 120-150 lm/W, una vida útil calificada de 50.000 horas, y un Garantía de 5 años, it provides lighting brands, distributors, consultants, and project contractors with a flexible direct indirect linear lighting solution.
| L1200/L1500/L3000 5075 Tasco Individual Suspended LED Linear Light Indirect/Direct 36-94W | ||||||||||
| Código de producto | XH-LL-5075-36W-TS | XH-LL-5075-47W-TS | XH-LL-5075-90W-TS | |||||||
| Fuerza | 36W | 47W | 94W | |||||||
| Conductor | Tridonic, BOKE, Philips | |||||||||
| Voltaje | CA 200-240 V, 50/60 Hz | |||||||||
| factor de potencia | PF>0,90 | |||||||||
| Voltaje del LED | 36 V CC | |||||||||
| Regulable | Encendido/Apagado, DALI, Atenuación por pulsación, CCT ajustable, Casambi, HCL, Sensor, Emergencia | |||||||||
| Salida de color | Temperatura de color única / Blanco ajustable | |||||||||
| Materiales | Aluminio 6063 | |||||||||
| Tamaño | L1200x52x75mm / L1500x52x75mm / L3000x52x75mm | |||||||||
| Instalación | Suspended, individual version | |||||||||
| Distribución de la luz | Indirect/Direct | |||||||||
| chip LED | SMD2835 | |||||||||
| CCT | 3000K, 4000K, 5000K; Blanco ajustable 2700K-6500K | |||||||||
| CRI | Ra80+, Ra90+, Ra95+ | |||||||||
| SDCM | <3 | |||||||||
| Vida | 50.000 horas | |||||||||
| Óptica | Microprismático de PC | |||||||||
| ángulo del haz | Direct 80° / Indirect 150° | |||||||||
| Eficiencia de la lámpara | Lamp lumen 120-150lm/W | |||||||||
| Protección | IP20, IK07 | |||||||||
| Finalizar | Blanco, Negro | |||||||||
| Garantía | 5 años | |||||||||
Tamaño y dibujo
Control de atenuación
Escenario de aplicación
Vídeos relacionados
Lista de productos
| Serie | Número de producto. | Fuerza | Voltaje del LED | Light Distribution | Eficiencia | Dimensiones (largo x ancho x alto) | ||||||
| L1200 series | XH-LL-5075-28W-TS/TC | 28W | 36 V CC | Direct | 120-150lm/W | L1200x52x75mm | ||||||
| XH-LL-5075-36W-TS/TC | 36W | 36 V CC | Indirect/Direct | 120-150lm/W | L1200x52x75mm | |||||||
| L1500 series | XH-LL-5075-31W-TS/TC | 31W | 36 V CC | Direct | 120-150lm/W | L1500x52x75mm | ||||||
| XH-LL-5075-47W-TS/TC | 47W | 36 V CC | Indirect/Direct | 120-150lm/W | L1500x52x75mm | |||||||
| L3000 series | XH-LL-5075-63W-TS/TC | 62W | 36 V CC | Direct | 120-150lm/W | L3000x52x75mm | ||||||
| XH-LL-5075-90W-TS/TC | 94W | 36 V CC | Indirect/Direct | 120-150lm/W | L3000x52x75mm | |||||||
