Descripción del Producto

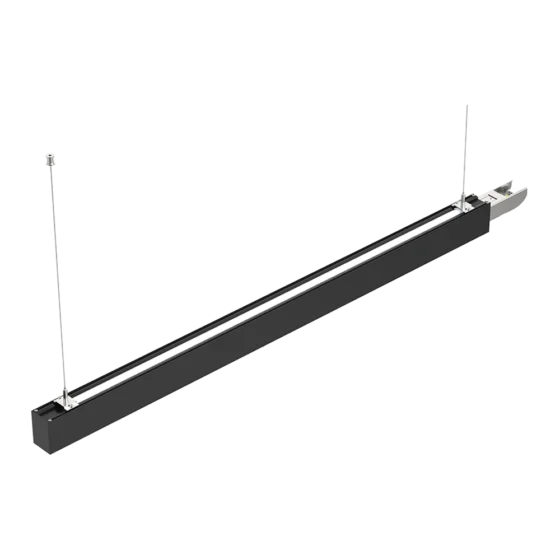

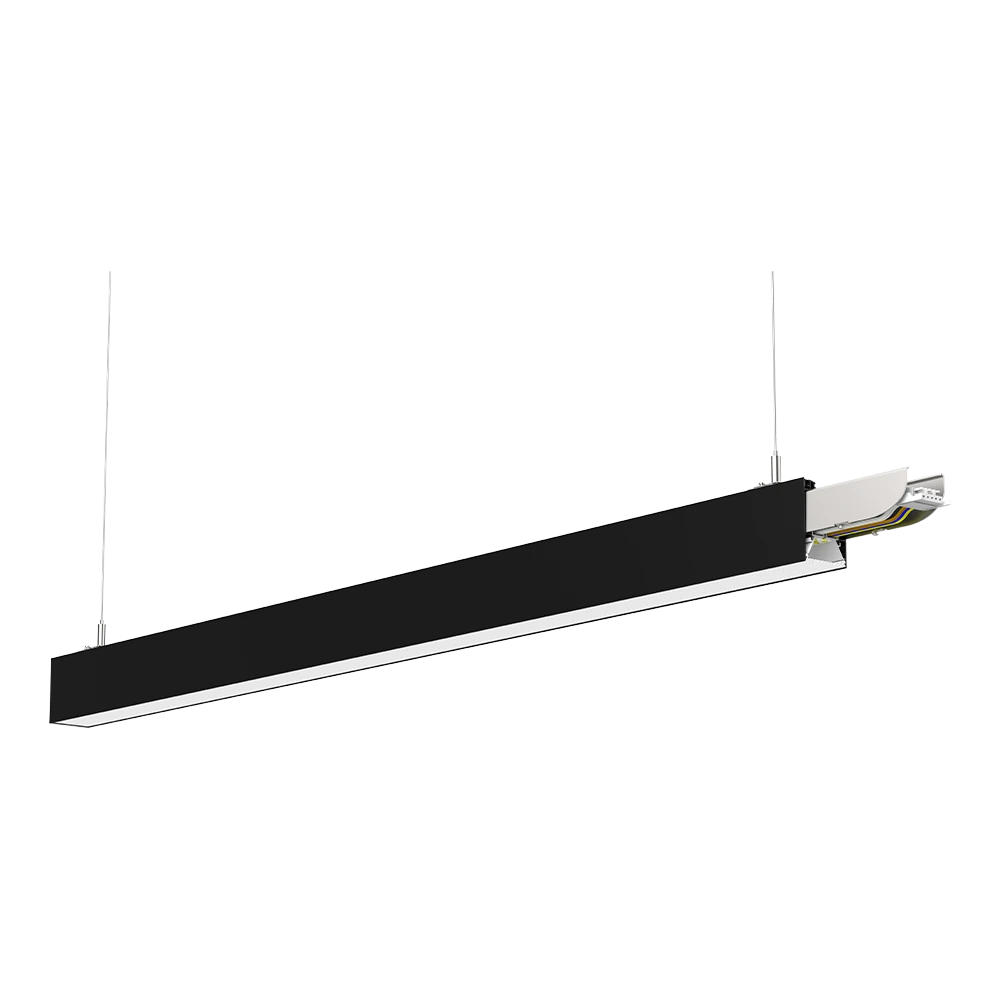

El 5075 Tasco is a linkable suspended direct indirect LED linear light designed for continuous lighting layouts in offices, meeting rooms, schools, libraries, and modern commercial interiors. It is available in Longitudes de 1200 mm, 1500 mm y 3000 mm, with corresponding power options of 36W, 47W, and 94W.
This linkable version allows multiple linear luminaires to form continuous lighting lines across long workspaces, corridors, open-plan offices, and large architectural areas. Its indirect/direct light distribution combines functional downward illumination with soft upward ceiling lighting, creating a brighter and more visually balanced interior environment.
El 80° direct beam provides broad illumination across desks and working surfaces, while the 150° indirect beam spreads light evenly across the ceiling. The luminaire uses a 52 × 75mm 6063 aluminum profile y un PC microprismatic optical cover, providing a clean architectural appearance for continuous commercial linear lighting installations.
Available configurations include 3000K, 4000K y 5000K, as well as optional Blanco ajustable de 2700K a 6500K. CRI options include Ra80+, Ra90+ y Ra95+, con SDCM<3 for consistent light color. The series supports DALI, Push dimming, Tunable White, Casambi, HCL, sensors, and emergency lighting configurations. Con una eficacia de 120-150 lm/W, una vida útil calificada de 50.000 horas, y un Garantía de 5 años, it provides a flexible solution for continuous direct indirect commercial lighting projects.
| L1200/L1500/L3000 5075 Tasco Linkable Suspended Direct Indirect LED Linear Light 36-94W | ||||||||||
| Código de producto | XH-LL-5075-36W-TC | XH-LL-5075-47W-TC | XH-LL-5075-90W-TC | |||||||
| Fuerza | 36W | 47W | 94W | |||||||
| Conductor | Tridonic, BOKE, Philips | |||||||||
| Voltaje | CA 200-240 V, 50/60 Hz | |||||||||
| factor de potencia | PF>0,90 | |||||||||
| Voltaje del LED | 36 V CC | |||||||||
| Regulable | Encendido/Apagado, DALI, Atenuación por pulsación, CCT ajustable, Casambi, HCL, Sensor, Emergencia | |||||||||
| Salida de color | Temperatura de color única / Blanco ajustable | |||||||||
| Materiales | Aluminio 6063 | |||||||||
| Tamaño | L1200x52x75mm / L1500x52x75mm / L3000x52x75mm | |||||||||
| Instalación | Suspended, linkable continuous version | |||||||||
| Distribución de la luz | Indirect/Direct | |||||||||
| chip LED | SMD2835 | |||||||||
| CCT | 3000K, 4000K, 5000K; Blanco ajustable 2700K-6500K | |||||||||
| CRI | Ra80+, Ra90+, Ra95+ | |||||||||
| SDCM | <3 | |||||||||
| Vida | 50.000 horas | |||||||||
| Óptica | Microprismático de PC | |||||||||
| ángulo del haz | Direct 80° / Indirect 150° | |||||||||
| Eficiencia de la lámpara | Lamp lumen 120-150lm/W | |||||||||
| Protección | IP20, IK07 | |||||||||
| Finalizar | Blanco, Negro | |||||||||
| Garantía | 5 años | |||||||||
Tamaño y dibujo
Control de atenuación
Escenario de aplicación
Vídeos relacionados
Lista de productos
| Serie | Número de producto. | Fuerza | Voltaje del LED | Light Distribution | Eficiencia | Dimensiones (largo x ancho x alto) | ||||||
| L1200 series | XH-LL-5075-28W-TS/TC | 28W | 36 V CC | Direct | 120-150lm/W | L1200x52x75mm | ||||||
| XH-LL-5075-36W-TS/TC | 36W | 36 V CC | Indirect/Direct | 120-150lm/W | L1200x52x75mm | |||||||
| L1500 series | XH-LL-5075-31W-TS/TC | 31W | 36 V CC | Direct | 120-150lm/W | L1500x52x75mm | ||||||
| XH-LL-5075-47W-TS/TC | 47W | 36 V CC | Indirect/Direct | 120-150lm/W | L1500x52x75mm | |||||||
| L3000 series | XH-LL-5075-63W-TS/TC | 62W | 36 V CC | Direct | 120-150lm/W | L3000x52x75mm | ||||||
| XH-LL-5075-90W-TS/TC | 94W | 36 V CC | Indirect/Direct | 120-150lm/W | L3000x52x75mm | |||||||
