Descripción del Producto

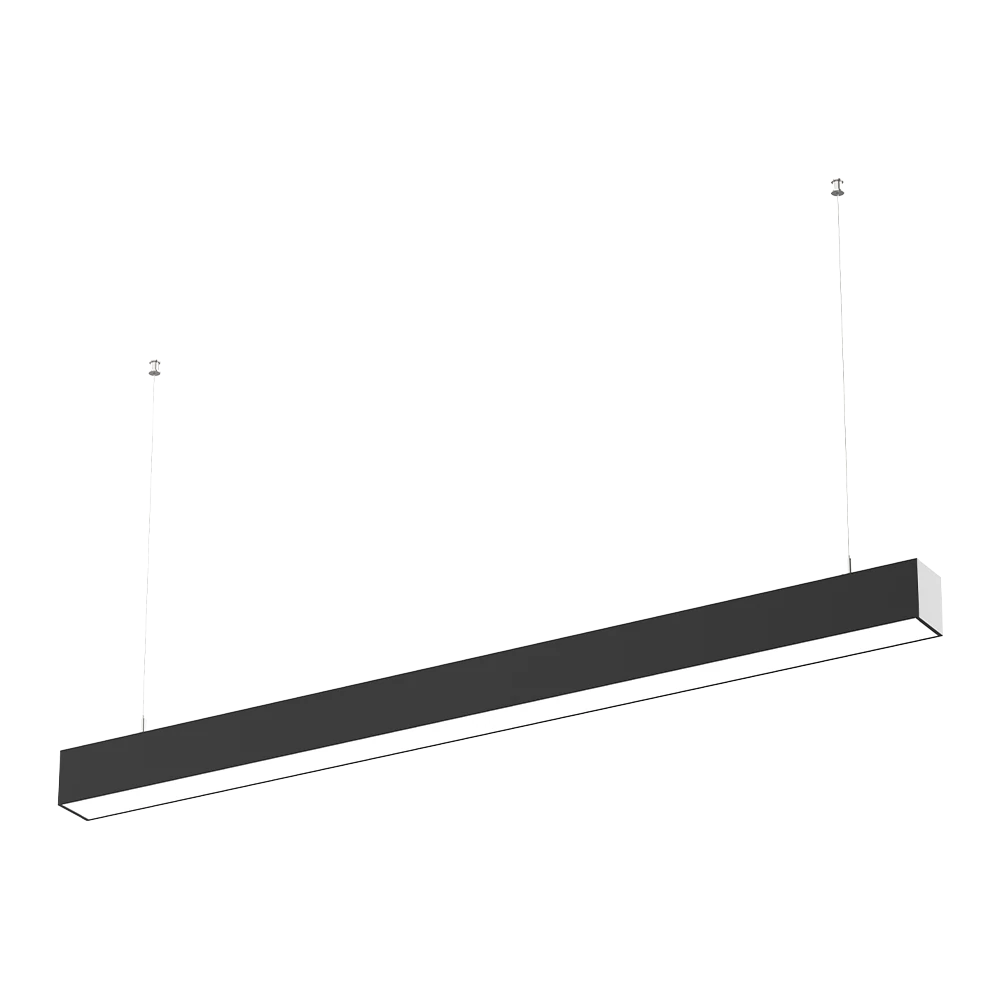

El 5075 Tasco is a commercial suspended LED linear light designed for offices, meeting rooms, schools, libraries, retail spaces, and modern architectural interiors. This individual direct-light version is available in Longitudes de 1200 mm, 1500 mm y 3000 mm, with corresponding power options of 28W, 31W y 62W.
Built with a 52 × 75mm aluminum profile, this suspended linear light fixture uses a Difusor microprismático de PC con un ángulo de haz de 80°. to deliver broad and uniform downward illumination. The clean rectangular housing and individual suspension structure make it suitable for projects that require a professional LED linear pendant light without continuous-row connections.
The series is available in 3000K, 4000K y 5000K, con una opción Blanco ajustable de 2700K a 6500K configuration. CRI options include Ra80+, Ra90+ y Ra95+, while SDCM<3 supports consistent light color across multi-luminaire installations. Control options include DALI, Push dimming, Casambi, Tunable White, HCL, sensors, and emergency lighting, with driver options from Tridonic, BOKE, and Philips.
With a luminous efficacy of 120-150 lm/W, una vida útil calificada de 50.000 horas, y un Garantía de 5 años, the 5075 Tasco provides lighting brands, distributors, consultants, and project contractors with an efficient and configurable solution for commercial and office linear lighting projects.
| L1200/L1500/L3000 5075 Tasco Commercial Lámpara lineal LED suspendida – Iluminación directa individual 28-62W | ||||||||||
| Código de producto | XH-LL-5075-28W-TS | XH-LL-5075-31W-TS | XH-LL-5075-63W-TS | |||||||
| Fuerza | 28W | 31W | 62W | |||||||
| Conductor | Tridonic, BOKE, Philips | |||||||||
| Voltaje | CA 200-240 V, 50/60 Hz | |||||||||
| factor de potencia | PF>0,90 | |||||||||
| Voltaje del LED | 36 V CC | |||||||||
| Regulable | Encendido/Apagado, DALI, Atenuación por pulsación, CCT ajustable, Casambi, HCL, Sensor, Emergencia | |||||||||
| Salida de color | Temperatura de color única / Blanco ajustable | |||||||||
| Materiales | Aluminio 6063 | |||||||||
| Tamaño | L1200x52x75mm / L1500x52x75mm / L3000x52x75mm | |||||||||
| Instalación | Suspended, Individual version | |||||||||
| Distribución de la luz | Direct | |||||||||
| chip LED | SMD2835 | |||||||||
| CCT | 3000K, 4000K, 5000K; Blanco ajustable 2700K-6500K | |||||||||
| CRI | Ra80+, Ra90+, Ra95+ | |||||||||
| SDCM | <3 | |||||||||
| Vida | 50.000 horas | |||||||||
| Óptica | Microprismático de PC | |||||||||
| ángulo del haz | 80° | |||||||||
| Eficiencia de la lámpara | Lamp lumen 120-150lm/W | |||||||||
| Protección | IP20, IK07 | |||||||||
| Finalizar | Blanco, Negro | |||||||||
| Garantía | 5 años | |||||||||
Tamaño y dibujo
Control de atenuación
Escenario de aplicación
Vídeos relacionados
Lista de productos
| Serie | Número de producto. | Fuerza | Voltaje del LED | Eficiencia | Dimensiones (largo x ancho x alto) | |||||
| L1200 series | XH-LL-5075-28W-TS | 28W | 36 V CC | 120-150lm/W | L1200x52x75mm | |||||
| XH-LL-5075-28W-TC | 28W | 36 V CC | 120-150lm/W | L1200x52x75mm | ||||||
| L1500 series | XH-LL-5075-31W-TS | 31W | 36 V CC | 120-150lm/W | L1500x52x75mm | |||||
| XH-LL-5075-31W-TC | 31W | 36 V CC | 120-150lm/W | L1500x52x75mm | ||||||
| L3000 series | XH-LL-5075-63W-TS | 62W | 36 V CC | 120-150lm/W | L3000x52x75mm | |||||
| XH-LL-5075-63W-TC | 62W | 36 V CC | 120-150lm/W | L3000x52x75mm | ||||||
