Descripción del Producto

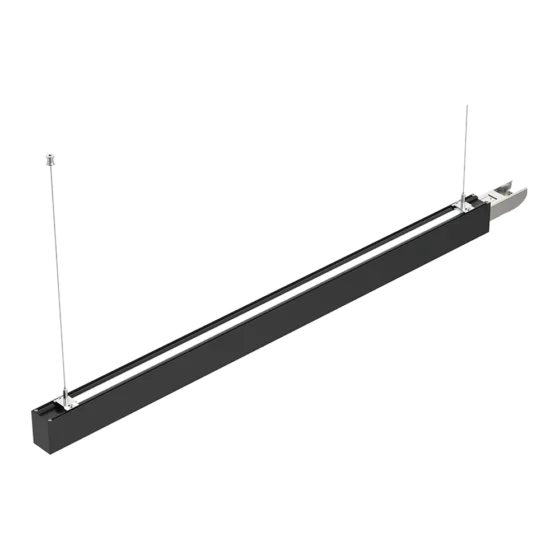

El 5075 Tasco is a commercial linkable suspended LED linear light designed for offices, meeting rooms, schools, libraries, retail spaces, and modern architectural interiors. This direct-light version is available in Longitudes de 1200 mm, 1500 mm y 3000 mm, with corresponding power options of 28W, 31W y 62W.
Unlike the individual version, this linkable suspended linear light supports continuous lighting layouts for long workspaces, corridors, open-plan offices, and large commercial areas. Its 52 × 75mm aluminum profile provides a clean architectural appearance while allowing multiple luminaires to be arranged as an integrated linear lighting system.
La luminaria utiliza un Difusor microprismático de PC con un ángulo de haz de 80°. to provide broad and uniform downward illumination. It is available in 3000K, 4000K y 5000K, with optional Blanco ajustable de 2700K a 6500K. CRI options include Ra80+, Ra90+ y Ra95+, while SDCM<3 helps maintain consistent light color across continuous installations.
For intelligent commercial lighting projects, the series supports DALI, Push dimming, Casambi, Tunable White, HCL, sensor, and emergency lighting configurations. Con una eficacia de 120-150 lm/W, una vida útil calificada de 50.000 horas, y un Garantía de 5 años, it provides lighting brands, distributors, designers, and contractors with a configurable solution for continuous commercial linear lighting projects.

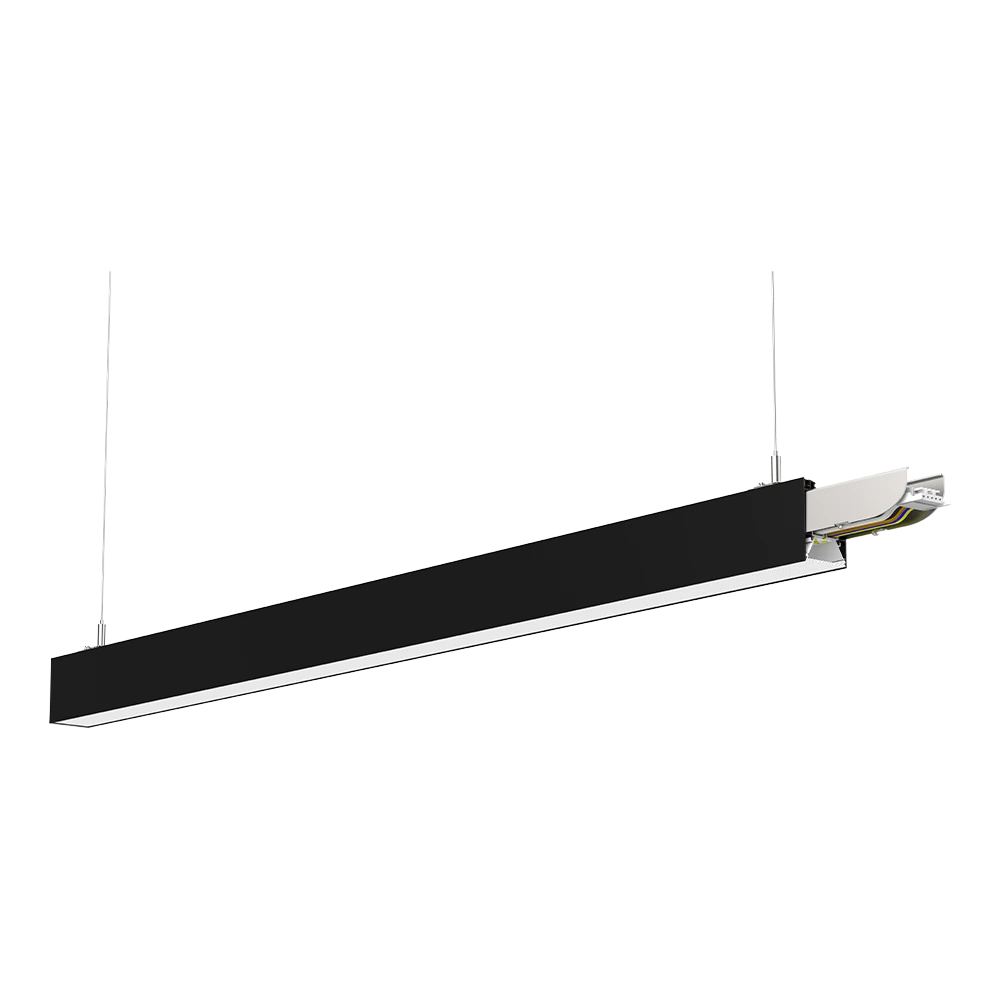

| L1200/L1500/L3000 5075 Tasco Commercial Suspended LED Linear Light – Linkable Direct 28-62W | ||||||||||
| Código de producto | XH-LL-5075-28W-TC | XH-LL-5075-31W-TC | XH-LL-5075-63W-TC | |||||||
| Fuerza | 28W | 31W | 62W | |||||||
| Conductor | Tridonic, BOKE, Philips | |||||||||
| Voltaje | CA 200-240 V, 50/60 Hz | |||||||||
| factor de potencia | PF>0,90 | |||||||||
| Voltaje del LED | 36 V CC | |||||||||
| Corriente del LED | ||||||||||
| Regulable | Encendido/Apagado, DALI, Atenuación por pulsación, CCT ajustable, Casambi, HCL, Sensor, Emergencia | |||||||||
| Salida de color | Temperatura de color única / Blanco ajustable | |||||||||
| Materiales | Aluminio 6063 | |||||||||
| Tamaño | L1200x52x75mm / L1500x52x75mm / L3000x52x75mm | |||||||||
| Instalación | Suspended, linkable continuous version | |||||||||
| Distribución de la luz | Direct | |||||||||
| chip LED | SMD2835 | |||||||||
| CCT | 3000K, 4000K, 5000K; Blanco ajustable 2700K-6500K | |||||||||
| CRI | Ra80+, Ra90+, Ra95+ | |||||||||
| SDCM | <3 | |||||||||
| Vida | 50.000 horas | |||||||||
| Óptica | Microprismático de PC | |||||||||
| ángulo del haz | 80° | |||||||||
| Eficiencia de la lámpara | Lamp lumen 120-150lm/W | |||||||||
| Protección | IP20, IK07 | |||||||||
| Finalizar | Blanco, Negro | |||||||||
| Garantía | 5 años | |||||||||
Tamaño y dibujo
Control de atenuación
Escenario de aplicación
Vídeos relacionados
Lista de productos
| Serie | Número de producto. | Fuerza | Voltaje del LED | Actual | Eficiencia | Dimensiones (largo x ancho x alto) | ||||||
| L1200 series | XH-LL-5075-28W-TS | 28W | 36 V CC | 120-150lm/W | L1200x52x75mm | |||||||
| XH-LL-5075-28W-TC | 28W | 36 V CC | 120-150lm/W | L1200x52x75mm | ||||||||
| L1500 series | XH-LL-5075-31W-TS | 31W | 36 V CC | 120-150lm/W | L1500x52x75mm | |||||||
| XH-LL-5075-31W-TC | 31W | 36 V CC | 120-150lm/W | L1500x52x75mm | ||||||||
| L3000 series | XH-LL-5075-63W-TS | 62W | 36 V CC | 120-150lm/W | L3000x52x75mm | |||||||
| XH-LL-5075-63W-TC | 62W | 36 V CC | 120-150lm/W | L3000x52x75mm | ||||||||
