Описание продукта
Introducing the 5818 L600 Series Linear LED Track Light Lens Version, a slim and efficient linear lighting solution designed for modern commercial interiors. With a power range of 20-30W, this series is suitable for retail stores, supermarkets, offices, galleries, showrooms, and other spaces requiring clean linear lighting with flexible beam control.
The 5818 L600 Series Lens Version features a linear lens optical design with beam angle options of 30°, 60°, and 90°. Compared with a prismatic version, the lens version offers more directional light distribution, making it suitable for display areas, shelf lighting, aisle lighting, and accent illumination.
This linear LED track light supports LED chip options such as Philips, CREE, and Bridgelux, and can be matched with driver brands including Tridonic, Osram, BOKE, TCI, and Philips. It also supports multiple dimming and control options, including DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE.
For lighting brands, distributors, and project contractors, the 5818 L600 Series Linear LED Track Light Lens Version offers a compact, efficient, and professional solution for commercial track lighting projects.
| 5818 L600 Series Linear LED Track Light Lens Version 20-30W | |||||||
| Код товара | XH-LTL-20W-FL-5818 | XH-LTL-30W-FL-5818 | |||||
| Власть | 20 Вт | 30 Вт | |||||
| Водитель | Tridonic, Osram, BOKE, TCI, Philips | ||||||
| Напряжение | AC200-240V / AC90-130V, 50/60Hz | ||||||
| коэффициент мощности | PF>0.90 | ||||||
| напряжение светодиода | DC36V | ||||||
| Токовый ток светодиода | 500 мА | 750mA | |||||
| Регулировка яркости | 0/1-10V dimmable, Phase dimmable (Triac), DALI dimmable, 2.4G/RF dimmable, ZigBee dimmable, Casambi/BLE dimmable | ||||||
| Цветной вывод | Single CCT | ||||||
| Материалы | Aluminum | ||||||
| Размер | 600.8*58*18mm | ||||||
| Track Adapter | 6/4 wire 3 phase, 4/3/2 wire 1 phase | ||||||
| Installation | Track mounted | ||||||
| Бренд светодиодов | Philips, CREE, Bridgelux | ||||||
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K | ||||||
| КРИ | Ra80+, Ra90+, Ra95+ | ||||||
| SDCM | <3 | ||||||
| Lifetime | 50,000h | ||||||
| Оптика | Линза | ||||||
| Угол луча | 30°, 60°, 90° | ||||||
| Эффективность лампы | Lamp lumen 100-150lm/W | ||||||
| Защита | IP20 | ||||||
| Заканчивать | White, Black, Grey | ||||||
| Гарантия | 3-5 years | ||||||

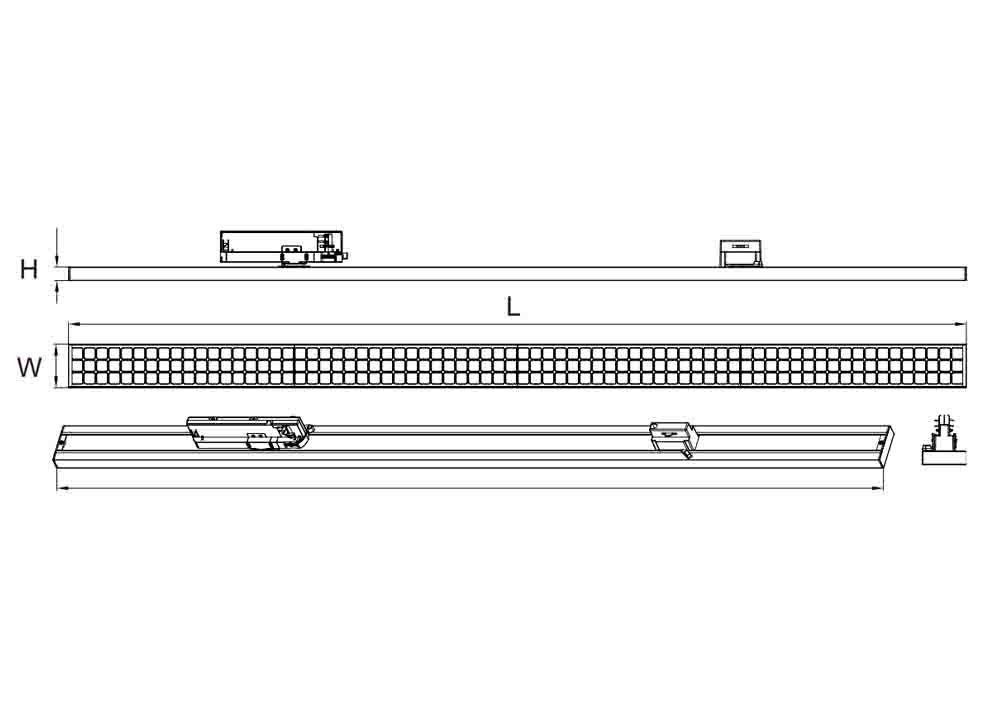

Size and Drawing
Регулировка яркости
Application Scenario
Список товаров
| Ряд | Номер изделия. | Власть | Напряжение светодиода | Текущий | Эффективность | Dimension(L*W*H) | ||||||
| L600 Series | XH-LTL-20W-FL-5818 | 20 Вт | DC36V | 500 мА | 100-150lm/W | 600.8*58*18mm | ||||||
| XH-LTL-30W-FL-5818 | 30 Вт | DC36V | 750mA | 100-150lm/W | 600.8*58*18mm | |||||||
| L1200 Series | XH-LTL-40W-FL-5818 | 40 Вт | DC36V | 950 мА | 100-150lm/W | 1194.4*58*18mm | ||||||
| XH-LTL-50W-FL-5818 | 50W | DC36V | 1200mA | 100-150lm/W | 1194.4*58*18mm | |||||||
| L1500 Series | XH-LTL-60W-FL-5818 | 60W | DC36V | 1400mA | 100-150lm/W | 1491.2*58*18mm | ||||||
| XH-LTL-70W-FL-5818 | 70W | DC36V | 1600mA | 100-150lm/W | 1491.2*58*18mm | |||||||
