ΠΠΏΠΈΡΠ°Π½ΠΈΠ΅ ΠΏΡΠΎΠ΄ΡΠΊΡΠ°

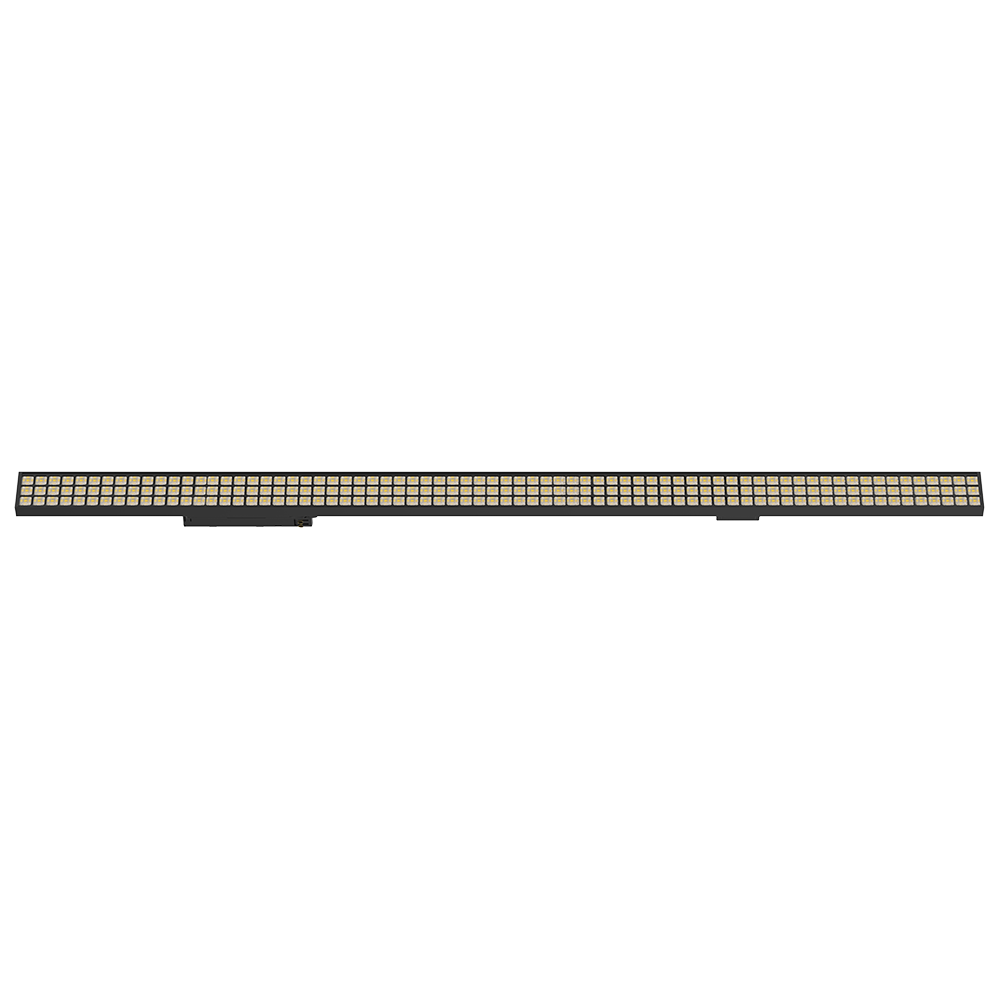

Introducing the 5818 L1200 Series Linear LED Track Light Lens Version, a high-performance linear track lighting solution for commercial and architectural projects. With a power range of 40-50W, this series is ideal for larger retail spaces, supermarkets, offices, galleries, showrooms, and public commercial areas requiring brighter and more continuous illumination.
The 5818 L1200 Series Lens Version uses a linear lens optical system with beam angles of 30Β°, 60Β°, and 90Β°. This gives lighting designers more flexibility to create focused linear lighting, shelf lighting, aisle lighting, or wider general illumination depending on the project requirement.
This linear LED track light supports LED chip options such as Philips, CREE, and Bridgelux, and can be configured with driver brands including Tridonic, Osram, BOKE, TCI, and Philips. It also supports different dimming and control systems such as DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE.
For B2B lighting brands, distributors, and project contractors, the 5818 L1200 Series Linear LED Track Light Lens Version provides stable performance, flexible beam control, and efficient illumination for professional commercial lighting applications.
| 5818 L1200 Series Linear LED Track Light Lens Version 40-50W | |||||||
| ΠΠΎΠ΄ ΡΠΎΠ²Π°ΡΠ° | XH-LTL-40W-FL-5818 | XH-LTL-50W-FL-5818 | |||||
| ΠΠ»Π°ΡΡΡ | 40 ΠΡ | 50W | |||||
| ΠΠΎΠ΄ΠΈΡΠ΅Π»Ρ | Tridonic, Osram, BOKE, TCI, Philips | ||||||
| ΠΠ°ΠΏΡΡΠΆΠ΅Π½ΠΈΠ΅ | AC200-240V / AC90-130V, 50/60Hz | ||||||
| ΠΊΠΎΡΡΡΠΈΡΠΈΠ΅Π½Ρ ΠΌΠΎΡΠ½ΠΎΡΡΠΈ | PF>0.90 | ||||||
| Π½Π°ΠΏΡΡΠΆΠ΅Π½ΠΈΠ΅ ΡΠ²Π΅ΡΠΎΠ΄ΠΈΠΎΠ΄Π° | DC36V | ||||||
| Π’ΠΎΠΊΠΎΠ²ΡΠΉ ΡΠΎΠΊ ΡΠ²Π΅ΡΠΎΠ΄ΠΈΠΎΠ΄Π° | 950 ΠΌΠ | 1200mA | |||||
| Π Π΅Π³ΡΠ»ΠΈΡΠΎΠ²ΠΊΠ° ΡΡΠΊΠΎΡΡΠΈ | 0/1-10V dimmable, Phase dimmable (Triac), DALI dimmable, 2.4G/RF dimmable, ZigBee dimmable, Casambi/BLE dimmable | ||||||
| Π¦Π²Π΅ΡΠ½ΠΎΠΉ Π²ΡΠ²ΠΎΠ΄ | Single CCT | ||||||
| ΠΠ°ΡΠ΅ΡΠΈΠ°Π»Ρ | Aluminum | ||||||
| Π Π°Π·ΠΌΠ΅Ρ | 1194.4*58*18mm | ||||||
| Track Adapter | 6/4 wire 3 phase, 4/3/2 wire 1 phase | ||||||
| Installation | Track mounted | ||||||
| ΠΡΠ΅Π½Π΄ ΡΠ²Π΅ΡΠΎΠ΄ΠΈΠΎΠ΄ΠΎΠ² | Philips, CREE, Bridgelux | ||||||
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K | ||||||
| ΠΠ Π | Ra80+, Ra90+, Ra95+ | ||||||
| SDCM | <3 | ||||||
| Lifetime | 50,000h | ||||||
| ΠΠΏΡΠΈΠΊΠ° | ΠΠΈΠ½Π·Π° | ||||||
| Π£Π³ΠΎΠ» Π»ΡΡΠ° | 30Β°, 60Β°, 90Β° | ||||||
| ΠΡΡΠ΅ΠΊΡΠΈΠ²Π½ΠΎΡΡΡ Π»Π°ΠΌΠΏΡ | Lamp lumen 100-150lm/W | ||||||
| ΠΠ°ΡΠΈΡΠ° | IP20 | ||||||
| ΠΠ°ΠΊΠ°Π½ΡΠΈΠ²Π°ΡΡ | White, Black, Grey | ||||||
| ΠΠ°ΡΠ°Π½ΡΠΈΡ | 3-5 years | ||||||
Β
Size and Drawing
Π Π΅Π³ΡΠ»ΠΈΡΠΎΠ²ΠΊΠ° ΡΡΠΊΠΎΡΡΠΈ
Application Scenario
Π‘ΠΏΠΈΡΠΎΠΊ ΡΠΎΠ²Π°ΡΠΎΠ²
| Π ΡΠ΄ | ΠΠΎΠΌΠ΅Ρ ΠΈΠ·Π΄Π΅Π»ΠΈΡ. | ΠΠ»Π°ΡΡΡ | ΠΠ°ΠΏΡΡΠΆΠ΅Π½ΠΈΠ΅ ΡΠ²Π΅ΡΠΎΠ΄ΠΈΠΎΠ΄Π° | Π’Π΅ΠΊΡΡΠΈΠΉ | ΠΡΡΠ΅ΠΊΡΠΈΠ²Π½ΠΎΡΡΡ | Dimension(L*W*H) | ||||||
| L600 Series | XH-LTL-20W-FL-5818 | 20 ΠΡ | DC36V | 500 ΠΌΠ | 100-150lm/W | 600.8*58*18mm | ||||||
| XH-LTL-30W-FL-5818 | 30 ΠΡ | DC36V | 750mA | 100-150lm/W | 600.8*58*18mm | |||||||
| L1200 Series | XH-LTL-40W-FL-5818 | 40 ΠΡ | DC36V | 950 ΠΌΠ | 100-150lm/W | 1194.4*58*18mm | ||||||
| XH-LTL-50W-FL-5818 | 50W | DC36V | 1200mA | 100-150lm/W | 1194.4*58*18mm | |||||||
| L1500 Series | XH-LTL-60W-FL-5818 | 60W | DC36V | 1400mA | 100-150lm/W | 1491.2*58*18mm | ||||||
| XH-LTL-70W-FL-5818 | 70W | DC36V | 1600mA | 100-150lm/W | 1491.2*58*18mm | |||||||
