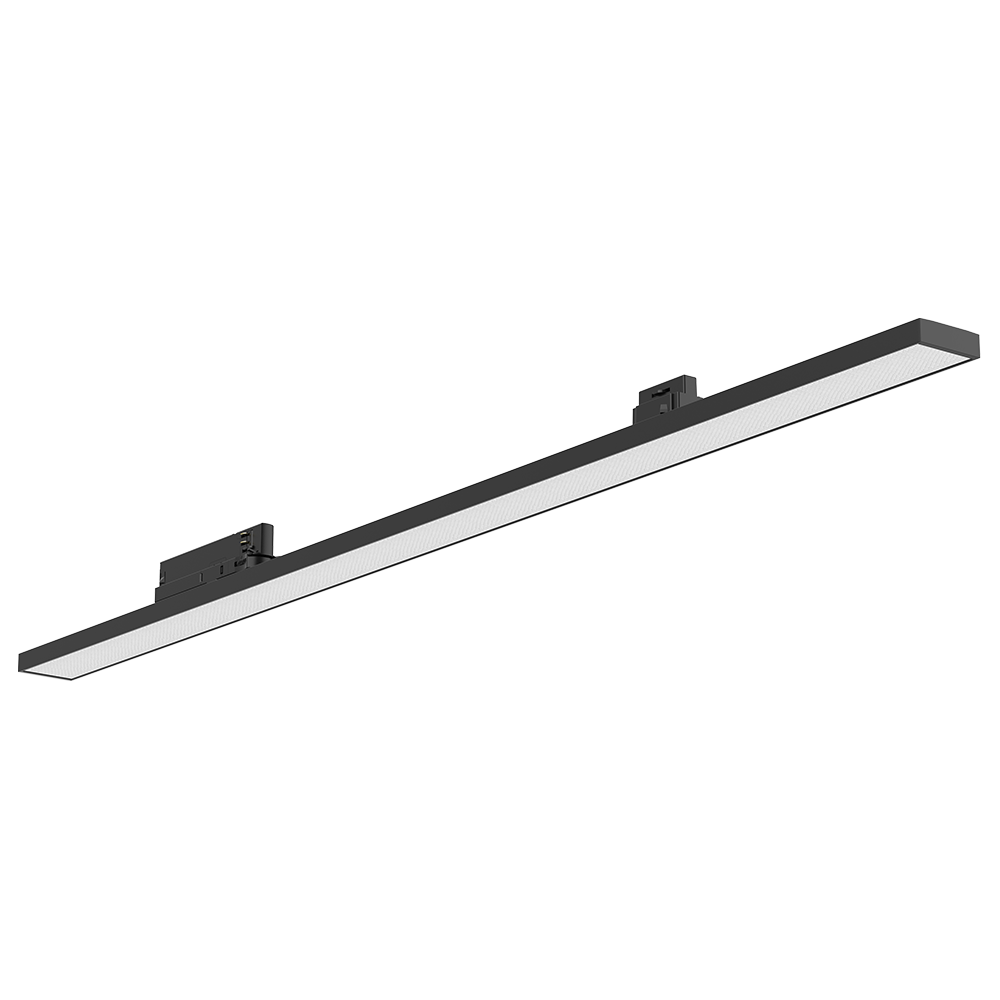

Introducing the 5818 L1200 Series Linear LED Track Light Invisible Adapter Prismatic Version, a high-performance linear track lighting solution for commercial and architectural projects. With a power range of 40-50W, this series is ideal for larger retail stores, supermarkets, offices, galleries, showrooms, and public commercial spaces requiring continuous and uniform illumination.
The invisible adapter structure gives the luminaire a cleaner track-mounted appearance, making it suitable for projects that require both high performance and refined visual design. The prismatic optical design with an 85° beam angle helps deliver wide, soft, and comfortable light distribution.
This linear LED track light supports LED chip options such as Philips, CREE, and Bridgelux, and can be configured with driver brands including Tridonic, Osram, BOKE, TCI, and Philips. It also supports different dimming and control systems such as DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE.
For B2B lighting brands, distributors, and project contractors, the 5818 L1200 Series Invisible Adapter Prismatic Version provides stable performance, clean design, and efficient illumination for professional commercial lighting applications.
| 5818 L1200 Series Linear LED Track Light Invisible Adapter Prismatic Version 40-50W | |||||||
| Код товара | XH-LTL-40W-FD-5818 | XH-LTL-50W-FD-5818 | |||||
| Власть | 40 Вт | 50W | |||||
| Водитель | Tridonic, Osram, BOKE, TCI, Philips | ||||||
| Напряжение | AC200-240V / AC90-130V, 50/60Hz | ||||||
| коэффициент мощности | PF>0.90 | ||||||
| напряжение светодиода | DC36V | ||||||
| Токовый ток светодиода | 950 мА | 1200mA | |||||
| Регулировка яркости | 0/1-10V dimmable, Phase dimmable (Triac), DALI dimmable, 2.4G/RF dimmable, ZigBee dimmable, Casambi/BLE dimmable | ||||||
| Цветной вывод | Single CCT | ||||||
| Материалы | Aluminum | ||||||
| Размер | 1194.4*58*18mm | ||||||
| Track Adapter | 6/4 wire 3 phase, 4/3/2 wire 1 phase | ||||||
| Installation | Track mounted | ||||||
| Бренд светодиодов | Philips, CREE, Bridgelux | ||||||
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K | ||||||
| КРИ | Ra80+, Ra90+, Ra95+ | ||||||
| SDCM | <3 | ||||||
| Lifetime | 50,000h | ||||||
| Оптика | Prismatic | ||||||
| Угол луча | 85° | ||||||
| Эффективность лампы | Lamp lumen 100-150lm/W | ||||||
| Защита | IP20 | ||||||
| Заканчивать | White, Black, Grey | ||||||
| Гарантия | 3-5 years | ||||||

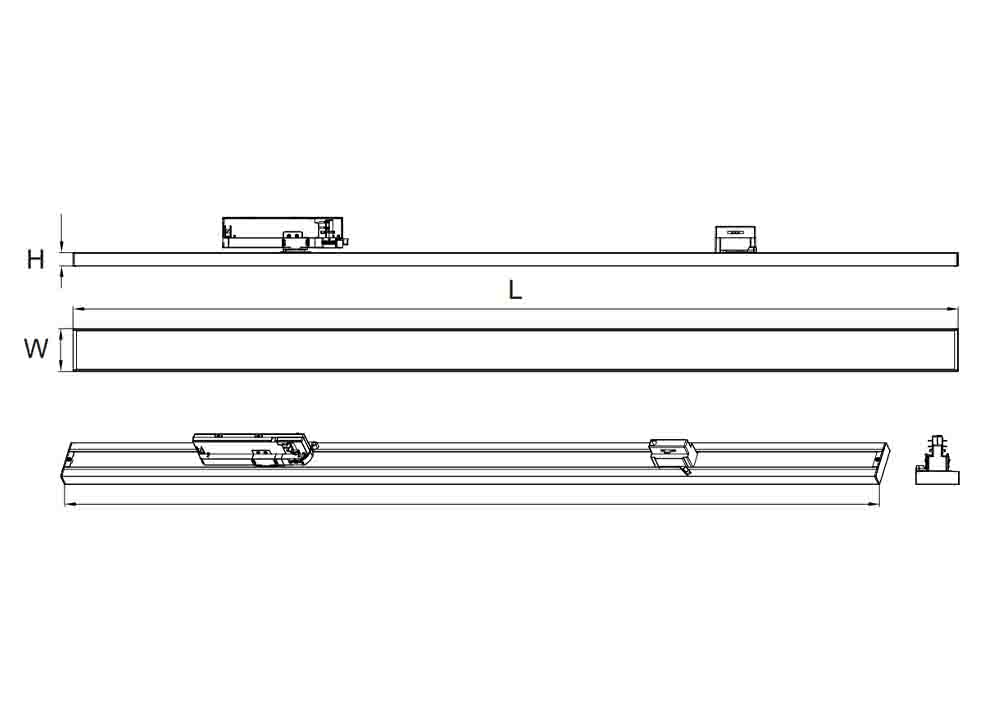

Size and Drawing
Регулировка яркости
Application Scenario
Список товаров
| Ряд | Номер изделия. | Власть | Напряжение светодиода | Текущий | Эффективность | Dimension(L*W*H) | ||||||
| L600 Series | XH-LTL-20W-FD-5818 | 20 Вт | DC36V | 500 мА | 100-150lm/W | 600.8*58*18mm | ||||||
| XH-LTL-30W-FD-5818 | 30 Вт | DC36V | 750mA | 100-150lm/W | 600.8*58*18mm | |||||||
| L1200 Series | XH-LTL-40W-FD-5818 | 40 Вт | DC36V | 950 мА | 100-150lm/W | 1194.4*58*18mm | ||||||
| XH-LTL-50W-FD-5818 | 50W | DC36V | 1200mA | 100-150lm/W | 1194.4*58*18mm | |||||||
| L1500 Series | XH-LTL-60W-FD-5818 | 60W | DC36V | 1400mA | 100-150lm/W | 1491.2*58*18mm | ||||||
| XH-LTL-70W-FD-5818 | 70W | DC36V | 1600mA | 100-150lm/W | 1491.2*58*18mm | |||||||
