Wall Washer D75 Series Round Trimless LED Downlight with Embedded Part 10-15W - XHLUX

Luminária de embutir LED para iluminação de parede/

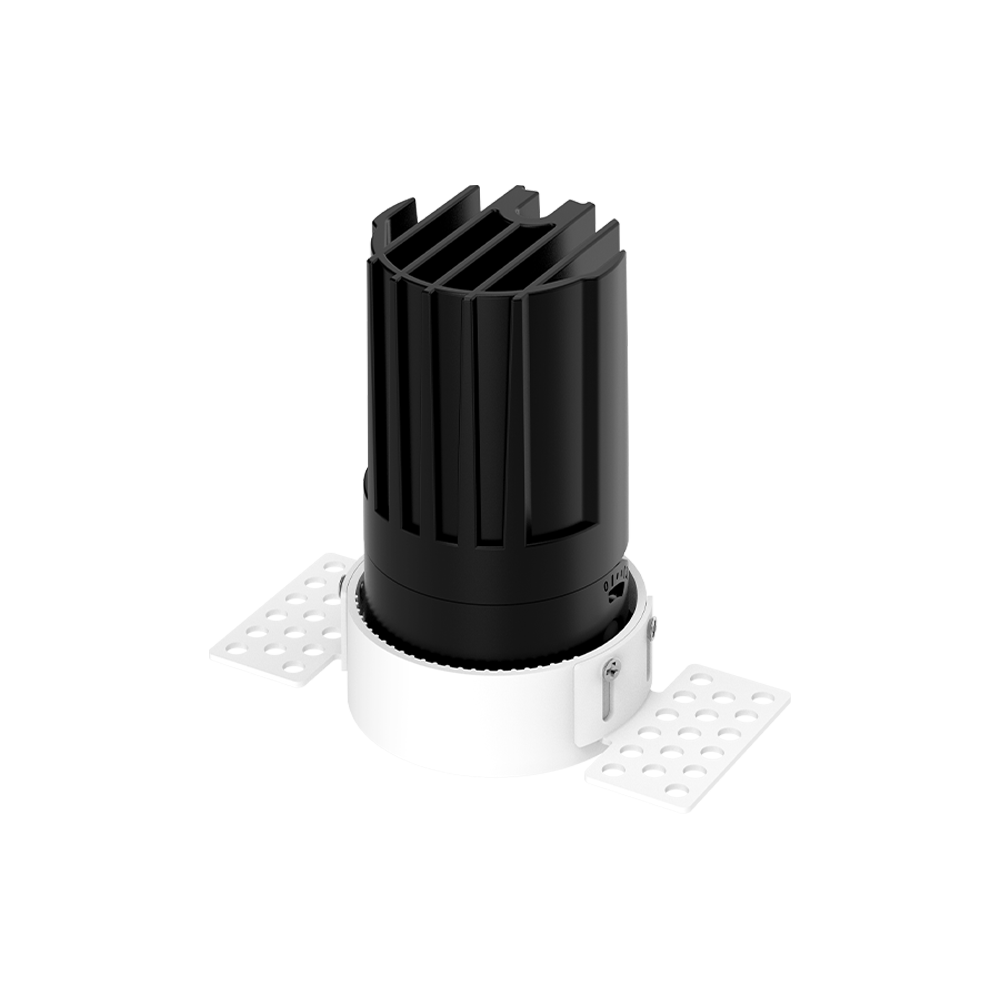

Wall Washer D75 Series Round Trimless LED Downlight with Embedded Part 10-15W

Número do produto:

XH-DL-OR-10W-3RT

XH-DL-OR-15W-3RT



Vantagem:

CCT: 2700K, 3000K, 3500K, 4000K, 5000K
CRI: Ra80+, Ra90+, Ra95+
Beam angle: 15°, 24°, 36°, 50°
Optics: PC Lens + reflector
Dimmable: 0/1-10V, Phase dimmable (Triac), DALI, 2.4G/RF, ZigBee, Casambi/BLE
Material: ADC12 Die cast Aluminum
Color output: Single CCT
Lamp Efficiency: Lamp lumen 80-110lm/W
Warranty: 5 years

  • Detalhes do produto
  • Investigação

Descrição do produto

Apresentando o Wall Washer D75 Series Round LED Downlight RT Version, a recessed wall washer designed for professional commercial lighting projects. With a power range of 10-15W, this series is ideal for retail stores, galleries, showrooms, hotels, restaurants, and other spaces requiring clean recessed lighting with controlled wall illumination.

The D75 Series uses a PC lens and reflector optical system to deliver accurate beam control. Beam angle options of 15°, 24°, 36°, and 50° help designers create vertical wall washing, product display lighting, and comfortable accent lighting for different interior applications.

This round LED wall washer supports LED chip options such as Citizen, Philips, and CREE, and driver options including Tridonic, Osram, BOKE, TCI, and Philips. It can also be configured with different dimming systems, including DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE.

For B2B lighting brands, distributors, and project contractors, the Wall Washer D75 Series Round LED Downlight RT Version provides a balanced combination of compact design, optical flexibility, and reliable lighting performance.

Wall Washer D75 Series Round LED Downlight RT Version 10-15W
Código do produtoXH-DL-OR-10W-3RTXH-DL-OR-15W-3RT
Poder10W15W
MotoristaTridonic, Osram, BOKE, TCI, Philips
TensãoAC200-240V / AC90-130V, 50/60Hz
Fator de potênciaPF>0.90
tensão do LEDDC36V
Corrente do LED250mA350mA
Regulável0/1-10V dimmable, Phase dimmable (Triac), DALI dimmable, 2.4G/RF dimmable, ZigBee dimmable, Casambi/BLE dimmable
Saída de corSingle CCT
MateriaisADC12 Alumínio fundido
Tamanho134X100mm
RecortarØ75mm
Light distributionLavagem de parede
Adjustable angle30° tilt, 355° rotation
InstallationRecessed
Marca LEDCitizen, Philips, CREE
CCT2700K, 3000K, 3500K, 4000K, 5000K
CRIRa80+, Ra90+, Ra95+
SDCM<3
Vida50,000h
ÓpticaPC Lens+reflector
Ângulo do feixe15°, 24°, 36°, 50°
Eficiência da lâmpadaLamp lumen 80-110lm/W
ProteçãoIP20
TerminarWhite, Black, Grey
Garantia3-5 years



Tamanho e desenho

Controle de intensidade luminosa

Application Scenario

Vídeos relacionados

Lista de produtos

SérieNº do produto.PoderTensão do LEDAtualEficiênciaDimension(DXH)Recortar
D55 SeriesXH-DL-OR-5W-2RT5WDC36V150mA60-110lm/W96X88mmØ55mm
XH-DL-OR-8W-2RT8WDC36V200mA60-110lm/W96X88mmØ55mm
D75 SeriesXH-DL-OR-10W-3RT10WDC36V250mA80-110lm/W134X100mmØ75mm
XH-DL-OR-15W-3RT15WDC36V350mA80-110lm/W134X100mmØ75mm
D95 SeriesXH-DL-OR-15W-4RT15WDC36V350mA80-110lm/W164X121mmØ95mm
XH-DL-OR-20W-4RT20WDC36V500mA80-110lm/W164X121mmØ95mm
XH-DL-OR-25W-4RT25WDC36V600mA80-110lm/W164X121mmØ95mm
