Product Description

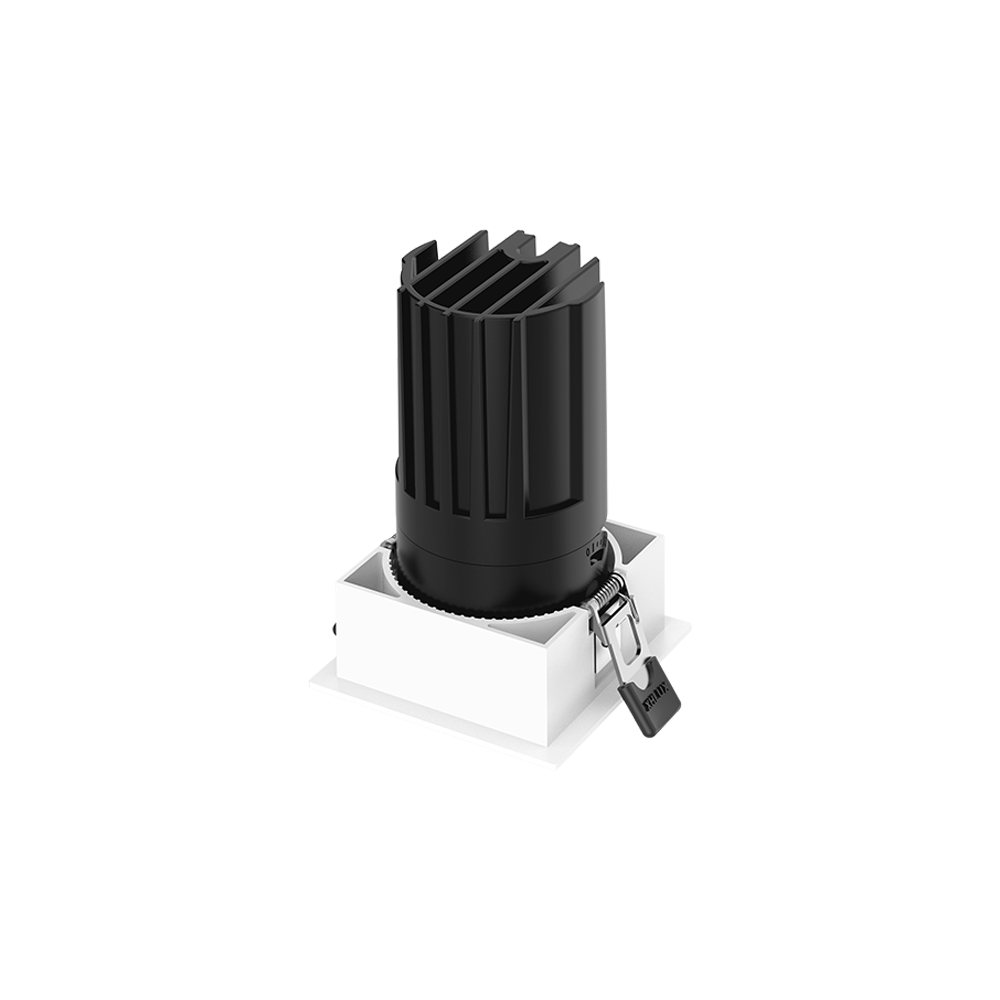

Introducing the Wall Washer D55x55 Series Square LED Downlight, a compact recessed wall washer designed for modern commercial interiors. With a power range of 5-10W, this series is suitable for retail stores, galleries, corridors, display walls, hotel spaces, and other projects requiring precise wall washing in a small square ceiling opening.
The D55x55 Series features a square recessed structure with PC lens and reflector optical design. Beam angle options of 15°, 24°, 36°, and 50° allow lighting designers to create focused accent lighting, vertical wall washing, or soft display illumination for different project needs.
This square wall washer LED downlight supports LED chip options such as Citizen, Philips, and CREE, and can be matched with driver brands including Tridonic, Osram, BOKE, TCI, and Philips. It also supports multiple dimming and control options, including DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE.
For lighting brands, distributors, and commercial project contractors, the Wall Washer D55x55 Series Square LED Downlight offers compact size, flexible optics, and reliable performance for professional wall washing applications.
| Wall Washer D55x55 Series Square LED Downlight 5-10W | ||||||||||
| Product code | XH-DL-OR-5W-2S | XH-DL-OR-8W-2S | XH-DL-OR-10W-2S | |||||||
| Power | 5W | 8W | 10W | |||||||
| Driver | Tridonic, Osram, BOKE, TCI, Philips | |||||||||
| Voltage | AC200-240V / AC90-130V, 50/60Hz | |||||||||
| Power factor | PF>0.90 | |||||||||
| LED voltage | DC36V | |||||||||
| LED Current | 150mA | 200mA | 250mA | |||||||
| Dimmable | 0/1-10V dimmable, Phase dimmable (Triac), DALI dimmable, 2.4G/RF dimmable, ZigBee dimmable, Casambi/BLE dimmable | |||||||||
| Color output | Single CCT | |||||||||
| Materials | ADC12 Die cast Aluminum | |||||||||
| Size | 62X62X94mm | |||||||||
| Cut Out | 55mm | |||||||||
| Light distribution | Wall Wash | |||||||||
| Adjustable angle | 30° tilt, 355° rotation | |||||||||
| Installation | Recessed | |||||||||
| LED brand | Citizen, Philips, CREE | |||||||||
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K | |||||||||
| CRI | Ra80+, Ra90+, Ra95+ | |||||||||
| SDCM | <3 | |||||||||
| Lifetime | 50,000h | |||||||||
| Optics | PC Lens+reflector | |||||||||
| Beam angle | 15°, 24°, 36°, 50° | |||||||||
| Lamp Efficiency | Lamp lumen 60-110lm/W | |||||||||
| Protection | IP20 | |||||||||
| Finish | White, Black, Grey | |||||||||
| Warranty | 3-5 years | |||||||||

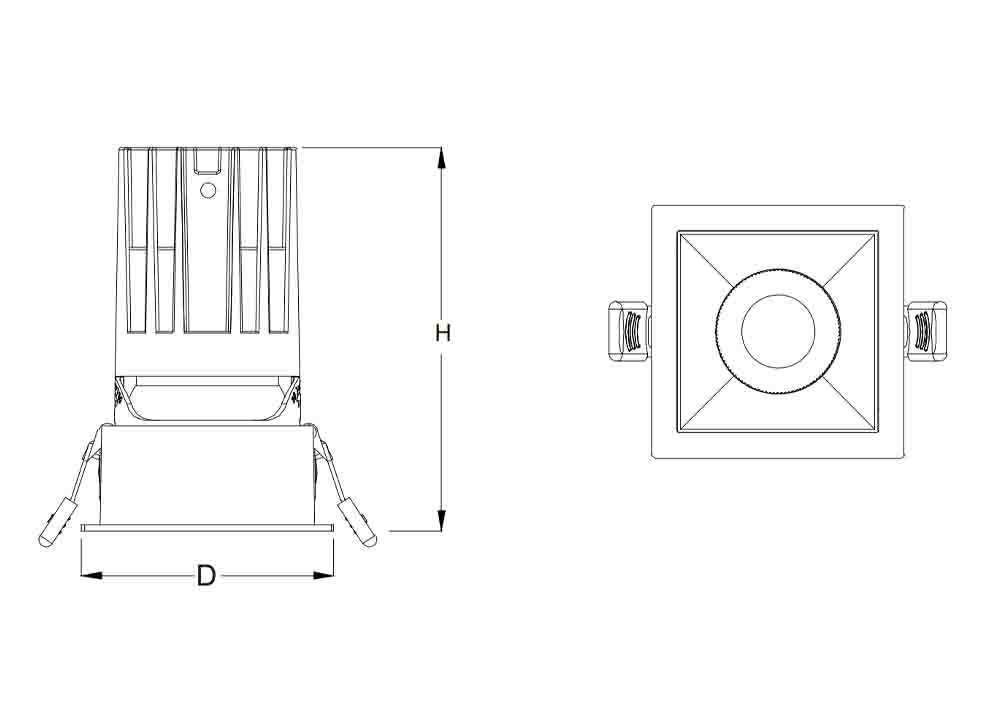

Size and Drawing
Dimming control
Application Scenario
Related Videos
Product List
| Series | Product No. | Power | LED Voltage | Current | Efficiency | Dimension(DXH) | Cut Out | |||||||
| D55x55 series | XH-DL-OR-5W-2S | 5W | DC36V | 150mA | 60-110lm/W | 62X62X94mm | 55mm | |||||||
| XH-DL-OR-8W-2S | 8W | DC36V | 200mA | 60-110lm/W | 62X62X94mm | 55mm | ||||||||
| XH-DL-OR-10W-2S | 10W | DC36V | 250mA | 60-110lm/W | 62X62X94mm | 55mm | ||||||||
| D84x84 Series | XH-DL-OR-10W-3S | 10W | DC36V | 250mA | 80-110lm/W | 84X84X105mm | 75mm | |||||||
| XH-DL-OR-15W-3S | 15W | DC36V | 350mA | 80-110lm/W | 84X84X105mm | 75mm | ||||||||
| D108x108 Series | XH-DL-OR-20W-4S | 20W | DC36V | 500mA | 80-110lm/W | 108X108X132mm | 95mm | |||||||
| XH-DL-OR-25W-4S | 25W | DC36V | 600mA | 80-110lm/W | 108X108X132mm | 95mm | ||||||||
