Rube D110 Series Surface Mounted LED Downlight 20-35W - XHLUX

Surface Mounted LED Light/

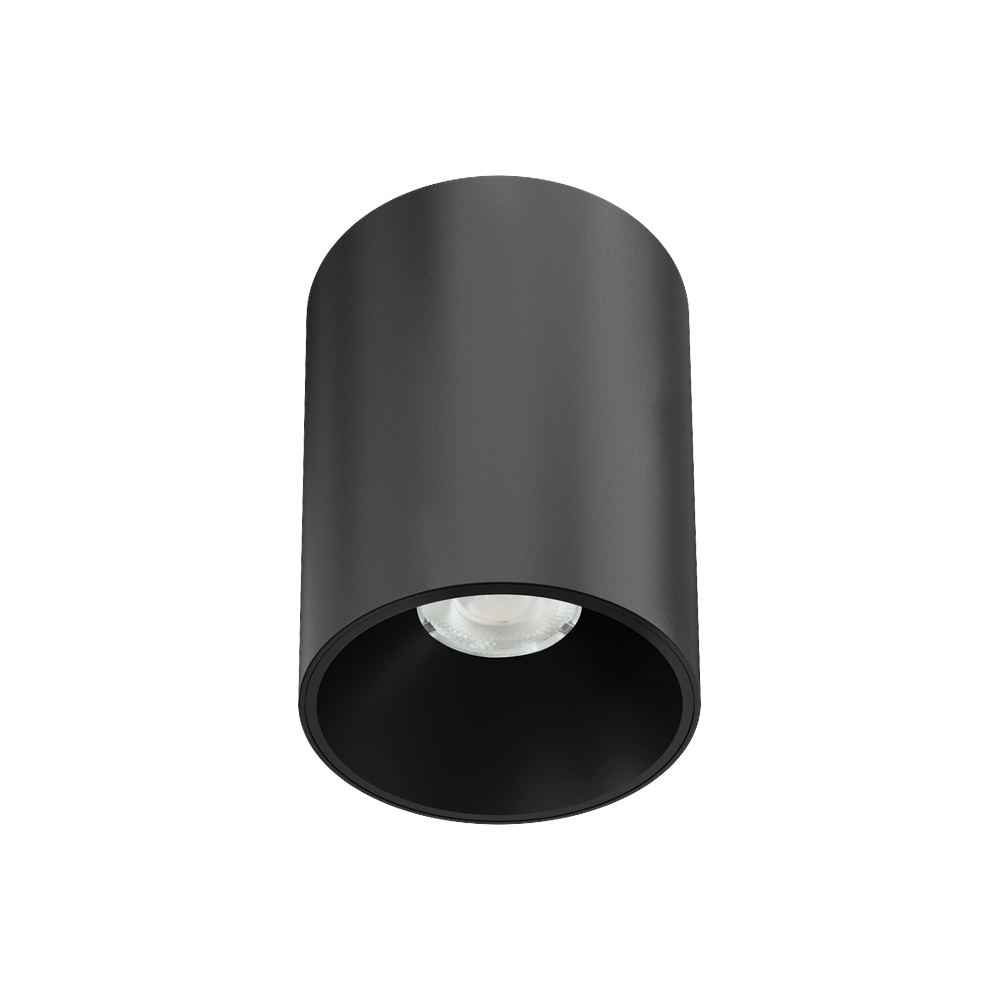

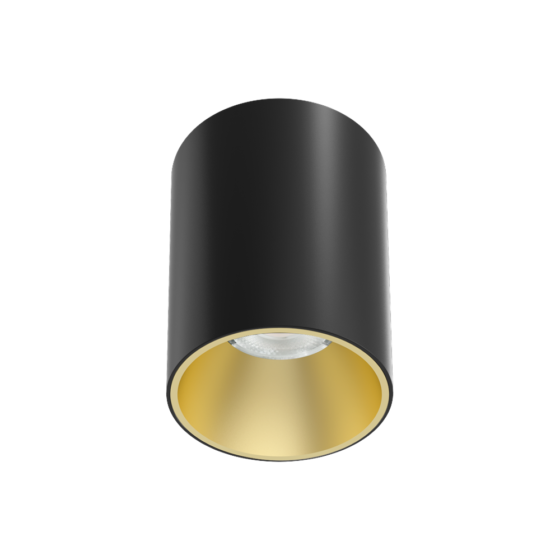

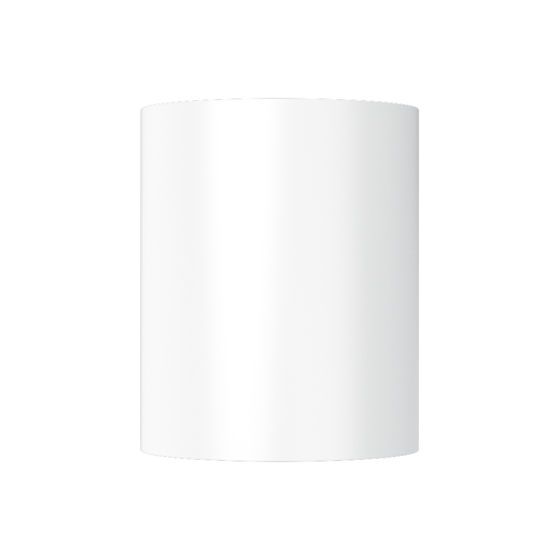

Rube D110 Series Surface Mounted LED Downlight 20-35W

Product Number:

XH-RB-20W-SM

XH-RB-25W-SM

XH-RB-30W-SM

XH-RB-35W-SM



Advantage:

CCT: 2700K, 3000K, 3500K, 4000K, 5000K
CRI: Ra80+, Ra90+, Ra95+
Beam angle: 15°, 24°, 38°, 60°
Dimmable: 0/1-10V, Phase dimmable (Triac), DALI, 2.4G/RF, ZigBee, Casambi/BLE
Color output: Single CCT
Lamp Efficiency: Lamp lumen 90-130lm/W
Warranty: 5 years

  • Product Details
  • Inquiry

Product Description

Introducing the Rube D110 Series Surface Mounted LED Downlight, a high-output surface mounted lighting solution for professional commercial and architectural projects. With a power range of 20-35W, this series is ideal for spaces that require stronger brightness, stable performance, and a clean architectural appearance.

The Rube D110 Series combines a simple cylindrical design with flexible optical options. Multiple beam angles, including 15°, 24°, 38°, and 60°, allow lighting designers to create precise accent lighting, retail display lighting, or wider illumination for commercial interiors.

Designed for project flexibility, this surface mounted LED downlight supports LED chip options such as Citizen, CREE, and Bridgelux, and driver options including Tridonic, Osram, BOKE, TCI, and Philips. It can also be configured with different dimming and control systems, including DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE.

For lighting brands, distributors, and project contractors looking for a powerful and elegant surface mounted downlight, the Rube D110 Series provides a reliable solution for retail stores, galleries, hotels, showrooms, offices, and premium commercial spaces.

Rube D110 Series Surface Mounted LED Downlight 20-35W
Product codeXH-RB-20W-SMXH-RB-25W-SMXH-RB-30W-SMXH-RB-35W-SM
Power20W25W30W35W
DriverTridonic, Osram, BOKE, TCI, Philips
VoltageAC200-240V / AC90-130V, 50/60Hz
Power factorPF>0.90
LED voltageDC36V
LED Current500mA600mA700/750mA800mA
Dimmable0/1-10V dimmable, Phase dimmable (Triac), DALI dimmable, 2.4G/RF dimmable, ZigBee dimmable, Casambi/BLE dimmable
Color outputSingle CCT
MaterialsADC12 Die cast Aluminum
Size110X135mm
InstallationSurface Mounted
LED brandCitizen, CREE, Bridgelux
CCT2700K, 3000K, 3500K, 4000K, 5000K
CRIRa80+, Ra90+, Ra95+
SDCM<3
Lifetime50,000h
OpticsLens+Reflector
Beam angle15°, 24°, 38°, 60°
Lamp EfficiencyLamp lumen 90-130lm/W
ProtectionIP20
FinishWhite, Black, Grey
Warranty5 years



Size and Drawing

Dimming control

Application Scenario

Related Videos

Product List

SeriesProduct No.PowerLED VoltageCurrentEfficiencySize(DXH)
D85 seriesXH-RB-15W-SM15WDC36V350mA90-130lm/W85X130mm
XH-RB-20W-SM20WDC36V500mA90-130lm/W85X130mm
D110 seriesXH-RB-20W-SM20WDC36V500mA90-130lm/W110X135mm
XH-RB-25W-SM25WDC36V600mA90-130lm/W110X135mm
XH-RB-30W-SM30WDC36V700/750mA90-130lm/W110X135mm
XH-RB-35W-SM35WDC36V800mA90-130lm/W110X135mm
