Rube D85 Series Surface Mounted LED Track Light 15-20W - XHLUX

Surface Mounted LED Light/

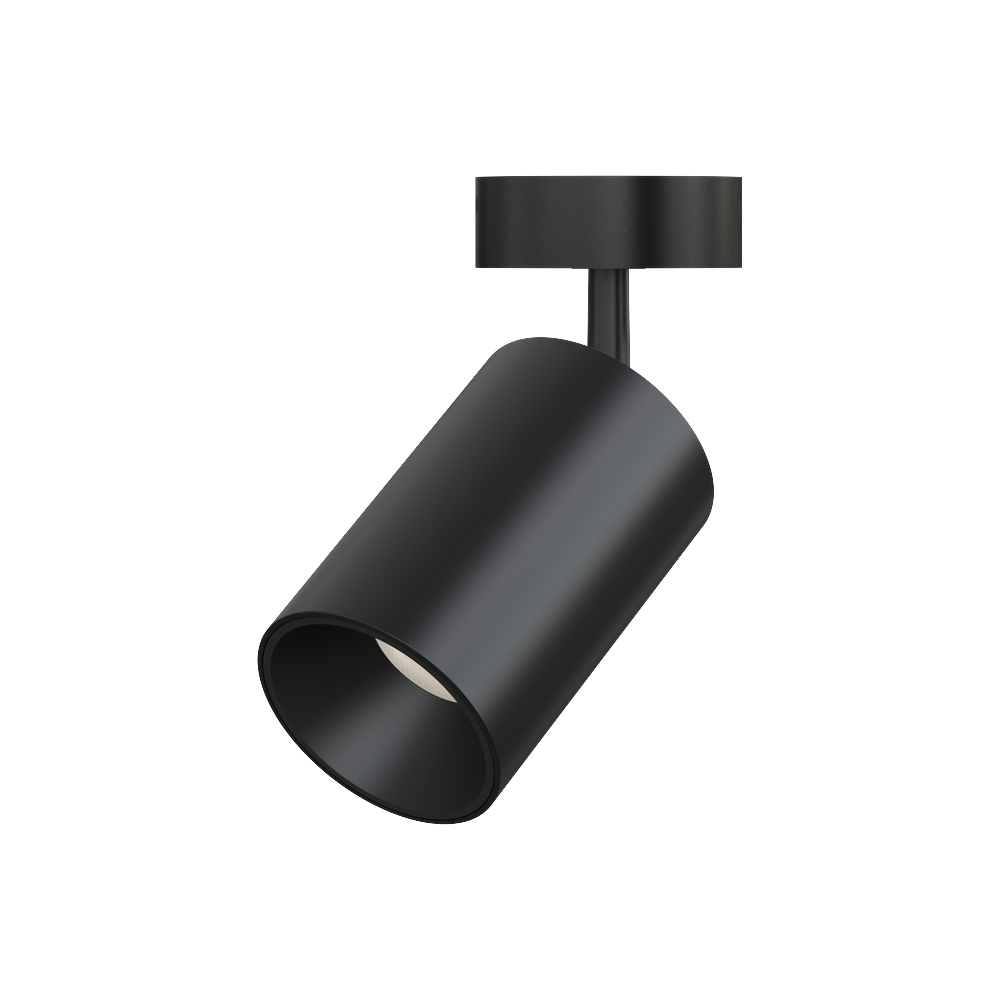

Rube D85 Series Surface Mounted LED Track Light 15-20W

Product Number:

XH-RB-15W-SP

XH-RB-20W-SP



Advantage:

CCT: 2700K, 3000K, 3500K, 4000K, 5000K
CRI: Ra80+, Ra90+, Ra95+
Beam angle: 15°, 24°, 38°, 60°
Dimmable: 0/1-10V, Phase dimmable (Triac), DALI, 2.4G/RF, ZigBee, Casambi/BLE
Installation: Pendant
Color output: Single CCT
Lamp Efficiency: Lamp lumen 90-130lm/W
Warranty: 5 years

  • Product Details
  • Inquiry

Product Description

Introducing the Rube D85 Series Surface Mounted LED Track Light, a compact and clean lighting solution designed for modern commercial interiors. With a power range of 15-20W, this series is suitable for retail stores, galleries, showrooms, restaurants, hotels, and other spaces requiring flexible accent lighting with a neat architectural appearance.

The Rube D85 Series features a minimalist cylindrical design with lens and reflector optical options. Beam angles of 15°, 24°, 38°, and 60° allow lighting designers to create focused display lighting, product highlighting, wall accent lighting, or comfortable general illumination for different project needs.

This surface mounted LED track light supports LED chip options such as Citizen, CREE, and Bridgelux, and can be matched with driver brands including Tridonic, Osram, BOKE, TCI, and Philips. It also supports multiple dimming and control options, including DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE.

For lighting brands, distributors, and commercial project contractors, the Rube D85 Series Surface Mounted LED Track Light provides a compact, flexible, and professional lighting solution for commercial projects.

Rube D85 Series Surface Mounted LED Track Light 15-20W
Product codeXH-RB-15W-SPXH-RB-20W-SP
Power15W20W
DriverTridonic, Osram, BOKE, TCI, Philips
VoltageAC200-240V / AC90-130V, 50/60Hz
Power factorPF>0.90
LED voltageDC36V
LED Current350mA500mA
Dimmable0/1-10V dimmable, Phase dimmable (Triac), DALI dimmable, 2.4G/RF dimmable, ZigBee dimmable, Casambi/BLE dimmable
Color outputSingle CCT
MaterialsADC12 Die cast Aluminum
Size85X130mm
InstallationSurface Mounted
LED brandCitizen, CREE, Bridgelux
CCT2700K, 3000K, 3500K, 4000K, 5000K
CRIRa80+, Ra90+, Ra95+
SDCM<3
Lifetime50,000h
OpticsLens+Reflector
Beam angle15°, 24°, 38°, 60°
Lamp EfficiencyLamp lumen 90-130lm/W
ProtectionIP20
FinishWhite, Black, Grey
Warranty3-5 years



Size and Drawing

Dimming control

Application Scenario

Related Videos

Product List

SeriesProduct No.PowerLED VoltageCurrentEfficiencyDimension(DXH)
D85 seriesXH-RB-15W-SP15WDC36V350mA90-130lm/W85X130mm
XH-RB-20W-SP20WDC36V500mA90-130lm/W85X130mm
D110 seriesXH-RB-20W-SP20WDC36V500mA90-130lm/W110X135mm
XH-RB-25W-SP25WDC36V600mA90-130lm/W110X135mm
XH-RB-30W-SP30WDC36V700/750mA90-130lm/W110X135mm
XH-RB-35W-SP35WDC36V800mA90-130lm/W110X135mm
