Commercial LED Downlights: B2B Specification & OEM Guide

Commercial LED downlights are a project specification decision — optics, ceiling build-up, controls, and supply risk — not a single catalog photo.

This page is the overview map for B2B teams (brands, distributors, contractors, consultants).

Use it to lock the type fork and the key parameters, then open the matching deep-dive.

It does not replace ceiling-install routing or a full OEM audit checklist.

TL;DR: Pick mount and type family first. Then set CRI / CCT / beam / glare / controls. Confirm wet-location and fire/IC rules by product code. Deep detail lives in the linked guides — not only in this overview.

Where should you start?
Types of commercial LED downlights
How to specify LED downlights for commercial projects
Dimming and control protocols
Modular downlight systems
What to check in a manufacturing partner
Commercial downlights by application
Installation and compliance overview
FAQ
What to read next

Where should you start?

If you are in a hurry, use this table first. Only published guides are linked.

Your situation	Go here next
Still choosing recessed vs surface vs adjustable mount	LED downlight installation methods
Ceiling type / void / cut-out questions	How to choose downlights for different ceiling types
Skip the cut-out / surface path	Surface-mounted vs recessed: when to skip the cut-out
Shallow void / slim housing	Slim & mini LED downlights for shallow ceilings
Deep recess vs flush look	Deep recessed vs flush downlights
Trimless / plaster-in architecture	Trimless LED downlights for architectural specification
Adjustable vs fixed aim	Adjustable vs fixed downlights + adjustable commercial downlights
Accent / task aiming	Directional downlights for accent and task
Wet / damp locations	IP65 waterproof LED downlights
Commercial recessed package checks	LED recessed luminaires for commercial ceilings
Track / rail instead of only recessed cans	Track and rail lighting systems guide

🎯 Where should a commercial downlight project start? Lock mount and type family against the ceiling, then set optics and controls — open a deep-dive instead of stacking catalog SKUs first.

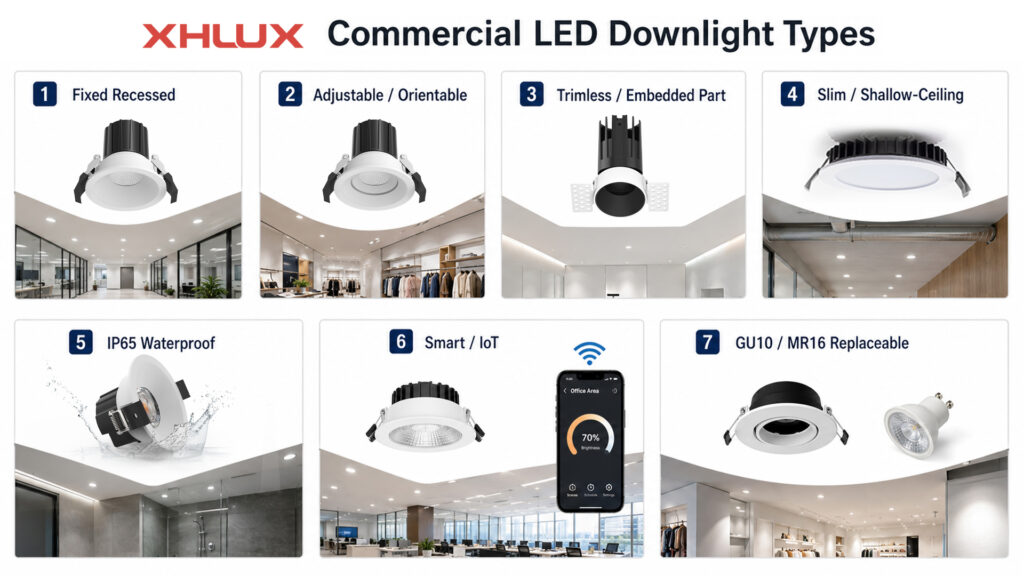

Types of commercial LED downlights

Commercial downlight types are easier to choose when you sort by job first — ambient, accent, wet zone, or shallow void — then by housing family.

Commercial projects usually mix several families in one building.

Think in those jobs, not in brand series names.

Fixed recessed

Straight-down ambient for offices, corridors, guest rooms, and general retail floors with a settled layout.

Best when the packing plan is uniform and aiming will not change.

For housing and commercial ceiling checks, open the recessed luminaires guide.

Adjustable / gimbal

Use when displays, art, or feature walls need controllable aim on top of a recessed or surface mount.

Confirm tilt / rotation per model before release.

Deep-dives: adjustable vs fixed and adjustable commercial downlights.

Trimless / plaster-in

The visible flange disappears into the finished ceiling plane.

Coordinate electrician and plasterer early; aperture changes after skim are expensive.

Deep-dive: trimless architectural specification.

Slim / shallow-ceiling

Remote the driver when the void cannot take a deep can.

Measure real depth, plan driver access, and confirm insulation-contact (IC) rules before you order.

Deep-dive: slim / shallow-ceiling downlights.

IP-rated / wet-adjacent

Bathrooms, spa areas, covered walkways, and food prep need a verified IP rating — and often front vs rear rated differently.

Deep-dive: IP65 commercial wet/damp locations.

Connected / protocol-ready heads

Specify DALI, 0–10V, Casambi/BLE, ZigBee, phase, or RF per product code.

Protocol choice is a system decision, not a late accessory add-on.

If the project needs wireless mesh examples, confirm the exact downlight SKU control option on the datasheet — do not assume a track-light control page covers the same head family.

Replaceable-lamp heads (GU10 / MR16 family)

Useful when maintenance plans prefer lamp swaps over whole-fixture replacements.

Trade-off: integrated LED usually wins efficacy and glare control; replaceable wins service habit.

Type comparison (overview)

Type	Best for	Aiming	Key check
Fixed recessed	Uniform ambient	None	Void + cut-out + fire strategy
Adjustable / gimbal	Retail / gallery accent	Yes	Tilt range + glare at viewing angles
Trimless	High-end architectural finish	Fixed or adjustable	Plaster coordination; semi-permanent
Slim / shallow	Retrofit / low void	Usually fixed	Depth + remote driver access + IC
IP-rated	Wet / damp zones	Usually fixed	Full IP rating, not marketing shorthand
Protocol-ready	BMS / scenes	Varies	Exact protocol per code
Replaceable lamp	Maintenance programs	Fixed or orientable	Efficacy vs service model

🎯 How do you choose a commercial downlight type? Match the ceiling job first (void, wet zone, aim need), then open the deep-dive — do not start from a single wattage sticker.

How to specify LED downlights for commercial projects

A complete commercial LED downlight specification is more than wattage + CCT on a purchase order.

The parameters below separate a clean install from a complaint cycle.

CRI and color quality

Ra80+ — back-of-house, stockrooms, utility corridors.
Ra90+ — most customer-facing retail, hospitality, workplaces.
Ra95+ — galleries, museums, luxury retail where color accuracy is the job.

Ask for R9 when fashion, food, or skin-tone critical zones are in scope.

Ask for SDCM (often ≤3 for adjacent fixtures) when color matching across a floor plate matters; do not assume it is on every datasheet.

CCT by space (planning bands)

Space	Typical CCT band	Note
Hotel guest / lobby / restaurant	2700K–3000K	Dim-to-warm helps evening scenes
Fashion / cosmetics / jewelry	3000K–3500K	Pair with high R9 for merchandise
Supermarket / DIY	3500K–4000K	Task visibility across aisles
Office general	3500K–4000K	Confirm local workplace rules
Gallery / museum	2700K–3500K	Conservation + UV-free LED
Clinical / healthcare	4000K–5000K	Visual acuity; low flicker
Showroom	3000K–4000K	Tunable white if displays change often

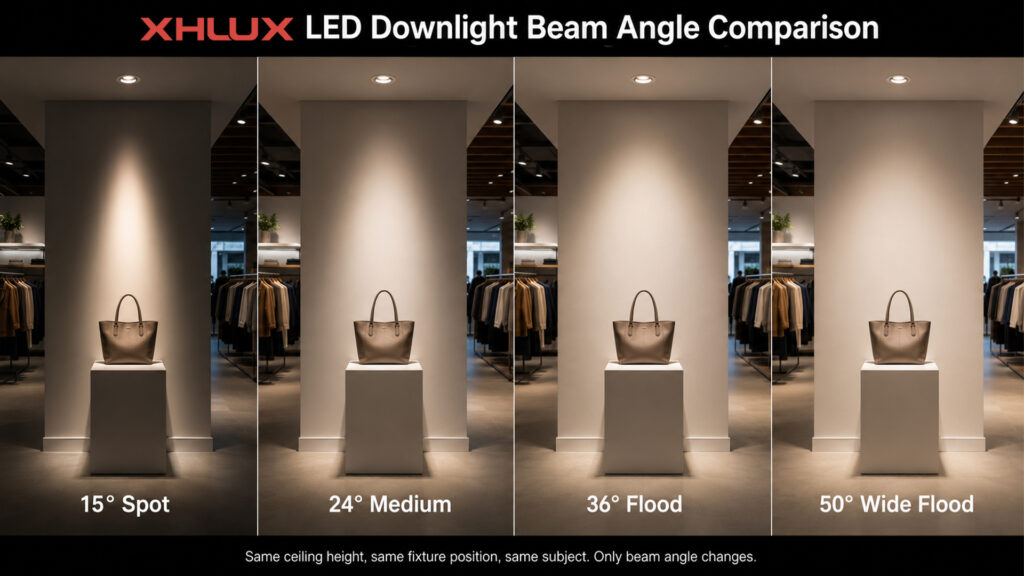

Beam angle

Beam	Character	Typical use
~15°	Tight accent	Jewelry, small art, hero SKUs
~24°	Defined medium	Racks, shelves, feature tables
~36°	Even flood	General retail / hospitality ambient
~50°	Wide soft wash	Aisles, large tables, corridors

Mixed beams usually beat one angle everywhere.

Narrow-only plans create dark gaps; wide-only plans flatten hierarchy.

UGR and glare

For screen work and premium guest space, push for deep-source optics and published UGR where the project asks for it.

Accessories (louver / snoot) are secondary — the primary optic still has to be right.

Lumens and efficacy

Work from target lux, height, and beam — not wattage alone.

A lower-watt narrow beam can out-lux a higher-watt wide flood on a small task plane.

Use photometric sheets (LM-79 / IES) when the count of fixtures pays for itself.

IP and IC

Indoor dry ceilings often land at IP20.
Wet-adjacent zones need a verified IP family — confirm front vs rear.
IC rating matters when insulation contacts the fixture; confirm per code if the catalog is silent.

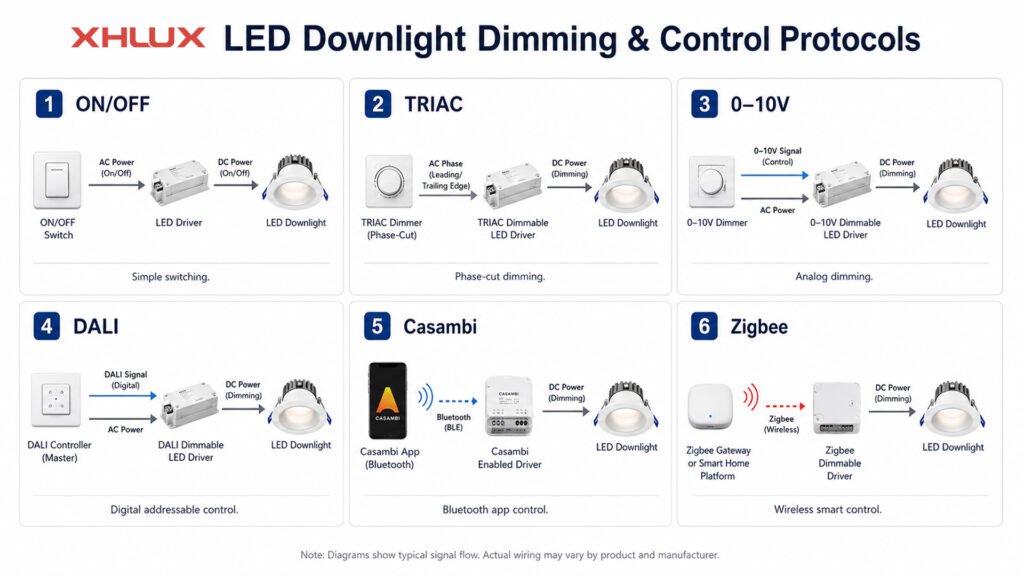

Dimming and control protocols

Pick the protocol with the building system, not after the fixtures are ordered.

Protocol	Wiring	Two-way data	Best fit
DALI / DALI-2	Bus	Yes	Large sites, BMS, status reporting
0–10V / 1–10V	LV pair	No	Simple zones, cost-sensitive
Casambi / BLE	Wireless	Yes	Retrofit / hard-to-wire spaces
ZigBee	Wireless	Yes	Broader IoT platforms
Phase (TRIAC)	Mains	No	Small commercial, basic dimming
2.4G / RF	Wireless	Limited	Simple room-level control

Confirm the exact head + driver + protocol matrix before bulk order.

Modular downlight systems

A modular platform lets distributors and brands cover more finishes and beams from fewer base SKUs.

Practical wins:

Fewer complete fixture types in stock.
Faster line expansion via reflectors / rings / optics.
One platform configured differently room-by-room on the same project.

Still validate photometry and glare for each optical configuration — modularity is not a free pass on performance proof.

What to check in a manufacturing partner

This overview is not a full factory audit.

For commercial supply risk, check these points early:

Check	Why it matters	What to demand
Cert / docs by exact code	Markets reject “family-level” paperwork	CE/EMC/RoHS/ErP, ENEC/CB/SAA/RCM where needed — for that code
Photometry pack	Specifiers need evidence	LM-79, LM-80 where relevant, IES, driver sheet
Color consistency	Adjacent fixtures show mismatch	SDCM / binning data on request
Thermal + warranty	Long-hour commercial duty	Housing/thermal design note + warranty term
Dimming matrix	Flicker and drop-out kill soft opens	Protocol compatibility under load
Samples	Spec sheets lie gently	Light quality, fit/finish, dimming, heat soak

Customization (cut-out, CCT, beam, finish, labeling, packaging) is normal when you source oem odm led downlights for a brand or private-label program — lock MOQ, lead time, and sample sign-off before production volume.

Keep brand claims short: capability matters only when the documents match the shipped code.

Commercial downlights by application

Use this as a planning start — still prove lux and glare on the real RCP.

Application	Type mix	CCT	CRI	Beam notes	Watch-outs
Fashion retail	Adjustable + fixed ambient	~3000K	Ra90+	Narrow accent + medium ambient	High R9; accent:ambient hierarchy
Supermarket	Fixed high-efficiency	3500K–4000K	Ra80+–Ra90+	36°–50°	Color consistency across aisles
Jewelry / luxury	Adjustable narrow	~3000K	Ra95+	~15°	Contrast + UV-free
Hotel lobby	Fixed + adjustable + wash	2700K–3000K	Ra90+	24°–36°	Low glare; dim-to-warm
Guest room	Fixed; trimless optional	2700K–3000K	Ra90+	36°–50°	Quiet driver; room control
Office general	Fixed / modular	3500K–4000K	Ra80+	36°–50°	Workplace glare / flicker rules
Meeting room	Fixed + adjustable	3000K–4000K	Ra90+	24°–36°	Scene modes
Museum / gallery	Adjustable + wash	2700K–3500K	Ra95+	15°–24°	Conservation; addressable control
Restaurant	Fixed + accent	2700K–3000K	Ra90+	Mix	Dim-to-warm; low glare at tables
Healthcare	Fixed anti-glare	4000K–5000K	Ra90+	36°–50°	Flicker-free; cleanable; IP where wet
Corridors / public	Fixed	3000K–4000K	Ra80+	36°–50°	Sensors; fire-rated where required

Installation and compliance overview

Mount family follows ceiling construction:

Suspended grid — recess into or onto the T-bar; check weight / independent support.
Plasterboard — trimless before skim, or cut-in after finish; cut-out tolerance matters.
Concrete / no void — surface or pendant paths instead of forcing a can.

For the full recessed vs surface vs adjustable map, use the installation methods overview.

Standards often referenced on commercial packages include IEC/EN 60598, workplace lighting rules, and local fire / emergency requirements.

Fire-rated downlights are mandatory where the ceiling is a fire barrier — confirm rating against the assembly, not against marketing copy.

FAQ

What is the difference between Ra80+, Ra90+, and Ra95+ downlights?

Ra80+ suits utility and back-of-house areas. Ra90+ is the usual customer-facing commercial baseline. Ra95+ is for color-critical spaces such as galleries, museums, and luxury retail. Always confirm the grade on the exact product code you will order.

Which dimming protocols are common on commercial downlights?

Projects typically choose among DALI/DALI-2, 0–10V/1–10V, Casambi/BLE, ZigBee, phase (TRIAC), and RF families. Availability is model-specific — confirm the head, driver, and controller together before bulk purchase.

Are IP65-rated downlights available for wet zones?

Yes on selected commercial families, but you must verify whether the rating applies to the front only or the full housing. Use the IP65 commercial wet/damp guide for zone thinking, then confirm the SKU sheet.

What warranty term is typical?

Commercial lines often quote about 3–5 years depending on family and duty cycle. Treat warranty as one quality signal alongside photometry, thermal design, and sample soak tests.

Can fixtures be customized for OEM/ODM projects?

Usually yes for oem odm led downlights on cut-out, CCT, beam, finish, protocol, labeling, and packaging within platform limits. Lock sample approval, MOQ, and lead time before production quantity.

Are SDCM values always published?

Often not on public catalog cards. For adjacent-fixture color risk, request binning / SDCM data and keep SDCM ≤3 as a common commercial target unless the consultant sets another limit.

What housing materials are common on quality commercial heads?

Die-cast aluminum housings are common for thermal and structural performance on commercial duty cycles. Still judge the full thermal path and driver quality, not material name alone.
