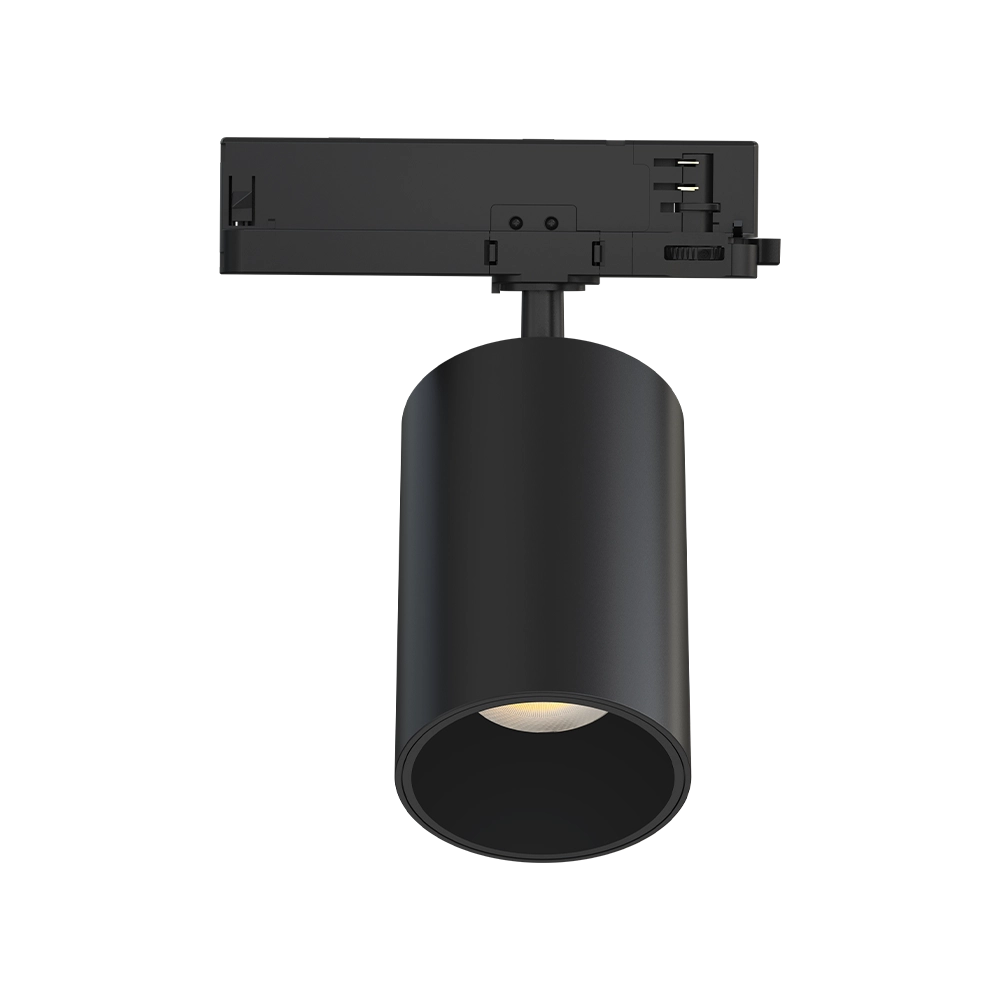

Presentazione del Rube D110 Series Intrack LED Track Light, a higher-output track lighting solution designed for professional commercial and architectural projects. With a power range of 20-35W, this series is ideal for spaces requiring stronger brightness, flexible beam control, and a neat track-mounted appearance.
The Rube D110 Series combines a simple cylindrical housing with lens and reflector optical options. Multiple beam angles, including 15°, 24°, 38°, and 60°, make it suitable for retail display lighting, gallery lighting, showroom lighting, hotel lighting, restaurant lighting, and premium commercial interiors.
This intrack LED track light supports LED chip options such as Citizen, CREE, and Bridgelux, and driver options including Tridonic, Osram, BOKE, TCI, and Philips. It can also be configured with different dimming and control systems such as DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE.
For B2B lighting brands, distributors, and project contractors, the Rube D110 Series Intrack LED Track Light offers stable performance, flexible optical control, and a clean lighting solution for professional commercial projects.
| Rube D110 Series Intrack LED Track Light 20-35W | |||||||||
| Codice prodotto | XH-RB-20W-SP | XH-RB-25W-SP | XH-RB-30W-SP | XH-RB-35W-SP | |||||
| Energia | 20W | 25W | 30W | 35W | |||||
| Autista | Tridonic, Osram, BOKE, TCI, Philips | ||||||||
| Voltaggio | AC 200-240V / AC 90-130V, 50/60Hz | ||||||||
| fattore di potenza | PF>0,90 | ||||||||
| tensione LED | 36 V CC | ||||||||
| Corrente LED | 500 mA | 600 mA | 700/750 mA | 800 mA | |||||
| Dimmerabile | Dimmerabile 0/1-10V, dimmerabile a fase (Triac), dimmerabile DALI, dimmerabile 2.4G/RF, dimmerabile ZigBee, dimmerabile Casambi/BLE | ||||||||
| Uscita colore | CCT singolo | ||||||||
| Materiali | ADC12 Alluminio pressofuso | ||||||||
| Misurare | 110X135mm | ||||||||
| Installazione | Intrack | ||||||||
| Marchio LED | Citizen, CREE, Bridgelux | ||||||||
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K | ||||||||
| CRI | Ra80+, Ra90+, Ra95+ | ||||||||
| SDCM | <3 | ||||||||
| Tutta la vita | 50.000 ore | ||||||||
| Ottica | Lens+Reflector | ||||||||
| angolo del fascio | 15°, 24°, 38°, 60° | ||||||||
| Efficienza della lampada | Lamp lumen 90-130lm/W | ||||||||
| Protezione | IP20 | ||||||||
| Fine | Bianco, Nero, Grigio | ||||||||
| Garanzia | 3-5 anni | ||||||||

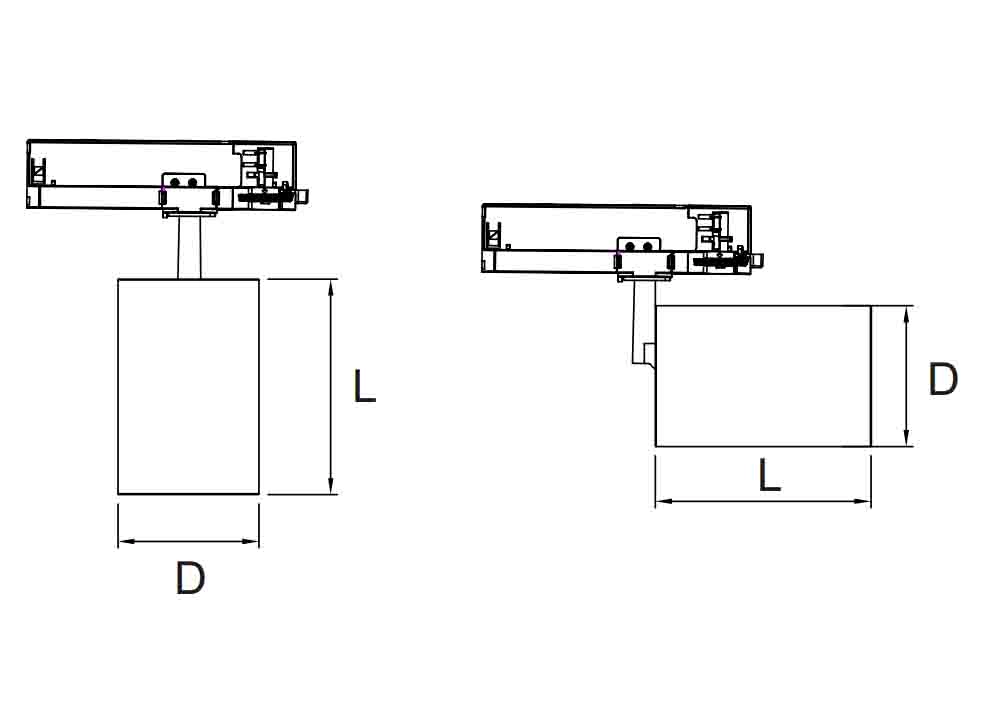

Dimensioni e disegno
Controllo della luminosità
Scenario applicativo
Video correlati
Lavoro di prodotto
| Serie | Numero di prodotto. | Energia | Tensione LED | Attuale | Efficienza | Dimensioni (P x A) | ||||||
| Serie D85 | XH-RB-15W-SP | 15W | 36 V CC | 350 mA | 90-130lm/W | 85X130mm | ||||||
| XH-RB-20W-SP | 20W | 36 V CC | 500 mA | 90-130lm/W | 85X130mm | |||||||
| D110 series | XH-RB-20W-SP | 20W | 36 V CC | 500 mA | 90-130lm/W | 110X135mm | ||||||
| XH-RB-25W-SP | 25W | 36 V CC | 600 mA | 90-130lm/W | 110X135mm | |||||||
| XH-RB-30W-SP | 30W | 36 V CC | 700/750 mA | 90-130lm/W | 110X135mm | |||||||
| XH-RB-35W-SP | 35W | 36 V CC | 800 mA | 90-130lm/W | 110X135mm | |||||||
