Tipos de iluminação comercial suspensa em trilhos e suas aplicações

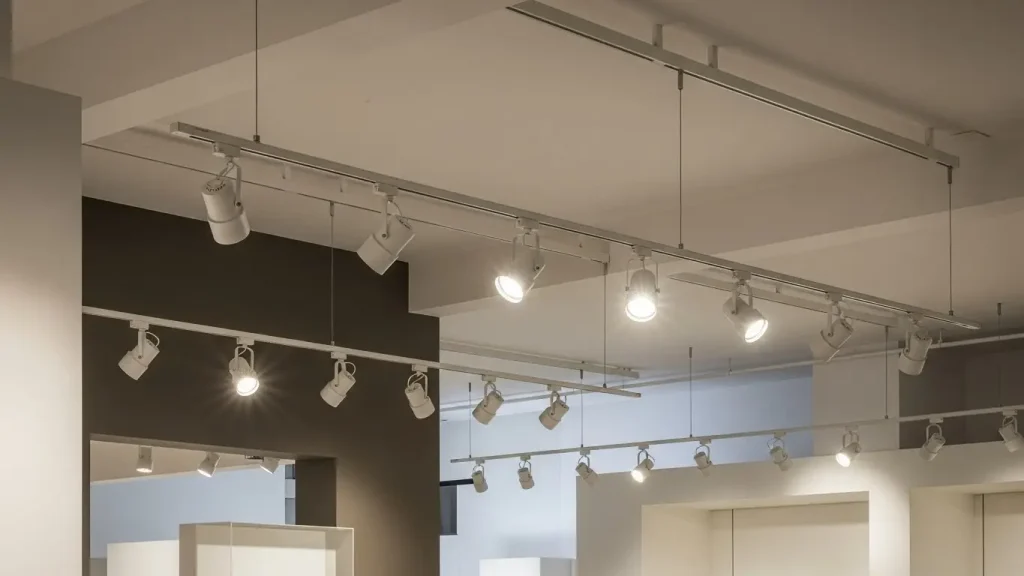

Commercial suspended track lighting is an overhead lighting system where electrified track rails are suspended from the ceiling using cables or rods. It is widely used in retail stores, galleries, showrooms, offices, and hospitality spaces because it provides flexible positioning, adjustable beam control, and modern architectural aesthetics.

1. What Is Commercial Suspended Track Lighting?

Suspended track lighting is a ceiling-mounted track system hung using steel cables, rods, or suspension kits, allowing the track to float below the structural ceiling. Compared with surface-mounted or recessed tracks, suspended systems:

• Create a clean, modern architectural look
• Work well with high ceilings (3–10 m)
• Allow lighting to be brought closer to the merchandise or workspace
• Support flexible reconfiguration without rewiring the ceiling
• Enable a mixture of spotlights, linear luminaires, wall-washers, and pendants

1.1 How It Differs From Other Track Installations

Tipo de pista	Mounting	Best Use Case
Surface-Mounted	Direct to ceiling	Renovations, low ceilings
Recessed Track	Flush inside ceiling	Premium office, gallery
Suspended Track	Hanging by cable/rod	High ceilings, retail, showrooms

Suspended systems are especially useful in commercial spaces where:

• Ceilings are high or uneven
• Existing electrical routing is difficult to modify
• Retail or showroom layouts change frequently

Suspended systems = maximum flexibility + modern design reliability.

---

2. Main Types of Suspended Track Lighting Systems

2.1 Linear Suspended Track Lighting

The most common type, consisting of:

• Straight linear rails
• Sleek minimal design
• Compatible with most track heads (H/J/L type)
• Ideal for retail aisles, galleries, offices

Suitable for long spans and uniform grid layouts.

2.2 Curved / Flexible / Custom-Shaped Suspended Tracks

Architectural designers increasingly use:

• Curved rails
• S-shape tracks
• Modular multi-segment configurations

These allow creative lighting paths for:

• High-end retail
• Museus
• Hotéis
• Brand experience centers

Curved systems guide customer movement and enhance visual flow.

2.3 Single-Circuit vs Multi-Circuit / Three-Phase Tracks

Single-Circuit Tracks

• All fixtures controlled together
• Low cost
• Best for small stores or simple layouts

Multi-Circuit (Two- / Three-Phase) Tracks

• Fixtures grouped into independent circuits
• Ideal for scene control and layered lighting
• Suitable for large retail, showrooms, museums

For example:

Circuito	Função
Circuito 1	Iluminação ambiente
Circuito 2	Iluminação de destaque
Circuito 3	Display windows

Multi-circuit tracks are used in many XHLUX projects — see Iluminação comercial em trilhos.

2.4 Different Suspension Methods

Steel Cable Suspension

• Most common
• Adjustable height
• Clean appearance
• Ideal for modern retail and offices

Rigid Rod Suspension

• More stable than cables
• Preferred for industrial-style design or heavy-duty fixtures

Rod + Cable Hybrid

• Used for long continuous track runs
• Adds stability to prevent sway

Suspension method affects loading, safety compliance, and visual aesthetics.

2.5 Surface-Mounted vs Suspended vs Recessed: When to Use Which?

Method	Ideal para	Prós	Limitations
Suspended	High ceilings, retail, showrooms	Flexible, aesthetic	Requires suspension kits
Surface-Mount	Renovation	Easy installation	Less architectural appeal
Recessed	Corporate, galleries	Cleanest look	Needs solid ceiling structure

Suspended tracks offer the best balance of flexibility + aesthetics, especially for commercial spaces.

---

3. Common Track Fixture Types & Their Applications

Suspended tracks can host an entire family of fixtures.

3.1 Narrow Beam Spotlights (Accent Heads)

• 10°–24° beam angles
• High CRI (>90 or Ra97)

• Ideal para:

  • Product highlighting
  • Exposições de arte
  • Exibições de janela
  • Focal merchandising

Spot heads with Chips COB + lentes PMMA deliver high-contrast accent lighting.

Explore XHLUX Track Spotlights.

3.2 Flood Heads (General / Ambient Lighting)

• 36°–60° beam

• Utilizado para:

  • Retail ambient coverage
  • Escritórios
  • Shared spaces
  • Circulation areas

Flood heads create even, soft lighting.

3.3 Wall-Washer and Asymmetric Heads

Vertical illumination is crucial for:

• Display walls
• Advertising graphics
• Museum exhibition walls

Asymmetric optics provide uniform brightness from top to bottom.

3.4 Pendant & Decorative Track Fixtures

Suspended tracks can carry:

• Pendant lights
• Cylindrical decorative fixtures
• Dining and hospitality lighting

This is increasingly used in restaurants and café chains.

See Luminárias pendentes de LED for examples.

3.5 Linear Track Luminaires

For spaces needing clean, uniform light:

• Escritórios
• Co-working spaces
• Hallways
• Retail back zones

Explore XHLUX Linear Lighting for suspended linear modules.

---

4. Key Technical Specs and Selection Criteria

To build a professional suspended track system, you must evaluate optical and electrical specs properly.

4.1 Ângulo do Feixe e Distribuição Fotométrica

Tipo de viga	Ângulo	Use Case
Ponto estreito	10°–15°	Products, artwork
Ponto Médio	20°–24°	Feature displays
Enchente	36°–60°	Iluminação geral
Lavagem de parede	Assimétrico	Vertical surfaces

4.2 Lumens & Lux Recommendations

General guidance:

• Retail: 800–2000 lm per head
• Galleries: 1500–3000 lm
• Offices: 300–500 lux on work plane

4.3 CCT & CRI Selection

Espaço	CCT	CRI
Varejo	3000–3500K	CRI 90–95+
Galeria	3000–4000K	CRI 95+
Escritório	3500–4000K	CRI ≥90
Hospitalidade	2700–3000K	CRI ≥90

SDCM < 3 is recommended for high uniformity.

4.4 Dimming & Controls

Suspended systems work with:

• Triac
• 0–10V
• DALI-2 (see Aliança DALI)
• Bluetooth / WiFi (Tuya, Casambi)
• Multi-circuit switching

DALI-2 is recommended for premium commercial applications.

4.5 Structural Safety & Installation Standards

Consider:

• Load-bearing capacity
• Suspension kit certifications
• Ceiling material
• Vibration resistance
• Electrical compliance (UL / CE / RoHS)

XHLUX provides complete Soluções de Iluminação including safety documentation.

---

5. Application Scenarios — How to Use Suspended Track Lighting

5.1 Retail Stores

Metas:

• Highlight products
• Guide customer flow
• Reduce shadows on shelves

Recomendado:

• Spotlights + wall washers
• 3-circuit track for scene switching
• CRI 90–95+
• 3000–3500K

5.2 Galleries & Exhibition Spaces

Requisitos:

• High CRI (95–97)
• Minimal glare
• Clean beam edges

Usar:

• Zoom spotlights
• Enquadrando projetores
• Lavadores de parede

XHLUX Trilhos de luz com zoom are ideal.

5.3 Offices & Co-working Spaces

Usar:

• Linear suspended track luminaires
• Low-glare optical designs (UGR<19)
• 3500–4000K neutral white

Combine with Luminárias lineares de LED for modern design.

5.4 Hospitality: Restaurants / Hotels / Bars

Usar:

• Warm white (2700–3000K)
• Pendant fixtures + accent spots
• Decorative elements to shape atmosphere

5.5 Automobile Showrooms / Furniture Stores / High-End Retail

Requisitos:

• High-ceiling lighting
• Multi-circuit controls
• Strong accent beams (15°–24°)

Suspended tracks allow perfect aiming for large items.

Estudo de Caso Realista da Iluminação XHLUX

A luxury furniture showroom used XHLUX suspended track lighting with CRI 95 spotlights and 3-circuit tracks. After installation, the showroom achieved a 34% increase in customer engagement due to improved product highlight quality and cohesive lighting zones.

---

6. Step-by-Step Selection Workflow

Step 1 — Define Space Requirements

• Ceiling height
• Visual goals
• Merchandise or tasks
• Layout flexibility needs

Step 2 — Choose Track System & Suspension Method

• Linear vs curved
• Cables vs rods
• Single vs multi-circuit

Step 3 — Select Fixtures

• Spot / flood / wall-wash
• Pendants / linear modules
• Beam angle + CRI + CCT

Step 4 — Electrical & Safety Requirements

• Load capacity
• Driver compatibility
• Control system (DALI / 0–10V)

Step 5 — Allow Future Flexibility

• Modular heads
• Replaceable optics
• Easy maintenance access

---

7. FAQ About Commercial Suspended Track Lighting

What type of track lighting is best for high ceilings?

Suspended track lighting is ideal because it lowers the lighting plane closer to the activity zone.

What is the difference between suspended and surface track lighting?

Suspended systems hang from cables or rods for better flexibility and aesthetic design.

Can suspended track lights be dimmable?

Yes. With compatible drivers, they work with Triac, 0–10V, and DALI-2 systems.

Is multi-circuit track worth it?

Yes for commercial spaces needing scene control, such as retail and showrooms.

Can wall-washer heads be used on suspended tracks?

Absolutely. They are ideal for merchandise walls and gallery displays.

---

8. Resumo Final

Commercial suspended track lighting is one of the most flexible, modern, and visually effective solutions for commercial interiors. Whether you’re building a retail store, gallery, office, or showroom, suspended systems offer:

• Architectural aesthetics
• Adjustable lighting
• Reconfiguração fácil
• Compatibility with LED, DALI, and smart controls
• Excellent lighting quality for products & experiences
