Opis produktu

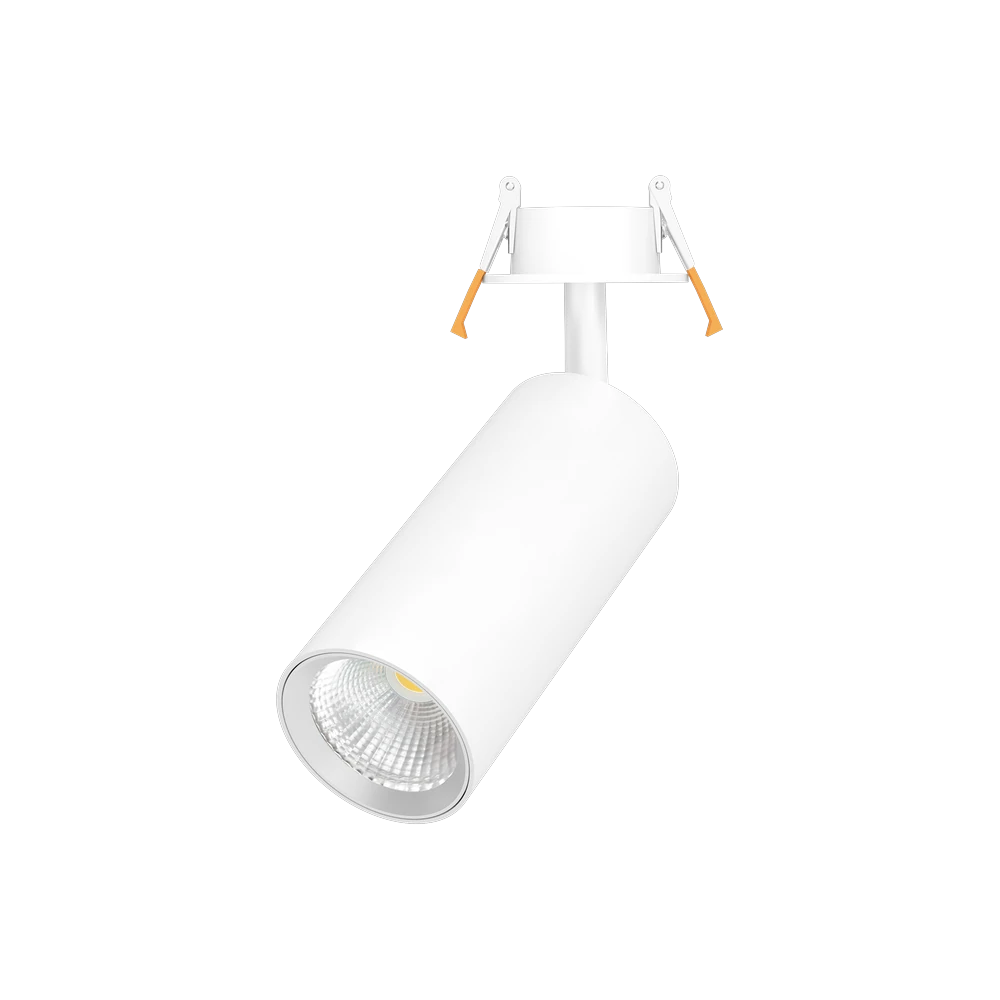

Przedstawiamy F1M D62 Series Recessed LED Track Light, a compact recessed lighting solution designed for modern commercial interiors. With a power range of 10-15W, this series is ideal for retail stores, galleries, showrooms, hotel spaces, corridors, and other applications requiring a clean ceiling appearance with precise accent lighting.
The F1M D62 Series combines a recessed installation structure with a modular optical design. Lens and reflector options, together with beam angles of 15°, 24°, 38°, and 60°, allow designers to create focused display lighting, artwork lighting, or comfortable general illumination for different project needs.
This recessed LED track light supports LED chip options such as Citizen, CREE, and Bridgelux, and can be matched with reliable driver brands including Tridonic, Osram, BOKE, TCI, and Philips. It also supports different dimming and control systems, including DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE.
For lighting brands, distributors, and commercial project contractors, the F1M D62 Series Recessed LED Track Light offers a compact, flexible, and elegant solution for professional commercial lighting applications.
| F1M D62 Series Recessed LED Track Light 10-15W | |||||||
| Kod produktu | XH-RL-10W-F1M | XH-RL-15W-F1M | |||||
| Moc | 10 W | 15 W | |||||
| Kierowca | Tridonic, Osram, BOKE, TCI, Philips | ||||||
| Woltaż | AC200-240V / AC90-130V, 50/60Hz | ||||||
| Współczynnik mocy | PF>0,90 | ||||||
| Napięcie diody LED | Prąd stały 36 V | ||||||
| Prąd LED | 250mA | 350mA | |||||
| Możliwość ściemniania | Możliwość ściemniania 0/1-10 V, Możliwość ściemniania fazowego (triak), Możliwość ściemniania DALI, Możliwość ściemniania 2.4G/RF, Możliwość ściemniania ZigBee, Możliwość ściemniania Casambi/BLE | ||||||
| Wyjście kolorowe | Pojedynczy CCT | ||||||
| Przybory | ADC12 Odlew aluminiowy ciśnieniowy | ||||||
| Rozmiar | 62X140mm/185mm | ||||||
| Wyciąć | 60mm | ||||||
| Instalacja | Wpuszczone | ||||||
| Marka LED | Citizen, CREE, Bridgelux | ||||||
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K | ||||||
| CRI | Ra80+, Ra90+, Ra95+ | ||||||
| SDCM | <3 | ||||||
| Życie | 50 000 godzin | ||||||
| Optyka | Soczewka, reflektor | ||||||
| Kąt wiązki | 15°, 24°, 38°, 60° | ||||||
| Wydajność lampy | Strumień świetlny lampy 100-130 lm/W | ||||||
| Ochrona | IP20 | ||||||
| Skończyć | Biały, Czarny, Szary | ||||||
| Gwarancja | 5 lat | ||||||
Rozmiar i rysunek
Sterowanie przyciemnianiem
Scenariusz aplikacji
Lista produktów
| Szereg | Numer produktu. | Moc | Napięcie diody LED | Aktualny | Efektywność | Wymiar (DxDł. 1/Dł. 2) | Wyciąć | |||||||
| Seria D62 | XH-RL-10W-F1M | 10 W | Prąd stały 36 V | 250mA | 100-130 lm/W | 62X140mm/185mm | 60mm | |||||||
| XH-RL-15W-F1M | 15 W | Prąd stały 36 V | 350mA | 100-130 lm/W | 62X140mm/185mm | 60mm | ||||||||
| Seria D85 | XH-RL-25W-F1M | 25 W | Prąd stały 36 V | 600mA | 100-130 lm/W | 85X170mm/200mm | 75 mm | |||||||
| XH-RL-30W-F1M | 30 W | Prąd stały 36 V | 700/750mA | 100-130 lm/W | 85X170mm/200mm | 75 mm | ||||||||
| XH-RL-35W-F1M | 35 W | Prąd stały 36 V | 800mA | 100-130 lm/W | 85X170mm/200mm | 75 mm | ||||||||
