Productbeschrijving

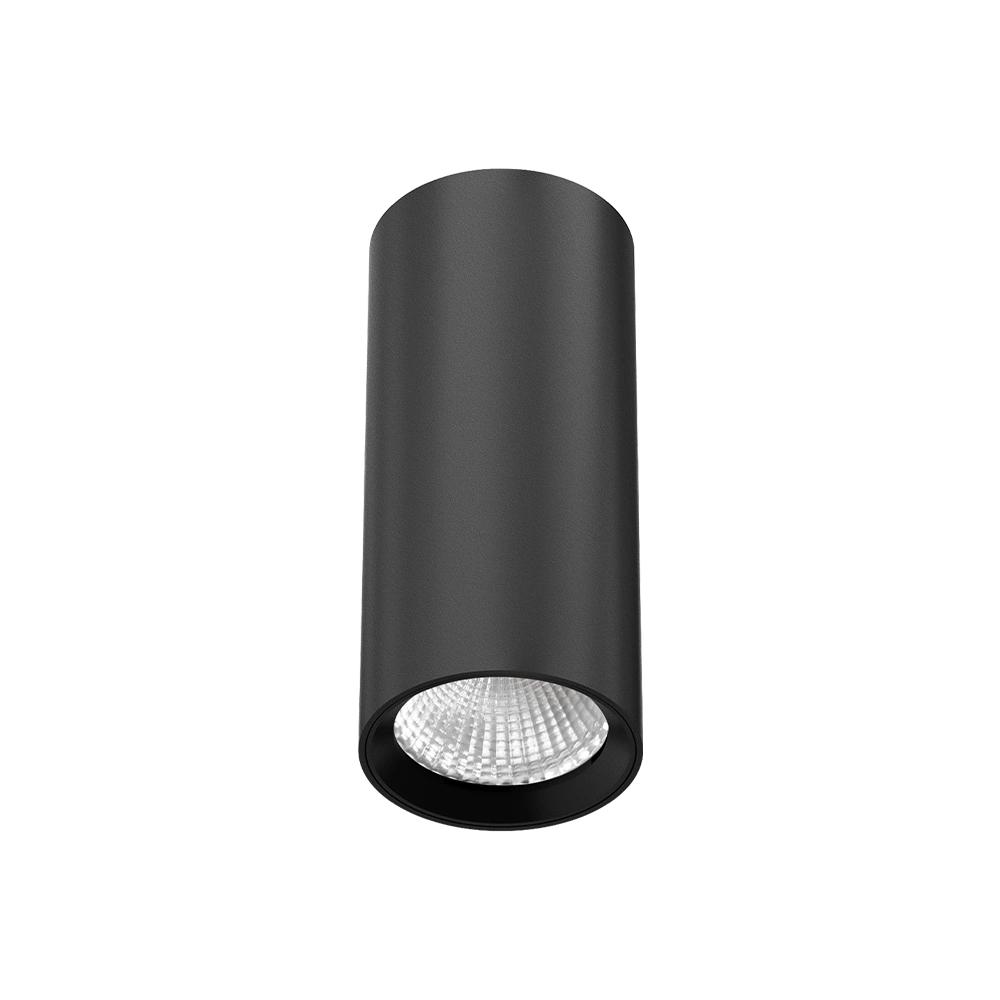

Introductie van de F1M D85 Series Surface Mounted LED Downlight, a high-output modular lighting solution for commercial and architectural lighting projects. With a power range of 25-35W, this series is suitable for spaces that require stronger brightness, precise beam control, and a clean surface mounted appearance.
De F1M D85 Series combines a simple cylindrical housing with flexible optical options, including lens and reflector versions. Beam angles of 15°, 24°, 38°, and 60° make it suitable for retail display areas, galleries, hotels, showrooms, offices, and premium commercial interiors.
Designed for professional project use, this surface mounted LED downlight supports LED chip options such as Citizen, CREE, and Bridgelux, and driver options including Tridonic, Osram, BOKE, TCI, and Philips. It can also be configured with different control systems such as DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE, helping customers meet different project requirements.
For lighting brands, distributors, and project contractors looking for a powerful and flexible surface mounted downlight, the F1M D85 Series Surface Mounted LED Downlight provides a reliable, efficient, and elegant solution.
| F1M D85 Series Surface Mounted LED Downlight 25-35W | ||||||||||
| Productcode | XH-SMTL-25W-F1M | XH-SMTL-30W-F1M | XH-SMTL-35W-F1M | |||||||
| Stroom | 25W | 30W | 35W | |||||||
| Bestuurder | Tridonic, Osram, BOKE, TCI, Philips | |||||||||
| Spanning | AC200-240V / AC90-130V, 50/60Hz | |||||||||
| Vermogensfactor | PF>0,90 | |||||||||
| LED-spanning | DC36V | |||||||||
| LED-stroom | 600mA | 700/750mA | 800mA | |||||||
| Dimbaar | 0/1-10V dimbaar, fase dimbaar (Triac), DALI dimbaar, 2.4G/RF dimbaar, ZigBee dimbaar, Casambi/BLE dimbaar | |||||||||
| Kleurenweergave | Enkele CCT | |||||||||
| Materialen | ADC12 Gegoten aluminium | |||||||||
| Maat | 85x170mm/200mm | |||||||||
| Adaptermerk | N/A – surface mounted | |||||||||
| Track Phase | N/A – surface mounted | |||||||||
| LED-merk | Citizen, CREE, Bridgelux | |||||||||
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K | |||||||||
| CRI | Ra80+, Ra90+, Ra95+ | |||||||||
| SDCM | <3 | |||||||||
| Optiek | Lens, reflector | |||||||||
| Straalhoek | 15°, 24°, 38°, 60° | |||||||||
| Verstelbare hoek | 90° tilt, 350° rotation | |||||||||
| Lamprendement | Lichtopbrengst van de lamp: 100-130 lumen/W | |||||||||
| Bescherming | IP20 | |||||||||
| Finish | Wit, zwart, grijs | |||||||||
| Garantie | 5 jaar | |||||||||

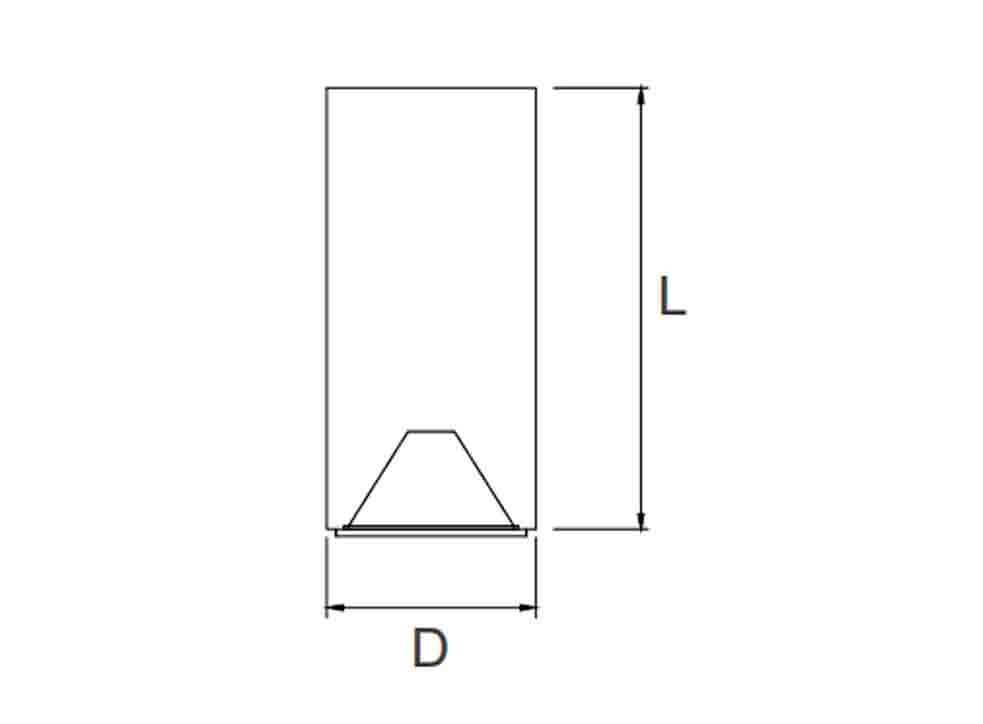

Formaat en tekening
Dimregeling
Toepassingsscenario
Productlijst
| Serie | Productnr. | Stroom | LED-spanning | Huidig | Efficiëntie | Dimension(DxL1/L2) | ||||||
| D62-serie | XH-SMTL-10W-F1M | 10W | DC36V | 250mA | 100-130lm/W | 62x140mm/185mm | ||||||
| XH-SMTL-15W-F1M | 15W | DC36V | 350mA | 100-130lm/W | 62x140mm/185mm | |||||||
| D85-serie | XH-SMTL-25W-F1M | 25W | DC36V | 600mA | 100-130lm/W | 85x170mm/200mm | ||||||
| XH-SMTL-30W-F1M | 30W | DC36V | 700/750mA | 100-130lm/W | 85x170mm/200mm | |||||||
| XH-SMTL-35W-F1M | 35W | DC36V | 800mA | 100-130lm/W | 85x170mm/200mm | |||||||
