Magnetic Track Lighting for Reconfigurable Retail Displays

At a Glance

Magnetic track lighting uses 48V DC powered tracks with magnetic fixture attachment — pull a fixture off, place it elsewhere on the track, and the magnets hold it in position while making electrical contact automatically. No tools, no locking tabs, no wiring.
For retail environments, this means the lighting can be reconfigured by store staff during a merchandising reset. When a feature display moves from one wall to another, the spotlights move with it — in seconds, without an electrician, and without disrupting other fixtures on the same track.
The economic case is in the labour savings at each reconfiguration. A retail chain doing four seasonal floor plan changes per year across multiple stores can significantly reduce electrical call-outs by using magnetic track in display areas — each reconfiguration that previously required an electrician for fixture repositioning can instead be completed by store staff as part of the merchandising workflow.

Why Retail Displays Need Reconfigurable Lighting

Retail merchandising follows a cycle. The floor plan changes seasonally — spring collection replaces winter, holiday displays go up in November and come down in January, a new product launch gets prime floor placement for six weeks. Each merchandising change moves the focal points: the feature table shifts, the mannequin group relocates, the promotion wall changes position.

In a conventionally lit store, each focal point has fixed lighting — a downlight above the feature table, a track spotlight aimed at the mannequin group. When the display moves, the lighting stays behind. The new display position is inadequately lit until an electrician repositions or adds fixtures.

Magnetic track breaks this dependency. The track covers the display zone — a continuous powered track running along the display wall or across the ceiling above the sales floor. Wherever the merchandise moves within that zone, the lighting can follow immediately. The store team repositions the fixtures at the same time they reposition the merchandise — the lighting change is part of the merchandising workflow, not a separate electrical task.

How It Works in Practice

A typical retail installation: a magnetic track runs parallel to the display wall, positioned 700–900mm from the wall surface, at ceiling height. The track is powered by a remote 48V DC supply. Six to eight magnetic fixture heads — a mix of 24° spots for mannequin lighting and 36° floods for shelf coverage — are placed along the track at positions matching the current display layout.

When the merchandising team resets the floor, the process for lighting is:

Identify which fixtures need to move — typically 50–70% of the heads on the track

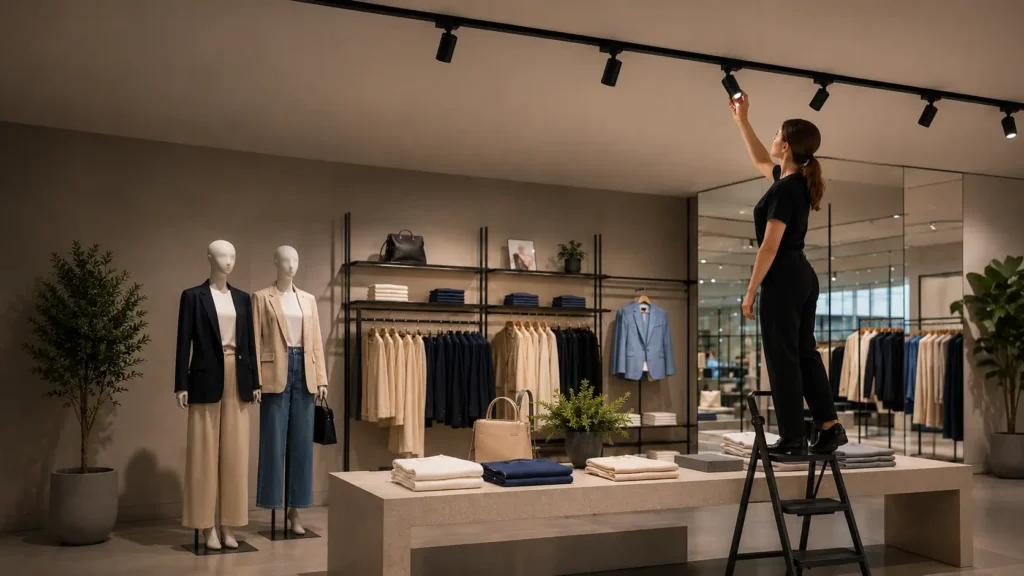

Pull each fixture off the track by hand — the magnetic force releases with a firm pull
Place each fixture at its new position on the same track — the magnets snap it into place and electrical contact is automatic
Adjust the aim angle of each fixture head to suit the new display position

The entire lighting reconfiguration for a standard retail display wall takes 10–15 minutes and is done by the same team that is moving the merchandise. No electrician, no tools, no ceiling access, and no disruption to neighbouring displays whose lighting remains in place.

Where Magnetic Track Works Best in Retail

Feature Display Walls

The most common application: a continuous magnetic track above the main display wall, covering the full width of the wall (typically 4–8 metres). Fixtures are positioned to light the current display configuration — mannequin groups, shelf bays, hanging displays — and repositioned when the wall display changes. This single track typically replaces 6–8 individually wired fixed downlights or traditional track heads.

Window Displays

Retail window displays change more frequently than any other area — typically every 4–6 weeks. Magnetic track in the window ceiling or header allows the lighting to change with each new window concept without accessing the window structure. The track is concealed in the window header or ceiling recess, and only the fixture heads are visible.

Central Display Tables and Feature Islands

For centre-floor merchandise tables, a magnetic track suspended directly above the table position allows the lighting to move when the table moves. A 2-metre track suspended at 2.5–3 metres above floor level can cover a standard display table with 3–4 adjustable spotlights.

Pop-Up and Temporary Retail

For pop-up stores, seasonal kiosks, and promotional spaces that exist for weeks or months, magnetic track is a portable lighting system. The track sections, power supply, and fixtures pack into a transport case. The system is assembled on-site without an electrician (the power supply plugs into a standard mains outlet), configured for the specific merchandise layout, and disassembled when the pop-up closes.

What to Specify for Retail Magnetic Track

Track Length and Coverage

Plan for the full display zone, not the current layout. If the display wall is 6 metres wide, install 6 metres of track — even if the current merchandise only occupies 4 metres. The extra track capacity allows the display to expand without adding new track sections later. Track extensions cost a fraction of adding a new track run later (which would require a second power feed and potentially a second circuit).

Fixture Mix

A retail display track typically carries a mix of beam angles:

Narrow spot (15–24°): featured mannequin, hero product, jewellery case — one fixture per focal point
Medium flood (30–38°): shelf bay, hanging display, folded garment table — one fixture per 1–1.5 metres of display width
Wide flood (50–60°): general ambient fill for the display zone — one fixture per 2 metres of track

The mix changes with each merchandising reset. A track that currently has 4 spots and 2 floods for a mannequin-heavy display may shift to 2 spots and 4 floods when the display changes to shelf-based merchandising three months later. The track supports both configurations without modification.

Power Supply Sizing

The remote 48V DC power supply determines the maximum number of fixtures per track. For retail display applications, a 200–300W supply is typical, supporting 6–10 fixtures at 20–30W each. Count the maximum planned fixture count (not the current count), add two spare positions for future additions, and select a power supply rated for at least that total wattage plus 20% headroom.

Control

Most retail magnetic track installations use simple on/off switching — the track is powered during trading hours and switched off at close. If dimming is required — for example, to lower light levels during evening trading or to create a softer ambience for premium product areas — specify a dimmable power supply and fixtures with compatible drivers. DALI and 0–10V dimming are the most common protocols for retail magnetic track.

Traditional Track vs Magnetic Track for Retail

Factor	Traditional Track (Line-Voltage)	Magnetic Track (48V DC)
Fixture repositioning	Unlock mechanical adaptor, move, relock — 1–2 minutes per fixture	Pull off, place elsewhere — seconds per fixture
Tool requirement	None after installation, but mechanical adaptors require manual dexterity	None — magnetic attachment only
Who can reposition	Store staff with brief training	Store staff — intuitive
Electrical work for fixture changes	Not required	Not required
Track profile	30–40mm wide	20–25mm wide — less visible on the ceiling
Maximum fixtures per circuit	High — limited by circuit breaker	Limited by power supply rating
Cost per fixture	Lower	Higher
Best for	Fixed or semi-fixed retail layouts	Frequently changing retail displays

The choice is primarily about the frequency of change. A retail display wall that is reconfigured four times per year will recover the higher fixture cost of magnetic track through avoided labour within the first year. A display that is reconfigured once per year or less may not justify the premium.

Frequently Asked Questions

Can store staff really reposition the lights without training?

Yes. The fixture pulls off the track with a firm tug and snaps into place at the new position automatically — the magnets align the fixture and make the electrical contact. No tools, no locking mechanisms, no wiring. Store staff who can reposition merchandise on a shelf can reposition a magnetic fixture on a track.

How many fixtures can one magnetic track support?

The limit is the power supply rating divided by the per-fixture wattage, minus 20% headroom. A 300W supply with 30W fixtures supports 8 fixtures (300 ÷ 30 = 10, minus 20% = 8). The physical track can hold more fixtures than the power supply can support — the electrical limit comes first.

Is magnetic track safe in a retail environment with customer access?

Yes. The track operates at 48V DC (Safety Extra-Low Voltage under IEC 61140), which is below the shock hazard threshold in dry conditions. The fixtures are held by magnets rated for several times the fixture weight — they will not fall off under normal conditions. The track and fixtures are typically installed at ceiling height, out of customer reach.

What happens if a fixture is accidentally knocked off the track?

The fixture is held by magnets rated for substantially more than the fixture weight — accidental dislodgement is unlikely under normal retail conditions. If a fixture is deliberately pulled off (the intended removal method), it can be immediately replaced on the track — there is no damage and no electrical interruption to other fixtures.

Can I add more track sections to an existing magnetic system?

Yes. Additional track sections can be joined to the existing track using mechanical connectors, extending the total track length. No additional power supply is needed as long as the total fixture wattage remains within the existing power supply rating. If the extended track will carry more fixtures than the current supply can support, a second power supply may be required for the new section.

What to Do Next

Magnetic track lighting is worth specifying for any retail display area that is reconfigured two or more times per year. The higher per-fixture cost is recovered through avoided electrical labour at each reconfiguration — a single avoided electrician call-out typically covers the cost difference between magnetic and traditional track for several fixtures.

For fixed retail lighting — general sales floor ambient, back-of-house, stockrooms — traditional track or fixed downlights remain the more cost-effective choice. Magnetic track is a specialised tool for the display areas where flexibility has measurable commercial value.

Data notes: Power supply ratings, fixture wattages, and magnetic holding forces are representative of commercially available 48V magnetic track lighting systems. Specific values vary by manufacturer and model. SELV classification is defined by IEC 61140; local electrical codes may have additional requirements. All mains electrical work must be performed by a licensed electrical contractor.
