Descrizione del prodotto

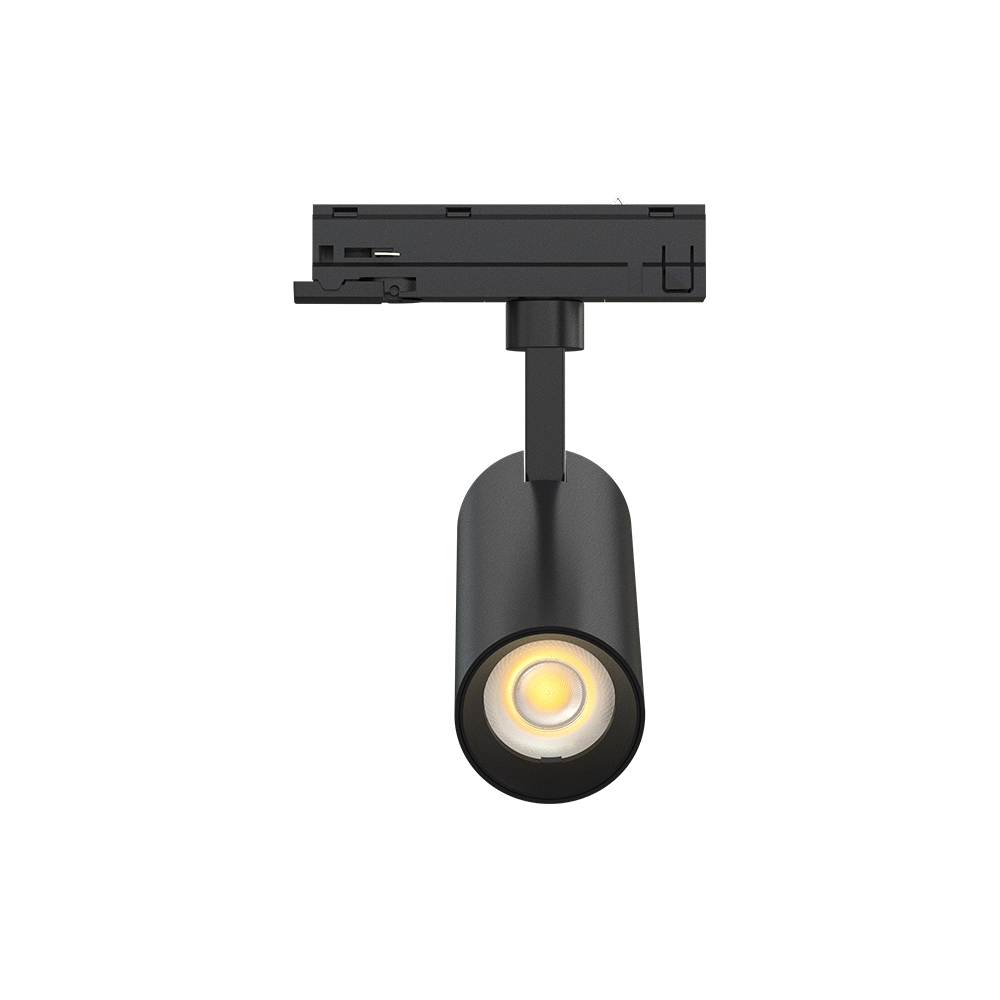

Presentazione del MINI D36 Series 2 Wire 1 Phase LED Track Light, a compact track lighting solution designed for modern commercial interiors. With a power range of 5-8W, this mini track light is ideal for retail shelves, display cabinets, galleries, boutiques, residential showrooms, and other spaces requiring small-size accent lighting.
The MINI D36 Series features a slim and clean body design, making it suitable for projects where the luminaire needs to be visually discreet. With lens optical options and beam angles of 15°, 24°, 38°, and 60°, it can provide focused product lighting, small-area accent lighting, or soft display illumination.
This LED track light supports LED chip options such as Citizen, CREE, and Bridgelux, and can be matched with driver brands including Tridonic, Osram, BOKE, TCI, and Philips. It also supports multiple dimming and control options, including DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE.
For lighting brands, distributors, and project contractors, the MINI D36 Series 2 Wire 1 Phase LED Track Light offers a compact, flexible, and professional solution for commercial accent lighting projects.
| MINI D36 Series 2 Wire 1 Phase LED Track Light 5-8W | |||||||
| Codice prodotto | XH-TL-5W-M2 | XH-TL-8W-M2 | |||||
| Energia | 5W | 8W | |||||
| Autista | Tridonic, Osram, BOKE, TCI, Philips | ||||||
| Voltaggio | AC 200-240V / AC 90-130V, 50/60Hz | ||||||
| fattore di potenza | PF>0,90 | ||||||
| tensione LED | 36 V CC | ||||||
| Corrente LED | 125mA | 200 mA | |||||
| Dimmerabile | Dimmerabile 0/1-10V, dimmerabile a fase (Triac), dimmerabile DALI, dimmerabile 2.4G/RF, dimmerabile ZigBee, dimmerabile Casambi/BLE | ||||||
| Uscita colore | CCT singolo | ||||||
| Materiali | ADC12 Alluminio pressofuso | ||||||
| Misurare | 36X105mm | ||||||
| Adattatore per binario | 2 Wire 1 phase | ||||||
| Installazione | Montato su binario | ||||||
| Marchio LED | Citizen, CREE, Bridgelux | ||||||
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K | ||||||
| CRI | Ra80+, Ra90+, Ra95+ | ||||||
| SDCM | <3 | ||||||
| Tutta la vita | 50.000 ore | ||||||
| Ottica | Lente | ||||||
| angolo del fascio | 15°, 24°, 38°, 60° | ||||||
| Efficienza della lampada | Flusso luminoso della lampada: 100-130 lm/W | ||||||
| Protezione | IP20 | ||||||
| Fine | Bianco, Nero, Grigio | ||||||
| Garanzia | 3-5 anni | ||||||

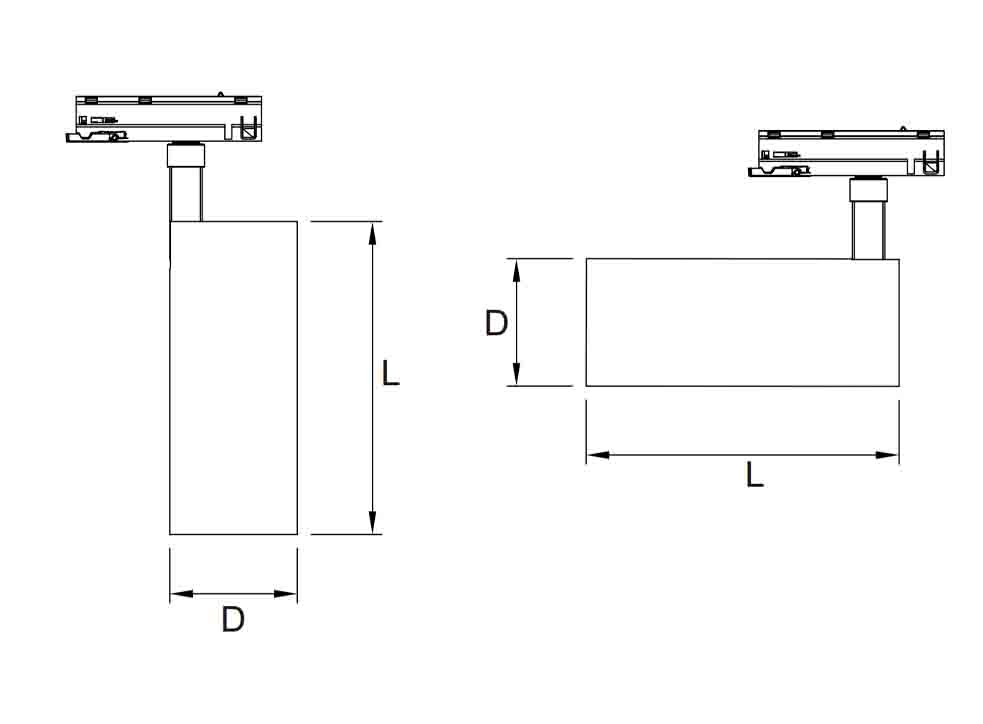

Dimensioni e disegno
Controllo della luminosità
Scenario applicativo
Video correlati
Lavoro di prodotto
| Serie | Numero di prodotto. | Energia | Tensione LED | Attuale | Efficienza | Dimension(DxL) | ||||||
| D36 Series | XH-TL-5W-M2 | 5W | 36 V CC | 125mA | 100-130 lm/W | 36X105mm | ||||||
| XH-TL-8W-M2 | 8W | 36 V CC | 200 mA | 100-130 lm/W | 36X105mm | |||||||
| D45 Series | XH-TL-10W-M2 | 10W | 36 V CC | 250 mA | 100-130 lm/W | 45X130mm | ||||||
| XH-TL-12W-M2 | 12W | 36 V CC | 300 mA | 100-130 lm/W | 45X130mm | |||||||
| D55 Series | XH-TL-15W-M2 | 15W | 36 V CC | 400mA | 100-130 lm/W | 55X135mm | ||||||
| XH-TL-20W-M2 | 20W | 36 V CC | 350 mA | 100-130 lm/W | 55X135mm | |||||||
