Descripción del Producto
El 5035 is a linkable recessed LED linear light designed for continuous lighting layouts in offices, meeting rooms, corridors, schools, libraries, retail spaces, and modern commercial interiors. It is available in 1200mm, 1500mm, and 3000mm lengths, with actual power options of 28W, 31W, and 62W.
This continuous recessed linear lighting system allows multiple sections to be connected into long, uninterrupted lighting lines. Its slim 52 × 35mm aluminum profile integrates neatly into the ceiling, while the approximately 58mm recessed height supports clean architectural installations with minimal visual interruption.
The luminaire uses a PC microprismatic diffuser with an 80° beam angle to deliver broad and uniform direct illumination. Available color temperatures include 3000K, 4000K, and 5000K, with an optional 2700K-6500K Tunable White configuration. CRI options of Ra80+, Ra90+, and Ra95+, together with SDCM<3, support consistent lighting across continuous installations.
For professional commercial lighting projects, the 5035 series supports DALI, Push dimming, Tunable White, Casambi, HCL, sensor, and emergency lighting configurations. With an efficacy of 100-130 lm/W, a rated lifetime of 50.000 horas, y un Garantía de 5 años, it provides lighting brands, distributors, designers, and contractors with a flexible solution for continuous recessed linear lighting projects.

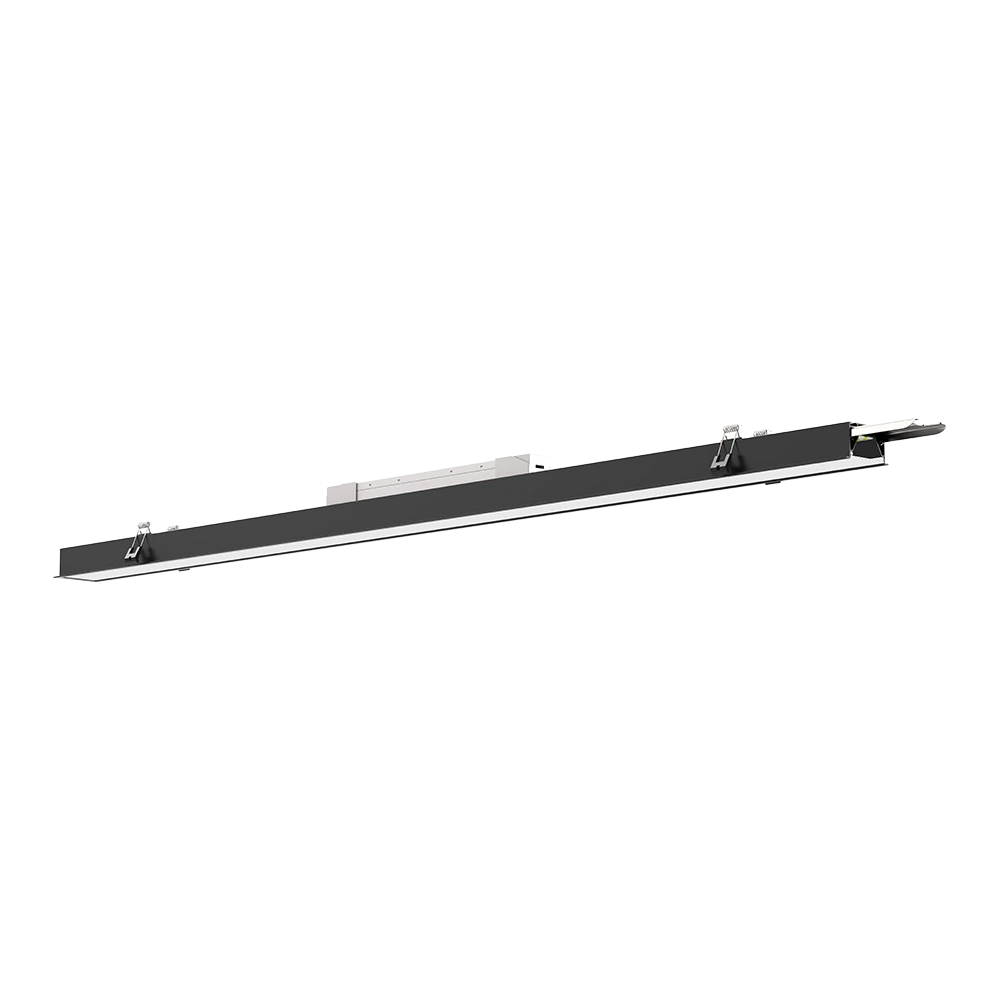

| L1200/L1500/L3000 5035 Commercial Recessed LED Linear Light – Linkable Direct 28-62W | ||||||||||
| Código de producto | XH-LL-5035-28W-RS | XH-LL-5035-36W-RS | XH-LL-5035-63W-RS | |||||||
| Fuerza | 28W | 31W | 62W | |||||||
| Conductor | Tridonic, BOKE, Philips | |||||||||
| Voltaje | AC200-240V, 50/60Hz | |||||||||
| factor de potencia | PF>0,90 | |||||||||
| Voltaje del LED | 36 V CC | |||||||||
| Regulable | On/Off, DALI, Push dimming, CCT Tunable, Casambi, HCL, Sensor, Emergency | |||||||||
| Salida de color | Single CCT / Tunable White | |||||||||
| Materiales | 6063 Aluminum | |||||||||
| Tamaño | L1200x52x35mm / L1500x52x35mm / L3000x52x35mm; recessed height 58mm | |||||||||
| Instalación | Recessed, linkable continuous version | |||||||||
| chip LED | SMD2835 | |||||||||
| CCT | 3000K, 4000K, 5000K; Tunable White 2700K-6500K | |||||||||
| CRI | Ra80+, Ra90+, Ra95+ | |||||||||
| SDCM | <3 | |||||||||
| Vida | 50.000 horas | |||||||||
| Óptica | PC Microprismatic | |||||||||
| ángulo del haz | 80° | |||||||||
| Eficiencia de la lámpara | Flujo luminoso de la lámpara: 100-130 lm/W | |||||||||
| Protección | IP20, IK07 | |||||||||
| Finalizar | White, Black | |||||||||
| Garantía | 5 años | |||||||||
Tamaño y dibujo
Control de atenuación
Escenario de aplicación
Lista de productos
| Serie | Número de producto. | Fuerza | Voltaje del LED | Eficiencia | Dimension (LxWxH) | |||||
| L1200 Series | XH-LL-5035-28W-RS | 28W | 36 V CC | 100-130 lm/W | L1200x52x35mm | |||||
| L1500 Series | XH-LL-5035-36W-RS | 31W | 36 V CC | 100-130 lm/W | L1500x52x35mm | |||||
| L3000 Series | XH-LL-5035-63W-RS | 62W | 36 V CC | 100-130 lm/W | L3000x52x35mm | |||||
