Описание продукта

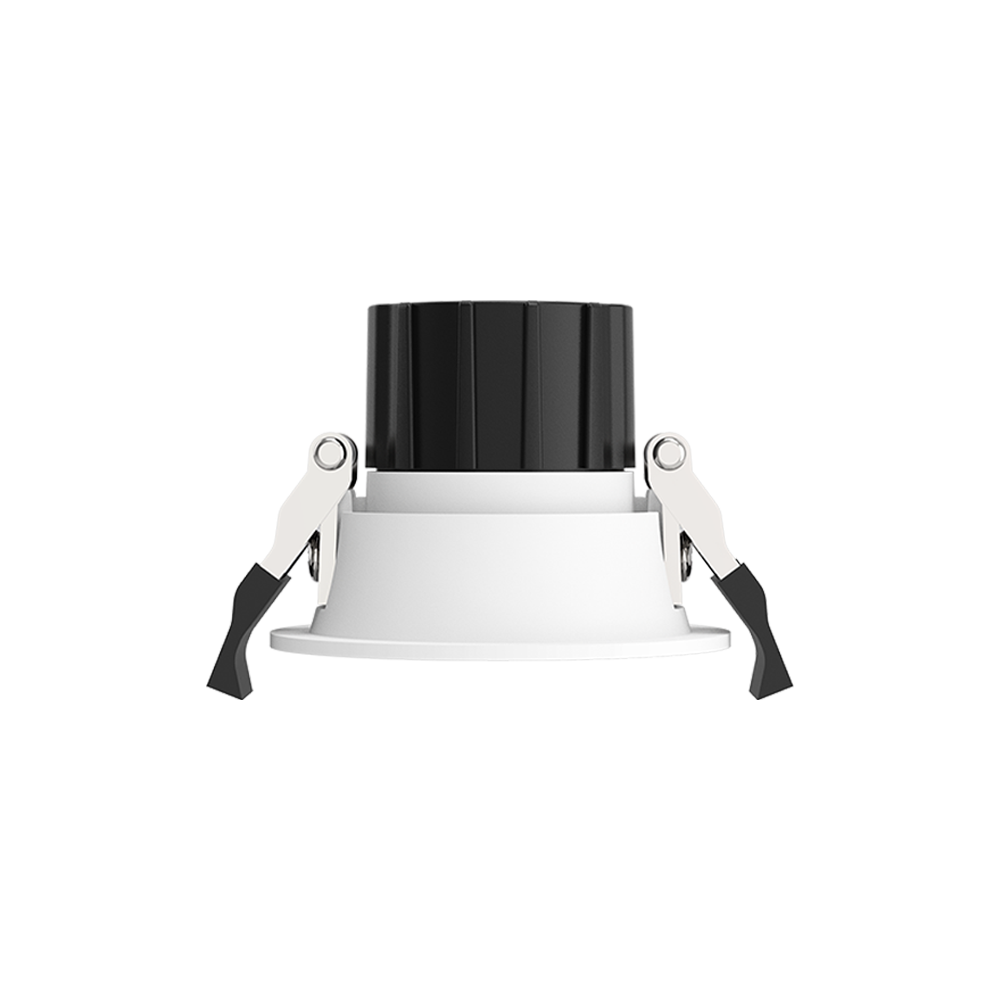

Introducing the Watex D80 Lens Modular Orientable LED Downlight, an adjustable recessed downlight designed for commercial and architectural lighting applications. With a power range of 6-8W, this series is suitable for retail stores, hotels, galleries, restaurants, corridors, and other spaces requiring flexible directional lighting with a clean ceiling appearance.
The D80 Lens version features PC lens and reflector optics with beam angle options of 15°, 24°, 38°, and 60°. Its orientable structure supports 25° tilt and 355° rotation, giving lighting designers more flexibility for accent lighting, product highlighting, and wall illumination.
This modular orientable LED downlight supports LED chip options such as Citizen and Bridgelux, and can be matched with driver brands including Tridonic, Osram, BOKE, TCI, and Philips. It also supports multiple dimming and control options, including DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE.
For lighting brands, distributors, and commercial project contractors, the Watex D80 Lens Modular Orientable LED Downlight offers flexible adjustment, compact design, and reliable lighting quality for professional lighting projects.
| Watex D80 Lens Modular Orientable LED Downlight 6-8W | |||||||
| Код товара | XH-DL-6W-WT | XH-DL-8W-WT | |||||
| Власть | 6W | 8 Вт | |||||
| Водитель | Tridonic, Osram, BOKE, TCI, Philips | ||||||
| Напряжение | AC200-240V / AC90-130V, 50/60Hz | ||||||
| коэффициент мощности | PF>0.90 | ||||||
| напряжение светодиода | DC36V | ||||||
| Токовый ток светодиода | 150 мА | 200 мА | |||||
| Регулировка яркости | 0/1-10V dimmable, Phase dimmable (Triac), DALI dimmable, 2.4G/RF dimmable, ZigBee dimmable, Casambi/BLE dimmable | ||||||
| Цветной вывод | Single CCT | ||||||
| Материалы | ADC12 Литой алюминий | ||||||
| Размер | Ø80X50mm | ||||||
| Вырезать | Ø68-75mm | ||||||
| Adjustable angle | Orientable | ||||||
| Installation | Recessed | ||||||
| Бренд светодиодов | Citizen, Bridgelux | ||||||
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K | ||||||
| КРИ | Ra80+, Ra90+, Ra95+ | ||||||
| SDCM | <3 | ||||||
| Lifetime | 50,000h | ||||||
| Оптика | Линза | ||||||
| Угол луча | 15°, 24°, 38°, 60° | ||||||
| Эффективность лампы | Lamp lumen 70-110lm/W | ||||||
| Защита | IP65 | ||||||
| Заканчивать | White, Black | ||||||
| Гарантия | 3-5 years | ||||||

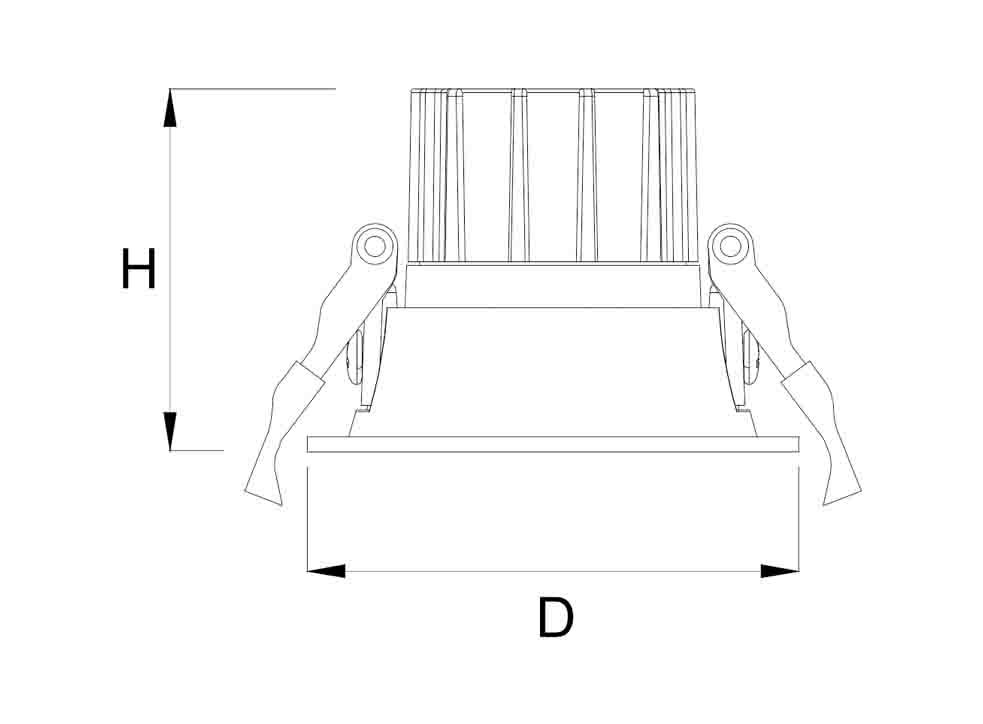

Size and Drawing
Регулировка яркости
Application Scenario
Список товаров
| Ряд | Номер изделия. | Власть | Напряжение светодиода | Текущий | Эффективность | Dimension(DXH) | Вырезать | |||||||
| D65 lens | XH-DL-3W-WT | 3W | DC18V | 150 мА | 70-110lm/W | Ø65X49mm | Ø55-60mm | |||||||
| XH-DL-5W-WT | 5 Вт | DC36V | 150 мА | 70-110lm/W | Ø65X49mm | Ø55-60mm | ||||||||
| D65 reflector | XH-DL-6W-WT | 6W | DC36V | 150 мА | 70-110lm/W | Ø65X60mm | Ø55-60mm | |||||||
| XH-DL-8W-WT | 8 Вт | DC36V | 200 мА | 70-110lm/W | Ø65X60mm | Ø55-60mm | ||||||||
| D80 lens | XH-DL-6W-WT | 6W | DC36V | 150 мА | 70-110lm/W | Ø80X50mm | Ø68-75mm | |||||||
| XH-DL-8W-WT | 8 Вт | DC36V | 200 мА | 70-110lm/W | Ø80X50mm | Ø68-75mm | ||||||||
| D80 reflector | XH-DL-10W-WT | 10 Вт | DC36V | 250 мА | 70-110lm/W | Ø80X68mm | Ø68-75mm | |||||||
| XH-DL-12W-WT | 12 Вт | DC36V | 300 мА | 70-110lm/W | Ø80X68mm | Ø68-75mm | ||||||||
