Wall Washer D75x212 Series Double Head Square Trimless LED Downlight 2x10W-2x15W - XHLUX

Wall Washer LED Downlight/

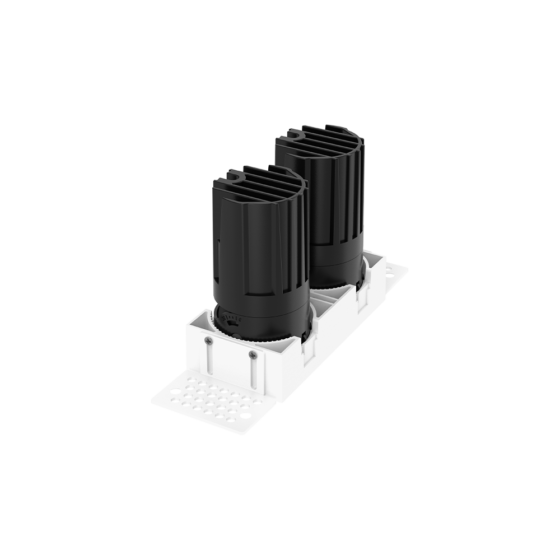

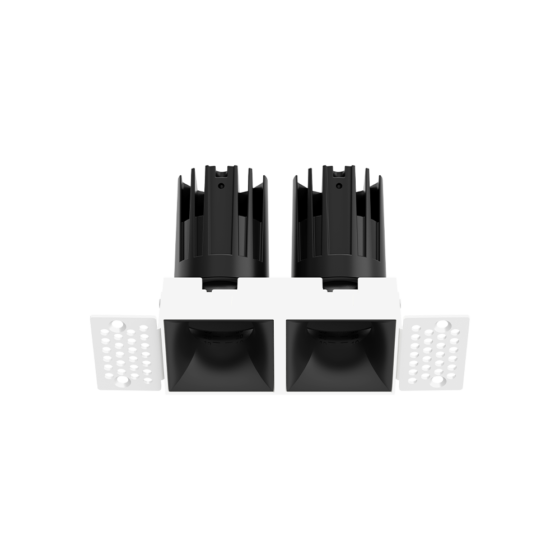

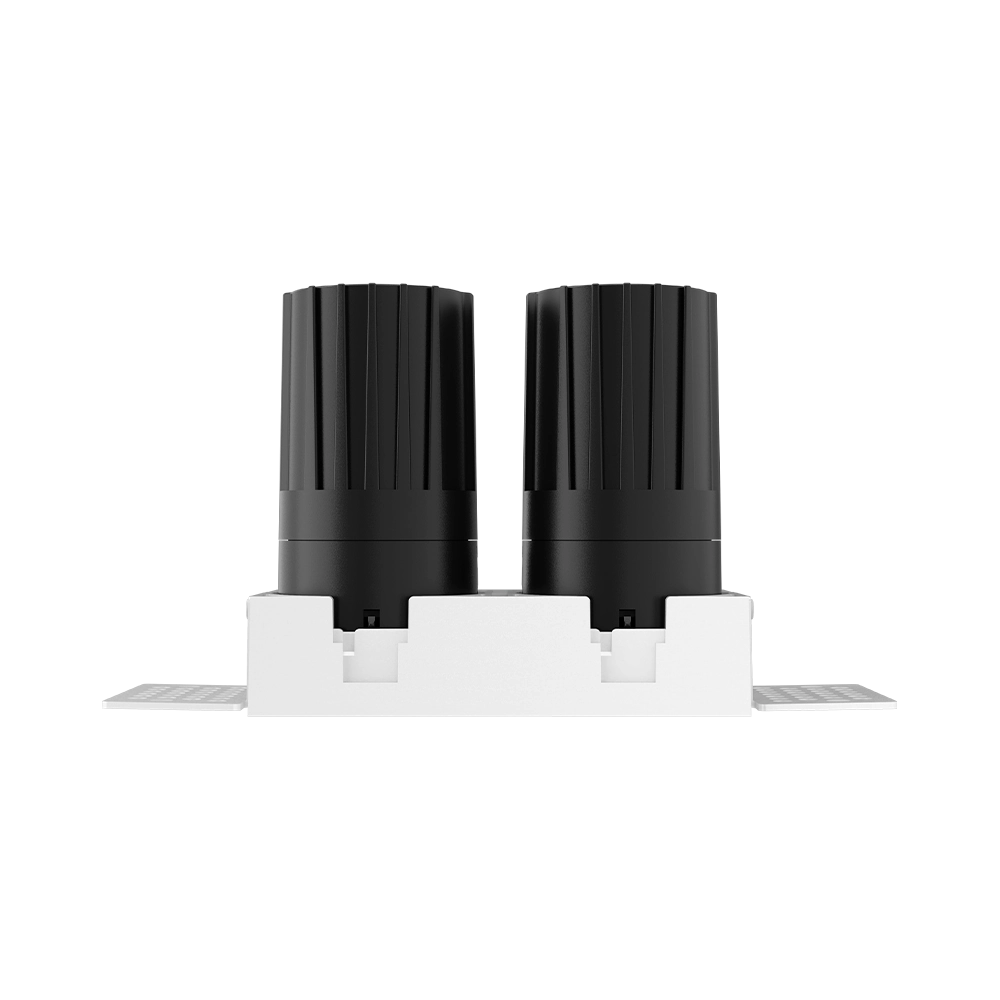

Wall Washer D75x212 Series Double Head Square Trimless LED Downlight 2x10W-2x15W

Номер изделия:

XH-DL-OR-2X10W-2ST

XH-DL-OR-2X15W-2ST



Преимущество:

CCT: 2700K, 3000K, 3500K, 4000K, 5000K
CRI: Ra80+, Ra90+, Ra95+
Beam angle: 15°, 24°, 36°, 50°
Optics: PC Lens + reflector
Dimmable: 0/1-10V, Phase dimmable (Triac), DALI, 2.4G/RF, ZigBee, Casambi/BLE
Material: ADC12 Die cast Aluminum
Color output: Single CCT
Lamp Efficiency: Lamp lumen 80-110lm/W
Dimension: 75X212X105mm
Cut Out: 75X150mm
Warranty: 5 years

  • Подробная информация о товаре
  • Расследование

Описание продукта

Introducing the Wall Washer D75x212 Series Double Head Square Trimless LED Downlight, a professional dual-head recessed wall washer for commercial and architectural lighting projects. With power options of 2x10W and 2x15W, this series is ideal for retail stores, galleries, showrooms, hotels, restaurants, and other spaces requiring controlled wall illumination with higher brightness.

The D75x212 Series uses a double head square trimless design with PC lens and reflector optics to deliver accurate beam control. Beam angle options of 15°, 24°, 36°, and 50° help designers create vertical wall washing, product display lighting, and comfortable accent lighting for different interior applications.

This double head square trimless LED wall washer supports LED chip options such as Citizen, Philips, and CREE, and driver options including Tridonic, Osram, BOKE, TCI, and Philips. It can also be configured with different dimming systems, including DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE.

For B2B lighting brands, distributors, and project contractors, the Wall Washer D75x212 Series Double Head Square Trimless LED Downlight provides a strong combination of clean ceiling design, dual-head lighting performance, optical flexibility, and reliable project quality.

Wall Washer D75x212 Series Double Head Square Trimless LED Downlight 2x10W-2x15W
Код товараXH-DL-OR-2X10W-3STXH-DL-OR-2X15W-3ST
Власть2X10W2X15W
ВодительTridonic, Osram, BOKE, TCI, Philips
НапряжениеAC200-240V / AC90-130V, 50/60Hz
коэффициент мощностиPF>0.90
напряжение светодиодаDC36V
Токовый ток светодиода2X250mA2X350mA
Регулировка яркости0/1-10V dimmable, Phase dimmable (Triac), DALI dimmable, 2.4G/RF dimmable, ZigBee dimmable, Casambi/BLE dimmable
Цветной выводSingle CCT
МатериалыADC12 Литой алюминий
Размер75X212X105mm
Вырезать75X150mm
Light distributionWall Wash
Adjustable angle30° tilt, 355° rotation
InstallationRecessed
Бренд светодиодовCitizen, Philips, CREE
CCT2700K, 3000K, 3500K, 4000K, 5000K
КРИRa80+, Ra90+, Ra95+
SDCM<3
Lifetime50,000h
ОптикаPC Lens+reflector
Угол луча15°, 24°, 36°, 50°
Эффективность лампыLamp lumen 80-110lm/W
ЗащитаIP20
ЗаканчиватьWhite, Black, Grey
Гарантия3-5 years

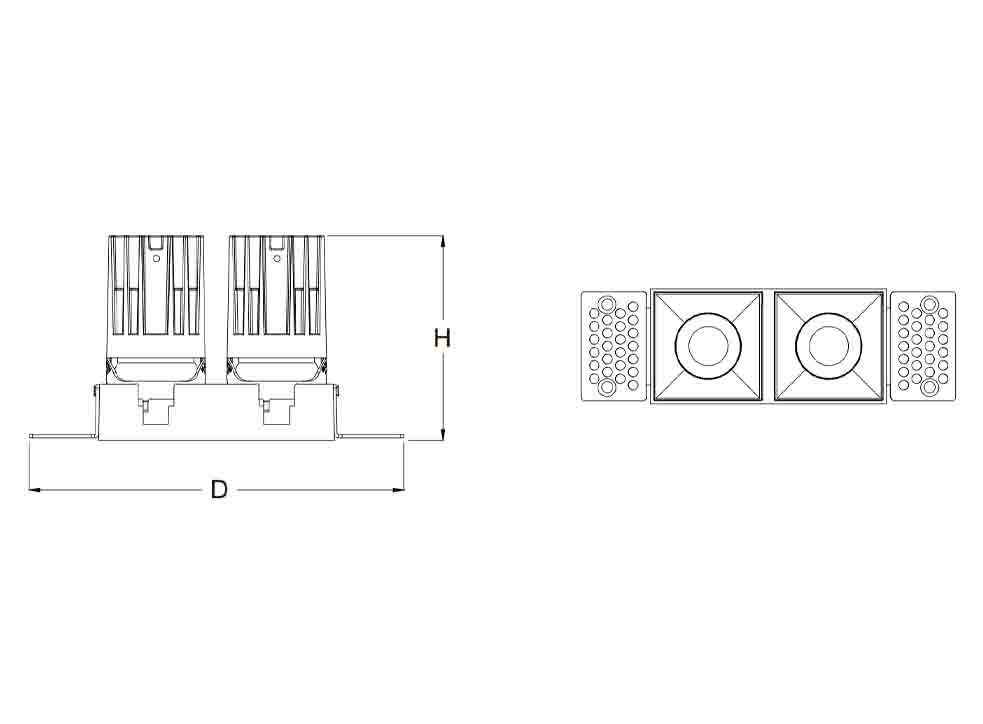

Size and Drawing

Регулировка яркости

Application Scenario

Похожие видео

Список товаров

РядНомер изделия.ВластьНапряжение светодиодаТекущийЭффективностьDimension(DXH)Вырезать
D55x172 seriesXH-DL-OR-2X5W-2ST2X5WDC36V2X150mA60-110 лм/Вт55X172X94mm55X110mm
XH-DL-OR-2X8W-2ST2X8WDC36V2X200mA60-110 лм/Вт55X172X94mm55X110mm
XH-DL-OR-2X10W-2ST2X10WDC36V2X250mA60-110 лм/Вт55X172X94mm55X110mm
D75x212 seriesXH-DL-OR-2X10W-3ST2X10WDC36V2X250mA80-110lm/W75X212X105mm75X150mm
XH-DL-OR-2X15W-3ST2X15WDC36V2X350mA80-110lm/W75X212X105mm75X150mm
D95x270 seriesXH-DL-OR-2X20W-4ST2X20WDC36V2X500mA80-110lm/W95X270X132mm95X195mm
XH-DL-OR-2X25W-4ST2X25WDC36V2X600mA80-110lm/W95X270X132mm95X195mm
