Описание продукта
Представляем... Rube D85 Series Surface Mounted LED Downlight, a compact and elegant lighting solution designed for modern commercial interiors. With a power range of 15-20W, this surface mounted downlight is suitable for retail stores, galleries, showrooms, hotels, corridors, restaurants, and other spaces requiring clean ceiling design and comfortable accent lighting.
The Rube D85 Series features a minimalist cylindrical housing with multiple reflector color options, helping designers match different interior styles and project requirements. With beam angle options of 15°, 24°, 38°, and 60°, it can be used for focused display lighting, wall accent lighting, or general commercial illumination.
This series supports LED chip options such as Citizen, CREE, and Bridgelux, and can be matched with reliable driver brands including Tridonic, Osram, BOKE, TCI, and Philips. It also supports different dimming and control solutions, including DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE.
For lighting brands, distributors, and commercial project contractors, the Rube D85 Series Surface Mounted LED Downlight offers a compact, flexible, and visually clean solution for professional lighting applications.
| Rube D85 Series Surface Mounted LED Downlight 15-20W | |||||||
| Код товара | XH-RB-15W-SM | XH-RB-20W-SM | |||||
| Власть | 15 Вт | 20 Вт | |||||
| Водитель | Тридоник, Осрам, БОКЕ, ТКИ, Филипс | ||||||
| Напряжение | AC200-240V / AC90-130V, 50/60Hz | ||||||
| коэффициент мощности | PF>0.90 | ||||||
| напряжение светодиода | DC36V | ||||||
| Токовый ток светодиода | 350 мА | 500 мА | |||||
| Регулировка яркости | Регулировка яркости: 0/1-10 В, фазовая регулировка (триак), DALI, 2,4 ГГц/RF, ZigBee, Casambi/BLE. | ||||||
| Цветной вывод | Однократная компьютерная томография | ||||||
| Материалы | ADC12 Литой алюминий | ||||||
| Размер | 85X130mm | ||||||
| Installation | Surface Mounted | ||||||
| Бренд светодиодов | Citizen, CREE, Bridgelux | ||||||
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K | ||||||
| КРИ | Ra80+, Ra90+, Ra95+ | ||||||
| SDCM | <3 | ||||||
| Lifetime | 50,000h | ||||||
| Оптика | Lens+Reflector | ||||||
| Угол луча | 15°, 24°, 38°, 60° | ||||||
| Эффективность лампы | Lamp lumen 90-130lm/W | ||||||
| Защита | IP20 | ||||||
| Заканчивать | Белый, черный, серый | ||||||
| Гарантия | 5 лет | ||||||

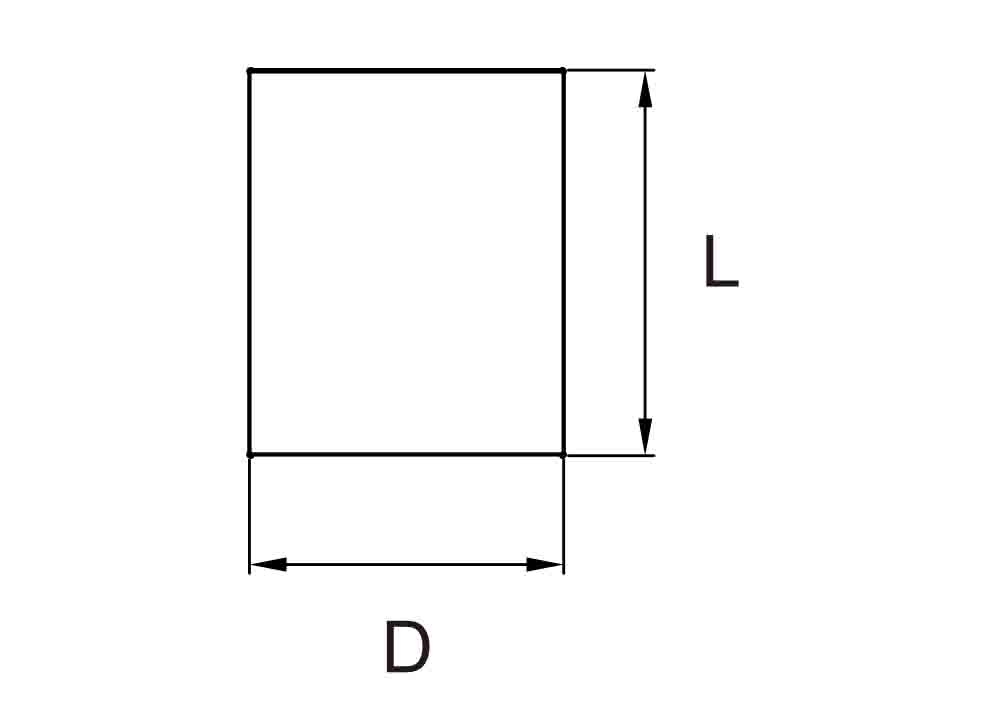

Размер и чертеж
Регулировка яркости
Сценарий применения
Список товаров
| Ряд | Номер изделия. | Власть | Напряжение светодиода | Текущий | Эффективность | Size(DXH) | ||||||
| D85 series | XH-RB-15W-SM | 15 Вт | DC36V | 350 мА | 90-130lm/W | 85X130mm | ||||||
| XH-RB-20W-SM | 20 Вт | DC36V | 500 мА | 90-130lm/W | 85X130mm | |||||||
| D110 series | XH-RB-20W-SM | 20 Вт | DC36V | 500 мА | 90-130lm/W | 110X135mm | ||||||
| XH-RB-25W-SM | 25 Вт | DC36V | 600 мА | 90-130lm/W | 110X135mm | |||||||
| XH-RB-30W-SM | 30 Вт | DC36V | 700/750 мА | 90-130lm/W | 110X135mm | |||||||
| XH-RB-35W-SM | 35 Вт | DC36V | 800 мА | 90-130lm/W | 110X135mm | |||||||
