Descrição do produto

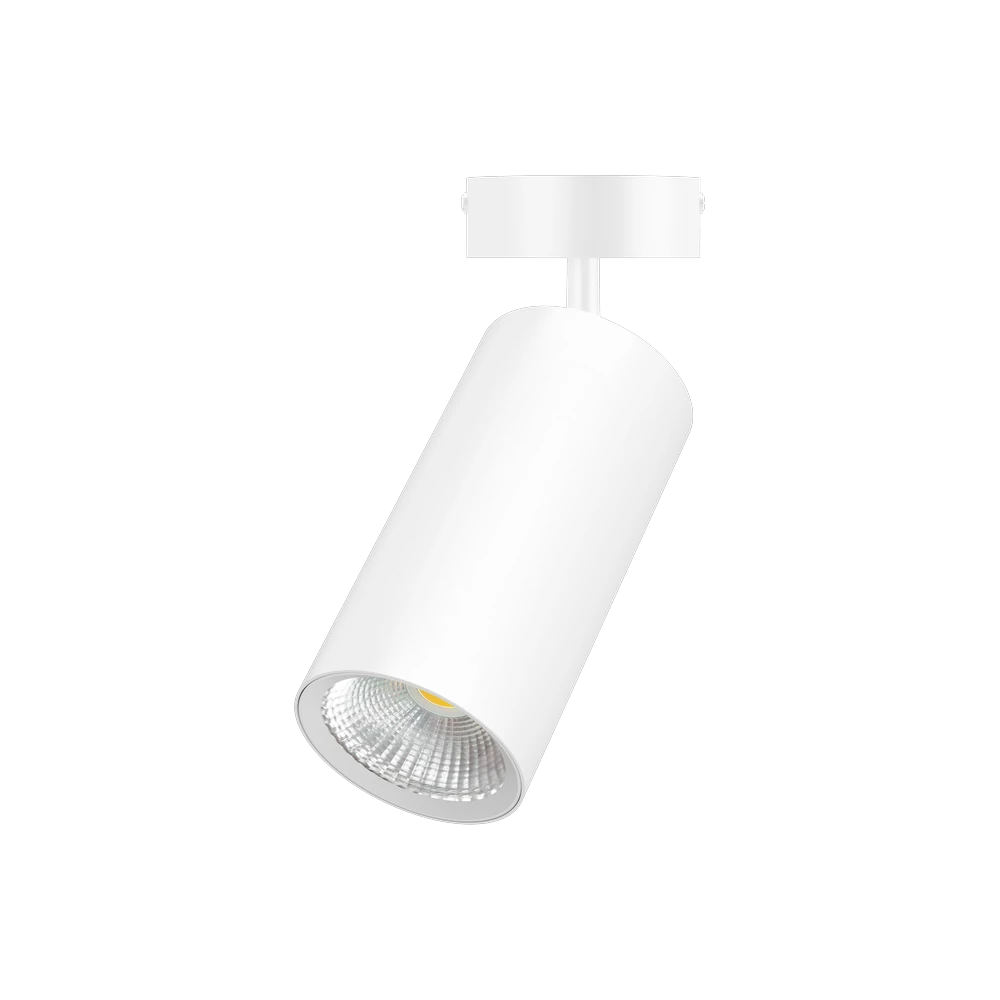

Apresentando o F1M D85 Series Surface Mounted LED Track Light, a high-output modular lighting solution for professional commercial and architectural projects. With a power range of 25-35W, this series is suitable for applications that require stronger brightness, precise beam control, and a clean ceiling-mounted appearance.
O F1M D85 Series combines a minimalist surface mounted structure with flexible optical options, including lens and reflector versions. Multiple beam angles of 15°, 24°, 38°, and 60° allow lighting designers to create focused accent lighting, wide display lighting, or general visual enhancement for retail stores, showrooms, galleries, hospitality spaces, and commercial interiors.
Made from ADC12 die-cast aluminum, the fixture provides stable thermal management and reliable performance. It supports high-quality LED chip options such as Citizen, CREE, and Bridgelux, and can be configured with different dimming and control solutions, including DALI, TRIAC, 0/1-10V, ZigBee, 2.4G/RF, and Casambi/BLE.
For projects that require a stronger lighting output with a neat surface mounted installation, the F1M D85 Series Surface Mounted LED Track Light is a practical and elegant choice for B2B lighting brands, distributors, and project contractors.
| F1M D85 Series Surface Mounted LED Track Light 25-35W | ||||||||||||
| Código do produto | XH-SMTL-25W-F1M | XH-SMTL-30W-F1M | XH-SMTL-35W-F1M | |||||||||
| Poder | 25W | 30W | 35W | |||||||||
| Motorista | Tridônico, Osram, BOKE, TCI, Philips | |||||||||||
| Tensão | AC200-240V / AC90-130V, 50/60Hz | |||||||||||
| Fator de potência | PF>0,90 | |||||||||||
| tensão do LED | DC36V | |||||||||||
| Corrente do LED | 600mA | 700/750mA | 800mA | |||||||||
| Regulável | Regulável 0/1-10V, regulável por fase (Triac), regulável por DALI, regulável por 2.4G/RF, regulável por ZigBee, regulável por Casambi/BLE | |||||||||||
| Saída de cor | CCT único | |||||||||||
| Materiais | ADC12 Alumínio fundido | |||||||||||
| Tamanho | 85x170mm/200mm | |||||||||||
| Marca do adaptador | N/A – surface mounted | |||||||||||
| Track Phase | N/A – surface mounted | |||||||||||
| Marca LED | Cidadão, CREE, Bridgelux | |||||||||||
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K | |||||||||||
| CRI | Ra80+, Ra90+, Ra95+ | |||||||||||
| SDCM | <3 | |||||||||||
| Óptica | Lens, reflector | |||||||||||
| Ângulo do feixe | 15°, 24°, 38°, 60° | |||||||||||
| Ângulo ajustável | 90° tilt, 350° rotation | |||||||||||
| Eficiência da lâmpada | Fluxo luminoso da lâmpada: 100-130 lm/W | |||||||||||
| Proteção | IP20 | |||||||||||
| Terminar | Branco, Preto, Cinza | |||||||||||
| Garantia | 5 anos | |||||||||||
Tamanho e desenho
Controle de intensidade luminosa
Cenário de aplicação
Lista de produtos
| Série | Nº do produto. | Poder | Tensão do LED | Atual | Eficiência | Dimension(DxL1/L2) | ||||||
| Série D62 | XH-SMTL-10W-F1M | 10W | DC36V | 250mA | 100-130lm/W | 62x140mm/185mm | ||||||
| XH-SMTL-15W-F1M | 15W | DC36V | 350mA | 100-130lm/W | 62x140mm/185mm | |||||||
| Série D85 | XH-SMTL-25W-F1M | 25W | DC36V | 600mA | 100-130lm/W | 85x170mm/200mm | ||||||
| XH-SMTL-30W-F1M | 30W | DC36V | 700/750mA | 100-130lm/W | 85x170mm/200mm | |||||||
| XH-SMTL-35W-F1M | 35W | DC36V | 800mA | 100-130lm/W | 85x170mm/200mm | |||||||
