Watex D80 Lens Modular Fixed LED Downlight 6-8W - XHLUX

Watex Modular Fixed Downlight/LED Spot Downlight/

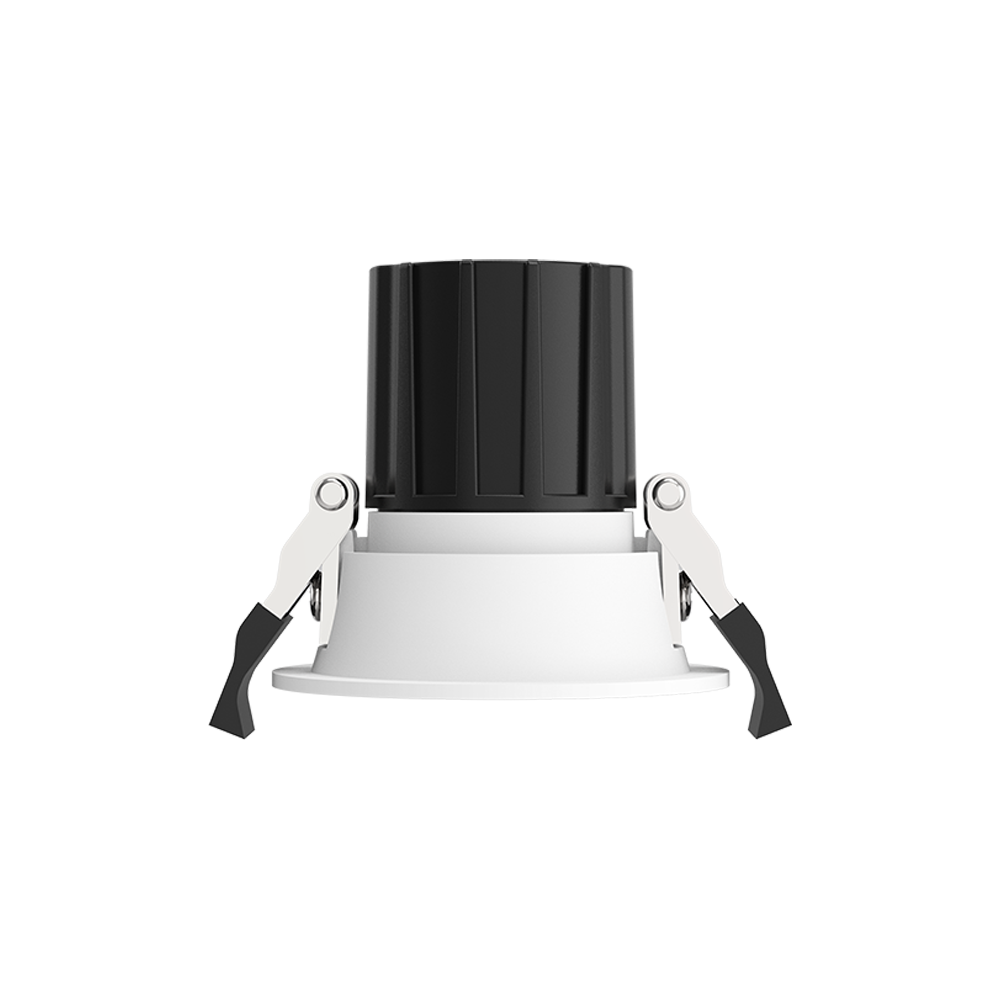

Watex D80 Lens Modular Fixed LED Downlight 6-8W

Product Number:

XH-DL-6W-WT

XH-DL-8W-WT



Advantage:

CCT: 2700K, 3000K, 3500K, 4000K, 5000K
CRI: Ra80+, Ra90+, Ra95+
Beam angle: 15°, 24°, 38°, 60°
Optics: Lens, Reflector
Dimmable: 0/1-10V, Phase dimmable (Triac), DALI, 2.4G/RF, ZigBee, Casambi/BLE
Material: ADC12 Die cast Aluminum
Color output: Single CCT
Protection: IP65
Lamp Efficiency: Lamp lumen 70-110lm/W
Dimension: Φ80X50mm
Cut Out: Φ68-75mm
Warranty: 5 years

  • Product Details
  • Inquiry

Product Description

Introducing the Watex D80 Lens Modular Fixed LED Downlight, a professional fixed downlight designed for commercial and architectural lighting applications. With a power range of 6-8W, this series is suitable for retail stores, hotels, galleries, restaurants, corridors, bathrooms, and other spaces requiring clean recessed lighting with IP65 protection.

The D80 Lens version features a neat round housing with lens and reflector optical options. Beam angles of 15°, 24°, 38°, and 60° provide flexibility for accent lighting, display lighting, and general ambient illumination.

This modular fixed LED downlight supports LED chip options such as Citizen and Bridgelux, and can be matched with driver brands including Tridonic, Osram, BOKE, TCI, and Philips. It also supports multiple dimming and control options, including DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE.

For lighting brands, distributors, and commercial project contractors, the Watex D80 Lens Modular Fixed LED Downlight offers a clean ceiling appearance, reliable protection, and stable lighting quality for professional lighting projects.

Watex D80 Lens Modular Fixed LED Downlight 6-8W
Product codeXH-DL-6W-WTXH-DL-8W-WT
Power6W8W
DriverTridonic, Osram, BOKE, TCI, Philips
VoltageAC200-240V / AC90-130V, 50/60Hz
Power factorPF>0.90
LED voltageDC36V
LED Current150mA200mA
Dimmable0/1-10V dimmable, Phase dimmable (Triac), DALI dimmable, 2.4G/RF dimmable, ZigBee dimmable, Casambi/BLE dimmable
Color outputSingle CCT
MaterialsADC12 Die cast Aluminum
SizeØ80X50mm
Cut OutØ68-75mm
InstallationRecessed
LED brandCitizen, Bridgelux
CCT2700K, 3000K, 3500K, 4000K, 5000K
CRIRa80+, Ra90+, Ra95+
SDCM<3
Lifetime50,000h
OpticsLens
Beam angle15°, 24°, 38°, 60°
Lamp EfficiencyLamp lumen 70-110lm/W
ProtectionIP65
FinishWhite, Black
Warranty3-5 years

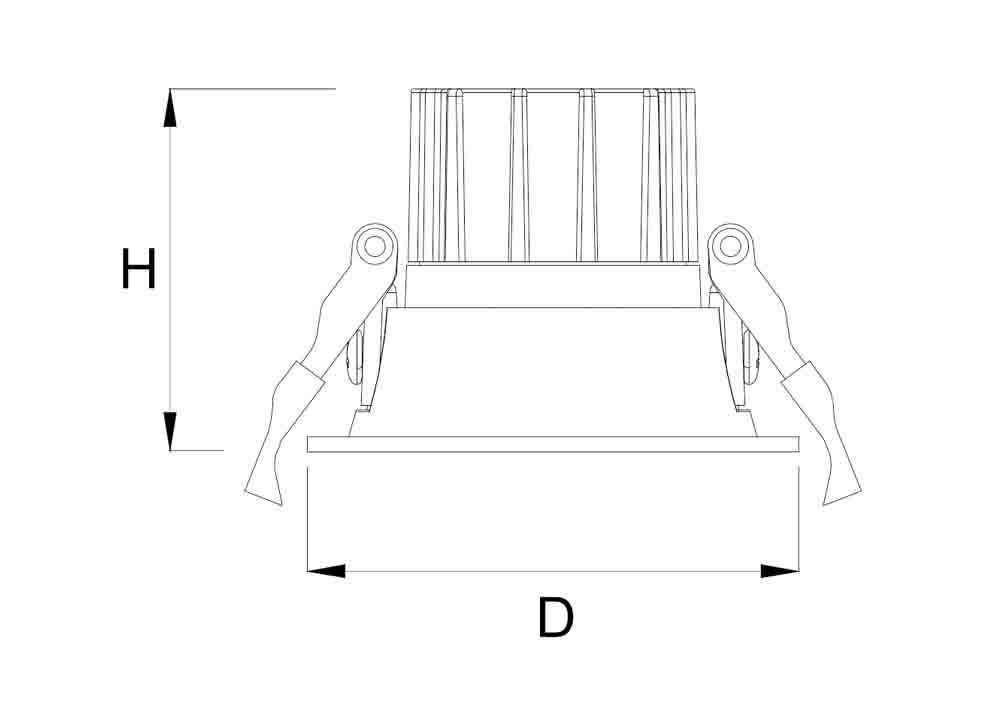

Size and Drawing

Dimming control

Application Scenario

Related Videos

Product List

SeriesProduct No.PowerLED VoltageCurrentEfficiencyDimension(DXH)Cut Out
D65 lensXH-DL-3W-WT3WDC18V150mA70-110lm/WØ65X49mmØ55-60mm
XH-DL-5W-WT5WDC36V150mA70-110lm/WØ65X49mmØ55-60mm
D65 reflectorXH-DL-6W-WT6WDC36V150mA70-110lm/WØ65X60mmØ55-60mm
XH-DL-8W-WT8WDC36V200mA70-110lm/WØ65X60mmØ55-60mm
D80 lensXH-DL-6W-WT6WDC36V150mA70-110lm/WØ80X50mmØ68-75mm
XH-DL-8W-WT8WDC36V200mA70-110lm/WØ80X50mmØ68-75mm
D80 reflectorXH-DL-10W-WT10WDC36V250mA70-110lm/WØ80X68mmØ68-75mm
XH-DL-12W-WT12WDC36V300mA70-110lm/WØ80X68mmØ68-75mm
