If surface mounted downlight vs recessed downlight is still open, decide mount family on the installation-methods overview first.
→ Metody montażu oświetlenia LED Downlight: wpuszczane, natynkowe i regulowane

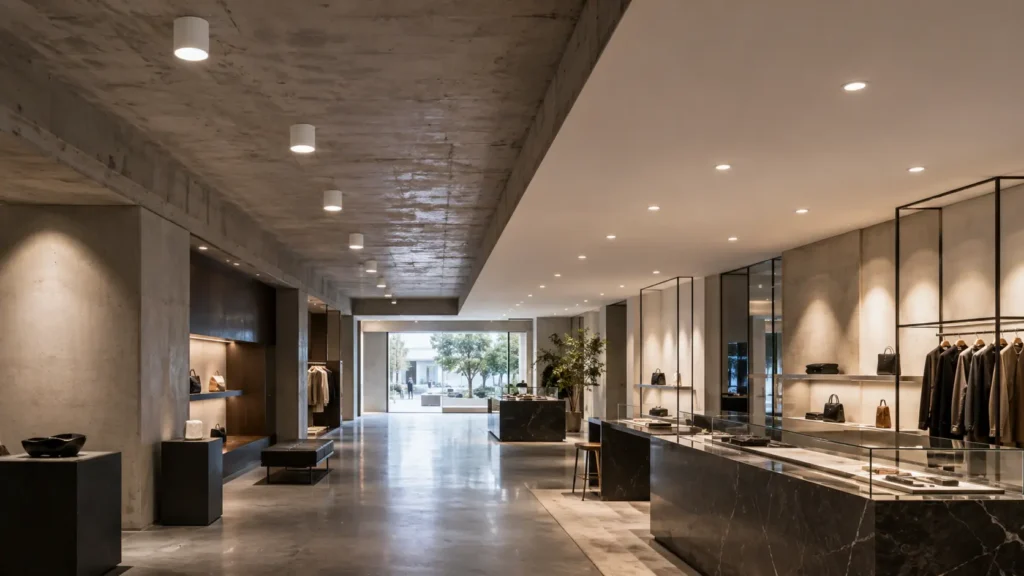

Once you have already decided to skip the cut-out and use a surface mounted down light, this page freezes the engineering that still fails jobs on site: heat, enclosure listing, driver location, and face clearance.
Step-by-step montaż oświetlenia powierzchniowego (anchors, splice order, retrofit finish) belongs on the no-recess install guide — use that guide when you need the full install sequence.
Najważniejsze wnioski
– After surface is locked, freeze rated ambient (Ta) against the real soffit temperature — not the catalogue photo.
– A no-recess downlight housing still needs a listed box or integral enclosure path.
– Surface downlight ceiling clearance = body height + free air; insulation-packed niches are a thermal fail.
– Driver in-head vs remote is a cavity and listing decision, not a preference sticker.
– Skipping the cut-out does not pick COB vs SMD — that is a source-package fork.
Zanim zaczniesz korzystać z tej strony
Miej je pod ręką:
- Written decision: surface / no cut-out (from the installation-methods guide)
- Product install sheet (Ta, enclosure, driver location, body height)
- Worst-bay soffit temperature estimate and nearby insulation / bulkheads
- RCP views that show how proud the body will read
Difficulty: intermediate (specifier / contractor coordination).
Time: one engineering pass after mount family is frozen.
1. Heat path — Ta, airflow, and surface downlight ceiling clearance
A no-recess downlight housing puts heat in the visible body (or its plate), not in a deep can above the plasterboard.
That makes surface downlight ceiling clearance a face-plane problem.
Rated ambient vs the real soffit
- Read Ta (or equivalent ambient rating) on the sheet.
- Compare it to the real ceiling face temperature in service — canopies, plant rooms, and dark roofs run hotter than a 25 °C lab note.
- If the site runs hotter than Ta, derate wattage, pick a better-sunk body, or move the driver remote per the sheet — do not “hope.”
What clearance actually means
Clearance is not one magic millimetre for every SKU.
Use the install sheet first.
In practice, check all three:
- Body height accepted on soffit photos and bulkhead clashes
- Free air around the cylinder / disc — do not bury the housing in insulation or a sealed pocket
- Contact quality of the mount plate to a flat substrate (rocking plates raise thermal resistance)
Common thermal fails
| Objaw | Prawdopodobna przyczyna | Naprawić |
|---|---|---|
| Early thermal cut-out / short life | Ta exceeded; body in insulated niche | Restore airflow; lower wattage; check sheet ambient |
| Hot face / paint browning | No free air; over-wattage for the body | Clear niche; change SKU or wattage |
| Uneven gap at the rim | Warped / rocking plate | Re-level plate; correct fasteners |
🎯 What clearance actually matters?
Body height plus free air versus the sheet Ta — burying a no-recess housing in insulation is a thermal fail, not a tidy detail.
2. Listed enclosure and driver location
Skipping the cut-out does not skip the electrical enclosure rules.
Box vs integral enclosure
Follow the product listing:
- Many surface discs mount to a listed ceiling junction box
- Others carry an integral enclosure — still a listed path, not a DIY shell
If the sheet says “install into a listed junction box,” do not improvise an unmarked cavity behind plaster.
Driver in-head vs remote
| Opcja | Kiedy pasuje | What you must still clear |
|---|---|---|
| Driver in head | Short runs; simple zones; sheet allows it | Head Ta and face clearance get harder |
| Remote driver | Hot soffits; tight niches; service access preferred | A legal remote cavity / enclosure per listing and local rules |
“Remote” is not “any void you can fish.”
Remote needs the location the sheet and the electrical design allow — accessible where required, correctly enclosed, and not stuffed into insulation contrary to the listing.
🎯 In-head or remote driver — what decides it?
Sheet listing plus real Ta and access — remote only when the remote cavity is legal, not when the head merely looks cleaner.
3. SMD / COB package is not the mount choice
Teams often glue two decisions together: “we went surface, so it must be COB.”
Wrong fork order.
- Uchwyt = surface vs recessed (already frozen on the installation-methods guide)
- Source package = SMD array vs COB (and optic) for beam quality and accent vs ambient
A surface mounted down light can be a soft ambient disc or a focused COB accent cylinder.
Surface COB accent selection stays on its own brief when that page is live — do not treat every no-recess housing as a spot package.
🎯 Does surface mount force a COB source package?
No — surface only skips the cut-out; COB vs SMD is a separate optic and source decision on the sheet.
4. Field fails after you skip the cut-out
Use this pass once surface is locked:
| Objaw | Prawdopodobna przyczyna | Naprawić |
|---|---|---|
| Disc / cylinder rocks or shows a rim gap | Uneven substrate; wrong anchors; plate not flat | Re-level; masonry or structure-rated fixings per sheet |
| Trips / dead head after energise | Bad splice; open earth; live work error | Re-isolate; re-test; listed connectors for conductor size |
| Thermal cut-out or early lumen drop | Ta / airflow fail (see §1) | Clear insulation; derate; remote driver if listed |
| Inspection fail on enclosure | Non-listed box; wrong integral cover | Match the listing — rebuild the enclosure path |
| Client rejects the look after mass install | Face height never approved on RCP / mock bay | Mock one bay; freeze diameter and projection before roll-out |
Montaż oświetlenia powierzchniowego craft (drill pattern, torque, finish protection) belongs on the dedicated install guide when live.
This table only catches engineering freezes that the mount decision does not replace.
🎯 What should you verify first after surface is locked?
Ta and free air, listed enclosure path, and an approved face height — before finish colour arguments.
Deep dives
| Need | Przewodnik |
|---|---|
| Still deciding recessed vs surface | Installation methods guide |
| Ceiling substrate constraints | Rodzaje sufitów |
| Fixed vs adjustable aiming after mount | Regulowany vs stały |
| No-recess install steps | Jak zainstalować oświetlenie sufitowe LED montowane na powierzchni bez konieczności wpuszczania w sufit |
Często zadawane pytania
Notatki dotyczące dowodów
Mount-family decision logic (when recessed vs surface) stays on the installation-methods guide.
This page only covers engineering freezes Po the cut-out is already skipped.
Always override planning habits with the product install sheet, measured soffit conditions, and the project electrical design.
