How to Connect Linkable LED Linear Lights

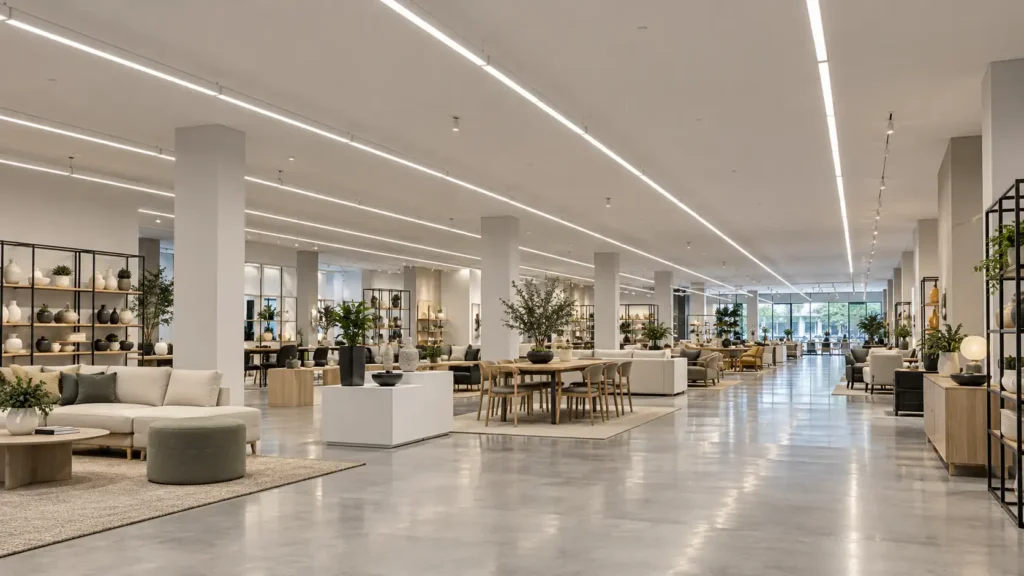

A linkable LED linear light lets several fixtures form a longer run. The word linkable does not name one plug, one cable or one electrical layout.

Some products join end to end with a maker’s connector. Others need an approved linking cable. Many keep the fixture-to-fixture link separate from the main power feed. The manufacturer’s installation sheet and wiring diagram override any general sequence on this page.

This guide covers connection methods, checks before you start, a step-by-step outline, connector compatibility, how many fixtures may share a run, and what to do when a linked row stays dark.

For how linear families are chosen by mount type, start with Jak wybrać oświetlenie liniowe LED: wiszące, natynkowe czy wpuszczane?.

W skrócie: Use only fixtures and accessories from the same approved system. Isolate power before you touch connections. Follow that product’s diagram for linking versus the power feed. Stay inside the maker’s count, load or run-length limit. A connector that seats mechanically is not proof of electrical compatibility. If a linked run fails, stop, isolate power, and inspect only what you are allowed to handle.

Spis treści

• 🔌 1. How Do You Connect Linkable LED Linear Lights?
• 📋 2. What Should You Check Before Connecting LED Linear Lights?
• 🔧 3. How to Connect Linkable LED Linear Lights Step by Step
• 🔗 4. Why Don’t the Connectors Fit or Work Properly?
• 🔢 5. How Many LED Linear Lights Can You Connect Together?
• 💡 6. Why Don’t My Linked LED Linear Lights Turn On?
• 🏁 Podsumowanie
• Często zadawane pytania

🔌 1. How Do You Connect Linkable LED Linear Lights?

The connection method is the one drawn for that product—not a generic daisy-chain habit.

Common arrangements include:

• Direct end-to-end connectors made for matching fixtures in one family.
• Manufacturer-approved linking cables between fixtures that must sit apart.
• A separate power-feed connection at a designated end, centre tap or feed accessory.

Fixture-to-fixture linking connects adjacent fixtures through the system’s approved electrical or control connections. The power feed supplies the linked run; its location and wiring depend on the product design. Mixing those two jobs—or feeding the row in a way the diagram forbids—is a frequent source of faults.

Read the installation diagram before you buy extra parts. Some systems want every joint closed with a specific coupler. Others need a jumper cable of a stated type. A third group is hardwired at each joint and is not a plug-together kit.

Do not assume every linkable linear uses the same connector body, pin layout or voltage class.

🎯 Is there one way to link every linear fixture?
No. End-to-end couplers, approved jumper cables and hardwired joints are different methods—use the diagram for that model.

📋 2. What Should You Check Before Connecting LED Linear Lights?

Compatibility and isolation come before any plug is seated.

Before installation:

• Check that the fixtures belong to the same compatible product system, not only that each box says “linkable.”
• Read the rated voltage and the manufacturer’s installation instructions.
• List the approved connectors, linking cables and power-feed arrangement for that system.
• Find the maximum fixture count, total connected load or permitted run length in that manual.
• Note whether the system uses direct linking, a separate linking cable or a specified feed accessory.
• Switch off and isolate the power supply before handling electrical connections.

There is no universal fixture count or wattage cap that travels from one catalogue to another. Copying another brand’s limit is not a substitute for the sheet in the carton.

If the project still needs a continuous-looking joint after the electrical link is planned, optical seams are a separate check. See Zapobiegaj ciemnym szczelinom przed łączeniem opraw liniowych LED.

🎯 What must be true before you start linking?
Same approved system, matching accessories, known voltage and limits, and the supply isolated.

🔧 3. How to Connect Linkable LED Linear Lights Step by Step

Treat this as a framework. Replace any step that conflicts with the product sheet.

1. Identify the model and the approved linking method. End-to-end, jumper cable or hardwired joint—use only what that system lists.
2. Switch off and isolate the power supply before making connections.
3. Position and mount the fixtures as the installation requirements describe. Do not hang the electrical joints on unsecured housings.
4. Install the specified linking connectors or cables in the order the instructions show. Seat them fully; do not force a part from another family.
5. Connect the designated power feed with the approved method only.
6. Inspect the connections. Cables should not be exposed, pinched, stapled through or left with open live receptacles where the maker requires a cap.
7. Have fixed-wiring work completed or checked by a qualified electrician where local rules require it.
8. Restore power and test using the manufacturer’s procedure.

Plug-and-link kits and hardwired systems do not share one procedure. Do not modify connectors, join conductors by insulation colour alone, or alter hardwired joints unless you are qualified to do that work.

🎯 Can you skip the product sheet if the steps look obvious?
No. Plug-together and hardwired systems differ; the maker’s sequence is the one that applies.

🔗 4. Why Don’t the Connectors Fit or Work Properly?

“Linkable” on two boxes does not mean the plugs are interchangeable.

Connector families differ in shell shape, keying, pin count and electrical rating. A part that appears to enter the socket can still reverse polarity, omit a control conductor or exceed the contact rating.

An incomplete click, a look-alike accessory or a damaged housing can leave the next fixture dead even when the first one lights. Do not file, bend or re-pin a connector to “make it fit.”

Obtain the manufacturer’s approved connector or linking cable for that series. If the correct part is unavailable, or the joint is a hardwired termination, contact the manufacturer or a qualified electrician. Physical seating is not an electrical approval.

This section is about the joint itself. If the whole run is already installed and dark, use the fault sequence in the last H2—do not keep swapping random plugs under live power.

🎯 If a connector seats, are the fixtures compatible?
Not necessarily. Shape, pinout and electrical rating must match the approved accessory—not only the feel of the click.

🔢 5. How Many LED Linear Lights Can You Connect Together?

The maximum number of fixtures depends on the product’s rated limits, not simply on the length of the room.

Fixture quantity, total connected load and the rated configuration travel together. The permitted configuration depends on the fixture wattage, supply voltage, connection architecture and the manufacturer’s specified limits. Linking cable length may also matter where the system specifies cable-length or voltage-drop restrictions.

A maximum printed for one SKU does not apply to another length, wattage or voltage of “similar” linear. Emergency, sensor or battery-backup versions are sometimes excluded from linking altogether in the same family.

Look in the installation manual for fixture count, wattage sum or run length—including any note that jumper cables count toward the length. Follow those figures. Do not stack extra heads because the ceiling still has room.

🎯 Can you copy another product’s maximum fixture count?
No. Count, load and run length are set per system. Use that manual, not a number from a different linear.

💡 6. Why Don’t My Linked LED Linear Lights Turn On?

A dark row has several possible causes. A loose connector is only one of them.

After the fixtures are linked, typical issues include:

• The supply is still off, or the power-feed connection is incomplete.
• An approved connector is not fully engaged.
• A linking cable or connector is damaged.
• Only the first fixture lights; later ones stay off (open joint, wrong accessory or a feed arrangement the system does not allow).
• The connected layout exceeds the manufacturer’s count, load or length limit.
• A driver, feed or control problem that needs professional inspection.

First isolate the power supply. Inspect only the connections you are authorised to handle. Internal testing, repairs and fixed wiring belong with a qualified electrician where required.

Do not cut connectors off or rewrite hardwired joints as a general fix. Do not keep restoring power to “see if it sparks into life.”

🎯 Is a dark linked run always a loose plug?
No. Feed, damaged accessories, over-limit layouts and driver or control faults can look the same until you isolate power and check the system.

Podsumowanie

Connecting linkable LED linear lights depends on compatible fixtures, ten correct linking method, ten manufacturer’s permitted configuration i electrical isolation before you work.

A connector that fits in the hand does not prove two fixtures are electrically compatible. Stay on the approved accessories and the printed limits for that run.
