Productbeschrijving

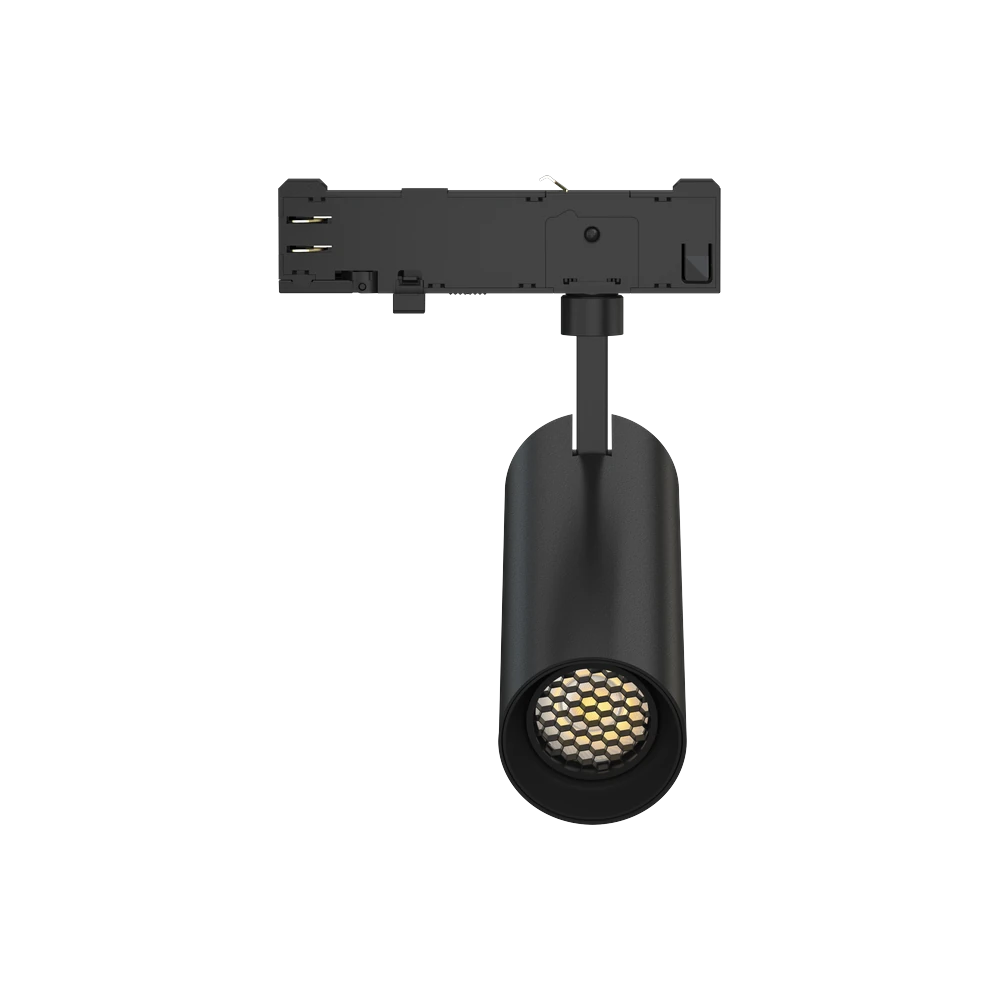

Introductie van de MINI D45 Series 4 Wire 3 Phase LED Track Light, a compact and efficient lighting solution for commercial and architectural interiors. With a power range of 10-12W, this series is suitable for retail stores, galleries, showrooms, counters, display areas, and small commercial spaces requiring precise accent lighting.
The MINI D45 Series offers a clean cylindrical design with lens optical options. Multiple beam angles, including 15°, 24°, 38°, and 60°, allow lighting designers to create focused display lighting, product highlighting, or wider accent illumination for different project needs.
This mini LED track light supports LED chip options such as Citizen, CREE, and Bridgelux, and can be configured with driver brands including Tridonic, Osram, BOKE, TCI, and Philips. It also supports different control options such as DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE.
For B2B lighting brands, distributors, and project contractors, the MINI D45 Series 4 Wire 3 Phase LED Track Light provides a compact size, flexible beam control, and reliable lighting performance for professional projects.
| MINI D45 Serie 4-draads 3-fasen LED-railverlichting 10-12W | |||||||
| Productcode | XH-TL-10W-M4 | XH-TL-12W-M4 | |||||
| Stroom | 10W | 12W | |||||
| Bestuurder | Tridonic, Osram, BOKE, TCI, Philips | ||||||
| Spanning | AC200-240V / AC90-130V, 50/60Hz | ||||||
| Vermogensfactor | PF>0,90 | ||||||
| LED-spanning | DC36V | ||||||
| LED-stroom | 250mA | 300mA | |||||
| Dimbaar | 0/1-10V dimbaar, fase dimbaar (Triac), DALI dimbaar, 2.4G/RF dimbaar, ZigBee dimbaar, Casambi/BLE dimbaar | ||||||
| Kleurenweergave | Enkele CCT | ||||||
| Materialen | ADC12 Gegoten aluminium | ||||||
| Maat | 45X130mm | ||||||
| Spooradapter | 4 Wire 1 phase | ||||||
| Installatie | Op rails gemonteerd | ||||||
| LED-merk | Citizen, CREE, Bridgelux | ||||||
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K | ||||||
| CRI | Ra80+, Ra90+, Ra95+ | ||||||
| SDCM | <3 | ||||||
| Levensduur | 50.000 uur | ||||||
| Optiek | Lens | ||||||
| Straalhoek | 15°, 24°, 38°, 60° | ||||||
| Lamprendement | Lichtopbrengst van de lamp: 100-130 lumen/W | ||||||
| Bescherming | IP20 | ||||||
| Finish | Wit, zwart, grijs | ||||||
| Garantie | 3-5 jaar | ||||||
Formaat en tekening
Dimregeling
Toepassingsscenario
Productlijst
| Serie | Productnr. | Stroom | LED-spanning | Huidig | Efficiëntie | Dimension(DxL) | ||||||
| D36 Series | XH-TL-5W-M4 | 5W | DC36V | 125mA | 100-130lm/W | 36X105mm | ||||||
| XH-TL-8W-M4 | 8W | DC36V | 200mA | 100-130lm/W | 36X105mm | |||||||
| D45 Series | XH-TL-10W-M4 | 10W | DC36V | 250mA | 100-130lm/W | 45X130mm | ||||||
| XH-TL-12W-M4 | 12W | DC36V | 300mA | 100-130lm/W | 45X130mm | |||||||
| D55-serie | XH-TL-15W-M4 | 15W | DC36V | 350mA | 100-130lm/W | 55X135mm | ||||||
| XH-TL-20W-M4 | 20W | DC36V | 400mA | 100-130lm/W | 55X135mm | |||||||
