D45 2-Wire 1-Phase Mini LED Track Light 10-12W | XHLUX

MINI-serie LED-railverlichting/LED-railverlichting/

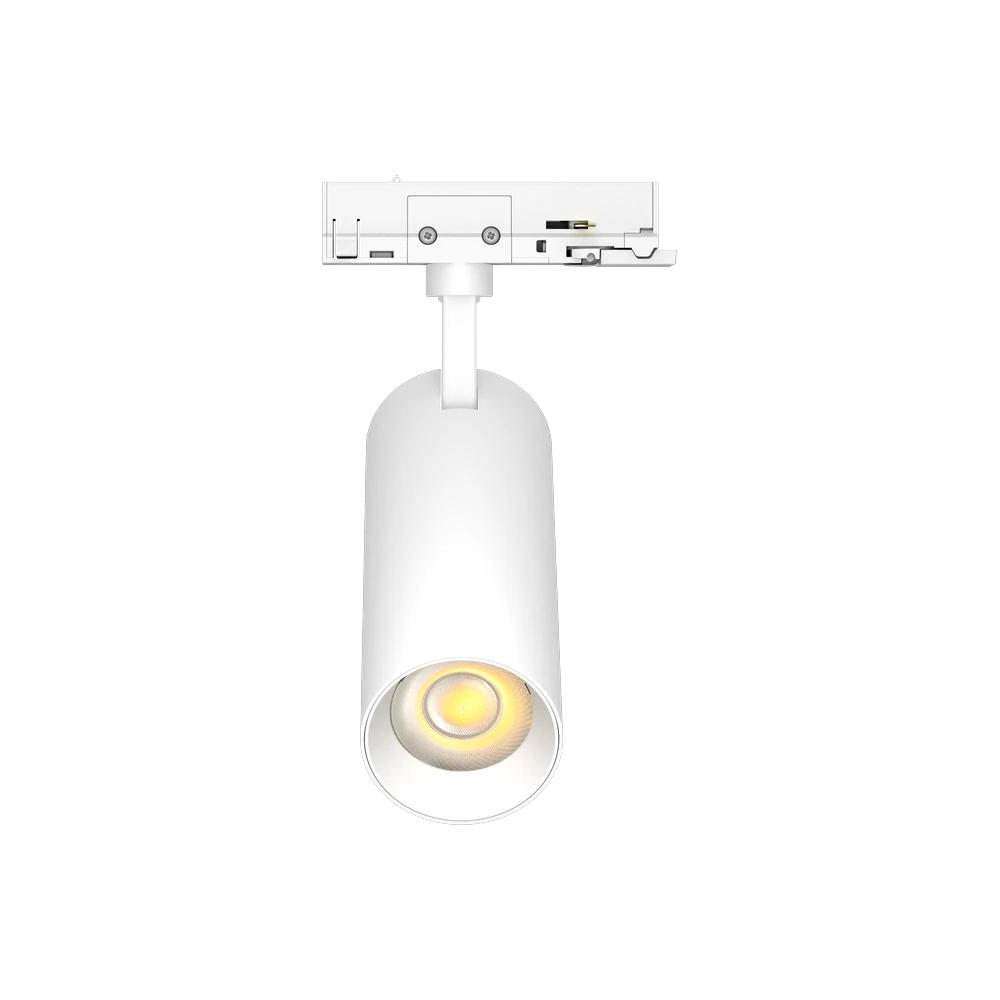

MINI D45 Serie 2-draads 1-fase LED-railverlichting 10-12W

Productnummer:

XH-TL-10W-M2

XH-TL-12W-M2



Voordeel:

CCT: 2700K, 3000K, 3500K, 4000K, 5000K
CRI: Ra80+, Ra90+, Ra95+
Stralingshoek: 15°, 24°, 38°, 60°
Dimbaar: 0/1-10V, fase-dimbaar (Triac), DALI, 2.4G/RF, ZigBee, Casambi/BLE
Track adapter: 2 Wire 1 phase
Kleurweergave: Enkele CCT
Lamprendement: Lamp lumen 100-130lm/W
Garantie: 5 jaar

  • Productdetails
  • Navraag

Productbeschrijving

Introductie van de MINI D45 Series 2 Wire 1 Phase LED Track Light, a compact and efficient track lighting solution for commercial and architectural interiors. With a power range of 10-12W, this series is suitable for retail stores, galleries, showrooms, counters, display areas, and small commercial spaces requiring precise accent lighting.

The MINI D45 Series offers a clean cylindrical design with lens optical options. Multiple beam angles, including 15°, 24°, 38°, and 60°, allow lighting designers to create focused display lighting, product highlighting, or wider accent illumination for different project needs.

This mini LED track light supports LED chip options such as Citizen, CREE, and Bridgelux, and can be configured with driver brands including Tridonic, Osram, BOKE, TCI, and Philips. It also supports different control options such as DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE.

For B2B lighting brands, distributors, and project contractors, the MINI D45 Series 2 Wire 1 Phase LED Track Light provides a compact size, flexible beam control, and reliable lighting performance for professional projects.

MINI D45 Serie 2-draads 1-fase LED-railverlichting 10-12W
ProductcodeXH-TL-10W-M2XH-TL-12W-M2
Stroom10W12W
BestuurderTridonic, Osram, BOKE, TCI, Philips
SpanningAC200-240V / AC90-130V, 50/60Hz
VermogensfactorPF>0,90
LED-spanningDC36V
LED-stroom250mA300mA
Dimbaar0/1-10V dimbaar, fase dimbaar (Triac), DALI dimbaar, 2.4G/RF dimbaar, ZigBee dimbaar, Casambi/BLE dimbaar
KleurenweergaveEnkele CCT
MaterialenADC12 Gegoten aluminium
Maat45X130mm
Spooradapter2 Wire 1 phase
InstallatieOp rails gemonteerd
LED-merkCitizen, CREE, Bridgelux
CCT2700K, 3000K, 3500K, 4000K, 5000K
CRIRa80+, Ra90+, Ra95+
SDCM<3
Levensduur50.000 uur
OptiekLens
Straalhoek15°, 24°, 38°, 60°
LamprendementLichtopbrengst van de lamp: 100-130 lumen/W
BeschermingIP20
FinishWit, zwart, grijs
Garantie3-5 jaar



Formaat en tekening

Dimregeling

Toepassingsscenario

Gerelateerde video's

Productlijst

SerieProductnr.StroomLED-spanningHuidigEfficiëntieDimension(DxL)
D36 SeriesXH-TL-5W-M25WDC36V125mA100-130lm/W36X105mm
XH-TL-8W-M28WDC36V200mA100-130lm/W36X105mm
D45 SeriesXH-TL-10W-M210WDC36V250mA100-130lm/W45X130mm
XH-TL-12W-M212WDC36V300mA100-130lm/W45X130mm
D55-serieXH-TL-15W-M215WDC36V400mA100-130lm/W55X135mm
XH-TL-20W-M220WDC36V350mA100-130lm/W55X135mm
