What is Wide Beam Dimmable Track Light: Best Guide [2025]

We’ve all walked into a room that just feels… wrong. The light is patchy, casting harsh, unflattering shadows in the corners and creating overly bright “hot spots” in the center. It can make a space feel smaller, less comfortable, and visually chaotic. The problem often isn’t a lack of light, but a lack of a smooth, foundational layer of light.

This is where the unsung hero of lighting design steps in: the Wide Beam Dimmable Track Light. While its narrow-beamed cousin gets all the credit for drama and focus, the wide beam (or floodlight) is the true workhorse responsible for creating spaces that are inviting, functional, and visually seamless.

What is a Wide Beam Track Light?

Let’s start with a clear, straightforward definition. A wide beam track light, often referred to as a floodlight, is a fixture designed to cast a broad, expansive cone of light. Its purpose is not to pinpoint a single object, but to cover a larger area with even illumination.

Defining the Spread: A Matter of Degrees

In lighting terms, a wide beam is generally considered to be:

• Any beam angle of 40 degrees or wider.

Within this category, you’ll find a range of options for different applications:

• Flood Beams (40°- 60°): This is a versatile sweet spot, great for general room lighting, washing medium-sized walls, and lighting groups of objects.
• Wide Flood Beams (60°- 90° or more): These provide a very broad, soft spread of light, ideal for creating even ambient light from lower ceilings or for comprehensive wall washing.

The Goal: Creating Soft Light and Reducing Shadows

The key characteristic of a wide beam is its soft edge. Unlike the sharp, defined circle of a narrow beam, a wide beam feathers out gently. This soft-edged illumination overlaps easily with the light from adjacent fixtures, which is the secret to achieving two things:

1. Reducing harsh shadows: By providing light from a wider angle, it fills in the shadows created by objects and people.
2. Creating even coverage: It smooths out the light across a surface, eliminating those distracting hot spots and dark patches.

Why Go Wide? The Case for Broad, Even Illumination

Opting for a Wide Beam Dimmable Track Light is a deliberate design choice focused on comfort, functionality, and creating a solid foundation for your entire lighting scheme.

Building the Ambient Layer: The Canvas for Your Design

Professional lighting design is built on layers. The most important layer, the canvas upon which everything else is painted, is the ambient layer. This is the general, overall illumination that makes a room feel comfortable and safe to navigate. Wide beam track lights are the perfect tool for creating this foundational layer. Once you have a smooth, dimmable ambient layer, you can add other layers, like Narrow beam accent lighting, with far greater impact.

The Art of the Wall Wash: Making Spaces Feel Bigger and Brighter

This is a designer’s secret weapon. Wall washing is a technique where you aim multiple wide beam track lights evenly across a large, flat wall. The effect is transformative:

• It Eliminates Scallops: Instead of seeing individual, scalloped cones of light on the wall, you get a smooth, luminous, even gradient.
• It Pushes Walls Out: A brightly and evenly lit wall feels further away, making the entire room feel larger, more open, and more spacious.
• It Hides Imperfections: A smooth wash of light can help conceal minor imperfections in a wall’s surface. A wall washing track light setup is one of the most effective ways to elevate a room’s perceived quality.

Creating Comfortable, Usable Light for General Activities

For living rooms where people gather, playrooms where kids are on the floor, or open-plan offices that require consistent illumination, wide beams provide the comfortable, usable light needed for general activities. They reduce visual strain by minimizing harsh contrasts and ensuring the entire area is well-lit.

Forgiving and Flexible: A User-Friendly Lighting Approach

Because their beams are soft and overlapping, placing wide beam fixtures is less demanding than placing narrow beam spots. There’s more room for error, making them a more forgiving and user-friendly option for achieving good general lighting.

Wide Beam vs. Narrow Beam: A Tale of Two Lights (The Rematch!)

To truly appreciate the role of a wide beam, it’s essential to see it in contrast with its narrow-beamed counterpart. They are two different tools for two different jobs.

Characteristic	Wide Beam Dimmable Track Light (>40°)	Narrow Beam Dimmable Track Light (<25°)
Primary Goal	Ambient & Wash. To illuminate a general area.	Accent & Focus. To highlight a specific thing.
Light Effect	Creates soft, low-contrast, even illumination.	Creates high contrast, drama, and defined pools of light.
Best For	General room lighting, wall washing, reducing shadows.	Art, sculptures, retail displays, creating focal points.
Analogy	A paintbrush of light.	A fine-point pen of light.
Keywords	Floodlight, Ambient, Wash, General, Even.	Spotlight, Accent, Drama, Focus, Pinpoint.

The “Dimmable” Advantage: Setting the Perfect Ambient Mood

If a wide beam light sets the foundation, the ability to dim it is what gives that foundation life and emotion. A Wide Beam Dimmable Track Light is a master of mood.

With a simple adjustment of your dimmer, you can transition a room’s entire atmosphere:

• 100% Brightness: Creates a bright, clean, and energizing environment, perfect for daytime activities, cleaning, or task-oriented work.
• 50% Brightness: A comfortable, relaxed level for casual conversation or evening gatherings.
• 10% Brightness: A soft, intimate glow that creates a cozy, restaurant-like ambiance, perfect for watching a movie or unwinding at the end of the day.

The ability to control the intensity of your main ambient layer is arguably the single most impactful way to control the overall mood of your space. This can be achieved with any standard dimming protocol (Phase-Cut, 0-10V¹, DALI², Smart³), as long as your track heads and control system are compatible.

Technical Considerations for Wide Beam Fixtures

When selecting a wide beam track light, a few technical details are worth your attention.

Lumen Output: Ensuring Sufficient Overall Brightness

Because you are lighting a larger area, the total lumen output of your fixtures is critical. You’ll generally need fixtures with a higher lumen package for ambient lighting than you would for a tight accent light. The required lumens will depend on your ceiling height, room size, and desired brightness level. It’s always better to choose a brighter fixture and dim it down.

Glare Control for Wide Apertures

A wide beam light source can be a source of uncomfortable glare if not properly designed. Look for fixtures with good optical control:

• Deep Baffles or Regressed Lenses: The LED source should be set back deep into the fixture housing, shielding it from direct view from most angles.
• Diffuser Lenses: A frosted or diffusing lens can help soften the light and reduce direct glare, though it may slightly reduce the “punch” of the light.

Light Quality is Still King: The Importance of High CRI

Just because you’re lighting a general area doesn’t mean color quality should be ignored. A High CRI ⁴(Color Rendering Index) of 90+ will ensure your walls, furniture, and the people in the space look natural and vibrant. A low-CRI ambient light will cast a dull, inaccurate pall over everything in the room.

Ideal Applications: Where Broad, Even Light is a Necessity

The applications for wide beam track lights are extensive and form the backbone of good lighting plans.

• Living Rooms and Family Rooms: The primary source of general, dimmable ambient light that makes the space comfortable for everything from game night to quiet evenings.
• Kitchens: Providing broad, even illumination across the entire kitchen, supplemented by more focused task lighting over counters.

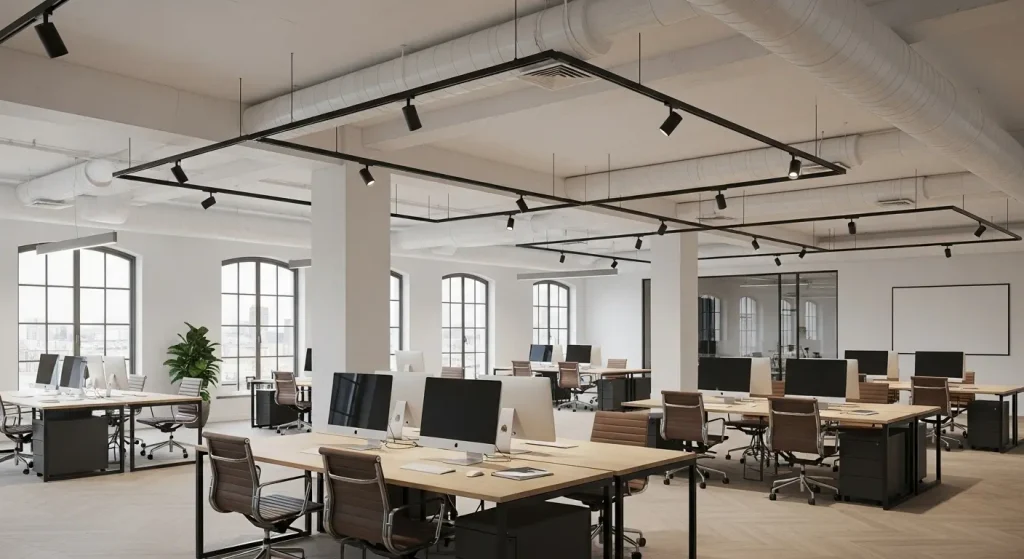

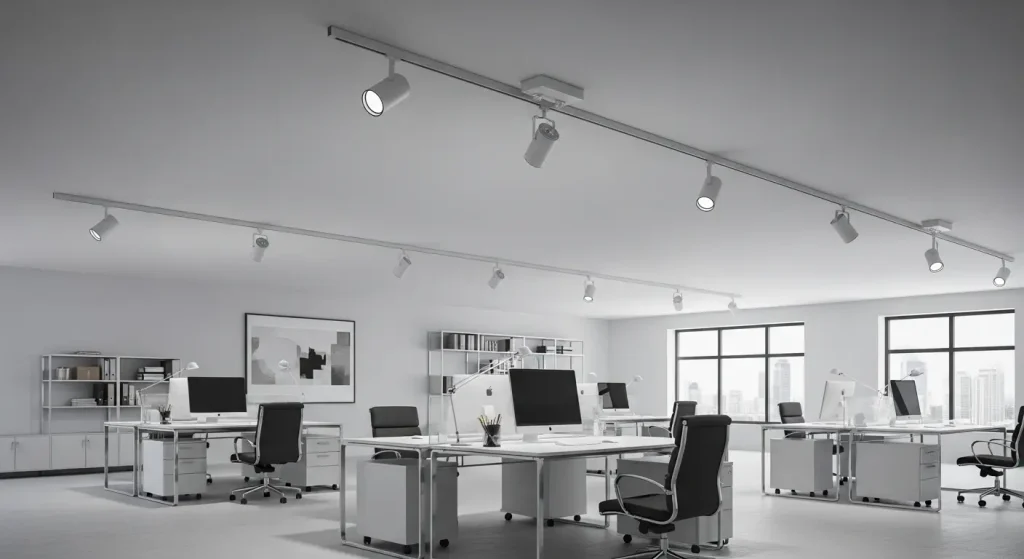

• Open-Plan Offices: Creating consistent, glare-free light across workstation areas to support productivity and visual comfort, a key principle of the WELL Building Standard.

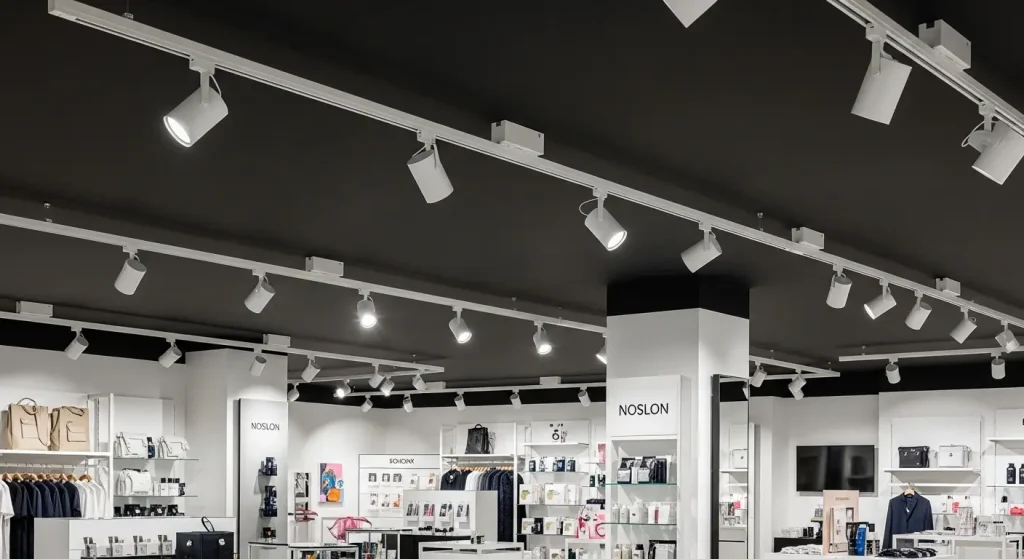

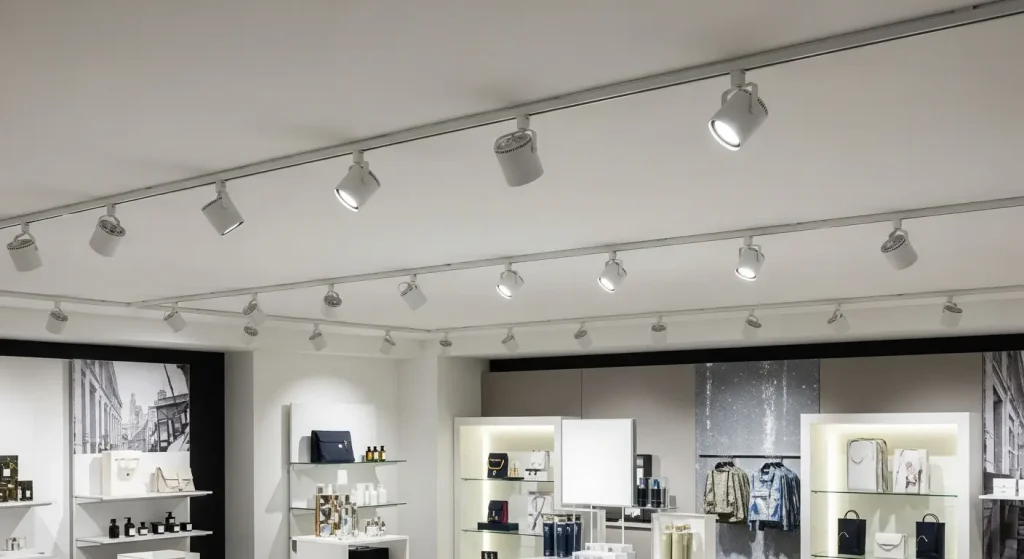

• Retail Spaces: Used for general store illumination and for creating beautiful, even wall washes that make a store feel larger and more premium.
• Hallways and Circulation Spaces: Ensuring safe and comfortable navigation with even, shadow-free light.

Design Tips: Wall Washing to Perfection

To achieve a professional-looking wall wash with your wide beam track lights:

• Spacing: Mount the track a set distance from the wall (typically 1/3 of the ceiling height is a good starting point).
• Fixture Spacing: Space the track heads evenly along the track (a spacing equal to the distance from the wall is a good rule).
• Aiming: Aim all the fixtures at the same angle towards the wall (around 30-40 degrees from vertical) to create a smooth, overlapping wash.

FAQ About Wide Beam Track Light

Market Trends: The Focus on Comfort and Well-being

The lighting market in 2025 is heavily influenced by a growing focus on human health and well-being. Design standards like the WELL Building Standard emphasize the importance of providing not just adequate light levels, but high-quality, comfortable, and glare-free illumination. Wide Beam Dimmable Track Lights are a key tool in achieving these goals. Their ability to create even, ambient light and reduce harsh shadows directly contributes to creating visually comfortable environments that support occupant well-being. This focus on quality ambient light is a durable trend that underscores the importance of wide beam fixtures in modern design.

Is a Wide Beam Dimmable Track Light Your Go-To Tool?

So, is a Wide Beam Dimmable Track Light a critical component for your lighting plan?

It is an essential, non-negotiable tool if:

• Your goal is to create comfortable, even, general illumination for a room.
• You want to make a space feel larger and more open using the wall wash technique.
• You need to reduce harsh shadows and create a more inviting atmosphere.
• You are building a layered lighting plan and need to establish a solid ambient foundation.

It is likely the wrong tool if:

• Your only goal is to create high-drama accent lighting on a small object (a narrow beam is better).

The Wide Beam Dimmable Track Light is the unsung hero of lighting design. It’s the tool that creates comfort, enhances space, and provides the beautiful canvas upon which all other lighting details are painted. By understanding its purpose and harnessing its capabilities, you can move beyond simply placing lights and start crafting environments that truly feel good to be in.

Ready to create a space that is comfortable, inviting, and beautifully illuminated?

Building the perfect ambient lighting layer is the first step to a professional-quality design. If you’re ready to explore how wide beam track lighting can transform your project, our team of lighting specialists is here to help you select the right fixtures and plan the perfect layout.

Contact us today for a professional consultation, and let’s build your foundation of light together.
