Description du produit

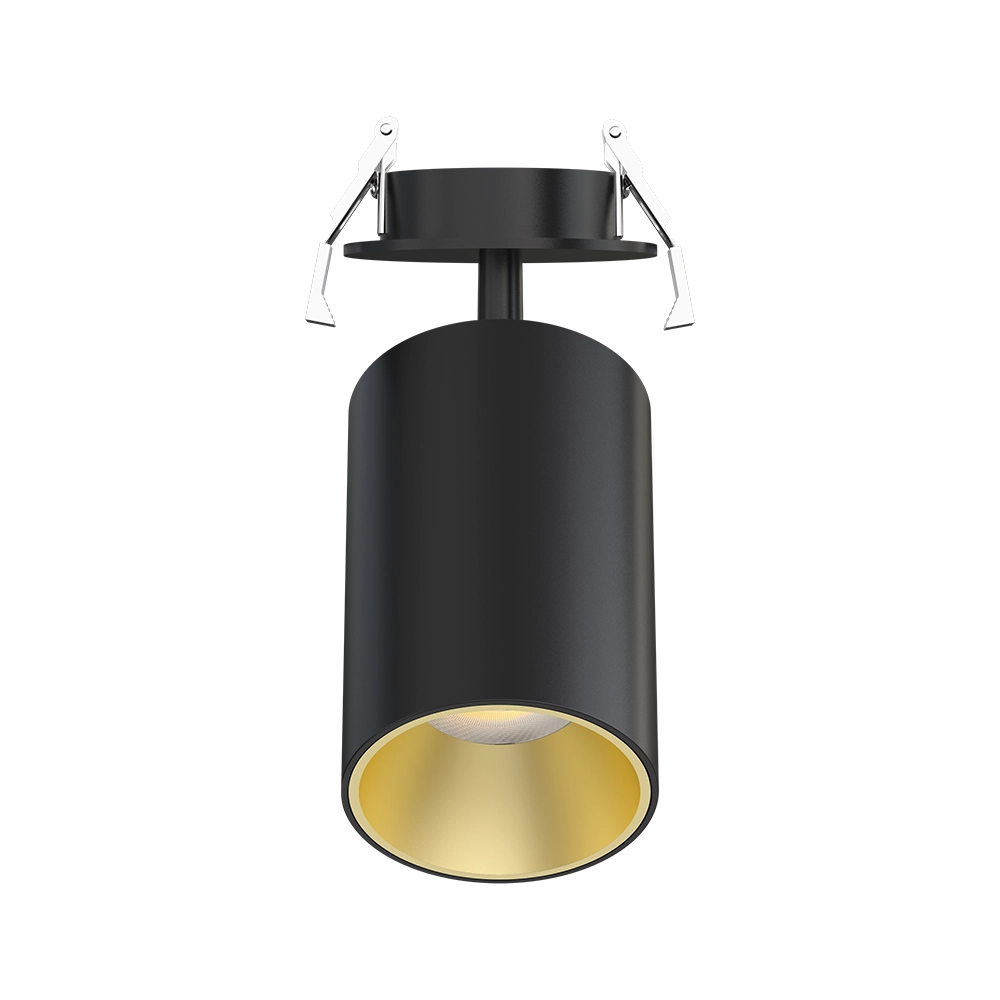

Présentation du Rube D85 Series Recessed LED Track Light, a compact recessed lighting solution designed for modern commercial interiors. With a power range of 15-20W, this series is suitable for retail stores, galleries, showrooms, restaurants, hotels, and other spaces requiring a clean ceiling appearance with flexible accent lighting.
The Rube D85 Series combines a recessed installation structure with a minimalist cylindrical design. With lens and reflector optical options and beam angles of 15°, 24°, 38°, and 60°, it can be used for focused display lighting, product highlighting, wall accent lighting, or comfortable general illumination.
This recessed LED track light supports LED chip options such as Citizen, CREE, and Bridgelux, and can be matched with reliable driver brands including Tridonic, Osram, BOKE, TCI, and Philips. It also supports different dimming and control systems, including DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE.
For lighting brands, distributors, and commercial project contractors, the Rube D85 Series Recessed LED Track Light offers a compact, flexible, and elegant solution for professional commercial lighting projects.
| Projecteur LED encastré sur rail Rube série D85, 15-20 W | |||||||
| Code produit | XH-RB-15W-SP | XH-RB-20W-SP | |||||
| Pouvoir | 15W | 20W | |||||
| Conducteur | Tridonic, Osram, BOKE, TCI, Philips | ||||||
| Tension | 200-240 V CA / 90-130 V CA, 50/60 Hz | ||||||
| Facteur de puissance | PF>0,90 | ||||||
| tension de la LED | 36 V CC | ||||||
| Courant LED | 350 mA | 500 mA | |||||
| Intensité variable | Gradation 0/1-10 V, gradation de phase (triac), gradation DALI, gradation 2,4 GHz/RF, gradation ZigBee, gradation Casambi/BLE | ||||||
| Sortie couleur | CCT unique | ||||||
| Matériels | ADC12 Aluminium moulé sous pression | ||||||
| Taille | 85 x 130 mm | ||||||
| Découper | 75 mm | ||||||
| Installation | Encastré | ||||||
| Marque LED | Citoyen, CREE, Bridgelux | ||||||
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K | ||||||
| CRI | Ra80+, Ra90+, Ra95+ | ||||||
| SDCM | <3 | ||||||
| Durée de vie | 50 000 heures | ||||||
| Optique | Lentille + Réflecteur | ||||||
| angle de faisceau | 15°, 24°, 38°, 60° | ||||||
| Efficacité de la lampe | Flux lumineux de la lampe : 90-130 lm/W | ||||||
| Protection | IP20 | ||||||
| Finition | Blanc, noir, gris | ||||||
| Garantie | 5 ans | ||||||
Taille et dessin
Commande de gradation
Scénario d'application
Vidéos associées
Liste des produits
| Série | Numéro de produit. | Pouvoir | Tension de la LED | Actuel | Efficacité | Dimension (DXH) | Découper | |||||||
| Série D85 | XH-RB-15W-SP | 15W | 36 V CC | 350 mA | 90-130 lm/W | 85 x 130 mm | 75 mm | |||||||
| XH-RB-20W-SP | 20W | 36 V CC | 500 mA | 90-130 lm/W | 85 x 130 mm | 75 mm | ||||||||
| Série D110 | XH-RB-20W-SP | 20W | 36 V CC | 500 mA | 90-130 lm/W | 110 x 135 mm | 75 mm | |||||||
| XH-RB-25W-SP | 25W | 36 V CC | 600 mA | 90-130 lm/W | 110 x 135 mm | 75 mm | ||||||||
| XH-RB-30W-SP | 30W | 36 V CC | 700/750 mA | 90-130 lm/W | 110 x 135 mm | 75 mm | ||||||||
| XH-RB-35W-SP | 35W | 36 V CC | 800 mA | 90-130 lm/W | 110 x 135 mm | 75 mm | ||||||||
