Fabrikant van commerciële LED-binnenverlichting | ODM/OEM-levering op projectbasis sinds 2011 | Wereldwijde B2B-levering

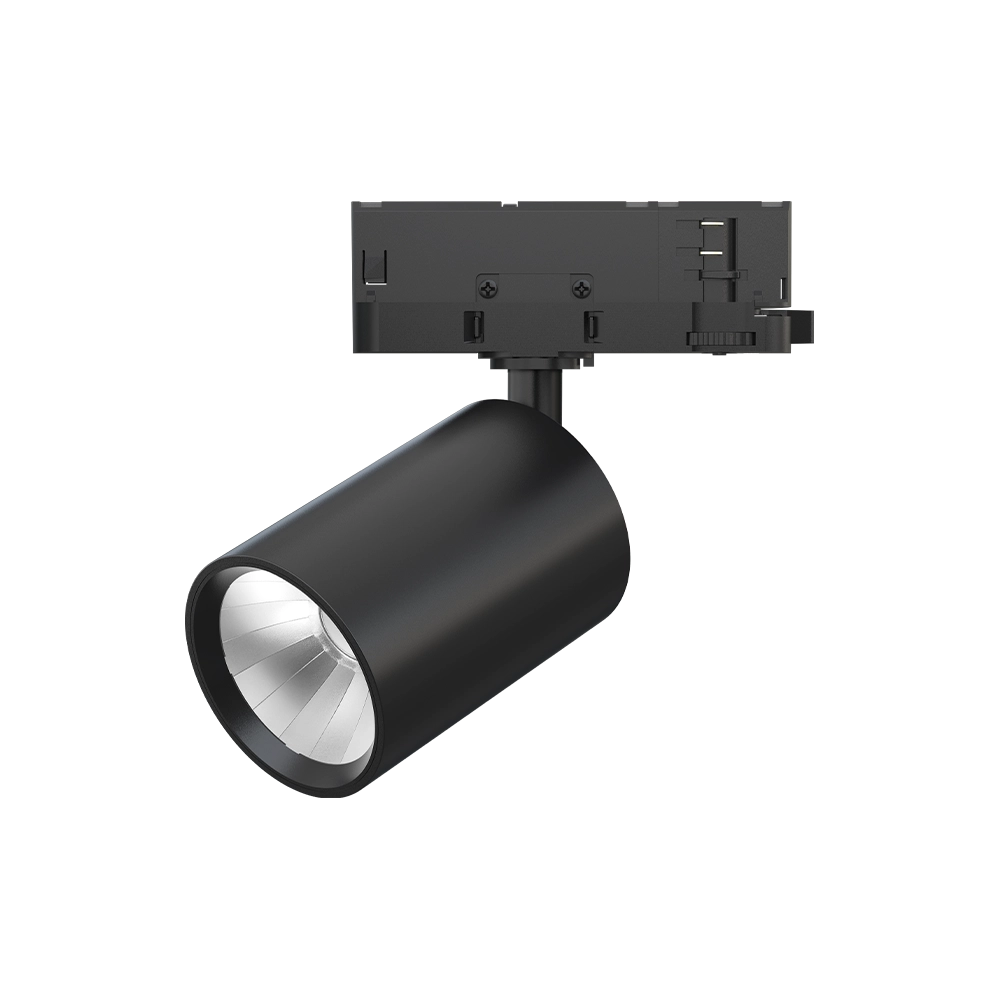

OR Plus D85 Series Intrack LED Track Light 20-30W - XHLUX

In-track LED Track Lights/

OR Plus D85 Series Intrack LED Track Light 20-30W

Productnummer:

XH-TL-20W-OR
XH-TL-25W-OR
XH-TL-30W-OR



Voordeel:

CCT: 2700K, 3000K, 3500K, 4000K, 5000K
CRI: Ra80+, Ra90+, Ra95+
Beam Angle: 18°/20°, 25°/28°, 38°/44°, 60°
Dimming: 0/1-10V, TRIAC, DALI, 2.4G/RF, ZigBee, Casambi/BLE
Color Output: Single CCT
Lamp Efficiency: 120-170 lm/W
Warranty: 5 Years

  • Productdetails
  • Navraag

Productbeschrijving

Introducing the F1M D85 Series Surface Mounted LED Downlight, a high-output modular lighting solution for commercial and architectural lighting projects. With a power range of 25-35W, this series is suitable for spaces that require stronger brightness, precise beam control, and a clean surface mounted appearance.

De F1M D85 Series combines a simple cylindrical housing with flexible optical options, including lens and reflector versions. Beam angles of 15°, 24°, 38°, and 60° make it suitable for retail display areas, galleries, hotels, showrooms, offices, and premium commercial interiors.

Designed for professional project use, this surface mounted LED downlight supports LED chip options such as Citizen, CREE, and Bridgelux, and driver options including Tridonic, Osram, BOKE, TCI, and Philips. It can also be configured with different control systems such as DALI, TRIAC, 0/1-10V, 2.4G/RF, ZigBee, and Casambi/BLE, helping customers meet different project requirements.

For lighting brands, distributors, and project contractors looking for a powerful and flexible surface mounted downlight, the F1M D85 Series Surface Mounted LED Downlight provides a reliable, efficient, and elegant solution.

OR Plus D85 Series Intrack LED Track Light 20-30W
ProductcodeXH-TL-20W-ORXH-TL-25W-ORXH-TL-30W-OR
Stroom20W25W30W
BestuurderTridonic, Osram, BOKE, TCI, Philips
SpanningAC200-240V / AC90-130V, 50/60Hz
VermogensfactorPF>0.90
LED-spanningDC36V
LED-stroom500mA600mA700/750mA
Dimbaar0/1-10V dimmable, Phase dimmable (Triac), DALI dimmable, 2.4G/RF dimmable, ZigBee dimmable, Casambi/BLE dimmable
KleurenweergaveSingle CCT
MaterialenADC12 Gegoten aluminium
MaatD85x110mm
Track Adapter6/4 wire 3 phase, 4/3/2 wire 1 phase
InstallationIntrack
LED-merkCitizen, CREE, Bridgelux
CCT2700K, 3000K, 3500K, 4000K, 5000K
CRIRa80+, Ra90+, Ra95+
SDCM<3
Lifetime50,000h
OptiekLens
Straalhoek18°/20°, 25°/28°, 38°/44°, 60°
LamprendementLamp lumen 120-170lm/W
BeschermingIP20
FinishWhite, Black, Grey
Garantie5 jaar

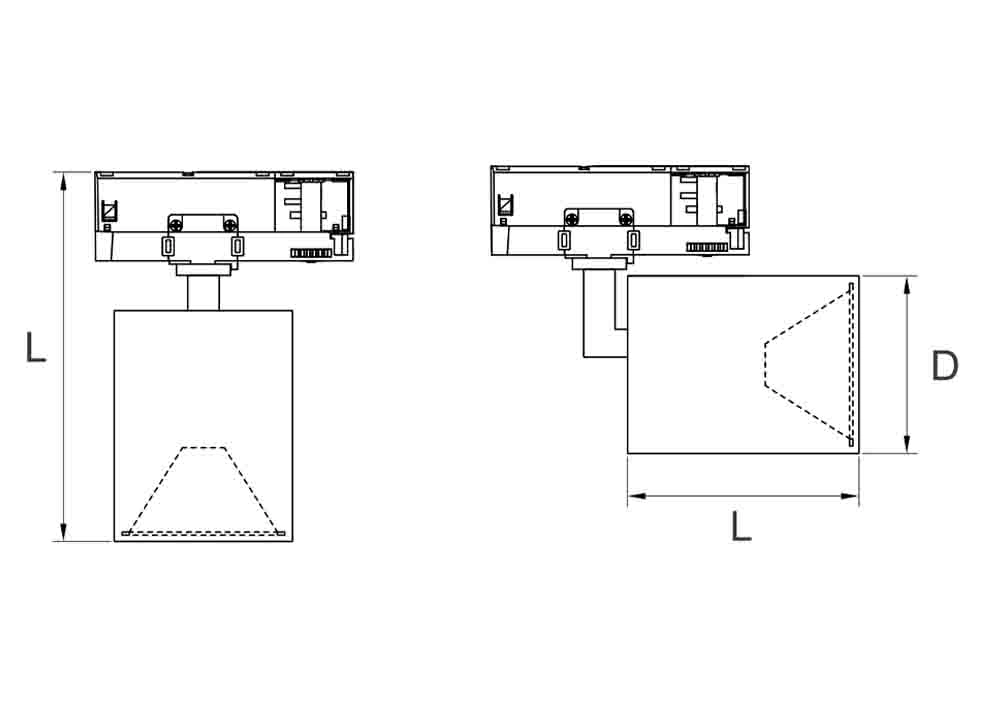

Formaat en tekening

Dimregeling

Application Scenario

Gerelateerde video's

Productlijst

SerieProductnr.StroomLED-spanningHuidigEfficiëntieDimension(DXH)
D70 seriesXH-TL-10W-OR10WDC36V250mA120-170lm/WD70x100mm
XH-TL-15W-OR15WDC36V350mA120-170lm/WD70x100mm
XH-TL-20W-OR20WDC36V500mA120-170lm/WD70x100mm
D85 seriesXH-TL-20W-OR20WDC36V500mA120-170lm/WD85x110mm
XH-TL-25W-OR25WDC36V600mA120-170lm/WD85x110mm
XH-TL-30W-OR30WDC36V700/750mA120-170lm/WD85x110mm
