وصف المنتج

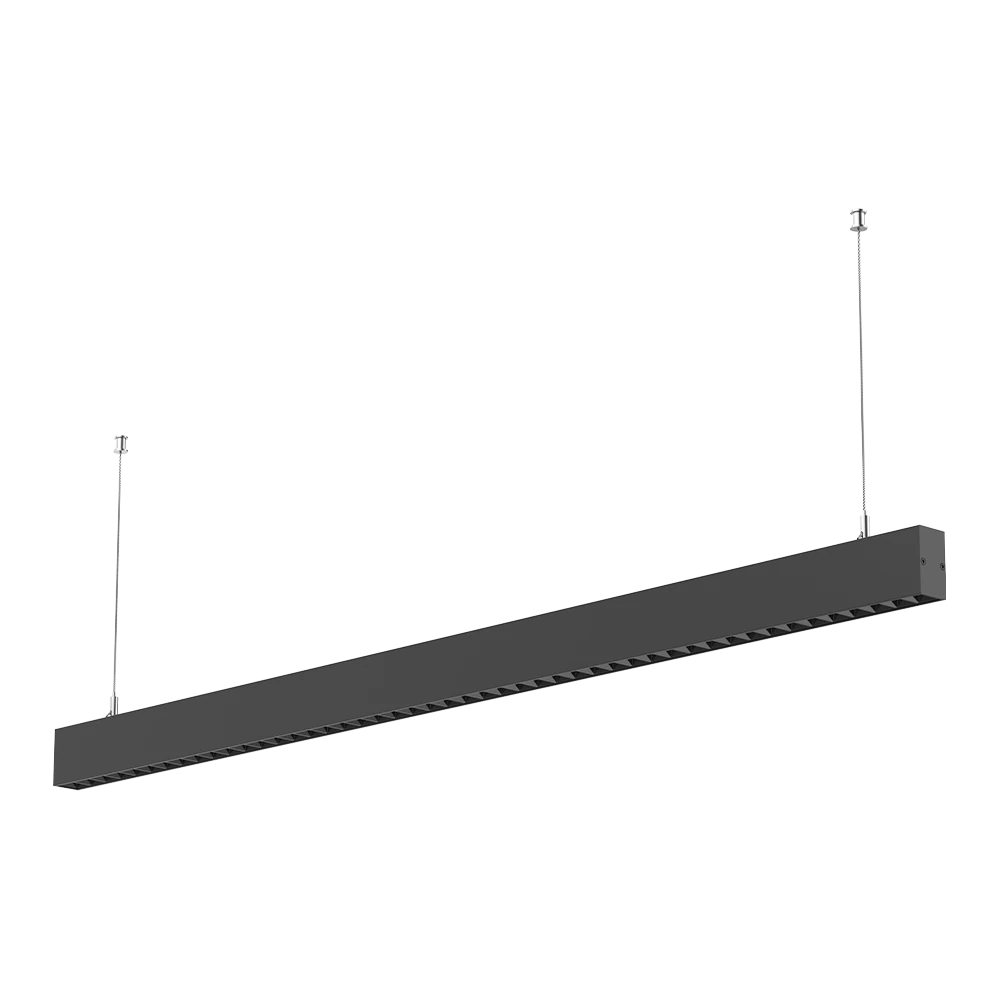

ال 3562 Slenda is a suspended louver lens LED linear light designed for offices, meeting rooms, retail spaces, galleries, showrooms, reception areas, and modern commercial interiors. It is available in 1200mm and 1500mm lengths, with power options ranging from 25W to 50W.
Its slim 35 × 62mm aluminum profile combines a clean architectural appearance with a recessed louver lens optical system. Unlike a standard diffuser, the individual optical cells provide more precise light control and help reduce direct glare in professional working and display environments.
The series offers multiple beam distributions, including 15°, 24°, 55°, 85°, and Asymmetric 20°. Narrow and medium beams can be used for focused lighting, while wider and asymmetric distributions support general illumination, wall lighting, shelving, and directional commercial applications.
Available configurations include 3000K, 4000K, and 5000K, as well as optional 2700K-6500K Tunable White. CRI options include Ra80+, Ra90+, and Ra95+, ، مع SDCM<3 for consistent light color. The luminaire also supports DALI, Push dimming, Tunable White, Casambi, HCL, sensor, and emergency lighting configurations.
With a luminous efficacy of 70-120 lm/W, a rated lifetime of 50,000 ساعة, و ضمان لمدة 5 سنوات, the 3562 Slenda provides lighting brands, distributors, designers, and contractors with a flexible optical linear lighting solution for commercial projects.
| L1200/L1500 Series 3562 Slenda Louver Lens LED Linear Light 25-50W | ||||||||||
| مسلسل | L1200 Series | |||||||||
| رمز المنتج | XH-LL-3562-25W-OS | XH-LL-3562-30W-OS | XH-LL-3562-35W-OS | |||||||
| قوة | 25 واط | 30 واط | 35 واط | |||||||
| مقاس | L1200x35x62mm | L1200x35x62mm | L1200x35x62mm | |||||||
| مسلسل | L1500 Series | |||||||||
| رمز المنتج | XH-LL-3562-40W-OS | XH-LL-3562-45W-OS | XH-LL-3562-50W-OS | |||||||
| قوة | 40 واط | 45 واط | 50 واط | |||||||
| مقاس | L1500x35x62mm | L1500x35x62mm | L1500x35x62mm | |||||||
| السائق | Tridonic, BOKE, Philips | |||||||||
| معامل القدرة | PF>0.90 | |||||||||
| جهد LED | تيار مستمر 36 فولت | |||||||||
| قابل للتعتيم | On/Off, DALI, Push dimming, CCT Tunable, Casambi, HCL, Sensor, Emergency | |||||||||
| مخرجات الألوان | Single CCT / Tunable White | |||||||||
| مواد | 6063 Aluminum | |||||||||
| تثبيت | معلق | |||||||||
| شريحة LED | SMD2835 | |||||||||
| CCT | 3000K, 4000K, 5000K; Tunable White 2700K-6500K | |||||||||
| CRI | Ra80+، Ra90+، Ra95+ | |||||||||
| SDCM | <3 | |||||||||
| حياة | 50000 ساعة | |||||||||
| بصريات | Louver Lens | |||||||||
| زاوية الشعاع | 15° / 24° / 55° / 85° / Asymmetric 20° | |||||||||
| كفاءة المصباح | Lamp lumen 70-120lm/W | |||||||||
| حماية | IP20, IK07 | |||||||||
| ينهي | أبيض، أسود | |||||||||
| ضمان | خمس سنوات | |||||||||
الحجم والرسم
التحكم في التعتيم
سيناريو التطبيق
قائمة المنتجات
| مسلسل | رقم المنتج. | قوة | جهد LED | كفاءة | Dimension (LxWxH) | |||||
| L1200 Series | XH-LL-3562-25W-OS | 25 واط | تيار مستمر 36 فولت | 70-120lm/W | L1200x35x62mm | |||||
| XH-LL-3562-30W-OS | 30 واط | تيار مستمر 36 فولت | 70-120lm/W | L1200x35x62mm | ||||||
| XH-LL-3562-35W-OS | 35 واط | تيار مستمر 36 فولت | 70-120lm/W | L1200x35x62mm | ||||||
| L1500 Series | XH-LL-3562-40W-OS | 40 واط | تيار مستمر 36 فولت | 70-120lm/W | L1500x35x62mm | |||||
| XH-LL-3562-45W-OS | 45 واط | تيار مستمر 36 فولت | 70-120lm/W | L1500x35x62mm | ||||||
| XH-LL-3562-50W-OS | 50 واط | تيار مستمر 36 فولت | 70-120lm/W | L1500x35x62mm | ||||||
