XHLUX
Описание продукта
XHLUX представляет... X7 D230 Series Ultra Slim LED Downlight, a top-of-the-line lighting solution for any space. With a power range of 25-30W, this downlight offers exceptional brightness and energy efficiency.
The ultra slim design of this LED downlight makes it perfect for installations where space is limited. Whether you’re looking to illuminate a small room or a large commercial space, the D230 Series Ultra Thin LED Downlight is up to the task.
Manufactured with high-quality materials, this Светодиодный потолочный светильник is built to last and will provide reliable performance for years to come. The sleek and modern design of the X7 D230 Series will complement any decor, making it a versatile choice for a wide range of applications.
Illuminate your space with the X7 D230 Series Ultra Slim LED Downlight and enjoy the benefits of superior lighting quality and energy efficiency. Choose a lighting solution you can trust – choose the X7 D230 Series.
| X7 D230 Ultra Slim LED Downlight | ||
| Код товара | XH-HDLR-25W-X7 | XH-HDLR-30W-X7 |
| Власть | 30 Вт | 35W |
| Водитель | Tridonic, Philips, Osram, HEP, TCI, BOKE, Lifud | |
| Напряжение | AC200-240В, AC100-240В | |
| коэффициент мощности | PF>0.9 | |
| напряжение светодиода | DC36V | |
| Токовый ток светодиода | 700/750 мА | 900mA |
| Регулировка яркости | DALI, TRIAC, 0/1-10 В, ZigBee, BLE, 2,4 ГГц, DMX | |
| Цветной вывод | Один цвет, TW, DTW, RGB, RGBW, RGBCW | |
| Материалы | ADC12 Литой алюминий | |
| Размер | D230xH38mm | |
| Вырезать | D200mm | |
| Бренд светодиодов | Samsung SMD2835 | |
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | |
| КРИ | CRI80+, CRI90+, CRI95+, CRI98+ | |
| SDCM | <3 | |
| Оптика | PC diffuser | |
| Угол луча | 120° | |
| Эффективность светодиодов | Световой поток светодиода: 110-200 лм/Вт | |
| Эффективность лампы | Lamp lumen 100-130lm/W | |
| Защита | IP20 | |
| Заканчивать | Мэтт Уайт, Мэтт Блэк | |
| Гарантия | 5 лет | |

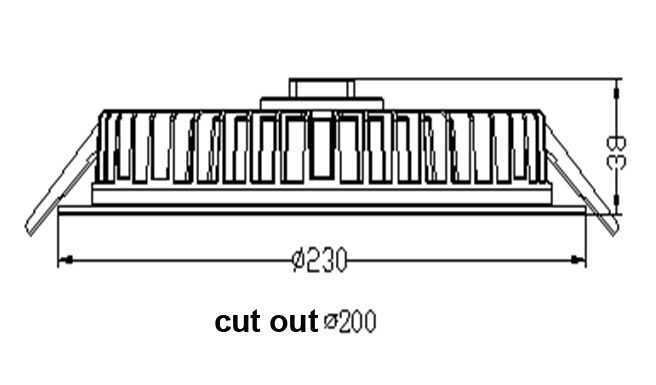

Размер и чертеж
Регулировка яркости
Сценарии применения
Похожие видео
Список товаров
| Ряд | Номер изделия. | Власть | Напряжение светодиода | Текущий | Эффективность | Габариты (ДхВ) | Вырезать |
| D106 Series | XH-HDLR-5W-X7 | 5 Вт | DC36V | 150 мА | 100-130lm/W | Ø106x34mm | Ø90mm |
| XH-HDLR-10W-X7 | 10 Вт | DC36V | 250 мА | 100-130lm/W | Ø106x34mm | Ø90mm | |
| D140 Series | XH-HDLR-12W-X7 | 12 Вт | DC36V | 300 мА | 100-130lm/W | Ø140x36mm / Ø140x40mm | Ø125mm |
| XH-HDLR-15W-X7 | 15 Вт | DC36V | 350 мА | 100-130lm/W | Ø140x36mm / Ø140x40mm | Ø125mm | |
| Серия D180 | XH-HDLR-20W-X7 | 20 Вт | DC36V | 500 мА | 100-130lm/W | Ø180x38mm / Ø180x48mm | Ø160mm |
| XH-HDLR-25W-X7 | 25W | DC36V | 600mA | 100-130lm/W | Ø180x38mm / Ø180x48mm | Ø160mm | |
| D230 Series | XH-HDLR-30W-X7 | 30 Вт | DC36V | 700/750 мА | 100-130lm/W | Ø230x38mm / Ø230x62mm | Ø200mm |
| XH-HDLR-35W-X7 | 35W | DC36V | 900mA | 100-130lm/W | Ø230x38mm / Ø230x62mm | Ø200mm |
