The X5 COB D190 Series LED Downlight is a high-quality lighting solution designed for both residential and commercial applications. With a power range of 20-30W, this downlight offers a perfect balance of brightness and energy efficiency.
The D190 Series LED Downlight features cutting-edge COB technology, providing a uniform and glare-free illumination that enhances the overall ambiance of any space. Its sleek and modern design makes it a versatile choice for various lighting projects, from kitchens and living rooms to offices and retail stores.
As a global supplier, we ensure that our products meet the highest standards of quality and performance. The X5 COB Series LED Downlight is easy to install and requires minimal maintenance, making it a cost-effective lighting solution for any project.
Whether you are looking to upgrade your home lighting or enhance the atmosphere of your business, the X5 COB Series D190 LED Downlight is the perfect choice. Trust in our expertise and choose a lighting solution that will exceed your expectations.
| X5 COB Series D190 LED Downlight | ||
| Код товара | XH-DL-25W-X5 | XH-DL-30W-X5 |
| Власть | 25W | 30 Вт |
| Водитель | Tridonic, Philips, Osram, HEP, TCI, BOKE, Lifud | |
| Напряжение | AC200-240В, AC100-240В | |
| коэффициент мощности | PF>0.9 | |
| напряжение светодиода | DC36V | |
| Токовый ток светодиода | 600mA | 700/750 мА |
| Регулировка яркости | DALI, TRIAC, 0/1-10 В, ZigBee, BLE, 2,4 ГГц, DMX | |
| Цветной вывод | Один цвет, TW, DTW, RGB, RGBW, RGBCW | |
| Материалы | ADC12 Литой алюминий | |
| Размер | D190xH86mm | |
| Вырезать | D165mm | |
| Бренд светодиодов | Citizen, Bridgelux, CREE, Philips, Luminus | |
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | |
| КРИ | CRI80+, CRI90+, CRI95+, CRI98+ | |
| SDCM | <3 | |
| Оптика | Reflector | |
| Угол луча | 60° | |
| Эффективность светодиодов | Световой поток светодиода: 110-200 лм/Вт | |
| Эффективность лампы | Lamp lumen 100-130lm/W | |
| Защита | IP20 | |
| Заканчивать | Мэтт Уайт, Мэтт Блэк | |
| Гарантия | 5 лет | |

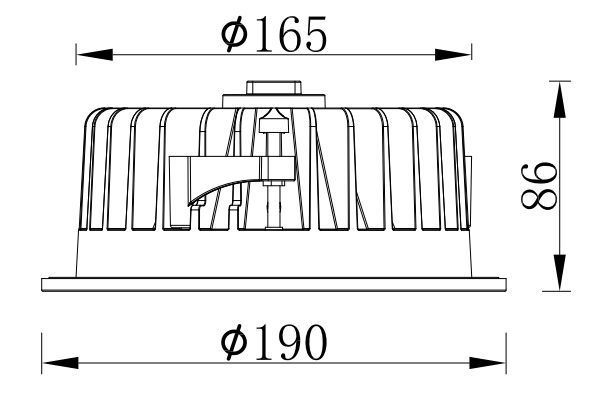

Размер и чертеж
Регулировка яркости
Сценарии применения
Похожие видео
Список товаров
| Ряд | Номер изделия. | Власть | Напряжение светодиода | Текущий | Эффективность | Габариты (ДхВ) | Вырезать |
| D110 Series | XH-DL-10W-X5 | 10 Вт | DC36V | 250 мА | 100-130lm/W | Ø110x53mm | Ø90mm |
| XH-DL-15W-X5 | 15 Вт | DC36V | 350 мА | 100-130lm/W | Ø110x53mm | Ø90mm | |
| D145 Series | XH-DL-15W-X5 | 15 Вт | DC36V | 350 мА | 100-130lm/W | Ø145x69mm | Ø125mm |
| XH-DL-20W-X5 | 20 Вт | DC36V | 500 мА | 100-130lm/W | Ø145x69mm | Ø125mm | |
| D190 Series | XH-DL-25W-X5 | 25W | DC36V | 600mA | 100-130lm/W | Ø190x86mm | Ø165mm |
| XH-DL-30W-X5 | 30 Вт | DC36V | 700/750 мА | 100-130lm/W | Ø190x86mm | Ø165mm | |
| D230 Series | XH-DL-35W-X5 | 35W | DC36V | 800mA | 100-130lm/W | Ø230x100mm | Ø200mm |
| XH-DL-40W-X5 | 40 Вт | DC36V | 900mA | 100-130lm/W | Ø230x100mm | Ø200mm | |
| XH-DL-45W-X5 | 45W | DC36V | 1050mA | 100-130lm/W | Ø230x100mm | Ø200mm | |
| XH-DL-50W-X5 | 50W | DC36V | 1200mA | 100-130lm/W | Ø230x100mm | Ø200mm |
