XHLUX
Описание продукта
XHLUX представляет... D140 Series Second Generation Gimbal Down Light, a cutting-edge lighting solution that combines style and functionality. With a power range of 15-25W, this Gimbal LED Downlight is perfect for both residential and commercial applications.
Designed with precision and attention to detail, this second generation downlight offers improved performance and energy efficiency. The gimbal design allows for flexibility in directing the light exactly where it’s needed, providing optimal illumination in any space.
The sleek and modern design of the D140 Series adds a touch of sophistication to any room, while the high-quality LED technology ensures long-lasting performance. Whether you’re looking to brighten up a living room, office, or retail space, this downlight is the perfect choice.
Easy to install and maintain, the D140 Series Gimbal Down Light is a reliable and cost-effective lighting solution that will enhance the ambiance of any environment. Upgrade your lighting with this innovative and stylish downlight today.
| D140 Series Second Generation Gimbal Down Light 15-25W | |||
| Код товара | XH-GM-15W-R | XH-GM-20W-R | XH-GM-25W-R |
| Власть | 15 Вт | 20 Вт | 25W |
| Водитель | Tridonic, Philips, Osram, HEP, TCI, BOKE, Lifud | ||
| Напряжение | AC200-240В, AC100-240В | ||
| коэффициент мощности | PF>0.9 | ||
| напряжение светодиода | DC36V | ||
| Токовый ток светодиода | 350 мА | 500 мА | 600mA |
| Регулировка яркости | DALI, TRIAC, 0/1-10 В, ZigBee, BLE, 2,4 ГГц, DMX | ||
| Цветной вывод | Один цвет, TW, DTW, RGB, RGBW, RGBCW | ||
| Материалы | ADC12 Литой алюминий | ||
| Размер | D140mmXH115mm | ||
| Adapter brand | Global, Powergear, Unipro, STUCCHI, Eutrac | ||
| Бренд светодиодов | Citizen, Bridgelux, CREE, Philips, Luminus | ||
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | ||
| КРИ | CRI80+, CRI90+, CRI95+, CRI98+ | ||
| SDCM | <3 | ||
| Оптика | Mirror reflector | ||
| Угол луча | 15/24/36/60° | ||
| Эффективность светодиодов | Световой поток светодиода: 110-200 лм/Вт | ||
| Эффективность лампы | Lamp lumen 100-130lm/W | ||
| Защита | IP20 | ||
| Заканчивать | Мэтт Уайт, Мэтт Блэк | ||
| Гарантия | 5 лет | ||

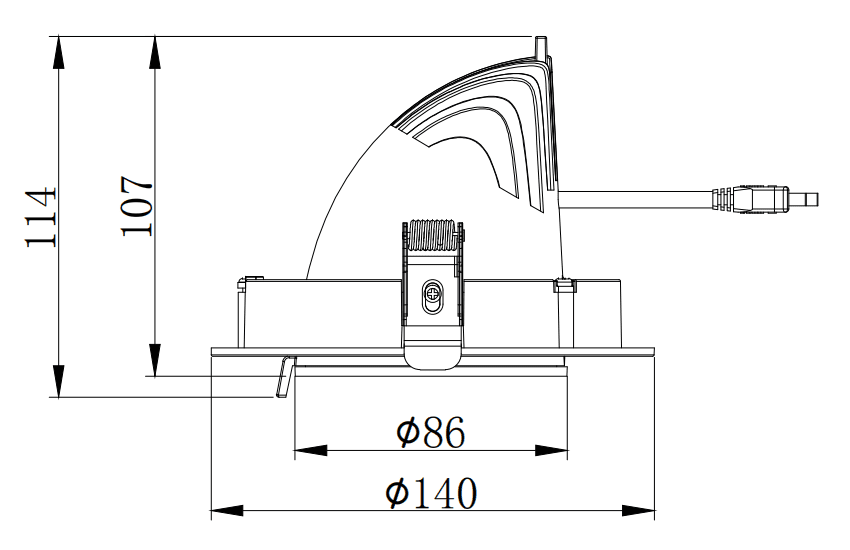

Size and Drawing
Регулировка яркости
Сценарии применения
Похожие видео
Список товаров
| Ряд | Номер изделия. | Власть | Напряжение светодиода | Текущий | Эффективность | Габариты (ДхВ) | Вырезать |
| D140 Series | XH-DL-GM-15W-R | 15 Вт | DC36V | 350 мА | 100-130lm/W | Ø140x114mm | Ø125mm |
| XH-DL-GM-20W-R | 20 Вт | DC36V | 500 мА | 100-130lm/W | Ø140x114mm | Ø125mm | |
| XH-DL-GM-25W-R | 25W | DC36V | 600mA | 100-130lm/W | Ø140x114mm | Ø125mm | |
| D160 Series | XH-DL-GM-25W-R | 25W | DC36V | 600mA | 100-130lm/W | Ø160x130mm | Ø145mm |
| XH-DL-GM-30W-R | 30 Вт | DC36V | 700/750 мА | 100-130lm/W | Ø160x130mm | Ø145mm | |
| XH-DL-GM-35W-R | 35W | DC36V | 800mA | 100-130lm/W | Ø160x130mm | Ø145mm | |
| D190 Series | XH-DL-GM-30W-R | 30 Вт | DC36V | 700/750 мА | 100-130lm/W | Ø190x154mm | Ø175mm |
| XH-DL-GM-40W-R | 40 Вт | DC36V | 900mA | 100-130lm/W | Ø190x154mm | Ø175mm | |
| XH-DL-GM-45W-R | 45W | DC36V | 1050mA | 100-130lm/W | Ø190x154mm | Ø175mm | |
| D220 Series | XH-DL-GM-30W-R | 30 Вт | DC36V | 700/750 мА | 100-130lm/W | Ø220x154mm | Ø205mm |
| XH-DL-GM-40W-R | 40 Вт | DC36V | 900mA | 100-130lm/W | Ø220x154mm | Ø205mm | |
| XH-DL-GM-45W-R | 45W | DC36V | 1050mA | 100-130lm/W | Ø220x154mm | Ø205mm |
